HANPOSE Double Shaft 23HS7628-D 76mm Nema 23 Stepper Motor 57 Motor 2.8A 189N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engravi

Reference: BG0052-9834333

Condition: New product

100 Items

$44.11

More info

Description:

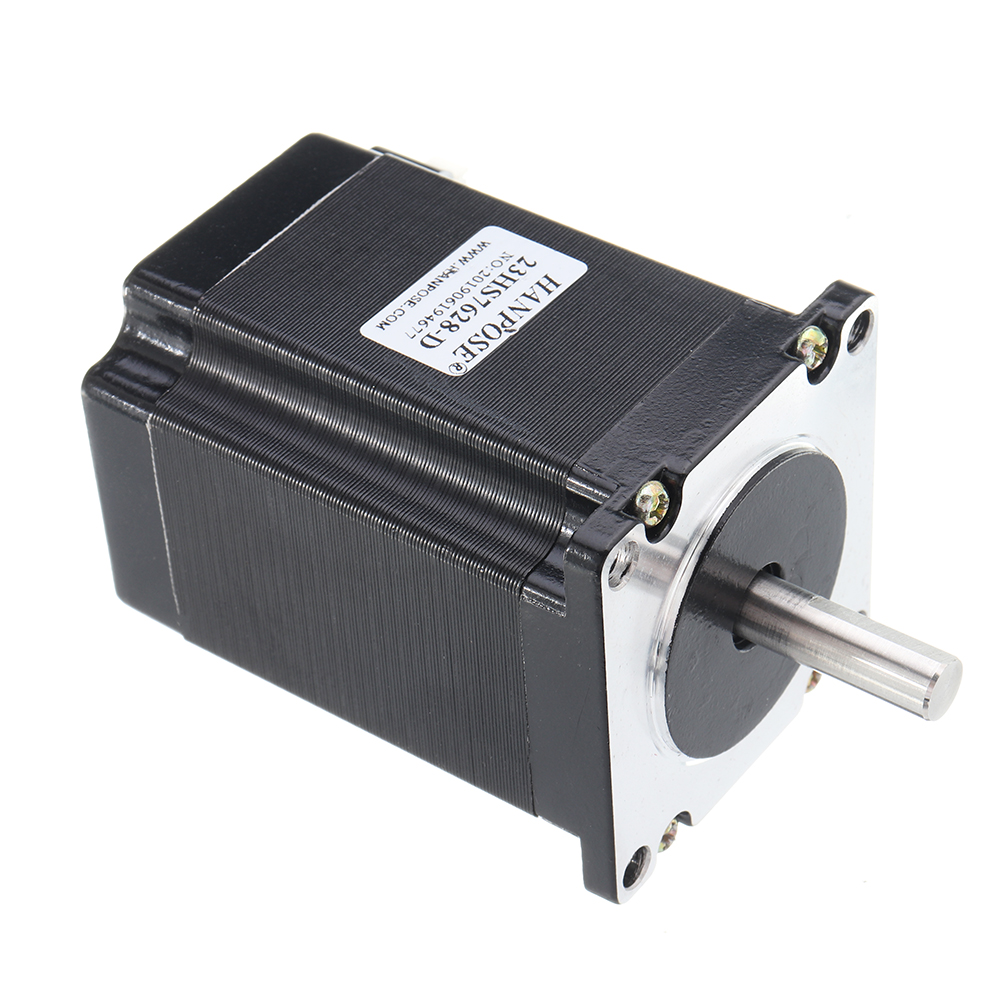

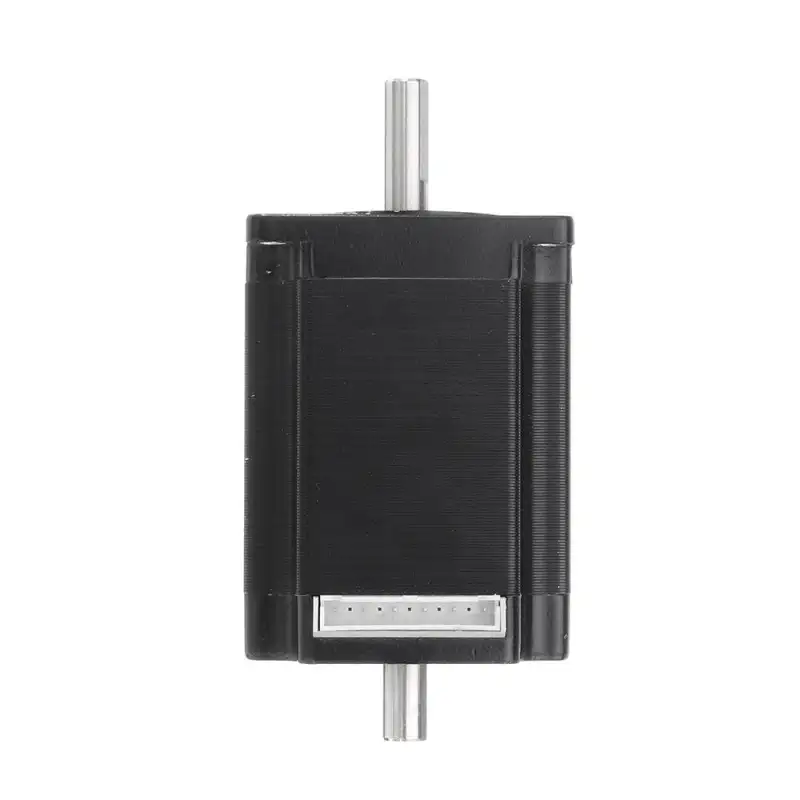

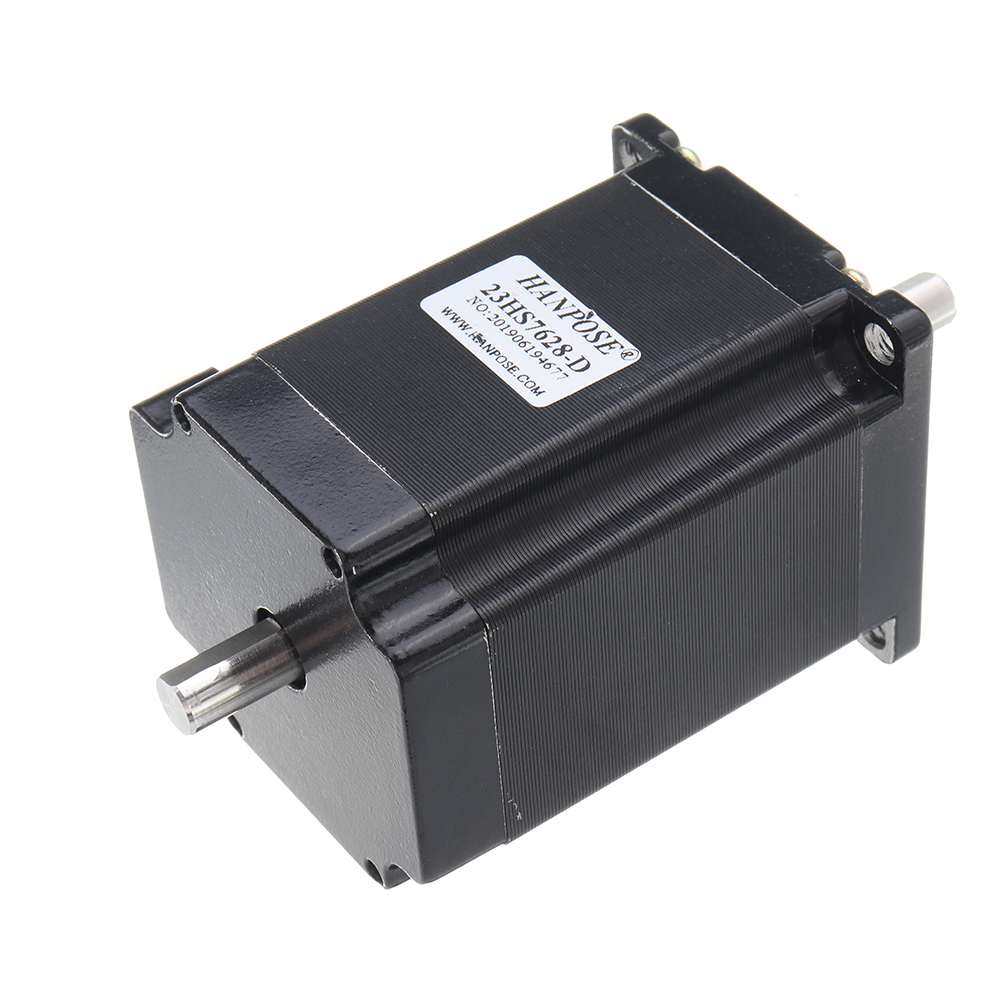

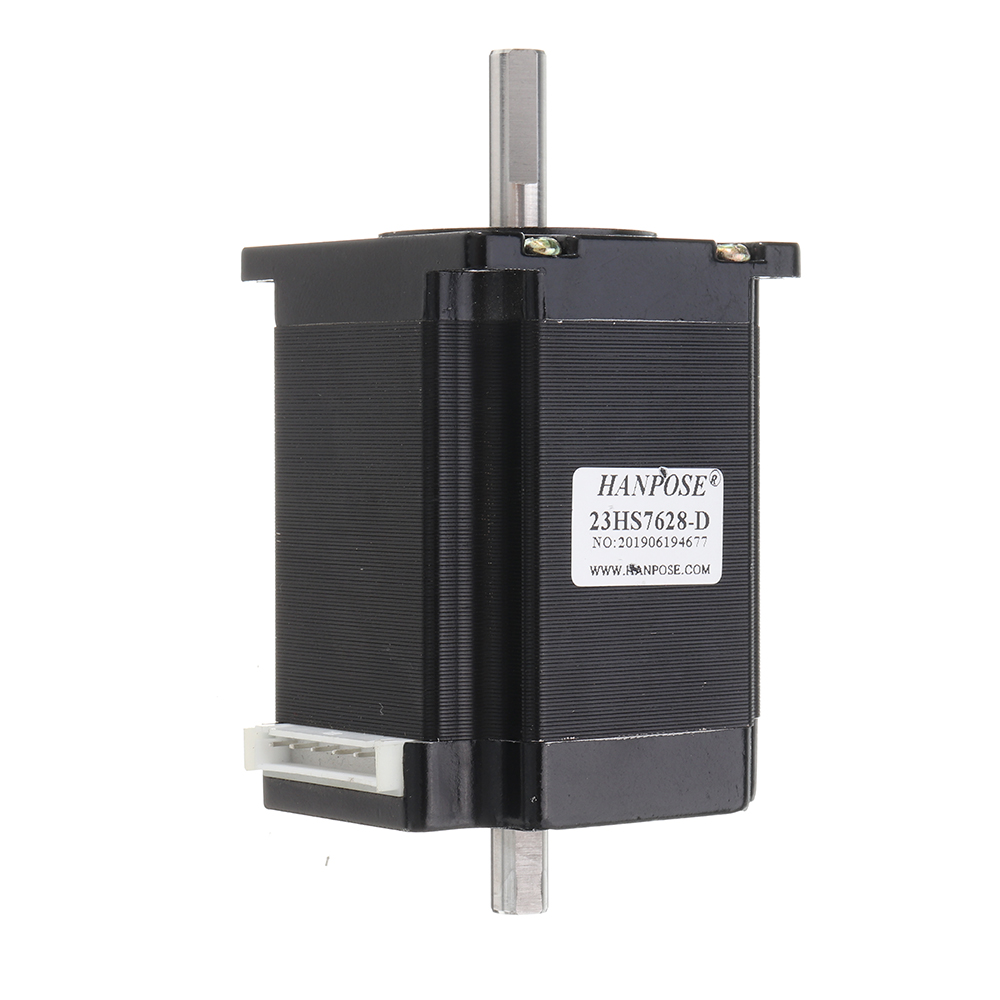

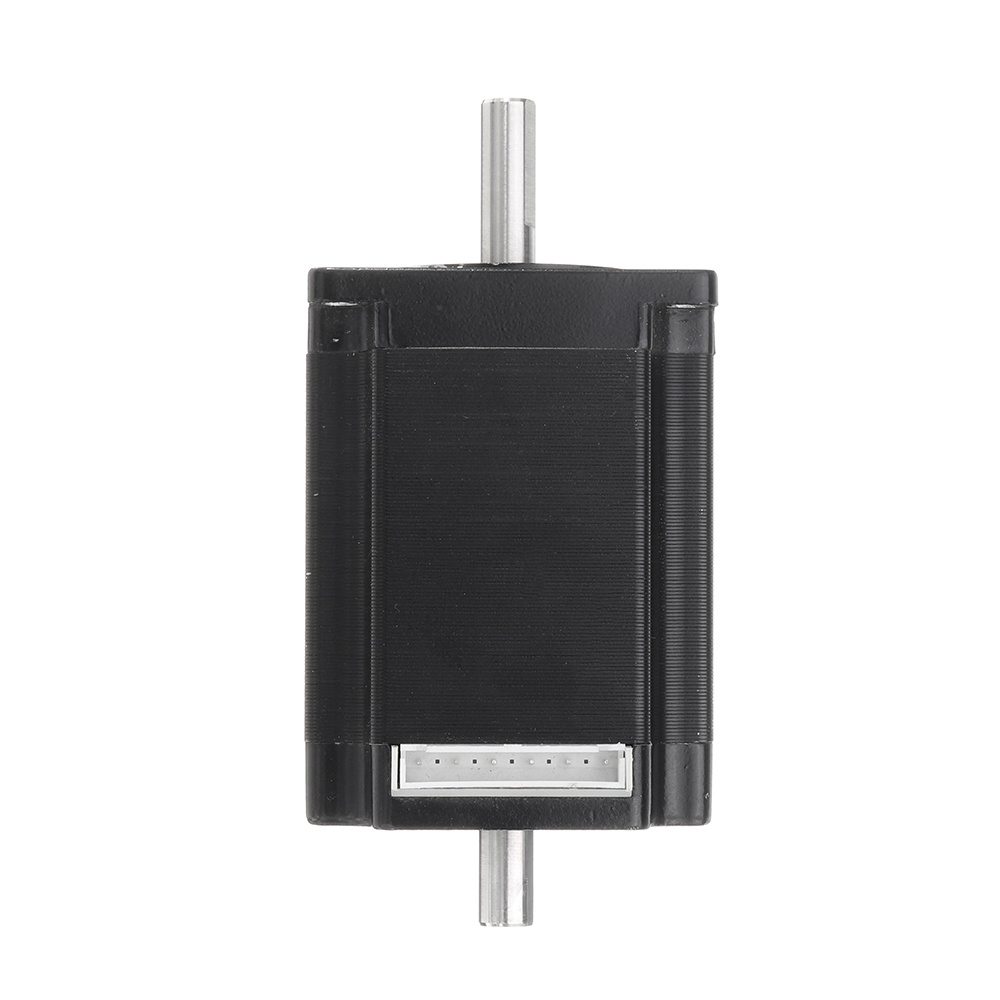

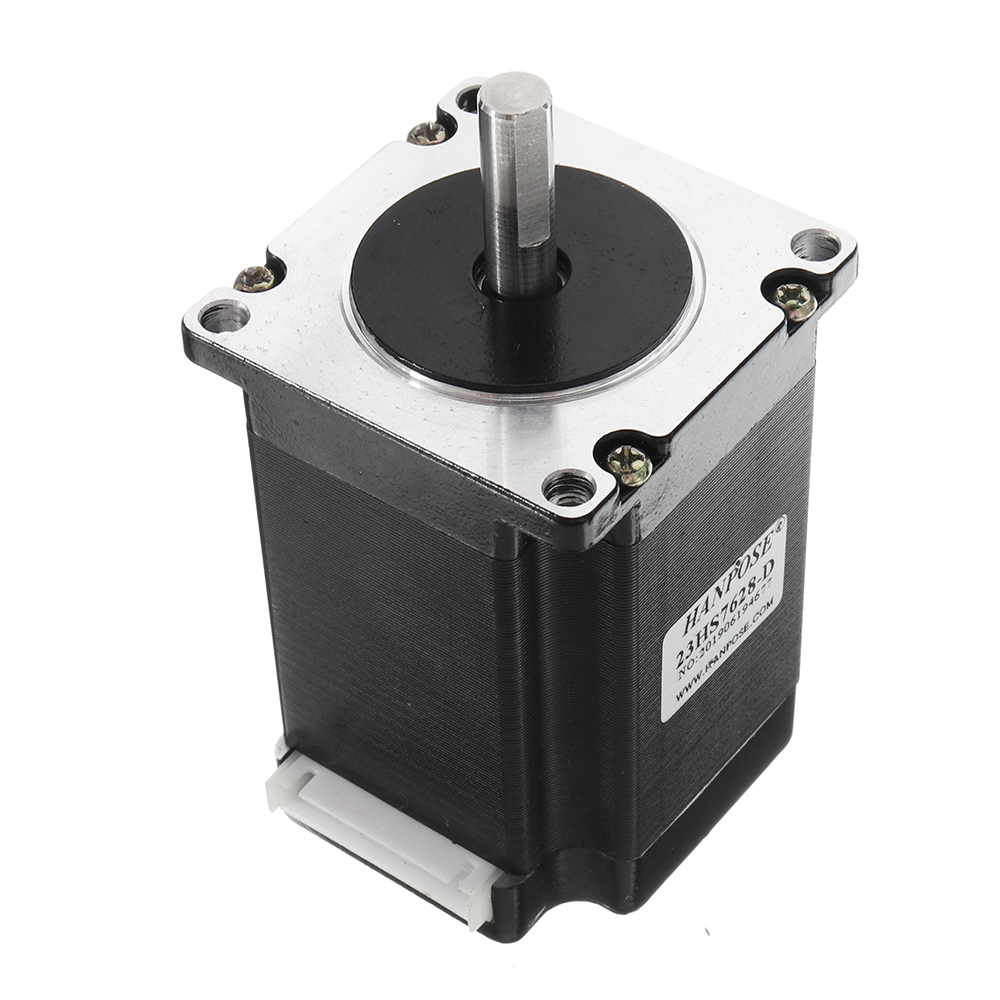

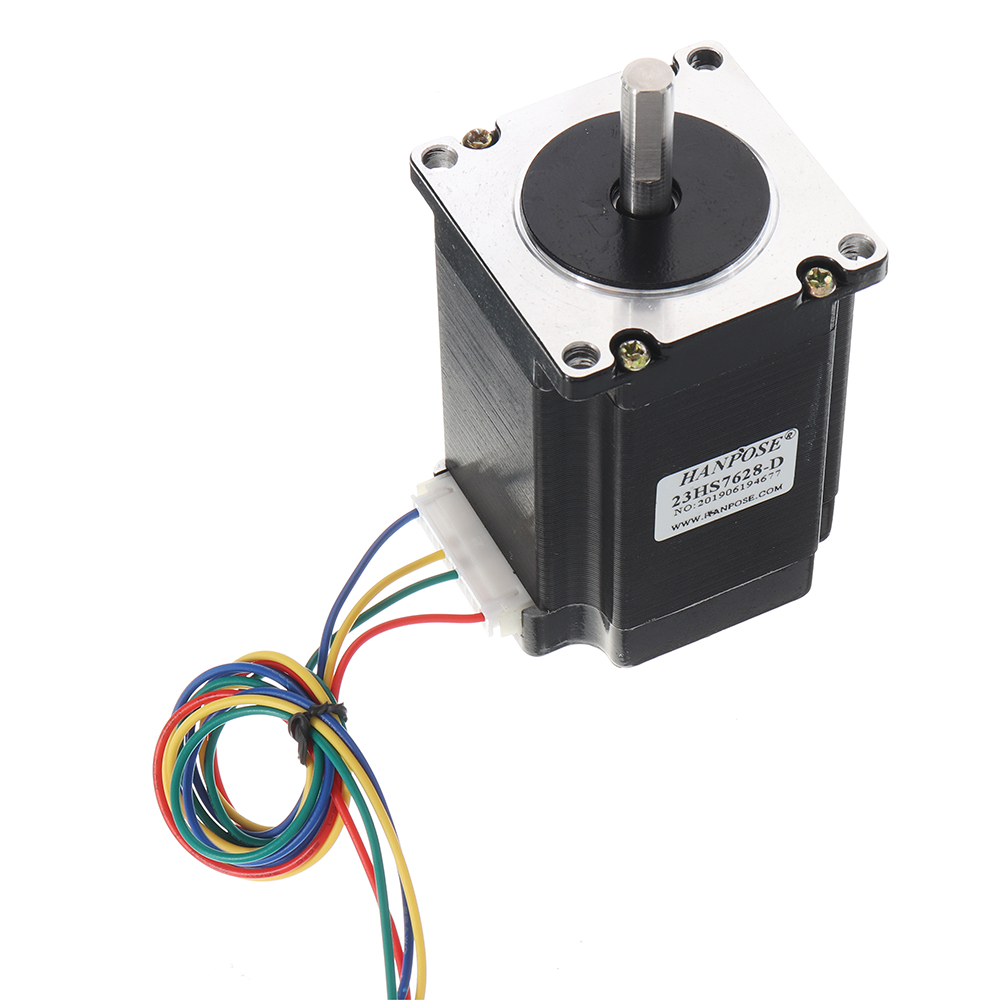

HANPOSE Double Shaft 23HS7628-D 76mm Nema 23 Stepper Motor 57 Motor 2.8A 189N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine
Certification: CE, ROSH, ISO, FCC

Specification:
Model 23HS7628-D
Phase 2
Step Angle 1.8°

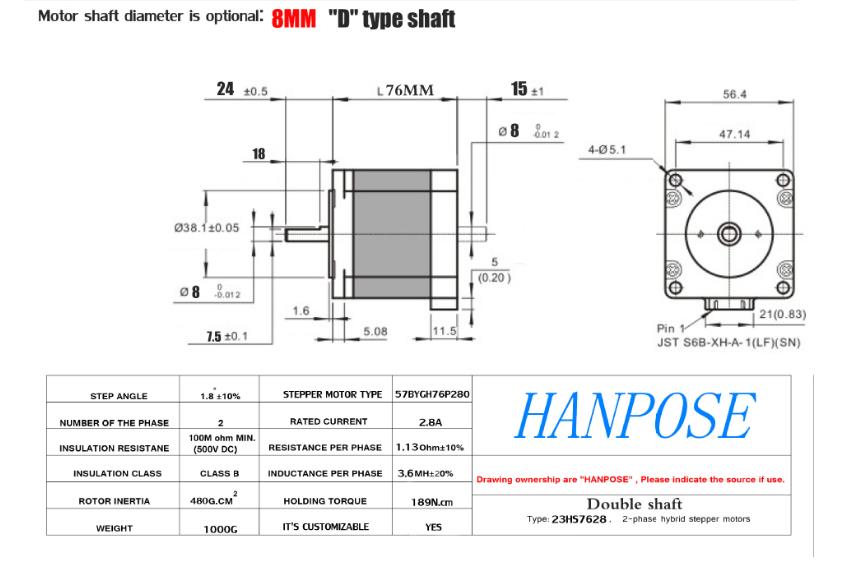

Motor Size 57 x 76mm

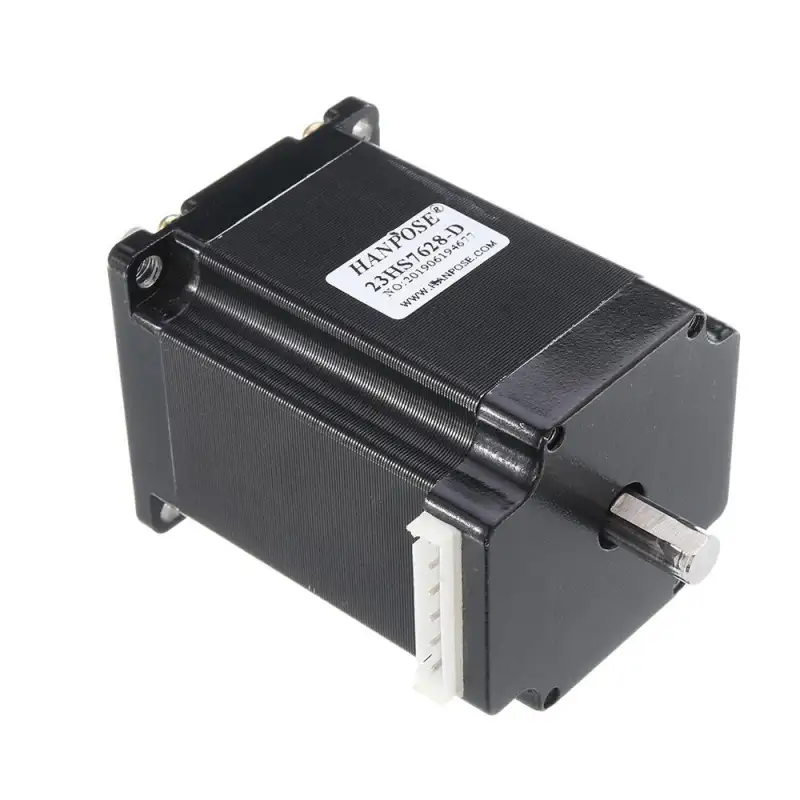

Shaft "D" shaft  22xФ8 + 15xФ8mm

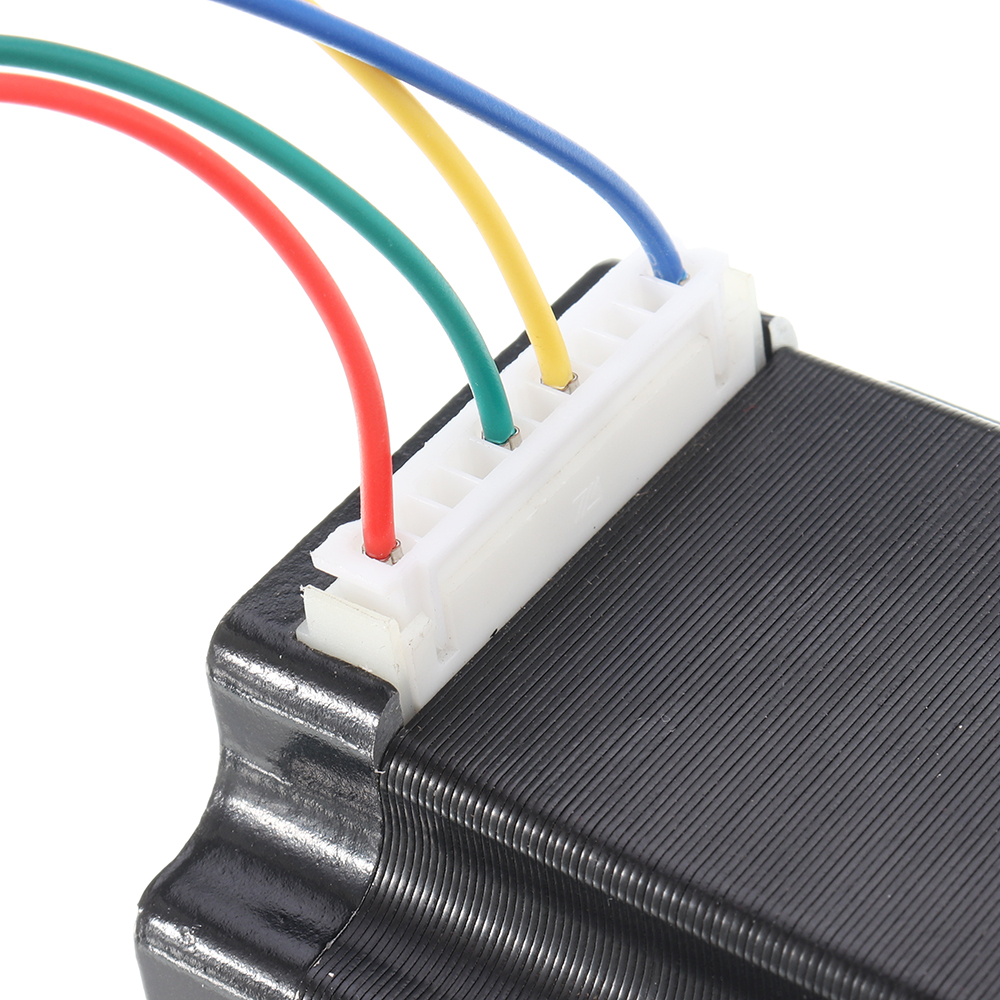

Outlet way "4" plug line

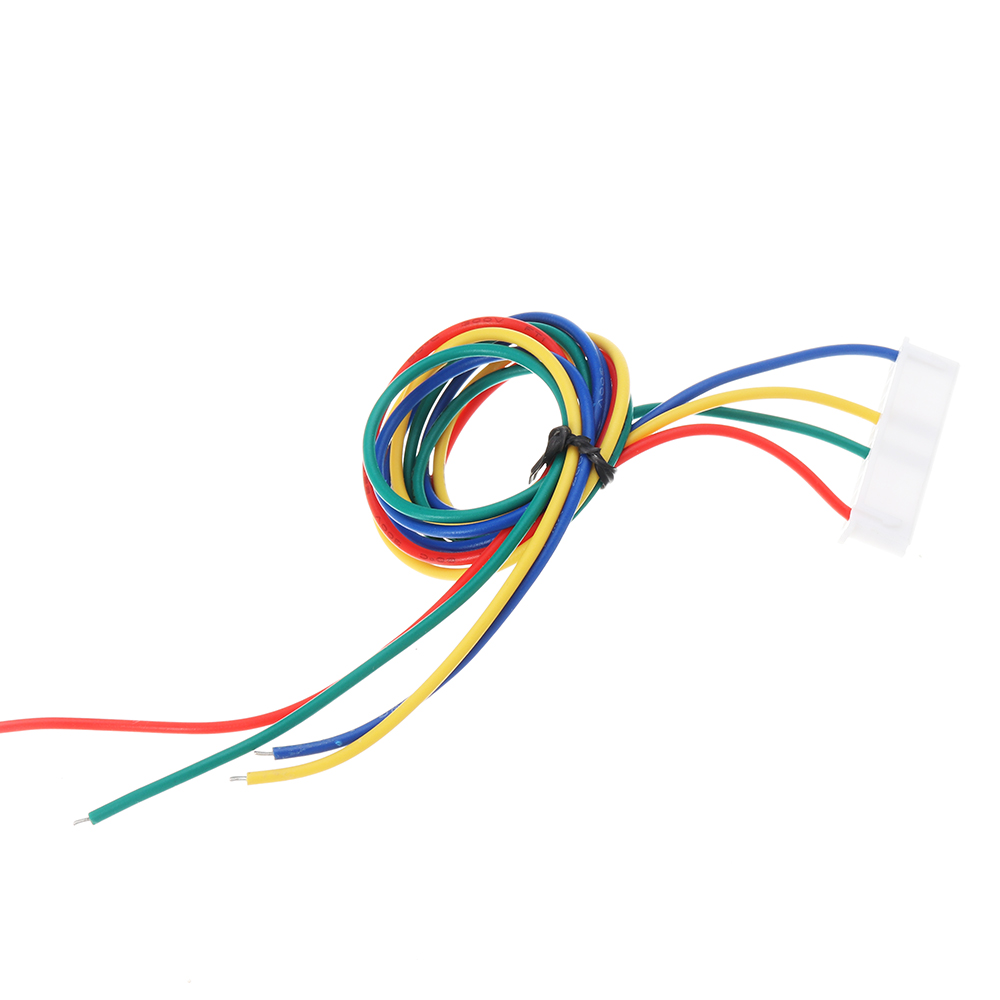

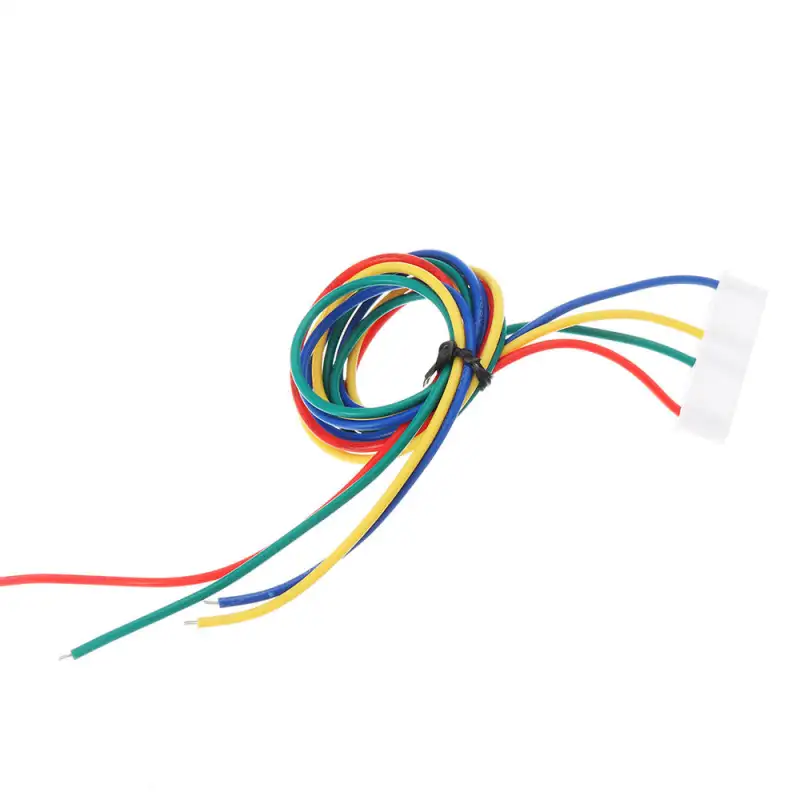

Motor leads 30cm Wire
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.


Electrical Specifications:
Model No. Step Angle Motor Length Rated
Voltage		 Rated
Current		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque Inertia Of
Rotor		   Lead
( °) (L)mm (V) (A) (Ω) (mH) (N.cm)  (G. cm²) (No.)
23HS7628-D  1.8 76 3.2 2.8 1.13 3.6 189 480 4

General Specification:
Precision angle step ±5% (full step, no charge)
Resistance accuracy ±10%
Precision inductance ±20%
Temperature rise 80deg Max (rated current, 2 phase on)
Ambient temperature ( - 20°)-(+ 50°)
Insulation resistance 100MΩ Min, 500VDC
Insultion Force 500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.

Package Included:
1 X 23HS7628-D Stepper Motor
