HANPOSE 23HS5128 51mm Nema 23 Stepper Motor 57 Motor 2.8A 101N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine

Reference: BG0052-9977399

Condition: New product

100 Items

$27.72

More info

Description:

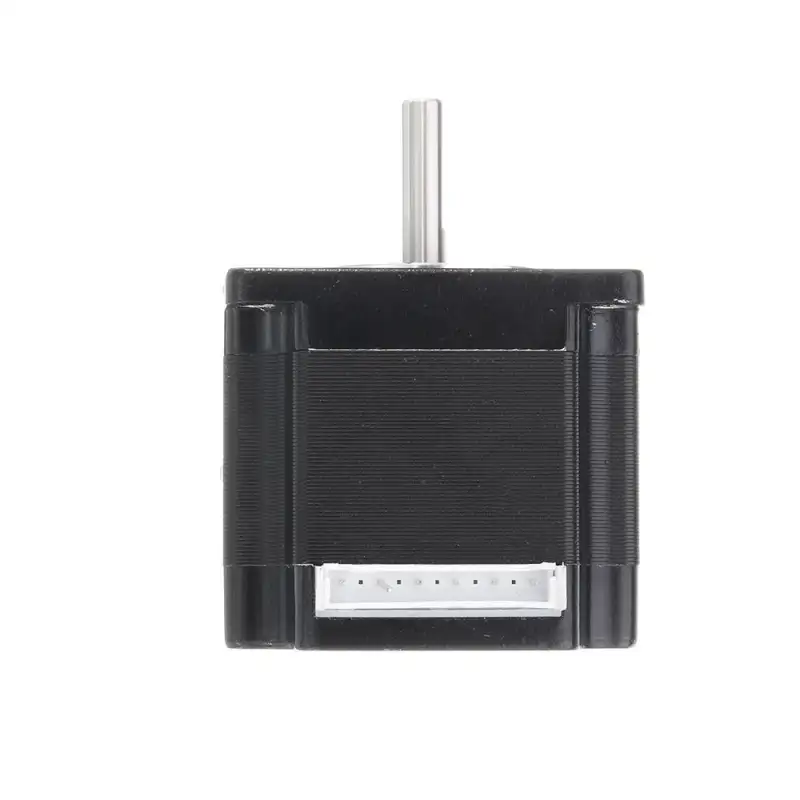

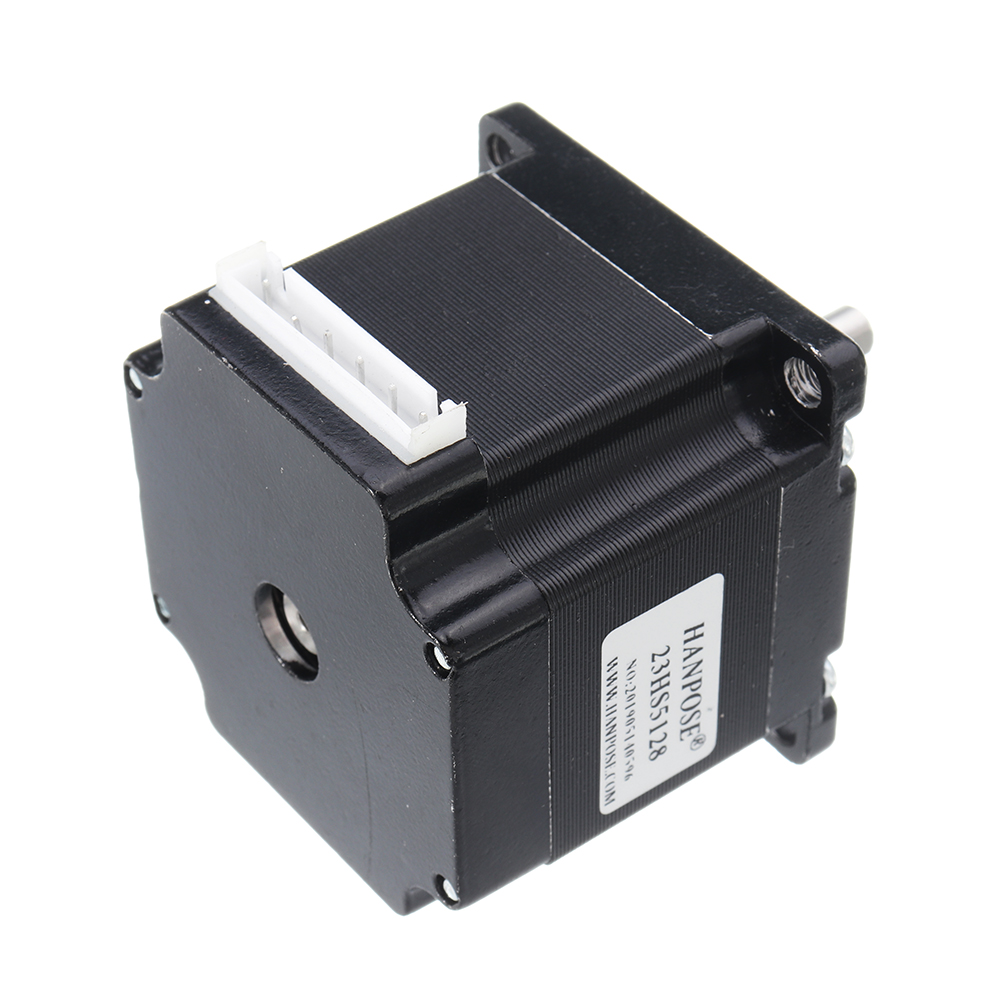

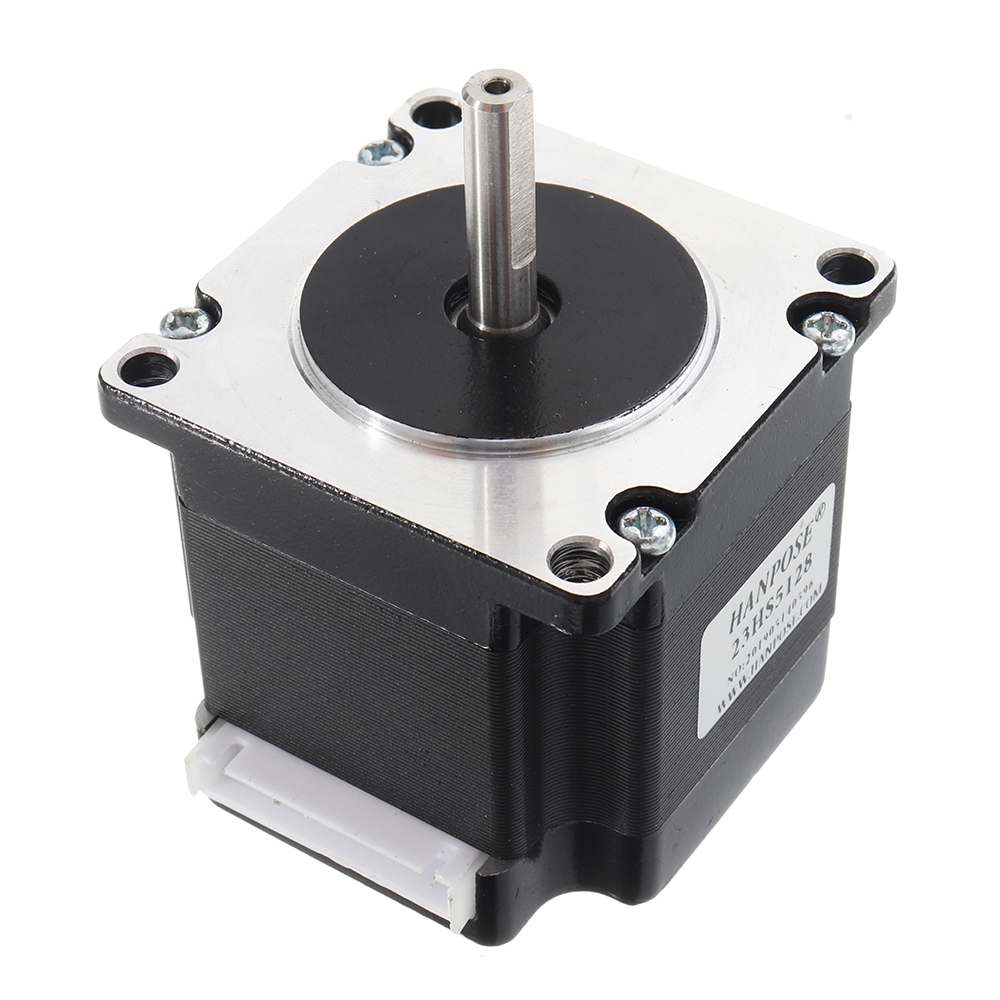

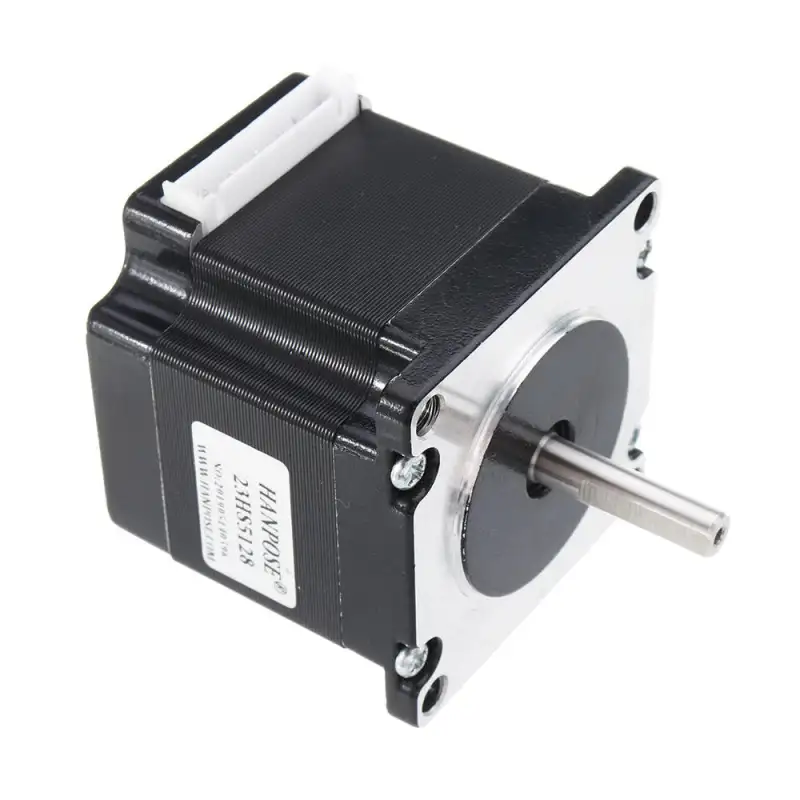

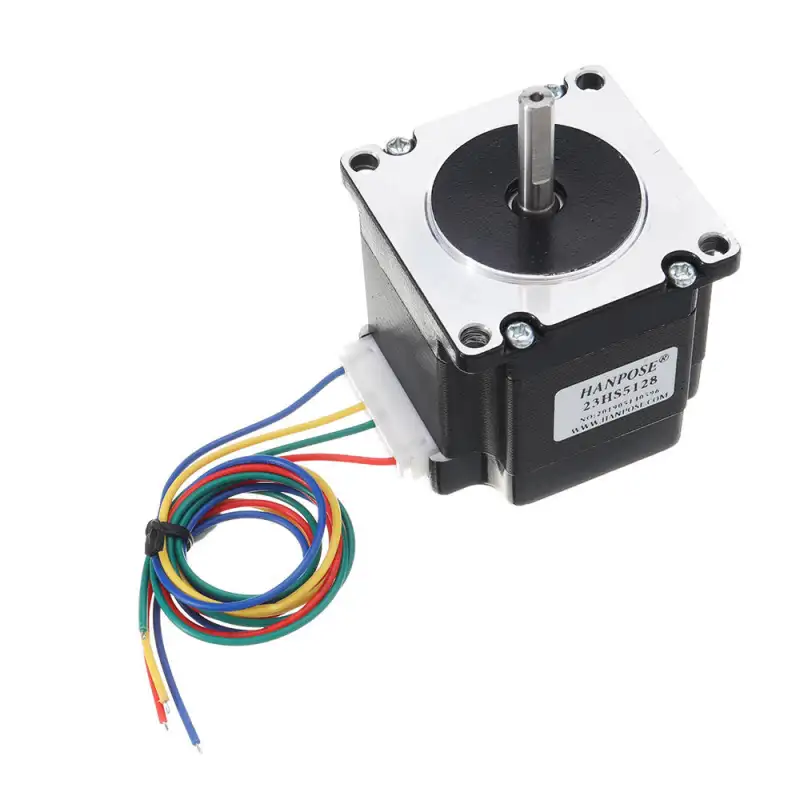

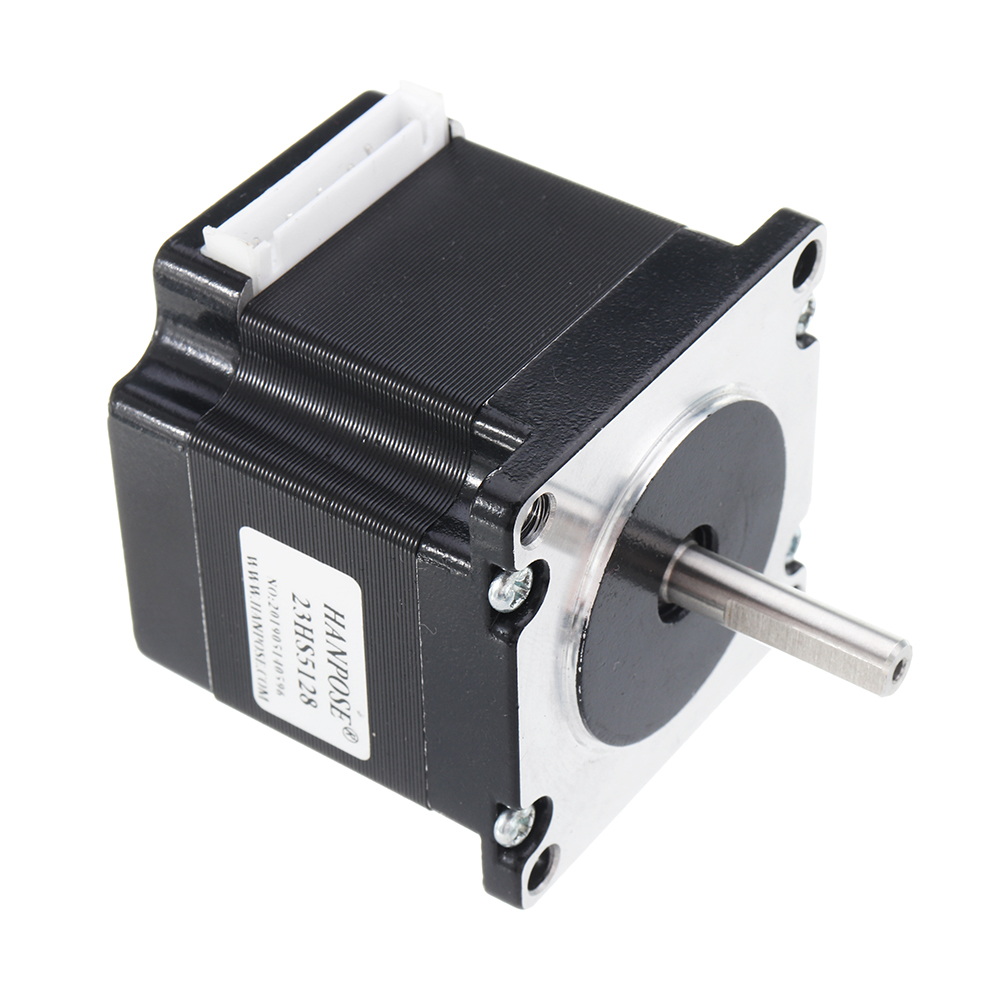

HANPOSE 23HS5128 51mm Nema 23 Stepper Motor 57 Motor 2.8A 101N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine
Certification: CE, ROSH, ISO, FCC
Shaft Diamter: 6.35mm "D" Shaft

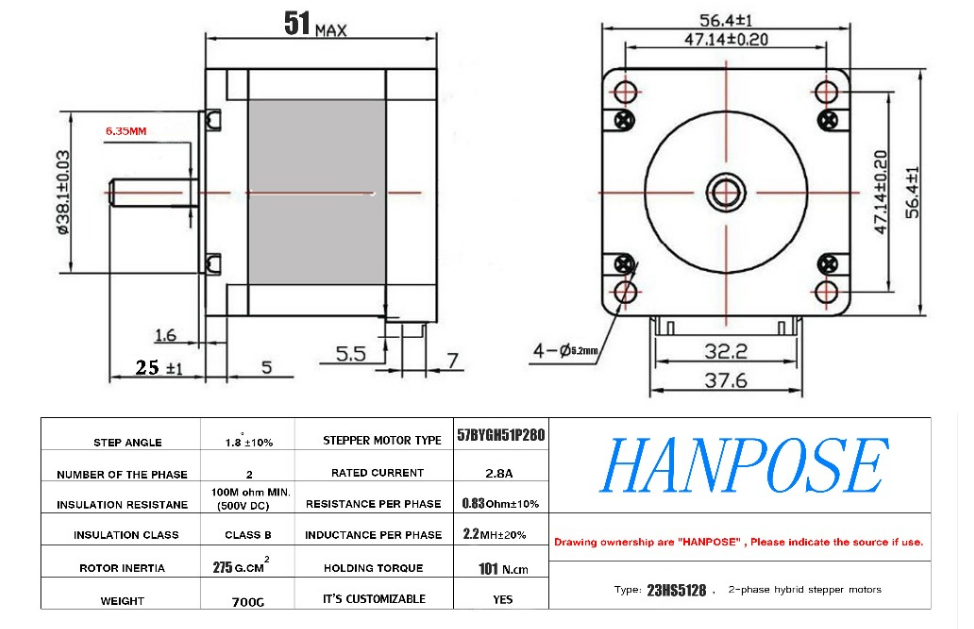

Specification:
Model 23HS5128
Phase 2
Step Angle 1.8°
Motor Size 57 x 51mm
Shaft "D" shaft  22xФ6.35mm

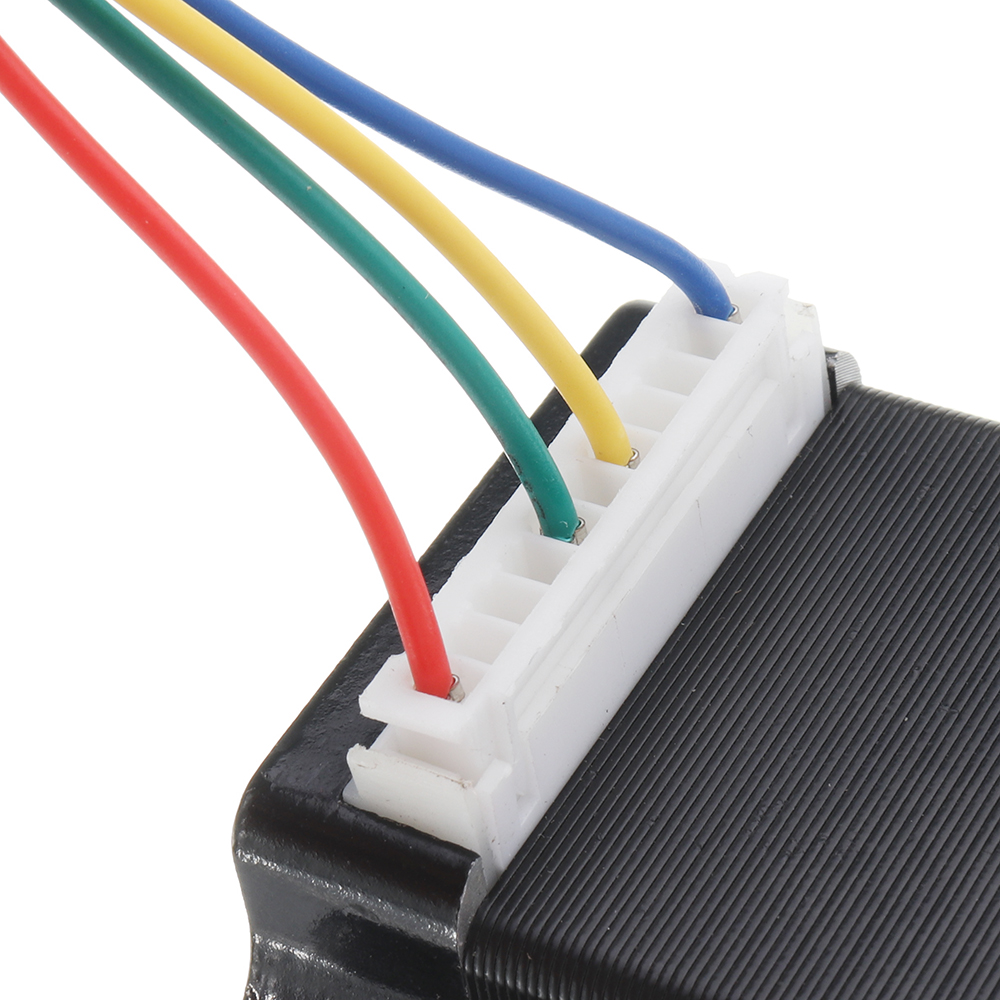

Outlet way "4" plug line

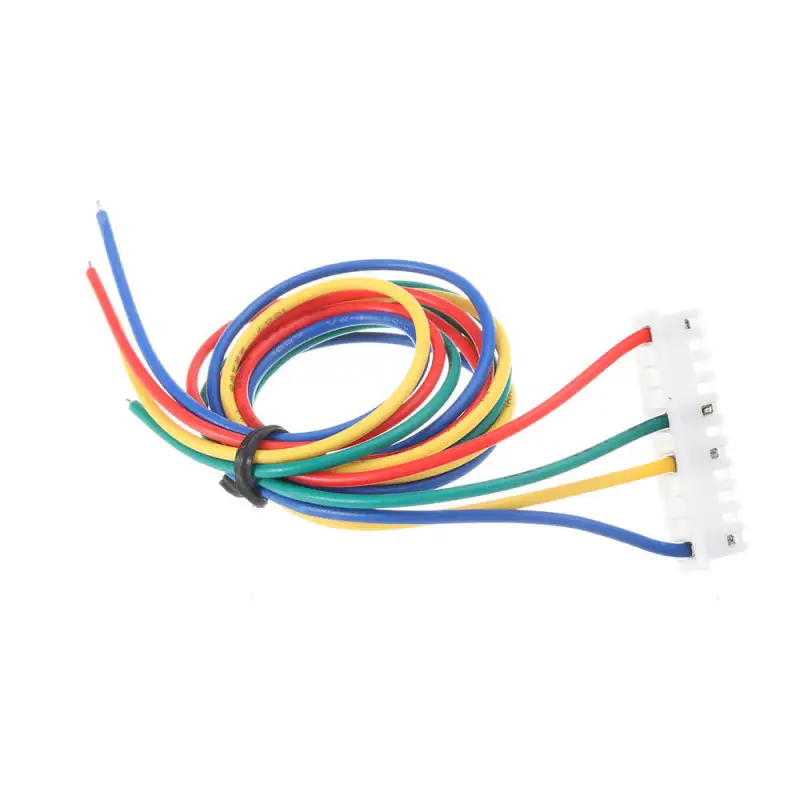

Motor leads 30cm Wire
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No. Step Angle Motor Length Rated
Current		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque Inertia Of
Rotor		   Lead
( °) (L)mm (A) (Ohm) (mH) (N.cm)  (G. cm²) (No.)
23HS7628  1.8 51 2.8 0.83 2.2 101 275 4

General Specification:
Precision angle step ±5% (full step, no charge)
Resistance accuracy ±10%
Precision inductance ±20%
Temperature rise 80deg Max (rated current, 2 phase on)
Ambient temperature ( - 20°)-(+ 50°)
Insulation resistance 100MΩ Min, 500VDC
Insultion Force 500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.

Package Included:
1 X 23HS5128 Stepper Motor
