HANPOSE 17HS6401-S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators 60mm 1.7A 73N.cm 4-lead 42 Motor 100-500mm Trapezoida
Reference:
Condition: New product
Delivery on: Jul 28 2026
100 Items
More info

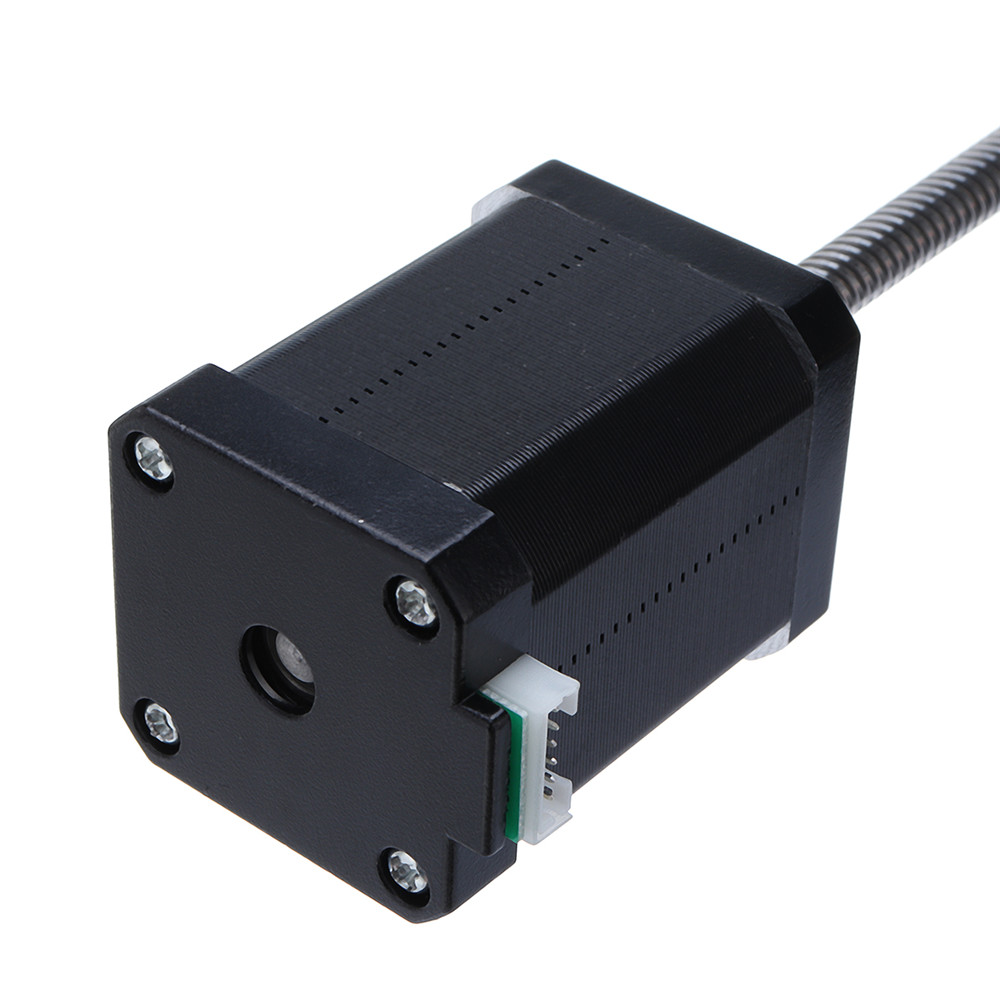

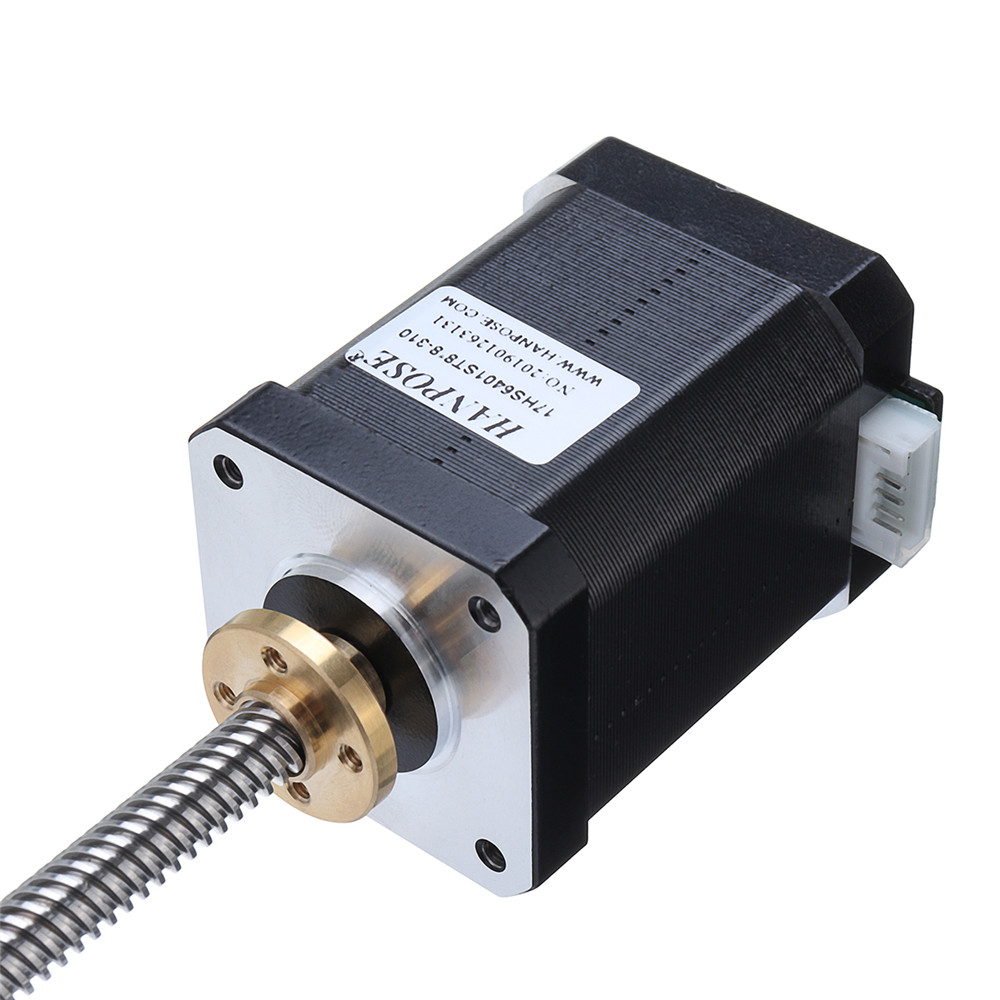

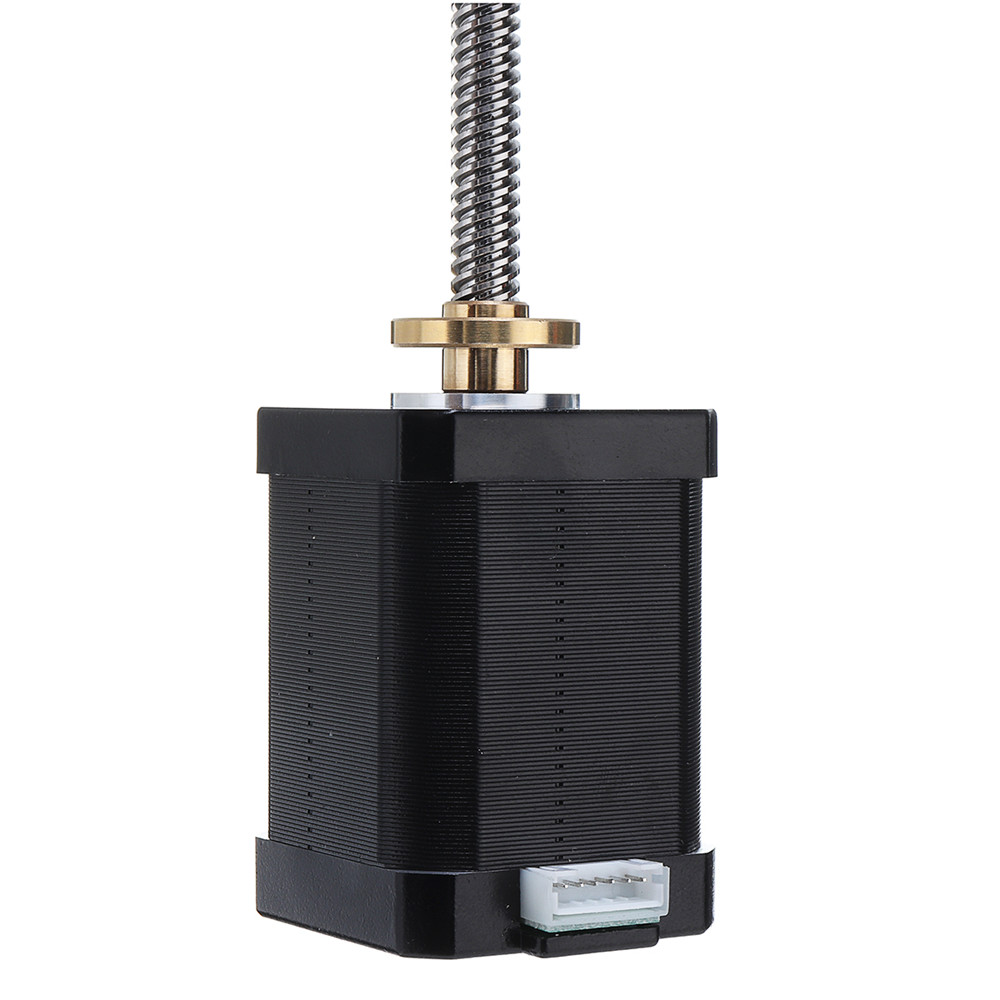

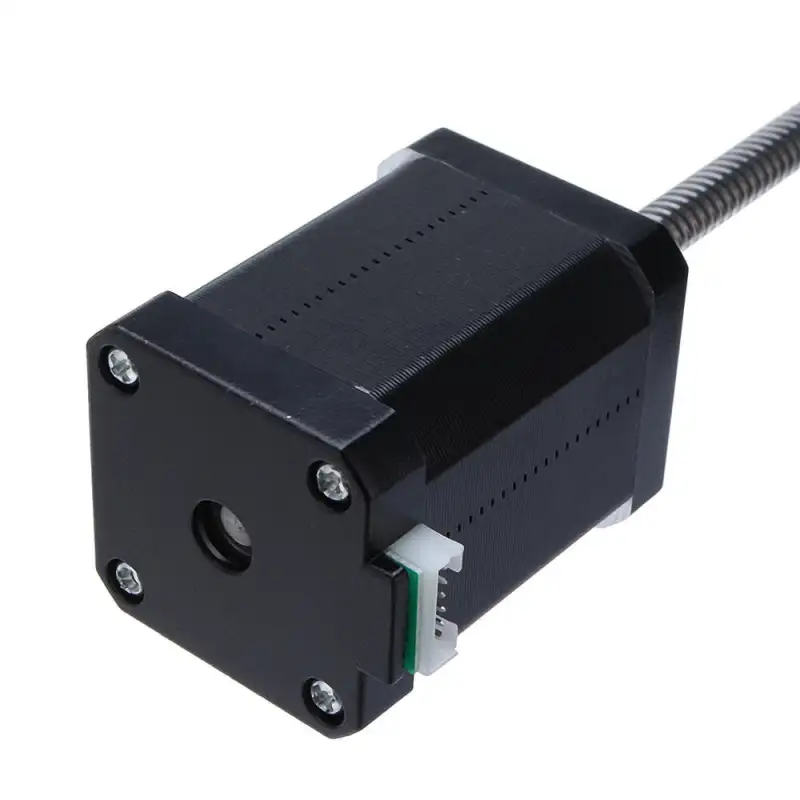

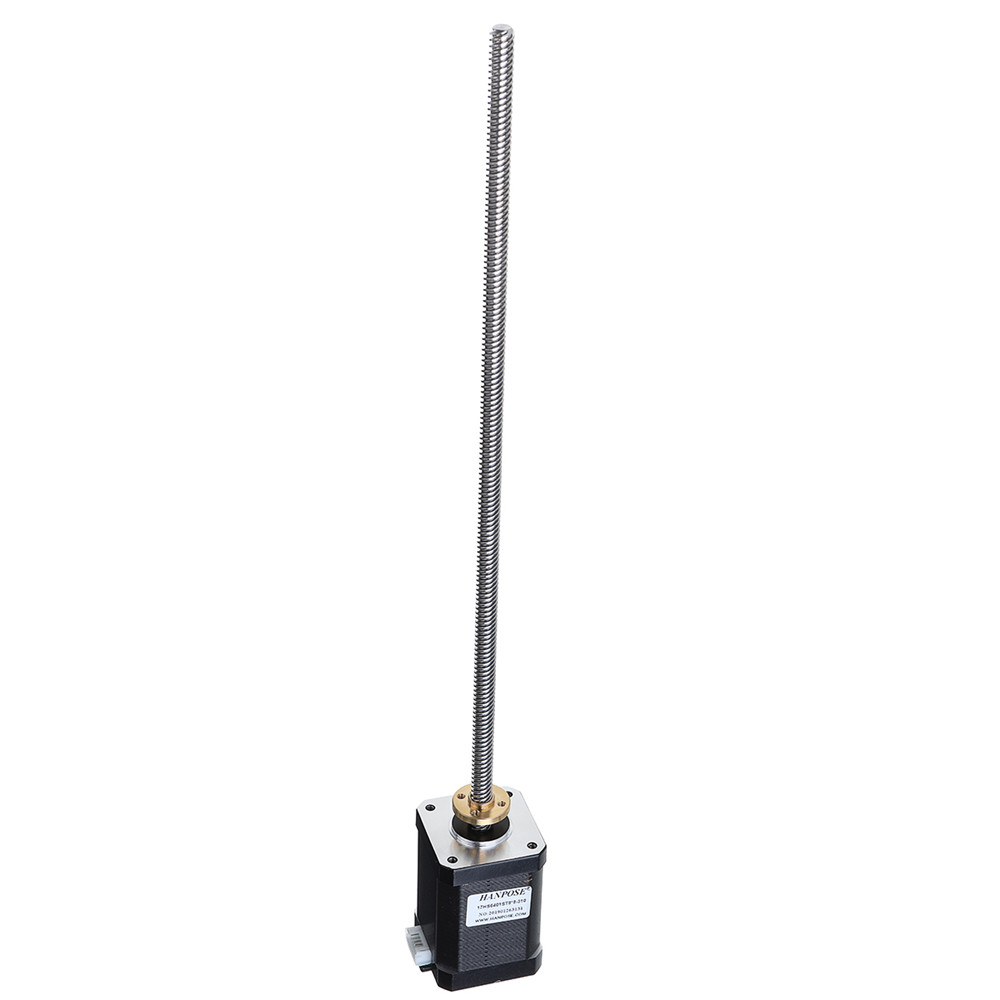

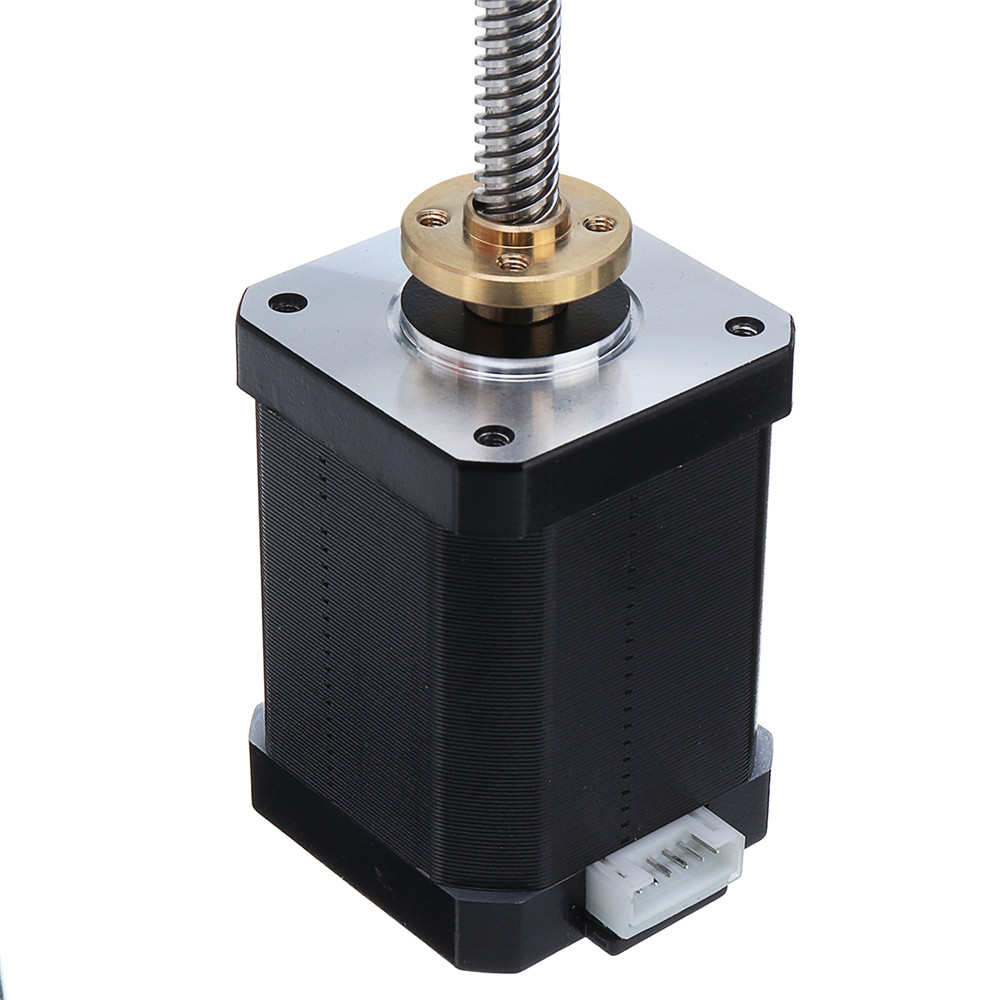

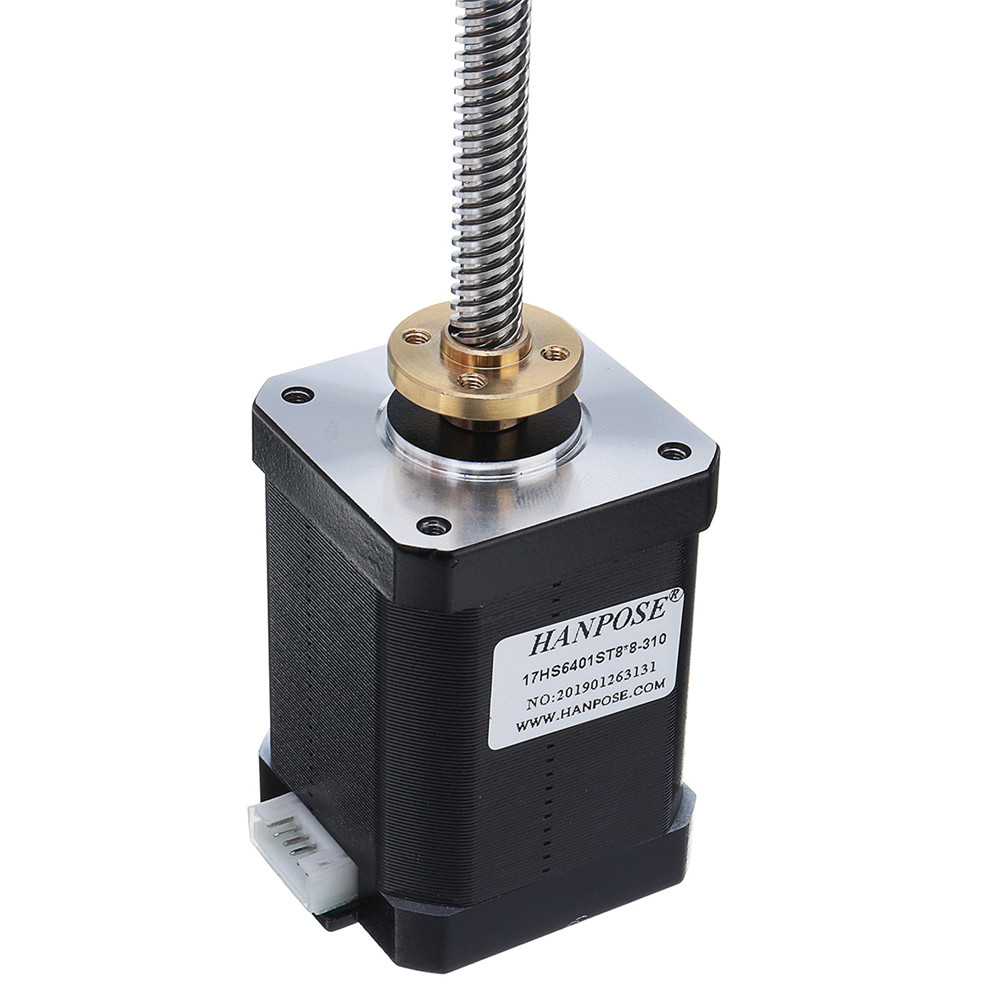

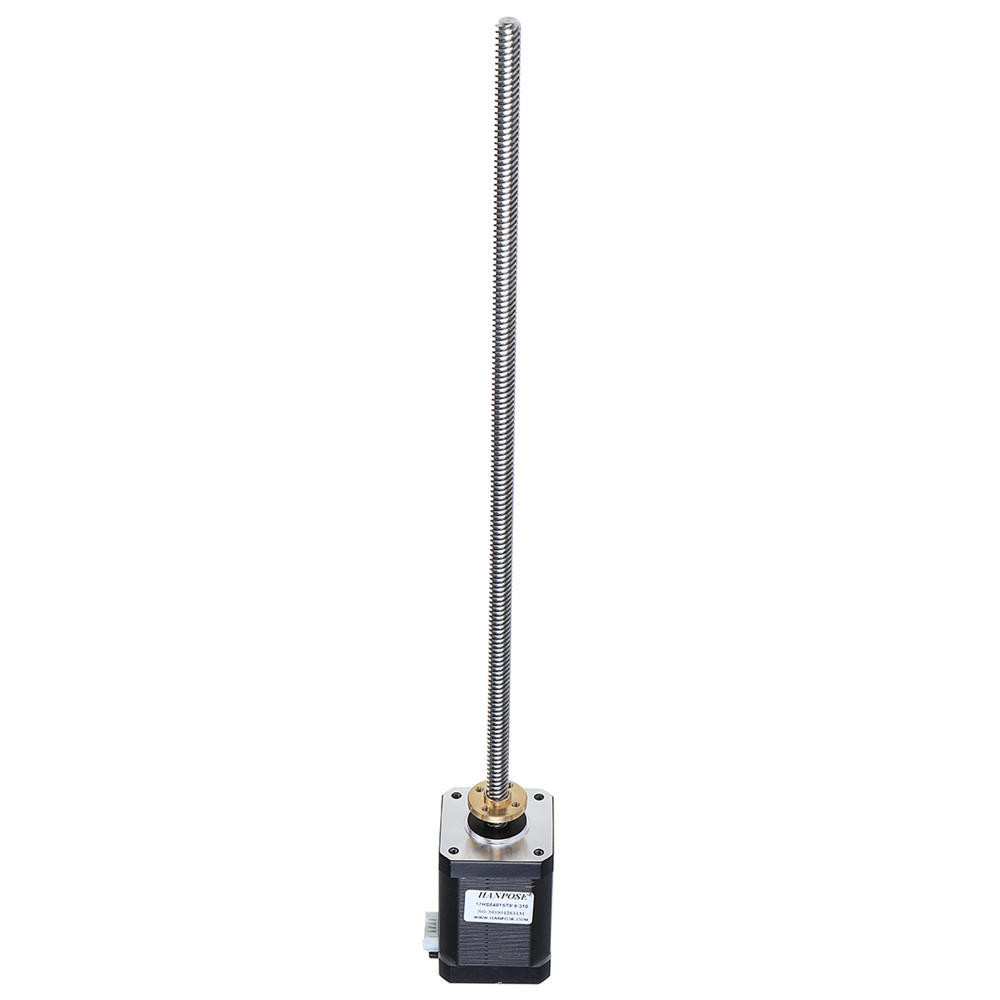

HANPOSE 17HS6401-S T8x8 Nema 17 Lead Screw Stepper Motor Linear Actuators
60mm 1.7A 73N.cm 4-lead 42 Motor 100-500mm Trapezoidal Lead Screw for 3D printer Z Axis
Certification: CE, ROSH, ISO, FCC
Motor Color: Black(Surface Treatment)
Specification:
| Model | 17HS6401-S T8*8 |
| Motor Type | Hybrid |
| Phase | 2 |
| Step Angle | 1.8° |
| Motor Size | 42*60 mm |

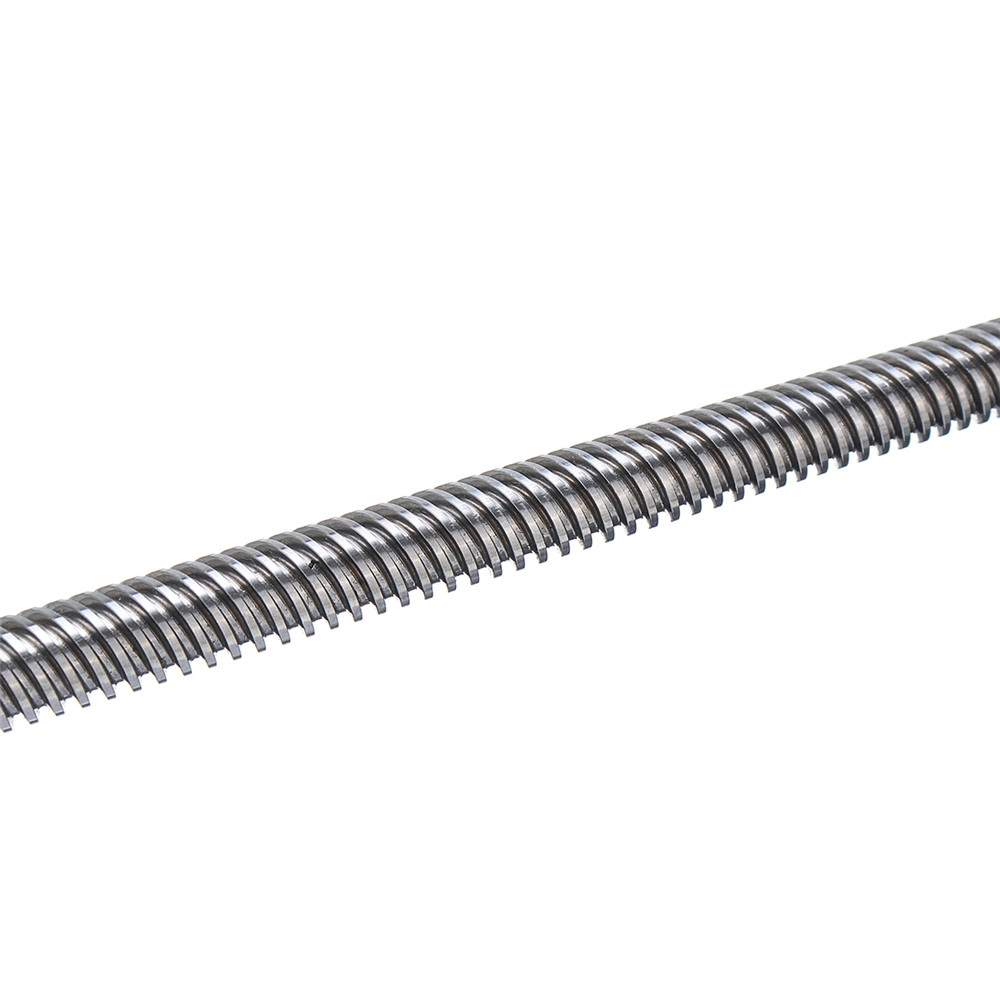

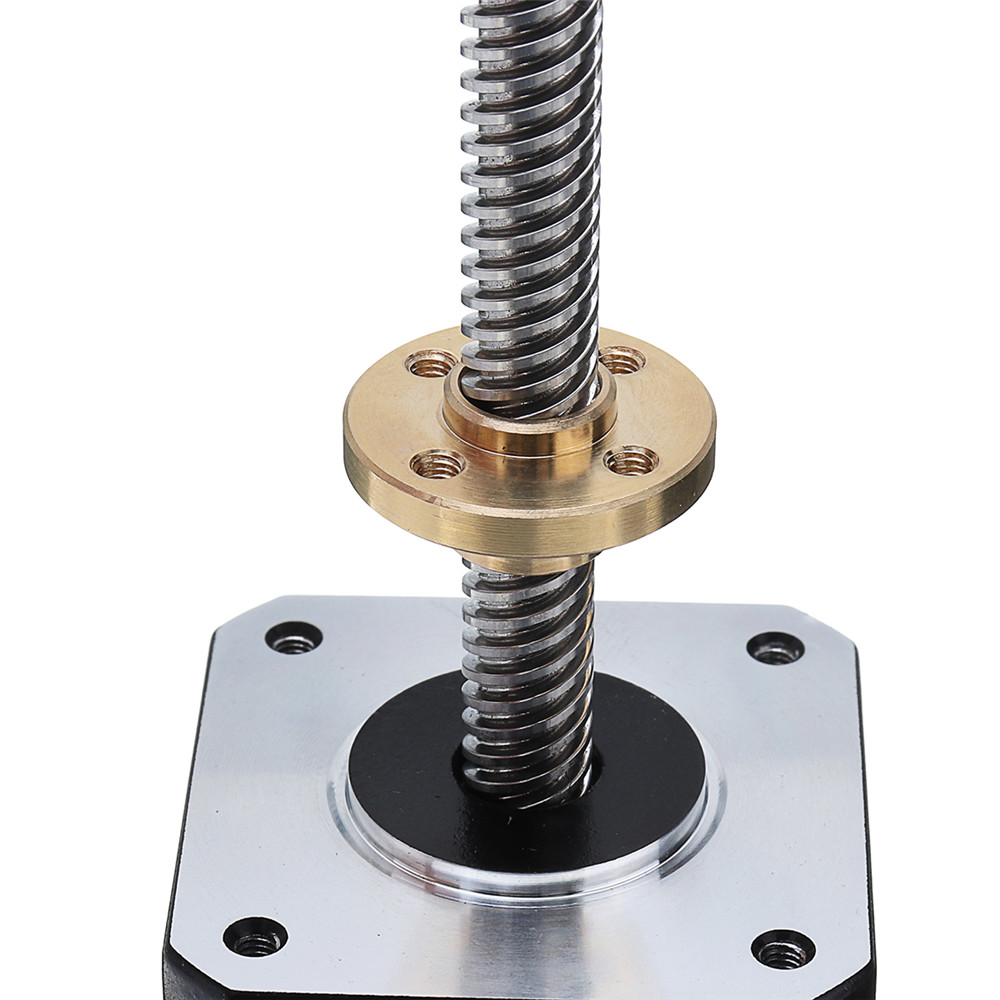

| Screw Diameter | 8mm |
| Screw Pitch | 8mm |
| Screw Effective Stroke | 100/150/200/250/300/350/400/500mm |

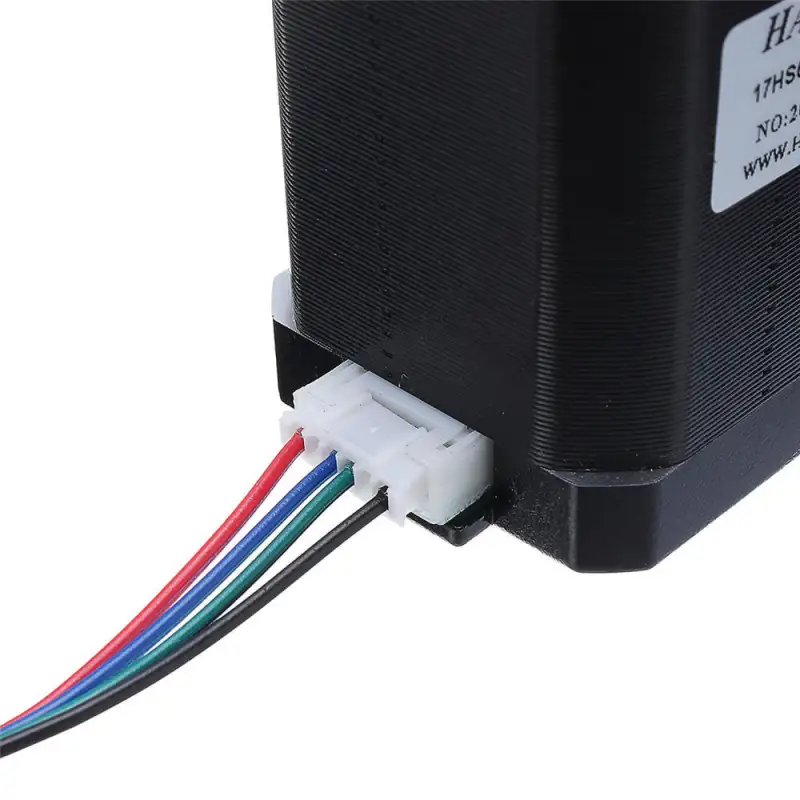

| Outlet way | "4" plug line |

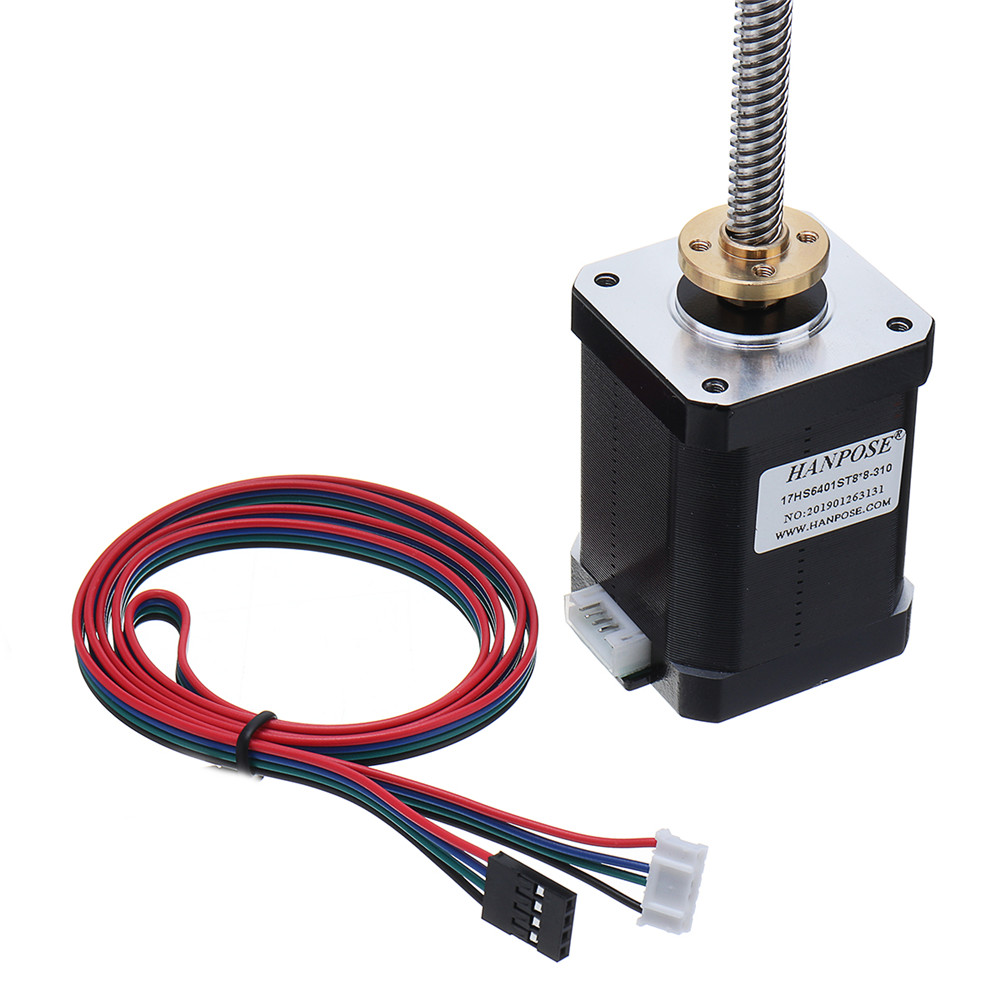

| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Certification | ROHS, Iso, CE, UL, CCC |
| Scope |
3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle | Motor Length |
Rated Current |
Rated Voltage |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
Inertia Of Rotor |
Lead |
| ( °) | (L)mm | (A) | (V) | (Ω) | (mH) | (N.cm) | (G. cm²) | (No.) | |
| 17HS6401S-T8 | 1.8 | 60 | 1.7 | 5.1 | 3 | 6.2 | 73 | 80 | 4 |
General Specification:
| Precision angle step | ±5% (full step, no charge) |
| Resistance accuracy | ±10% |
| Precision inductance | ±20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20°)-(+ 50°) |
| Insulation resistance | 100MΩ Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Structure is stable, not card machine.
6. Speet uniform, do not lose step.
5. Structure is stable, not card machine.
6. Speet uniform, do not lose step.
Package Included:
1 X 17HS6401-S T8x8 100-500mm Stepper Motor
