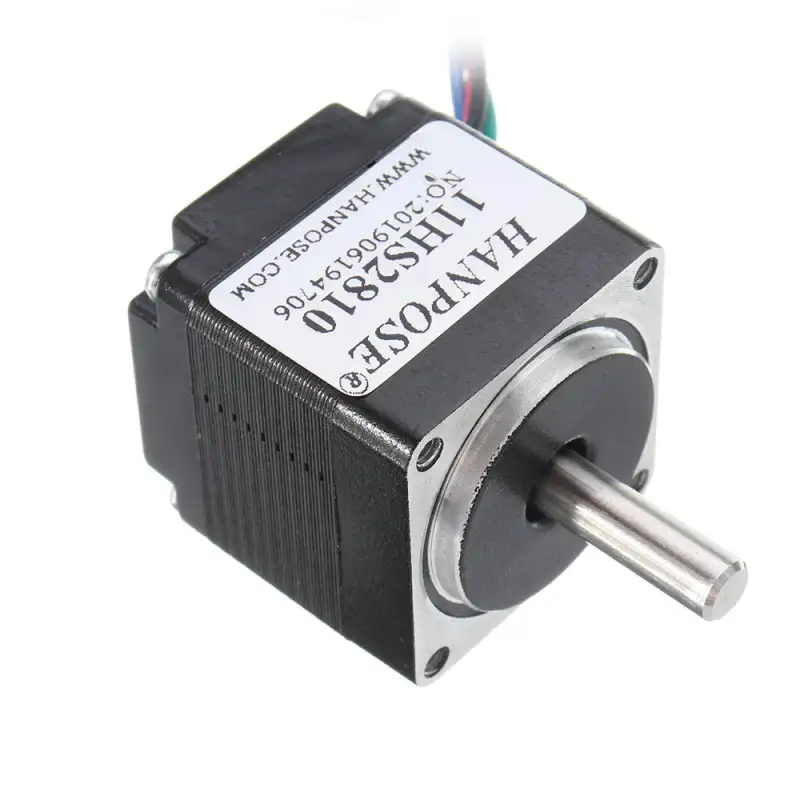

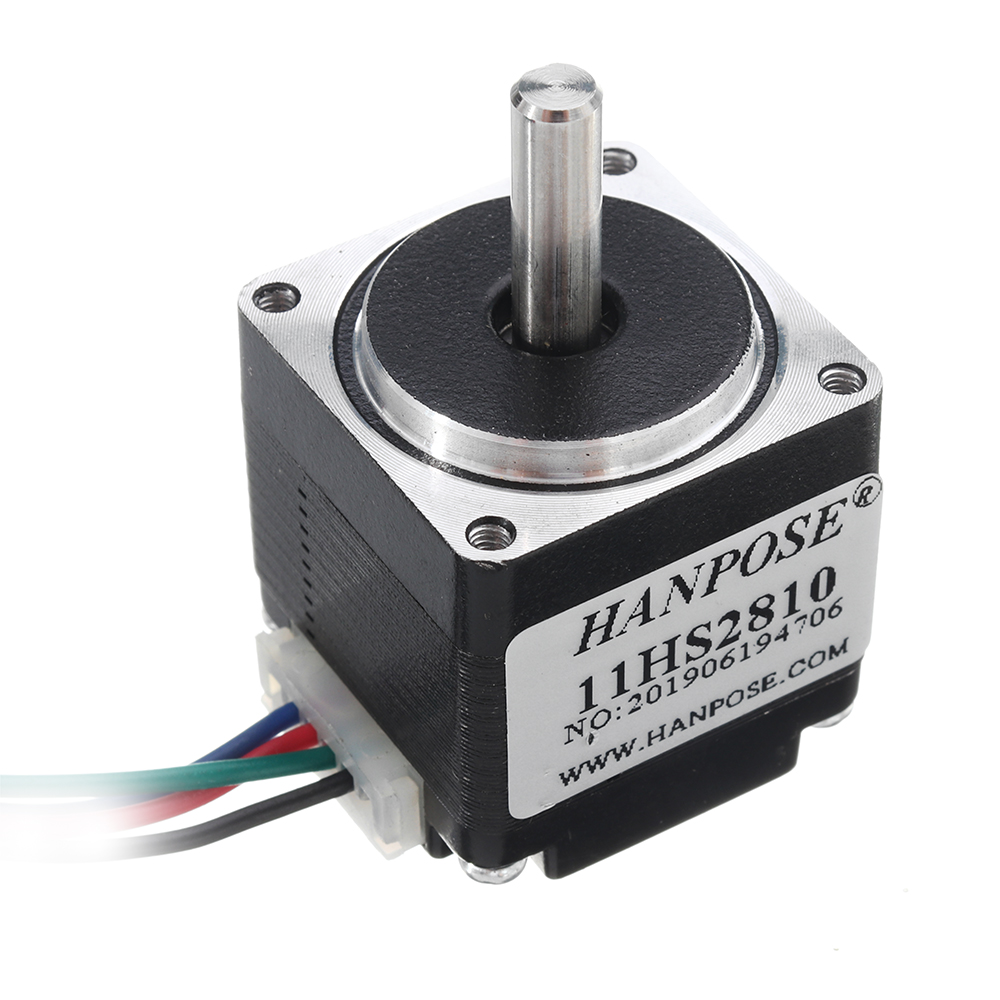

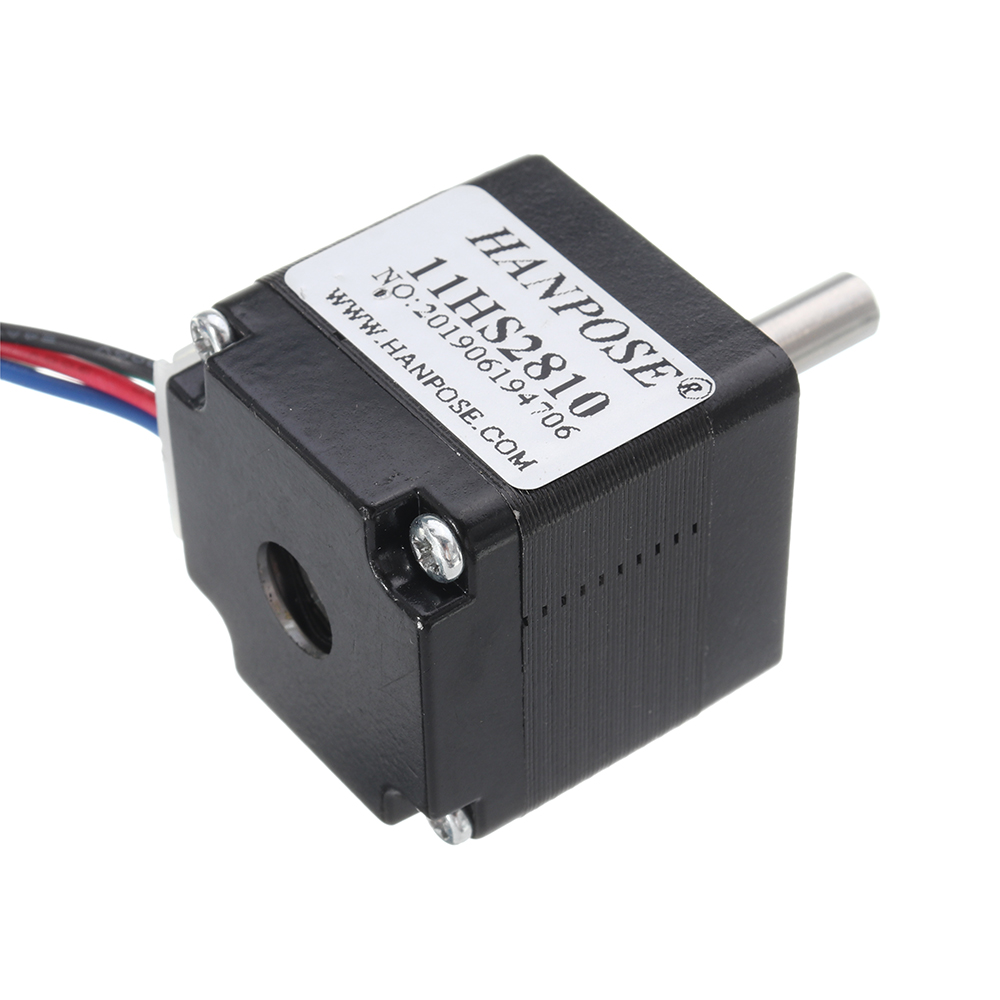

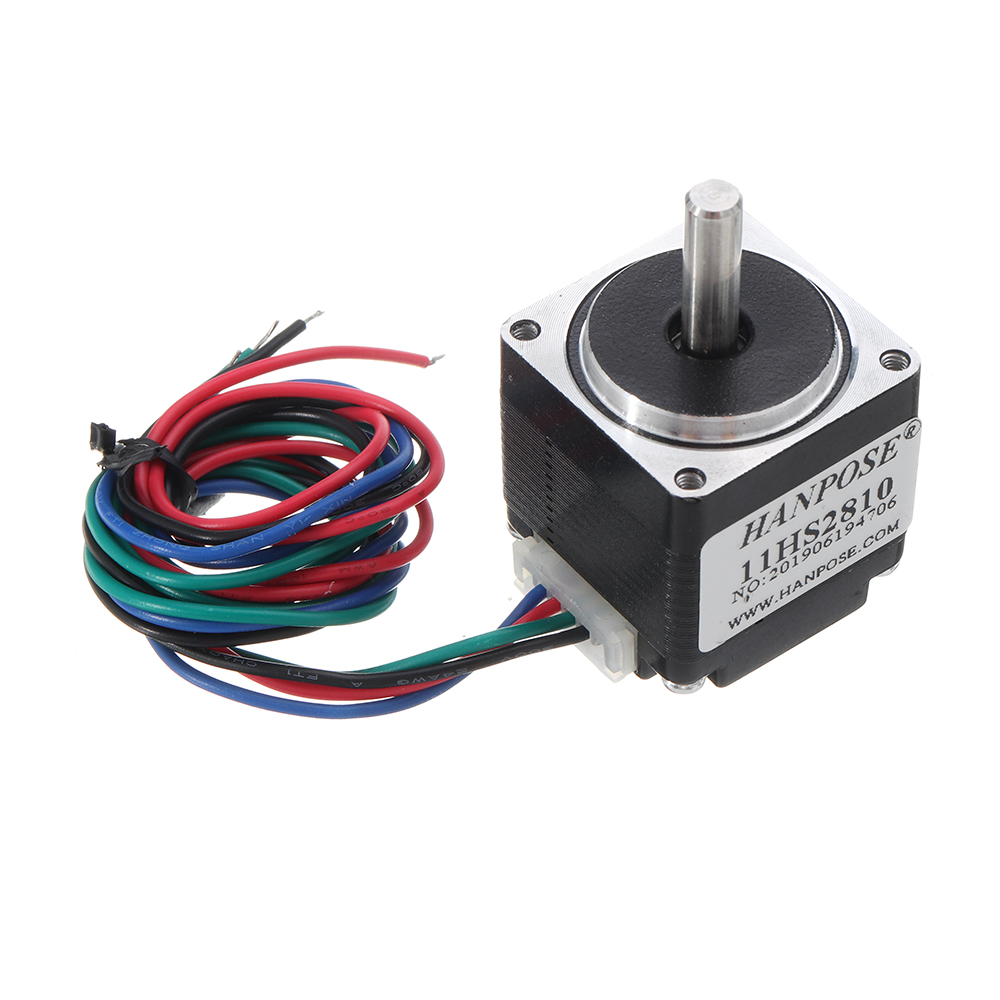

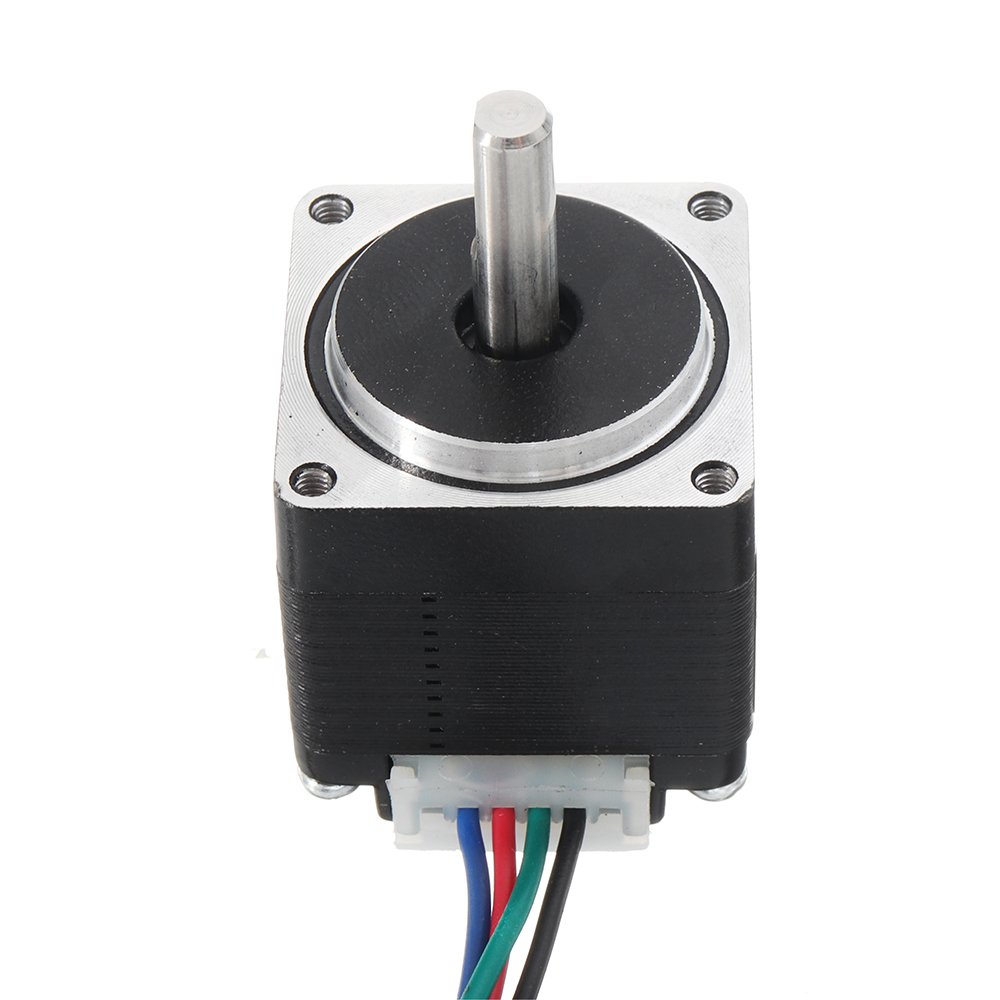

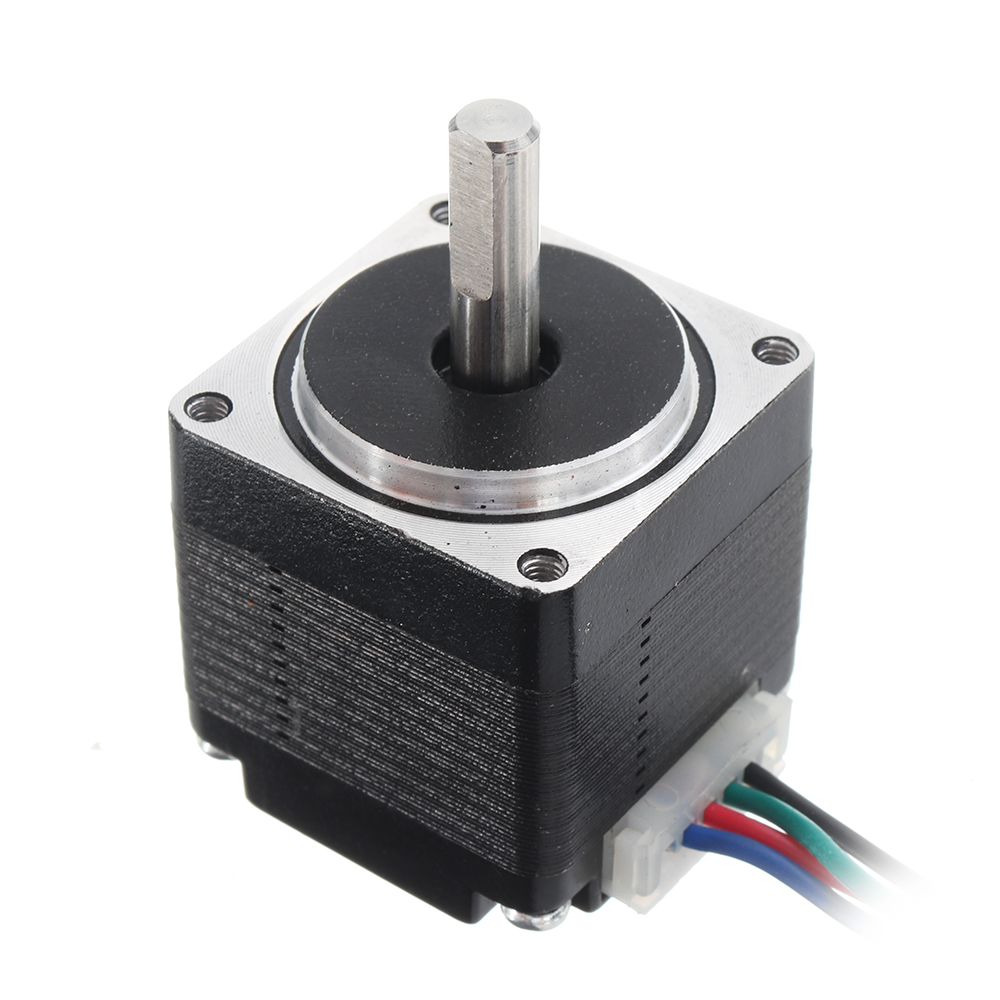

HANPOSE 11HS2810 28mm Nema 11 Stepper Motor 28BYGH28 1A 0.08N.m 4-lead for CNC Router

Reference: BG0052-9020883

Condition: New product

100 Items

$13.74

More info

Description:
HANPOSE 11HS2810 28mm Nema 11 Stepper Motor 28BYGH28 1A 0.08N.m 4-lead for CNC Router
Certification: CE, ROSH, ISO, FCC
Color: Black(Surface Treatment)

Specification:
Model 11HS2810
Type H ybrid
Phase 2
Step Angle 1.8°

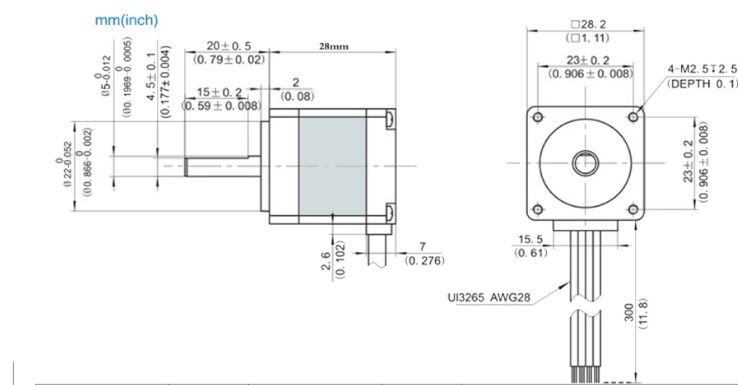

Motor Size 28*28 mm
Shaft "D" shaft 20 x Ф5mm

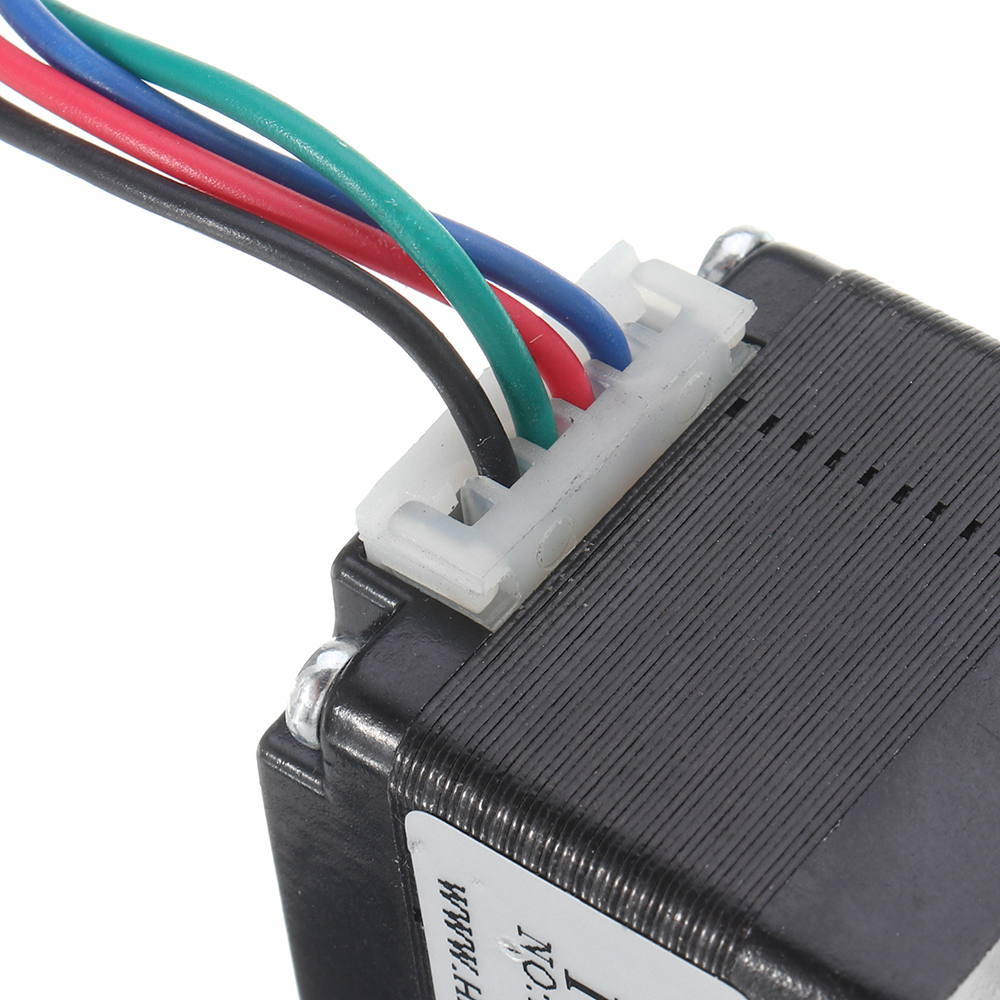

Outlet way "4" line
Motor leads 30cm
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No. Step Angle Motor Length Rated
Current		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque Inertia Of
Rotor		   Lead  Weight
( °) (L)mm (A) (Ω) (mH) (N.m)  (G. cm²) (No.) (g)
11HS2810 1.8 28 1.0 2.7 2.0 0.08 7 4 90

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Color: Black(Surface Treatment)

Package Included:
1 X 11HS2810 Stepper Motor
