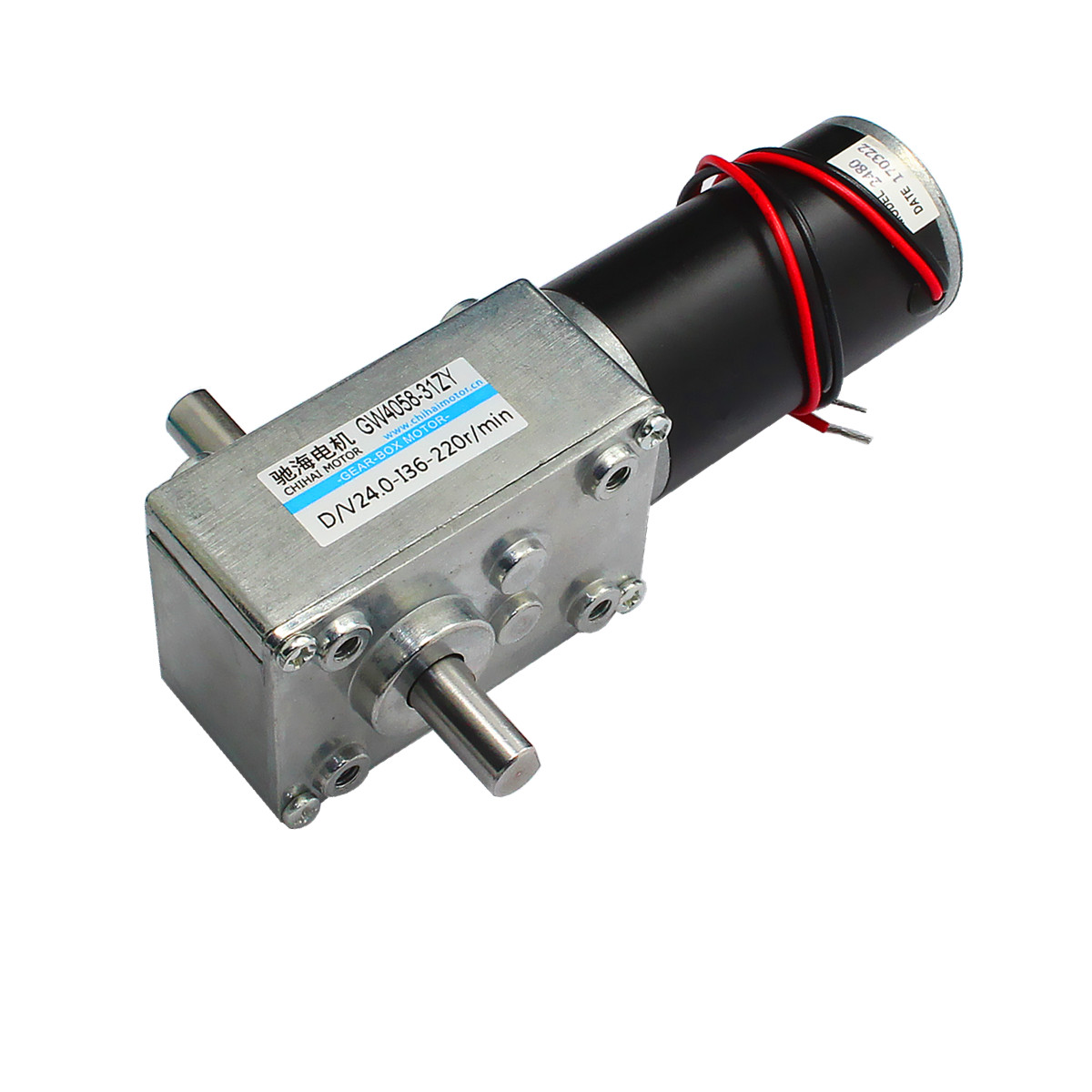

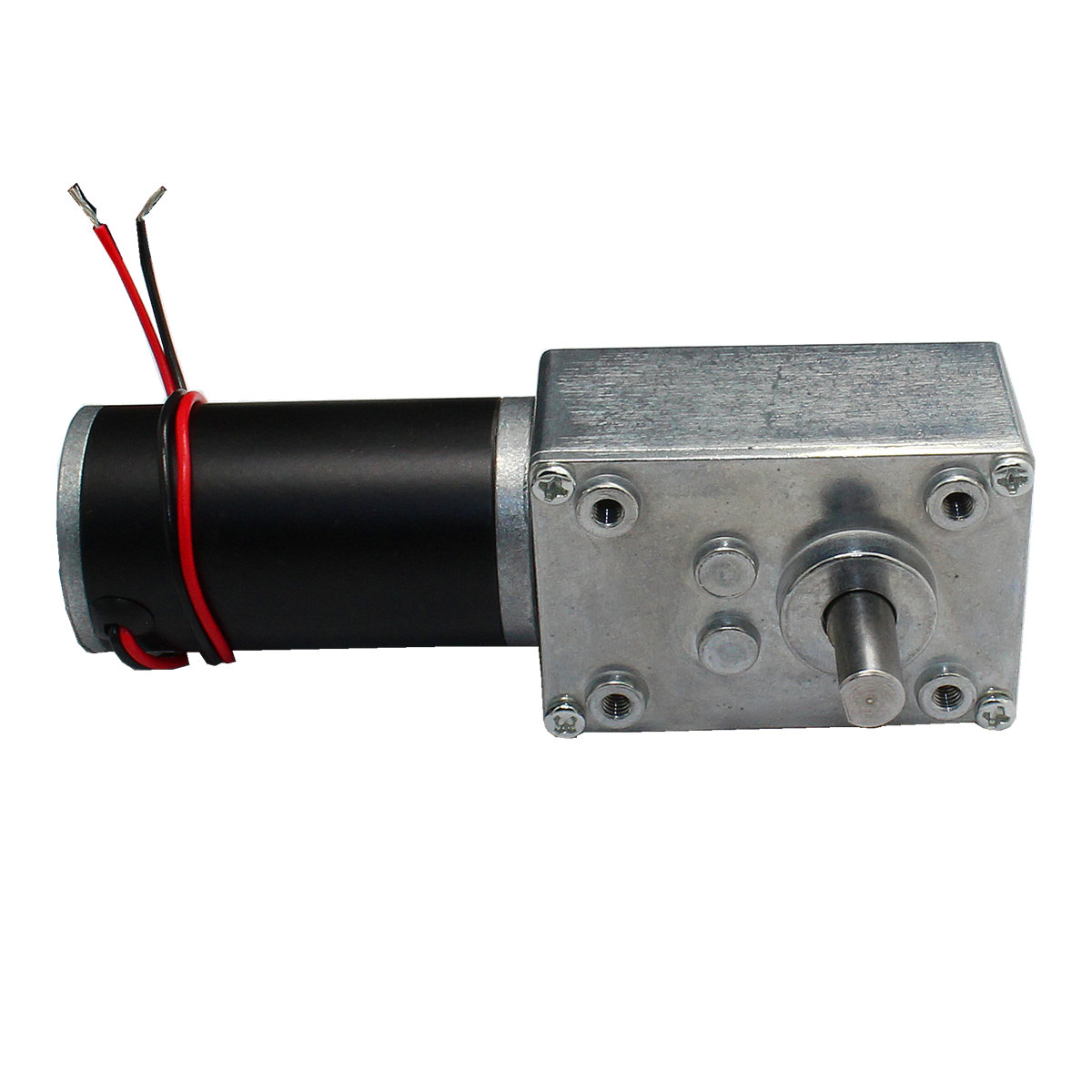

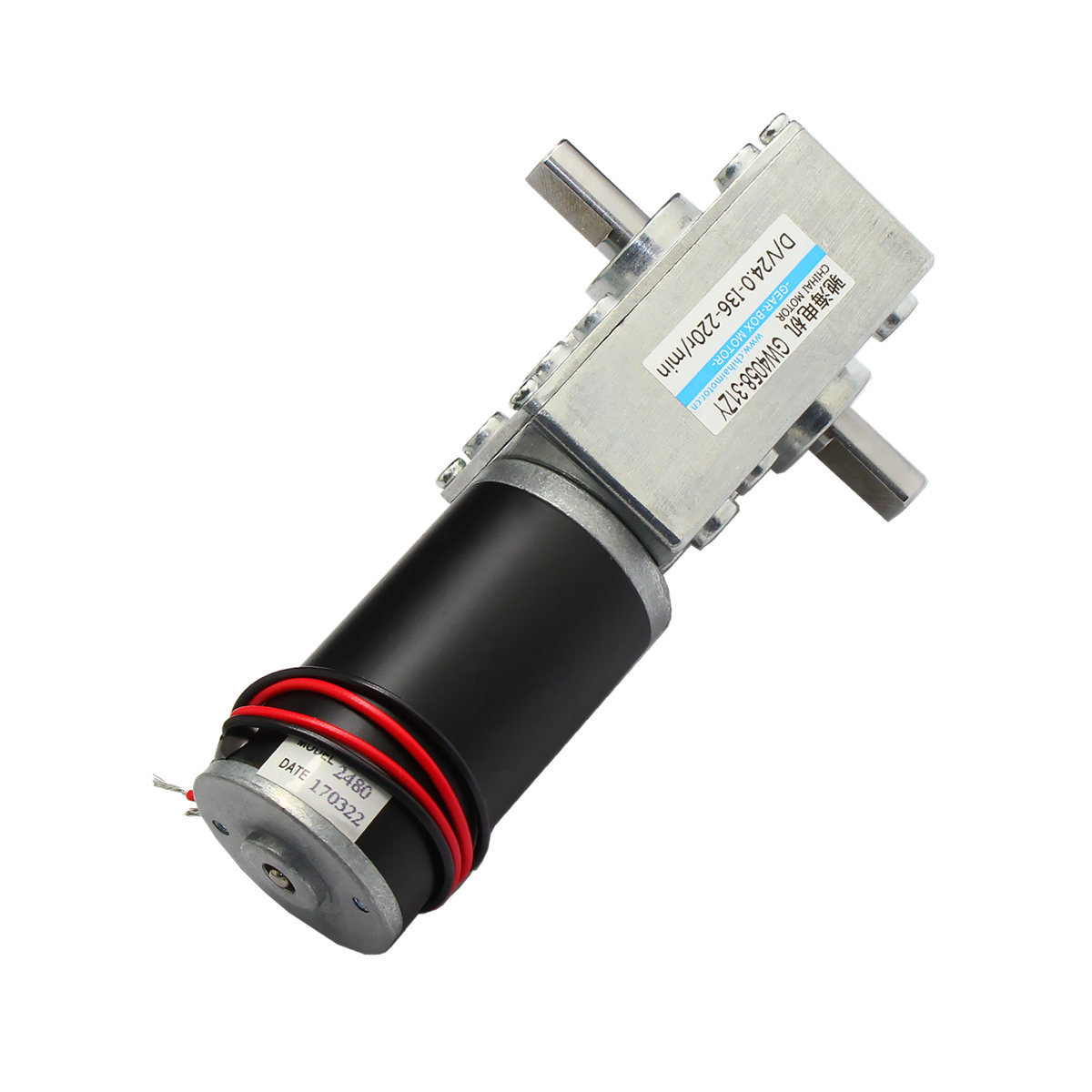

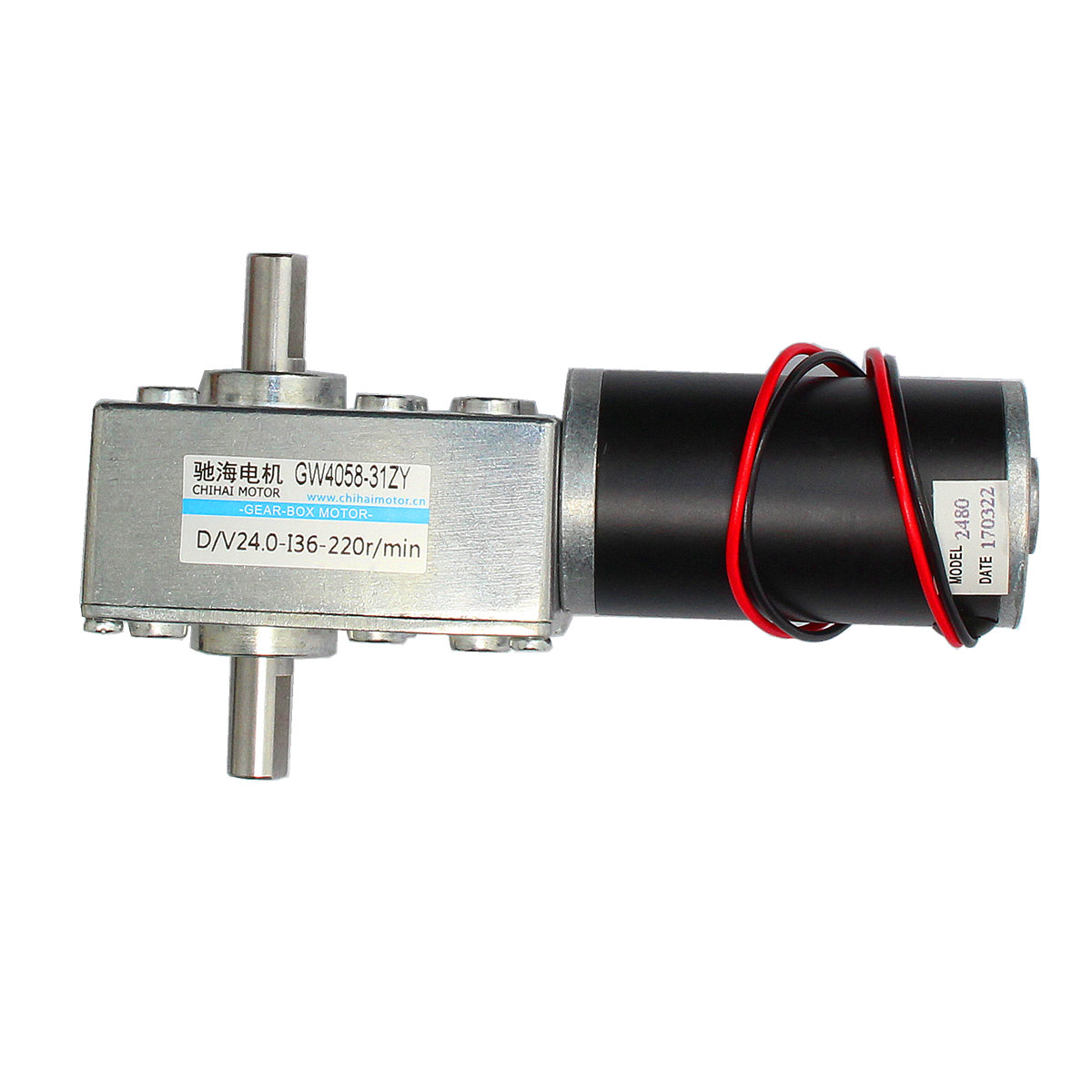

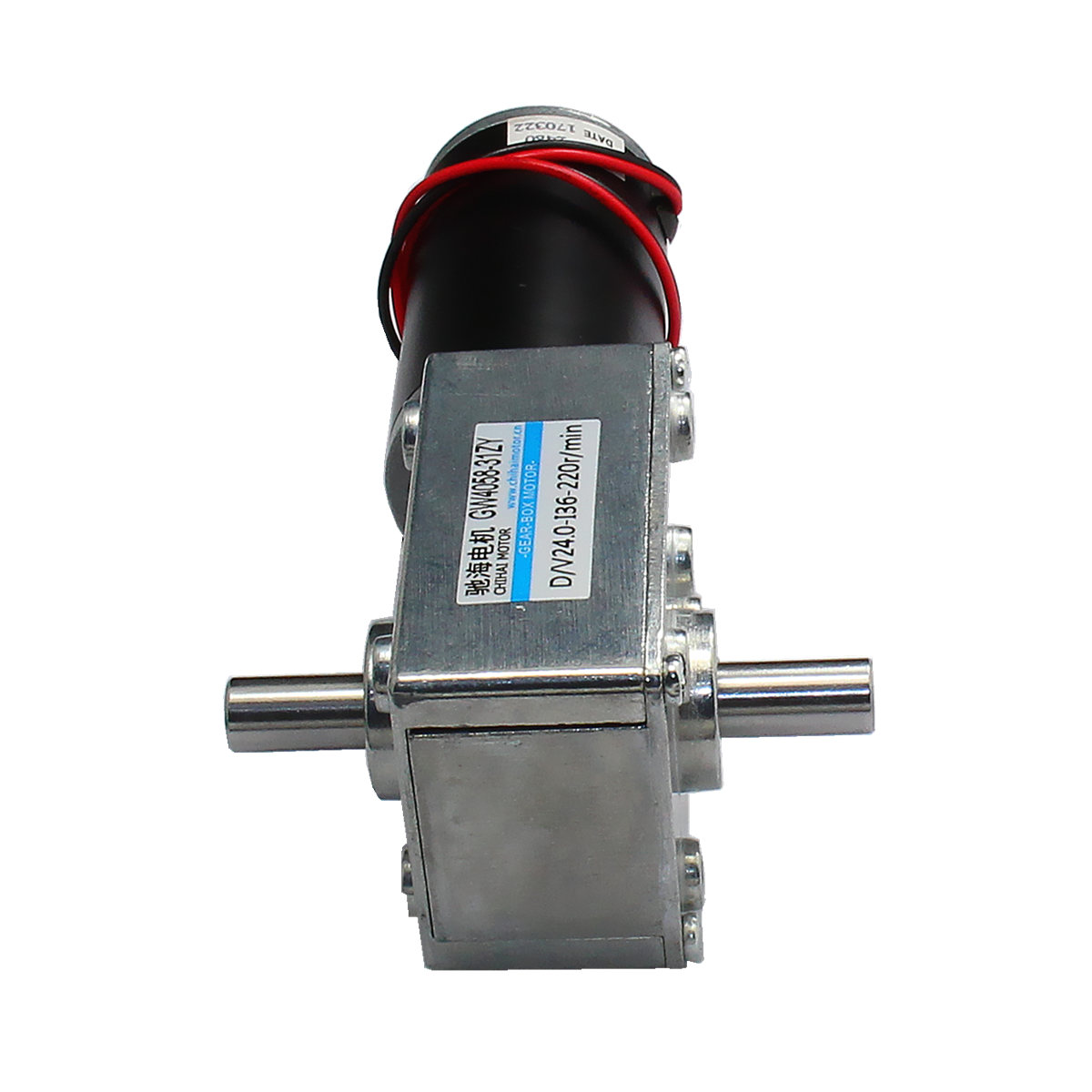

GW4058-31ZY Double Shaft DC Motor 12V/24V 110rpm/220rpm Reduction Motor Worm Gear Gear Box Motor

Reference:

Condition: New product

100 Item Items Warning: Last items in stock!

$38.98

Voltage

Quantity

More info

Description:
The motor is a micro turbine and worm speed reducing DC motor, which can change the direction of the motor and the rotation direction of the motor.

Specification:

Voltage	24.0V	12.0V
No Load Speed	220RPM	110RPM
No Load Current	250mA	130mA
Gear Reduction ratio 1:36
Max. Eff. Output	9.2W	2.4W
Max. Eff. Torque	5.0 Kg.cm	2.5 Kg.cm
Max. Eff. Current	1.1A	0.55A
Max. Eff. Speed	175RPM	85RPM
Power failure self-locking
Max. Pow. Output	15W	3.7W
Max. Pow. Torque	13 Kg.cm	6.5 Kg.cm
Max. Pow. Current	2.4A	1.2A
Max. Pow. Speed	100RPM	50RPM

Stall Torque	≥ 23 Kg.cm	≥ 11 Kg.cm
Stall Current	4.4A	2.2A

GW4058-31ZY-Double-Shaft-DC-Motor-12V24V-110rpm220rpm-Reduction-Motor-Worm-Gear-Gear-Box-Motor-1357185

Features:

Worm reducer motor with self lock, that is, in the absence of electric motor, the output shaft is not moving, that is, self locking, self locking force is 1.2 times the rated torque.

Gearbox output shaft and the motor shaft is vertical layout, the entire output shaft of the motor is relatively general deceleration motor ultra short, widely adapted to some of the installation dimensions of the requirements of the occasion.

Package includedd :

1 x GW4058-31ZY Motor

More Deatils:
