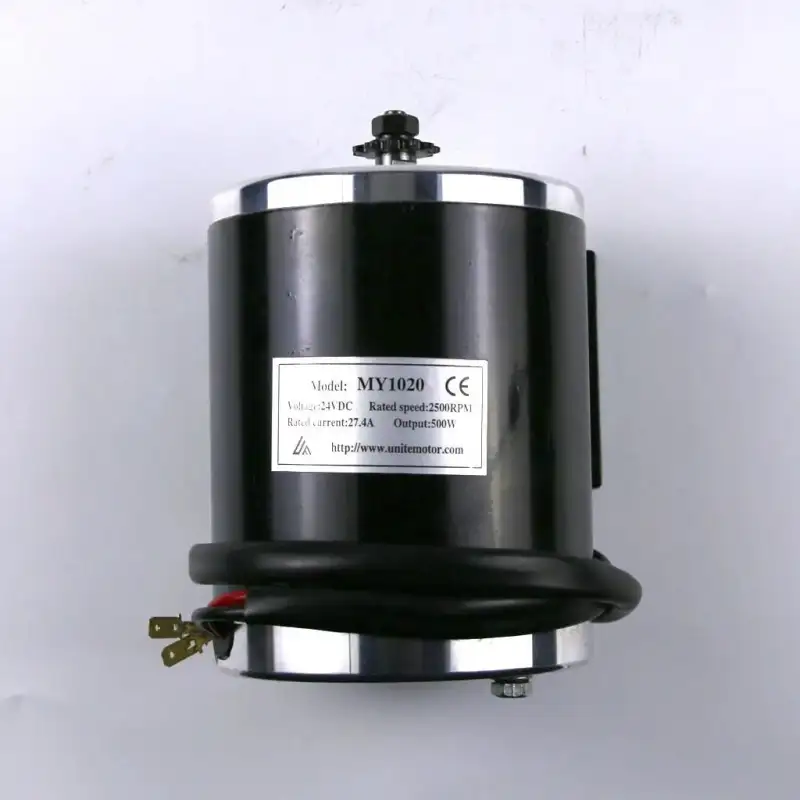

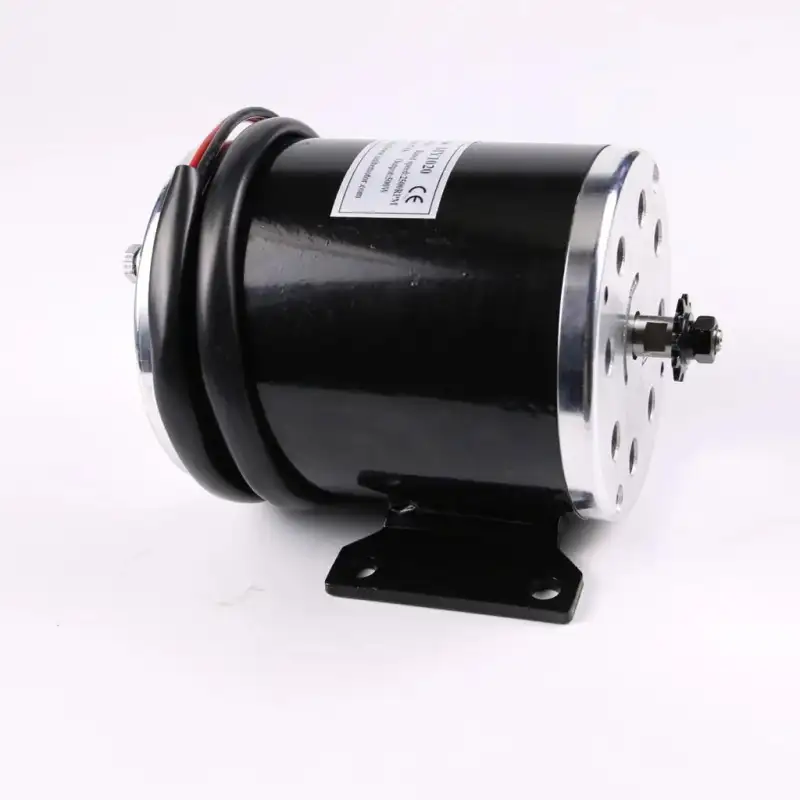

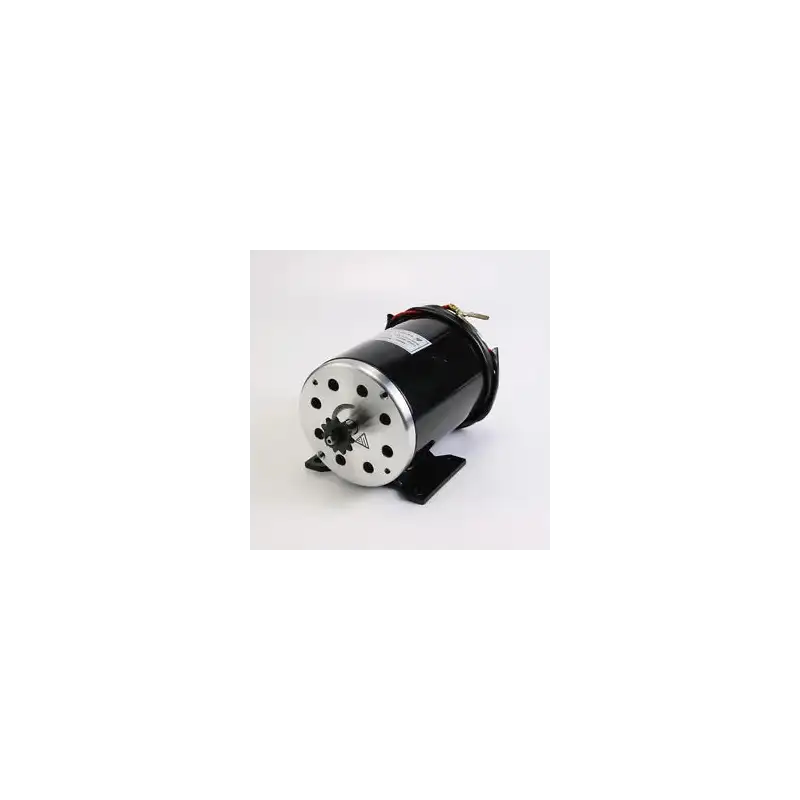

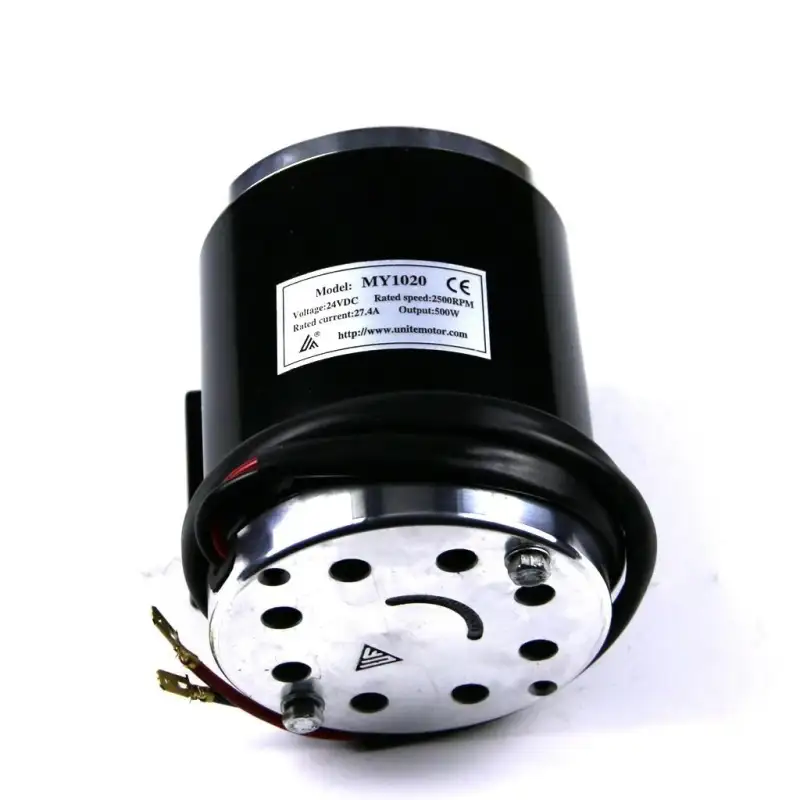

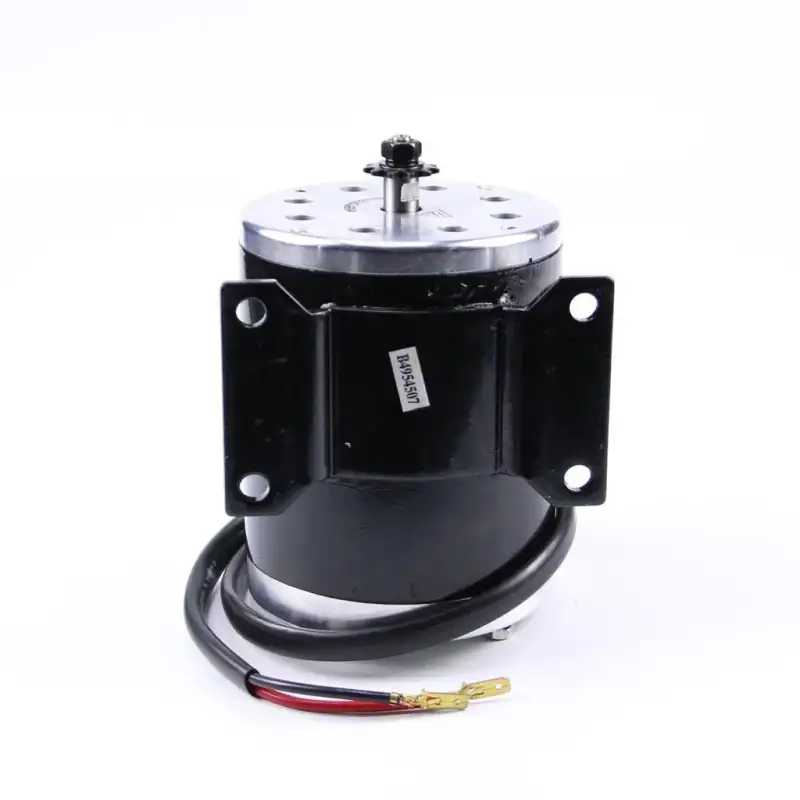

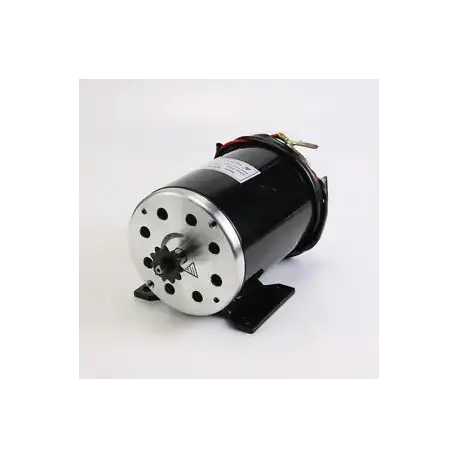

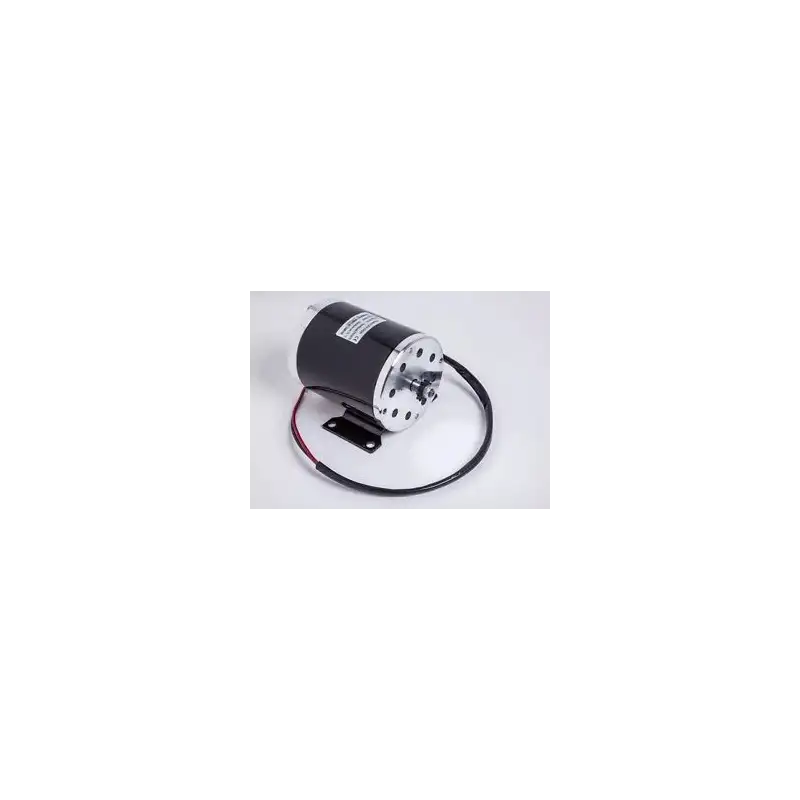

Ebike 500W 24V DC 2500 RPM scooter bike go-kart minibike e-ATV MY1020
Reference: BG0052-9082350
Condition: New product
Delivery on: Jun 10 2026
- Supply Voltage: 24v.
- Current Draw (Rated): 27.4A.
- Current Draw (No Load): 2.5A.
- Rated (constant) Torque: 190 N-cm.
- Speed: 2500 RPM.
- Efficiency: Greater than 75%.
- Weight: 4.10 Kg.
24 Items
More info
Get high standard Brushless Ebike MY1020 120W 24V 3350RPM DC Electric Motor for your electric bike at the best price at Robu.in. If you have been looking for a brushless motor then your search ends here. To build your known e-bike, This Motor is one of the most important parts of your Electric Bike.
Ebike 500W 24V DC 2500 RPM scooter bike go-kart minibike e-ATV MY1020, This motor should work with some Xtreme or Razor electric scooter, mini bike, or go-kart using a 500W motor. It should also work with any other brand with similar specs in the motor.
| Model |
MY1020 |
| Operating Power |
500 W |
| Operating Voltage (VDC) |
24 |
| Rated Current(A) |
2.5 |
| Rated Speed(RPM) |
2500 |
| Height (from the shaft center axis to the bottom of the base plate) |
60 mm |
| Rated Torque (Kg-Cm) |
19.37 |
| Efficiency |
≥78%. |
| Length (mm) |
160 |
| Width (mm) |
120 |
| Height (mm) |
110 |
| Weight (Kg) |
4.1 |
| Cable Length (Meter) |
0.5 |
| Shipment Weight |
4.5 kg |
| Shipment Dimensions |
25 × 25 × 20 cm |
