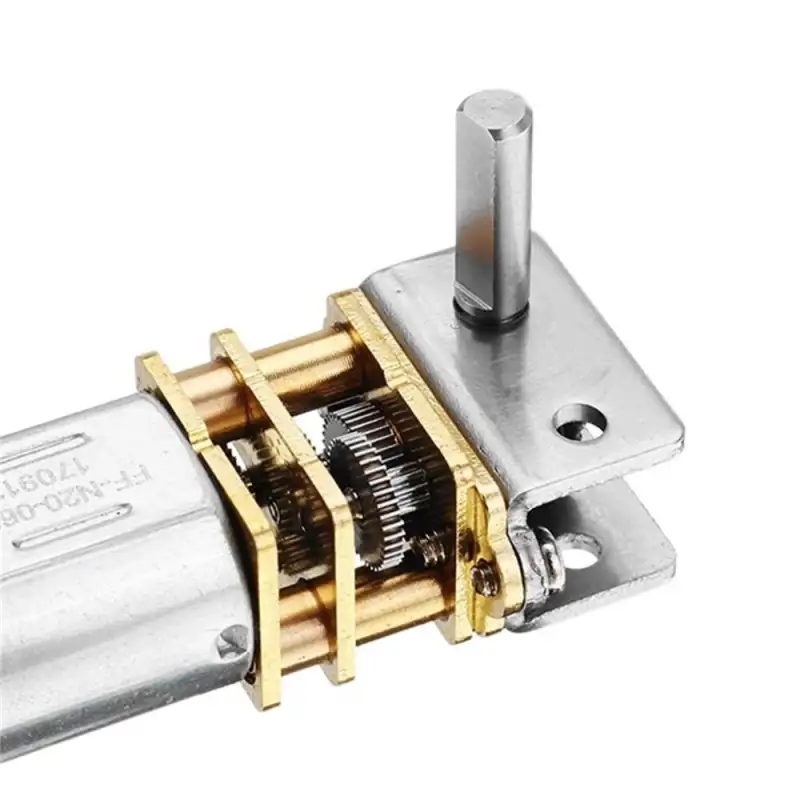

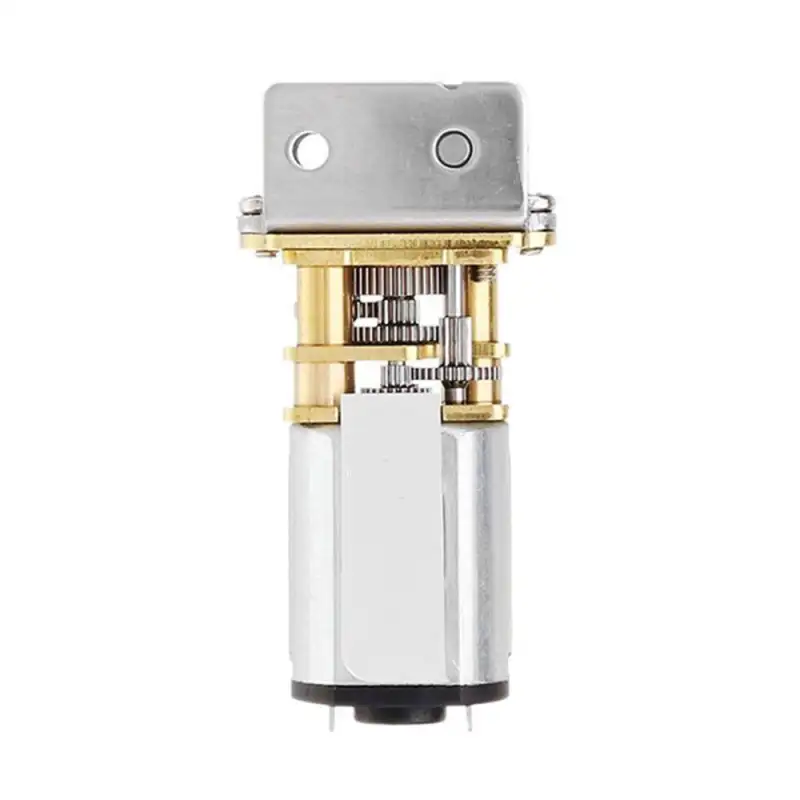

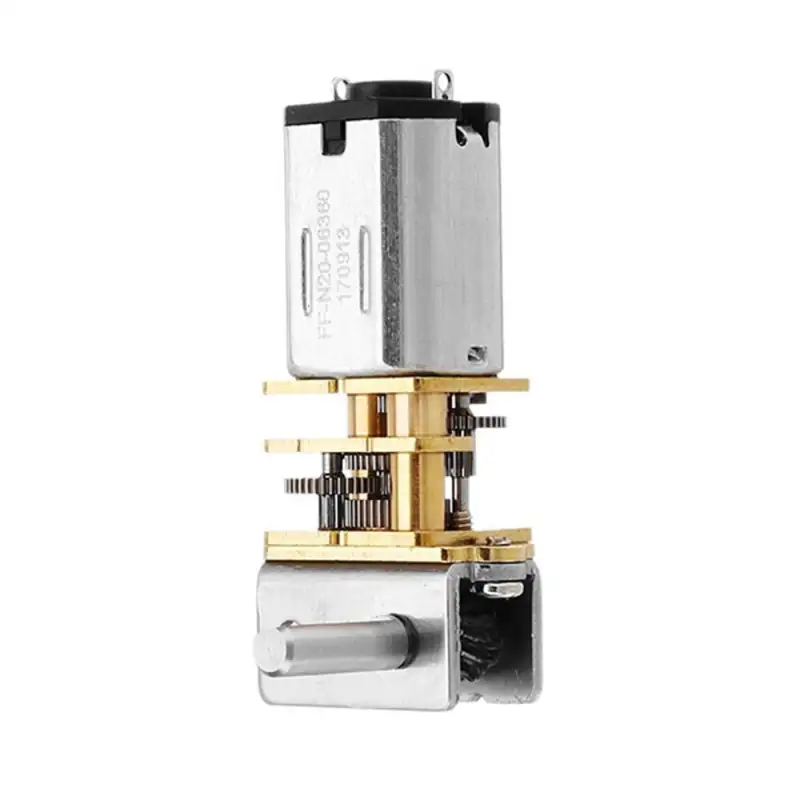

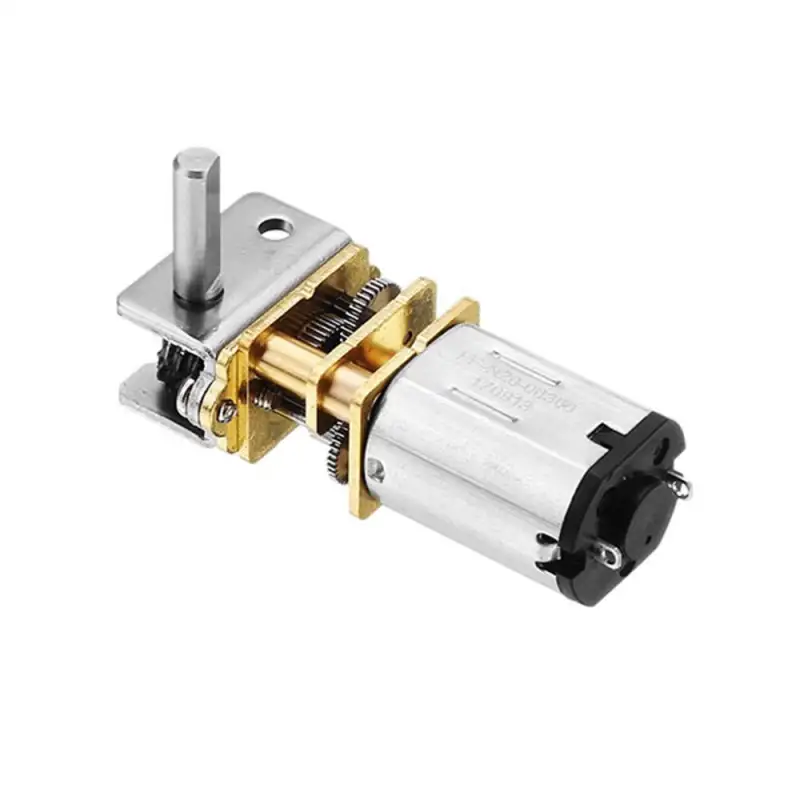

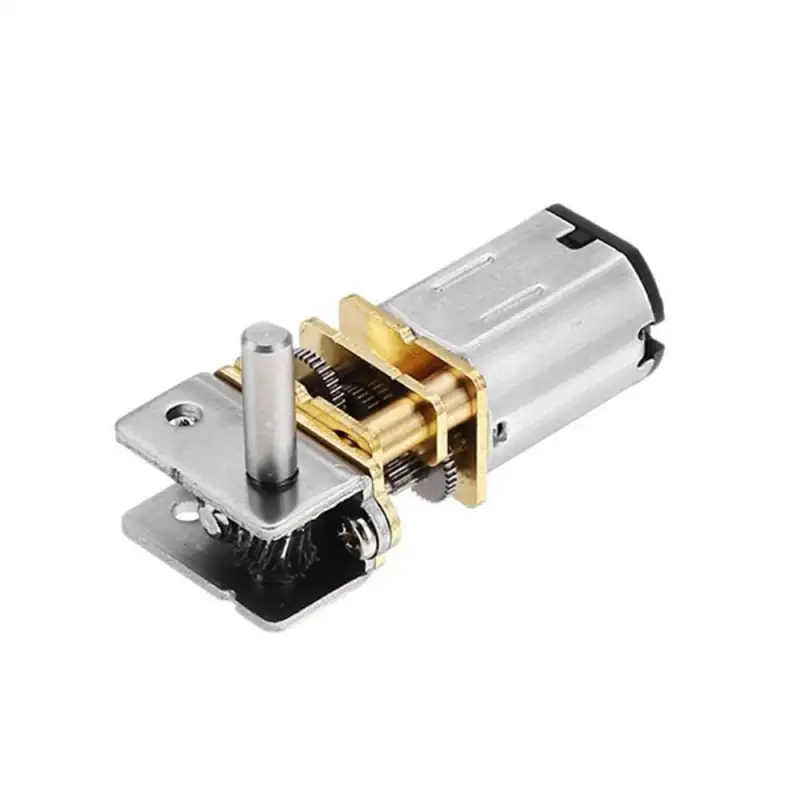

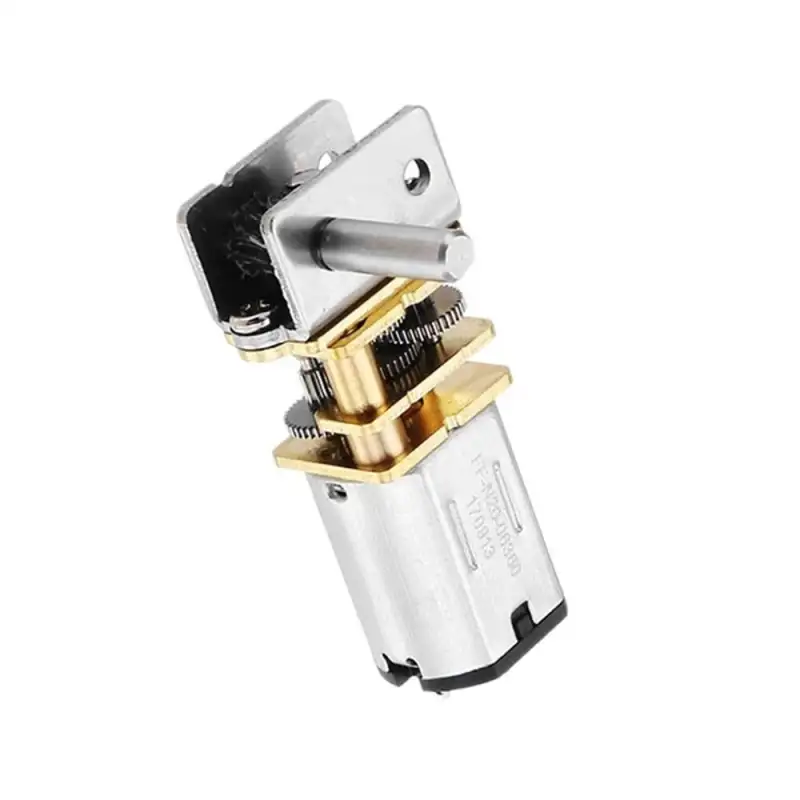

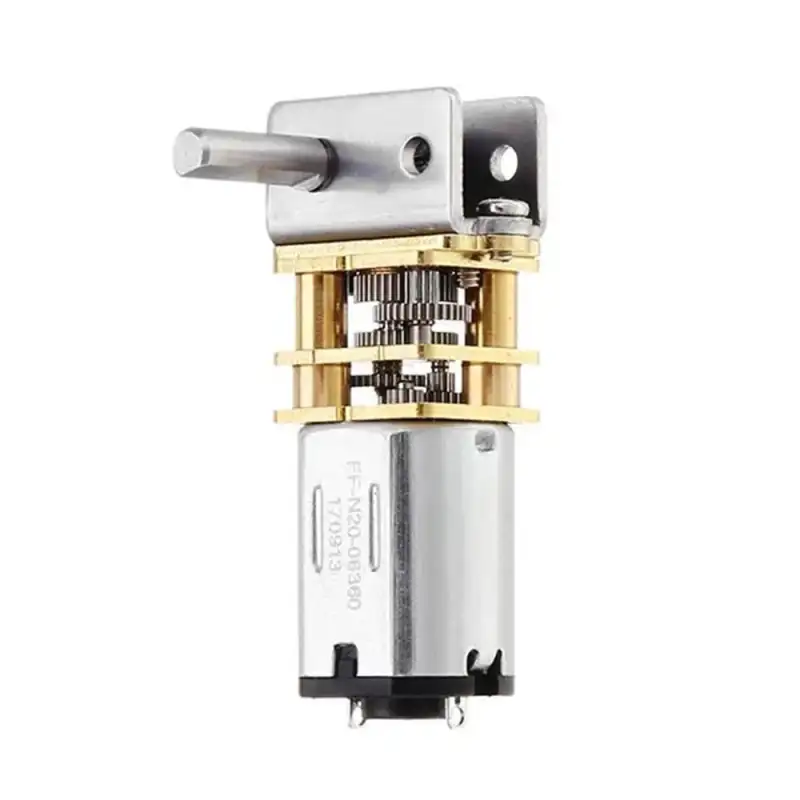

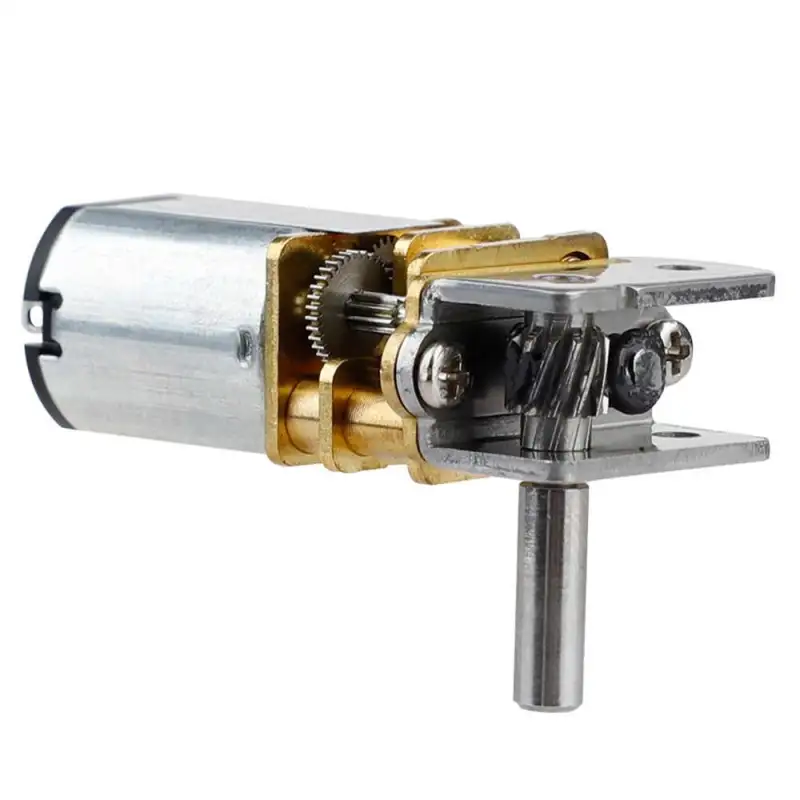

DC12V Gear Motor Encoder Speed Reduction Gearbox 20/60/110/200RPM Reducer Replacement Motor

Reference:

Condition: New product

100 Items

$8.37

More info

Features:

- [Widely Used]: Gear motors can be found in many different applications, and are probably used in smart toy car, robot, printer, etc.

- [Multiple Speed Options]: There are four reduction gear motors of different speed and you can choose the one you need, Speed: 20RPM, 60RPM, 110RPM, 200RPM.

- [Full Metal Gears]: The metal gear in the gear box has a strong carrying capacity, high temperature resistance, wear resistance, ruggedness and other characteristics effectively protect the main body of the worm gearbox motor.

- [High Torque]: Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.

- [Specifications]: Voltage: DC 12V | Shaft length: 9±0.1mm | Shaft diameter: 2.5mm.


Specification:

Produce type

Brushed DC motor

Model

GW12N20

Material

Metal

Voltage

DC 12V

Shaft length

9±0.1mm

Shaft diameter

2.5mm

Total length

34.4±0.1mm

Rotating speed (Optional)

20RPM, 50RPM, 110RPM, 200RPM

Certification

CE,ROHS


Voltage

Gear Ratio

No load

Load Torque

Stall

Speed

Current

Speed

Current

Torque

Current

Torque

12V

1:1260

20RPM

≤80ma

19RPM

≤150ma

650g.cm

≤1.1A

3.0kg.cm

12V

1:800

60RPM

≤80ma

55RPM

≤160ma

580g.cm

≤1.1A

2.8kg.cm

12V

1:450

110RPM

≤80ma

85RPM

≤160ma

450g.cm

≤1.1A

2.2kg.cm

12V

1:240

200RPM

≤80ma

150RPM
