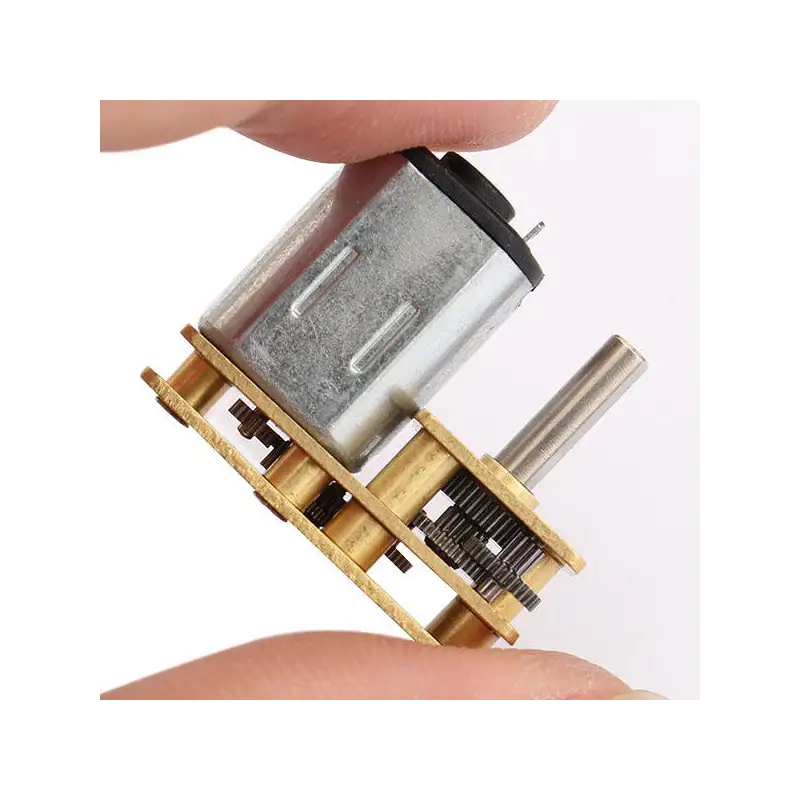

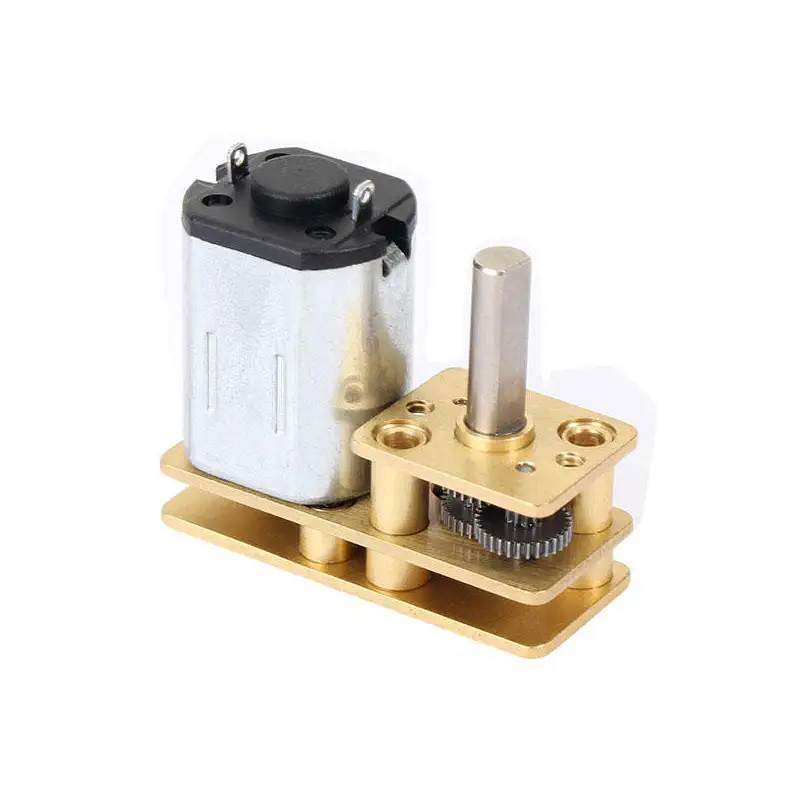

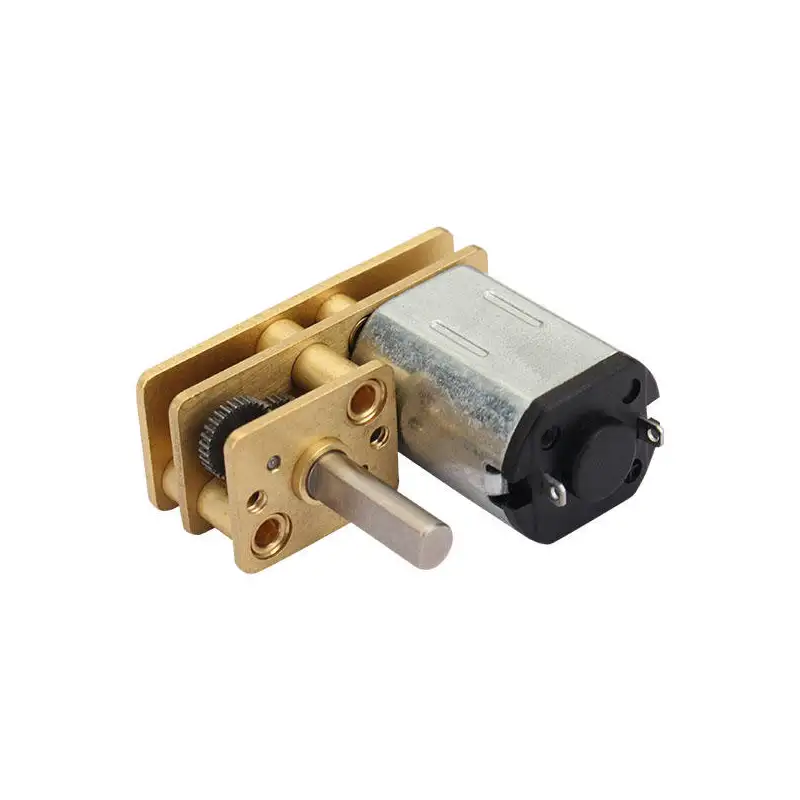

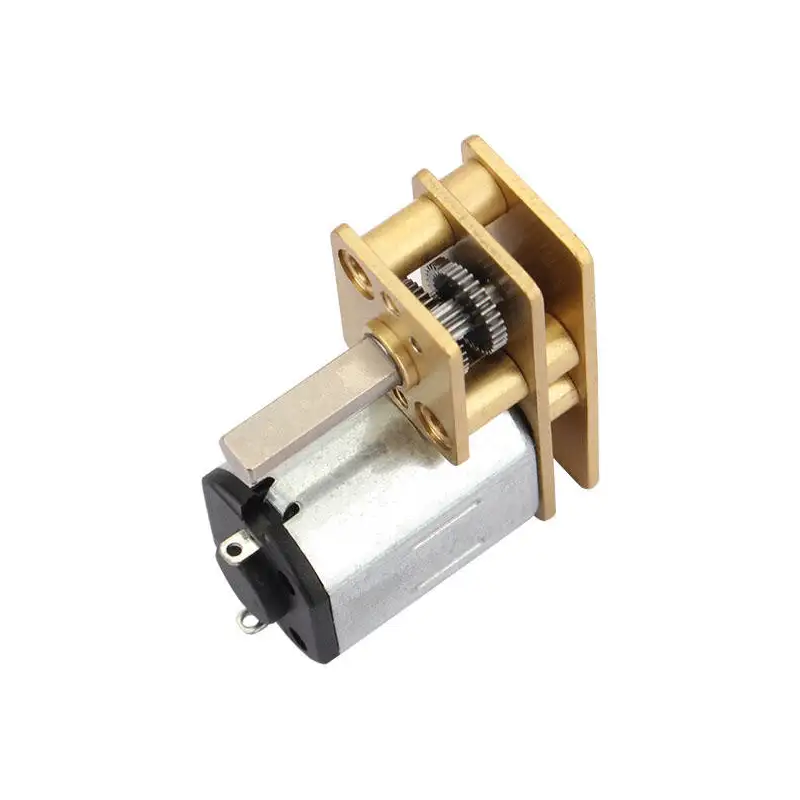

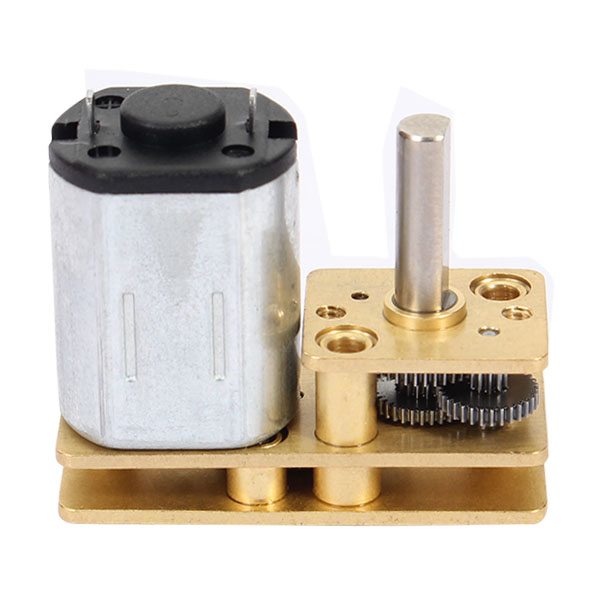

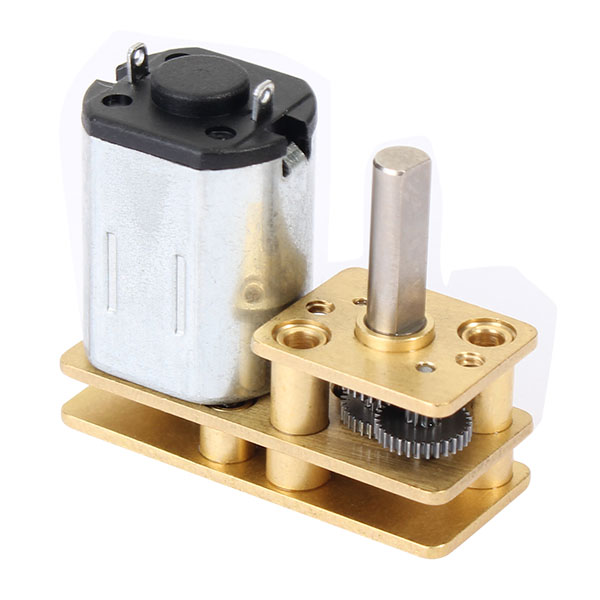

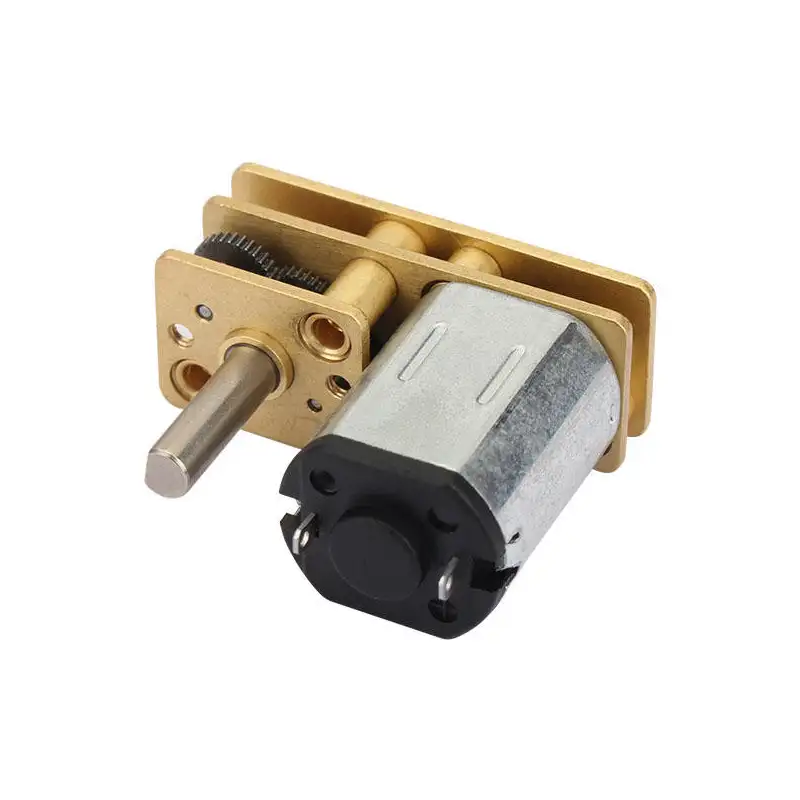

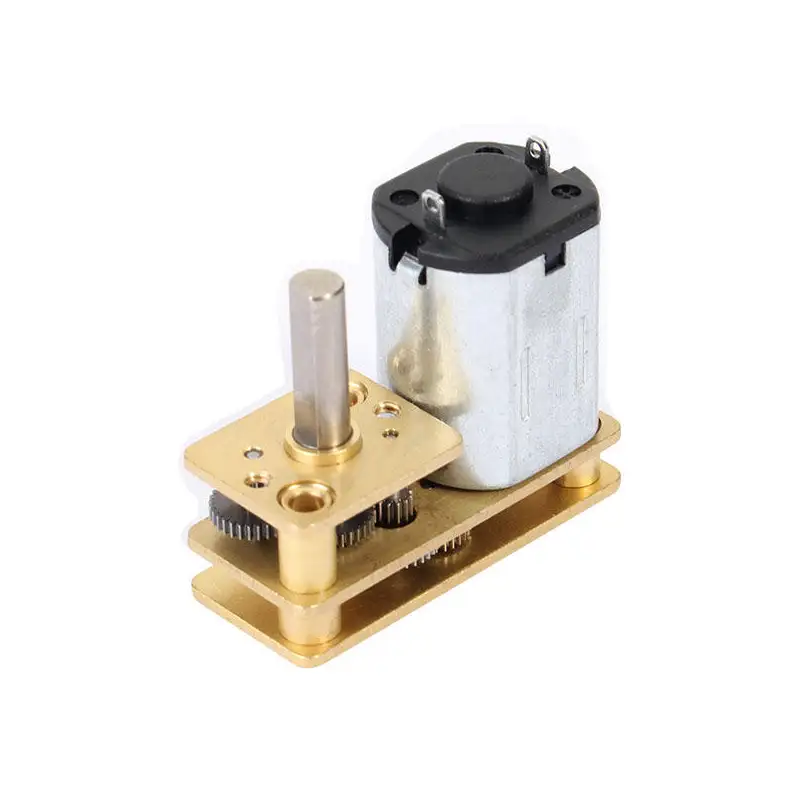

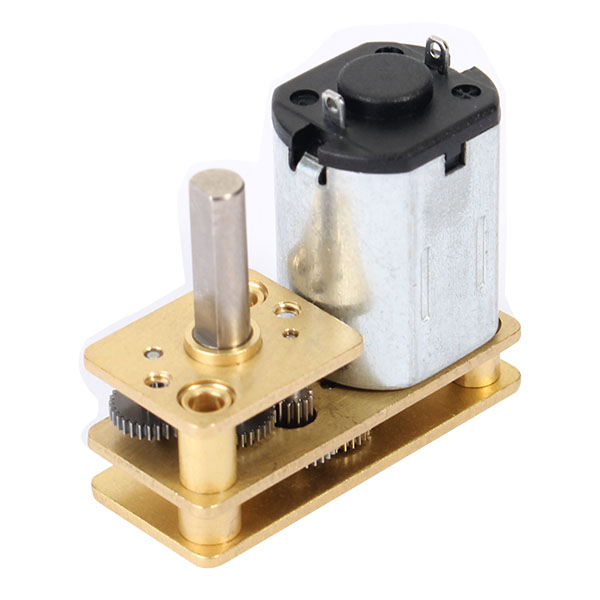

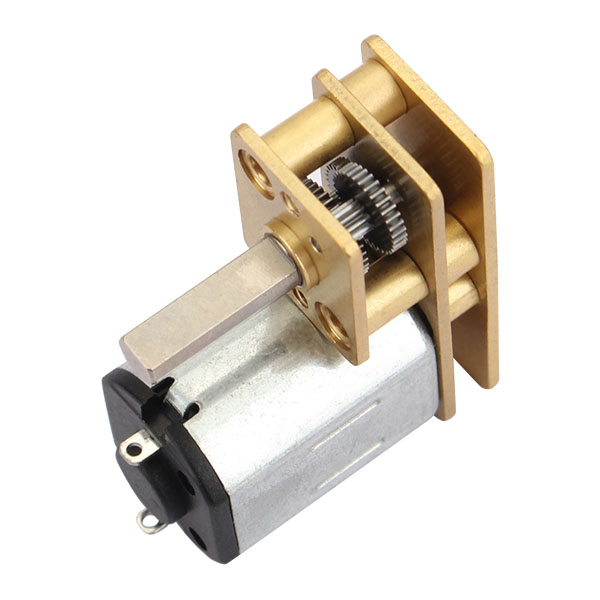

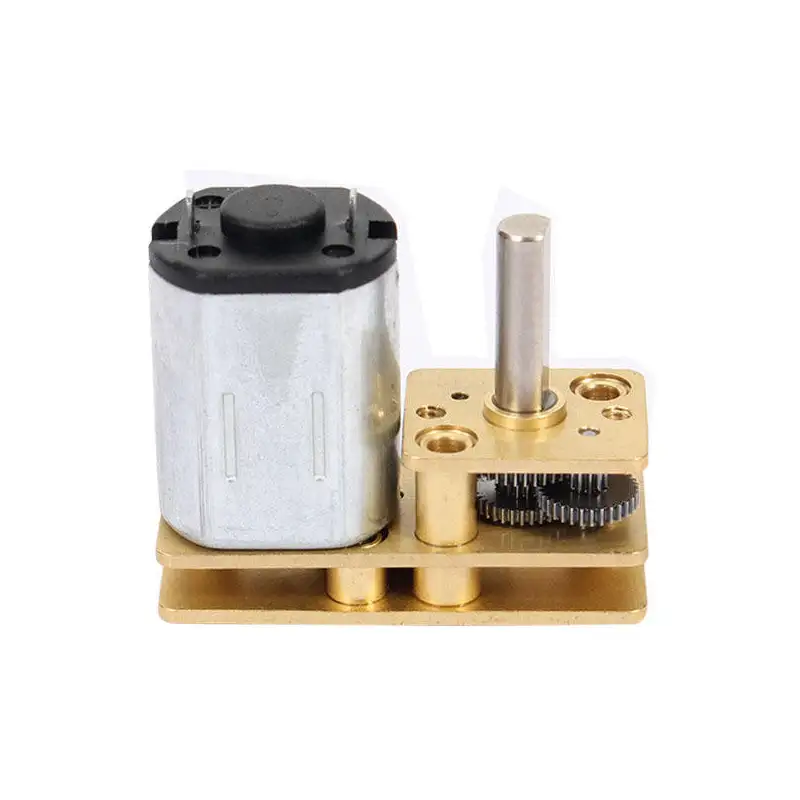

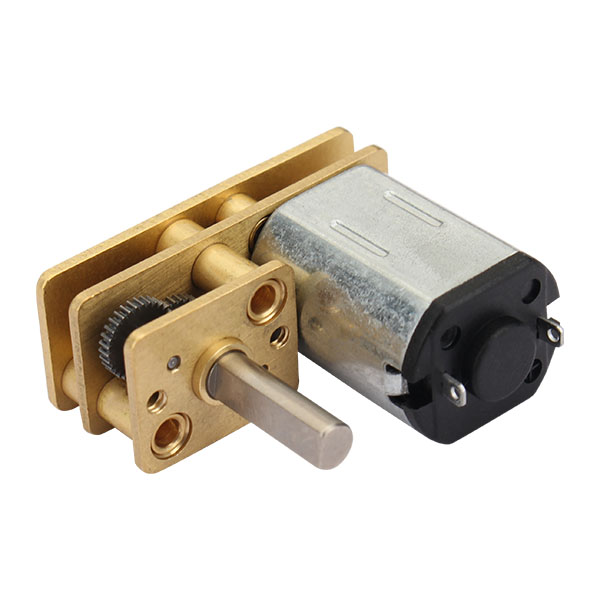

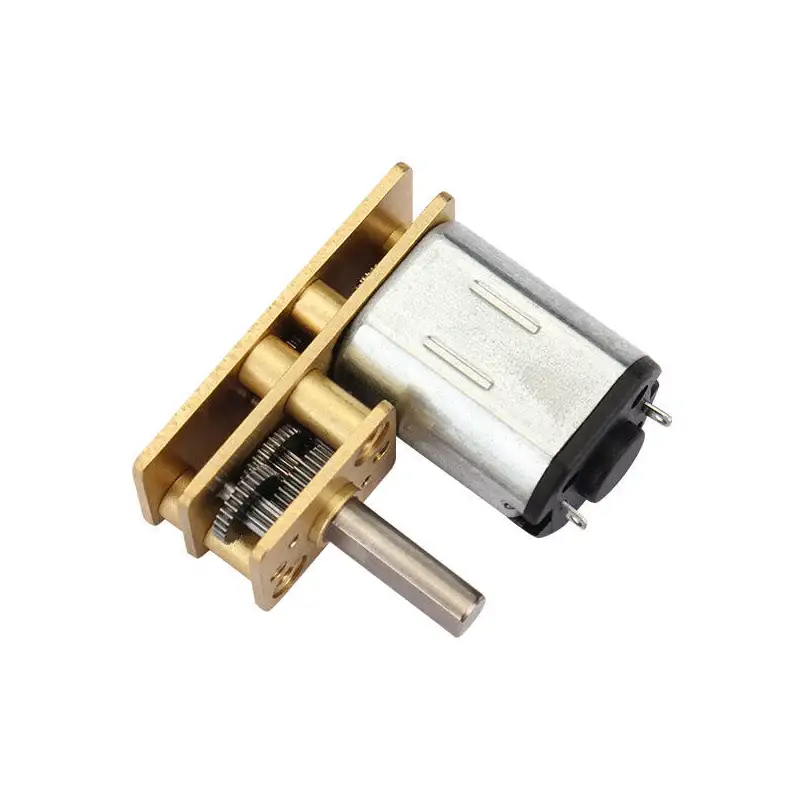

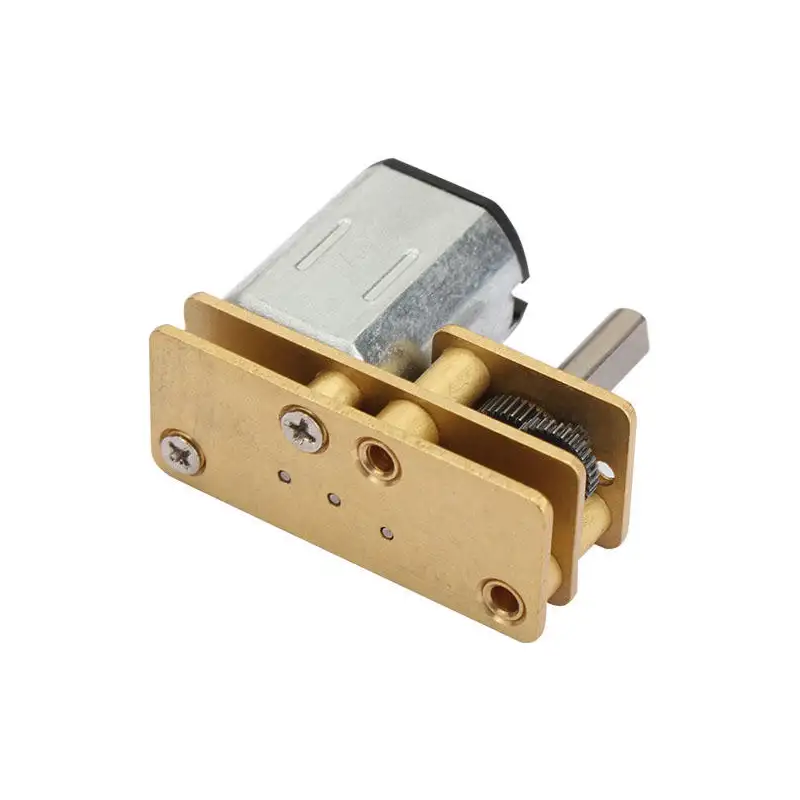

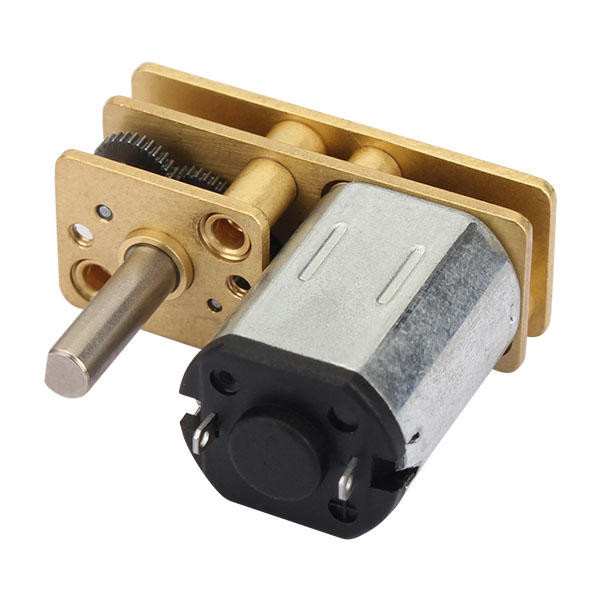

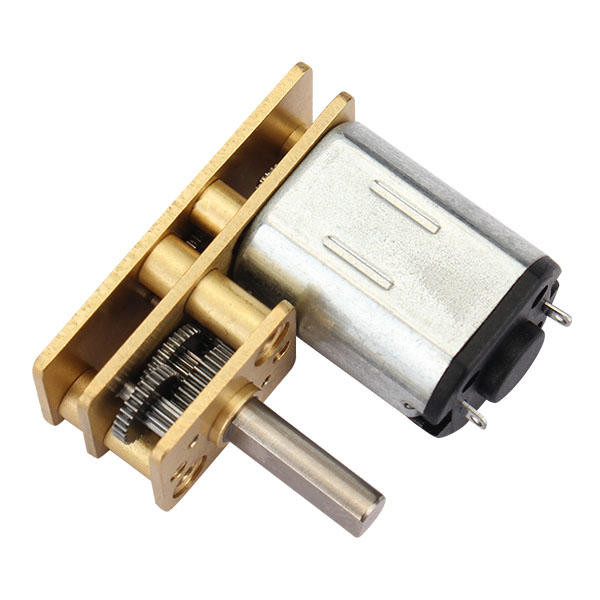

DC 6V 105RPM Micro DC Gear Motor Gear Box Motor
Reference: BG0052-9095269
Condition: New product
Delivery on: Jul 29 2026
100 Items
More info
DC 6V 105RPM Micro DC Gear Motor Gear Box Motor
Specification:
Model: 24GA-N20-08220-150-10D
Material: Alloy steel, copper etc.
DC voltage: DC6V
Speed: 105rpm
Output shaft with the same direction of motor
Output shaft with the same direction of motor
1. Standard Operating Conditions
2. Performacnce of Motor
3. Performance of Gear Motor
4. Dimension
5. Product Drawing
6. Curve Drawing
Package Included:
1 x Gear Motor
More Details:
| Item | Specification | Test Method |
| Rated Voltage | DC 6.0V | Multimeter |
| Gear Ratio | 1/150 | |
| Rotation | CW | Handle |
| Motor Position | All position in horizontal | Handle |
| Temperature | 0 - 30 Degree Celsius | Thermometer |
| Humidity | 30% - 95% | Hygroscope |
2. Performacnce of Motor
| Item | Specification | Test Method |
| No-load Speed | 16000 +/- 10%rpm | Flash Speed Indicator |
| No-load Current | 35mA (Max) | DC Power Supply |
| Stall Current | 650mA (Max) | DC Power Supply |
| Stall Torque | 12g.cm | Torque Measure |
3. Performance of Gear Motor
| tem | Specification | Test Method |
| Output Speed | 105 +/- 10%rpm | Flash Speed Indicator |
| No-load Current | 50mA (Max) | DC Power Supply |
| Stall Current | 650mA (Max) | DC Power Supply |
| Stall Torque | The maximum permissible load 3kg.cm | Torque Measure |
| Rated Torque | 400g.cm | Torque Measure |
| Rated Current | 150mA (Max) | DC Power Supply |
| Rated Speed | 80+/- 10%rpm | Flash Speed Indicator |
| Noise | 50dB | Digital Sound Levd Meter |
4. Dimension
| tem | Specification | Test Method |
| The outside Shaft Length | 10mm | Vernier Calipers |
| Shaft End Play | 0.05 - 0.30mm | Frock |
| Screw Size | M1.6 x 0.35 | Frock |
| Diameter of Shaft | 3 x 2.5mm | Vernier Calipers |
| Outline Mounting Dimension | Refer to the outline Drawing | Callipe |

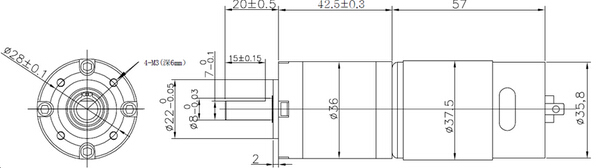

5. Product Drawing

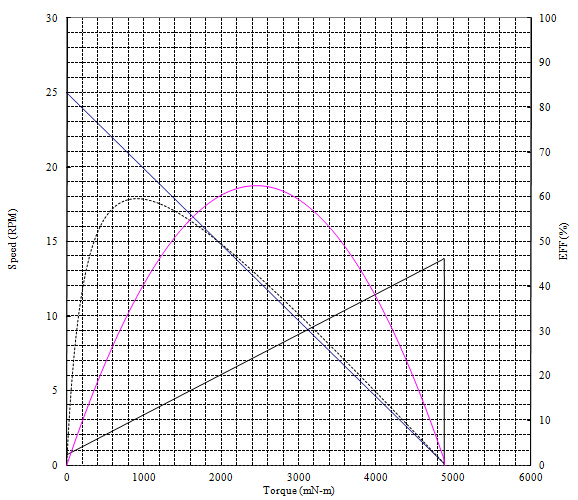

6. Curve Drawing
Package Included:
1 x Gear Motor
More Details:
