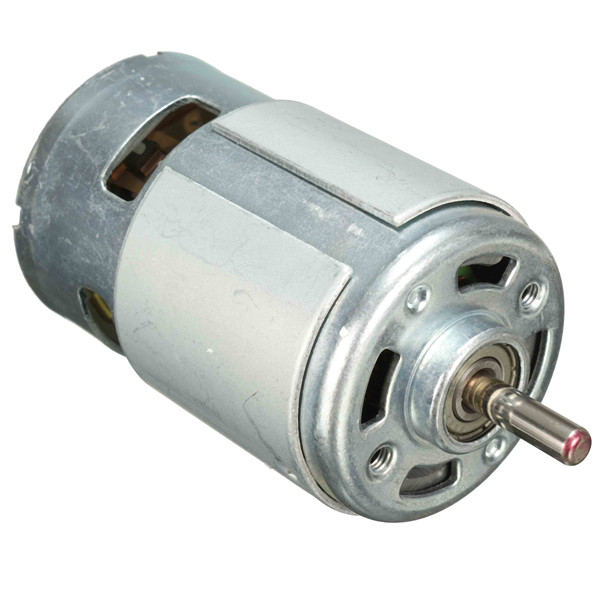

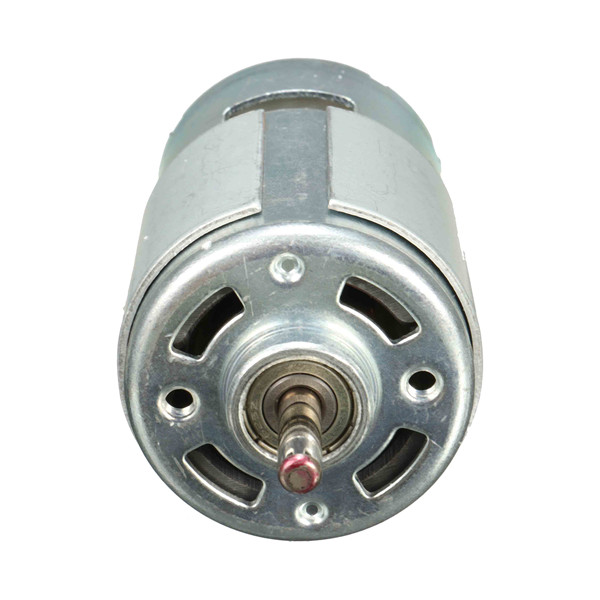

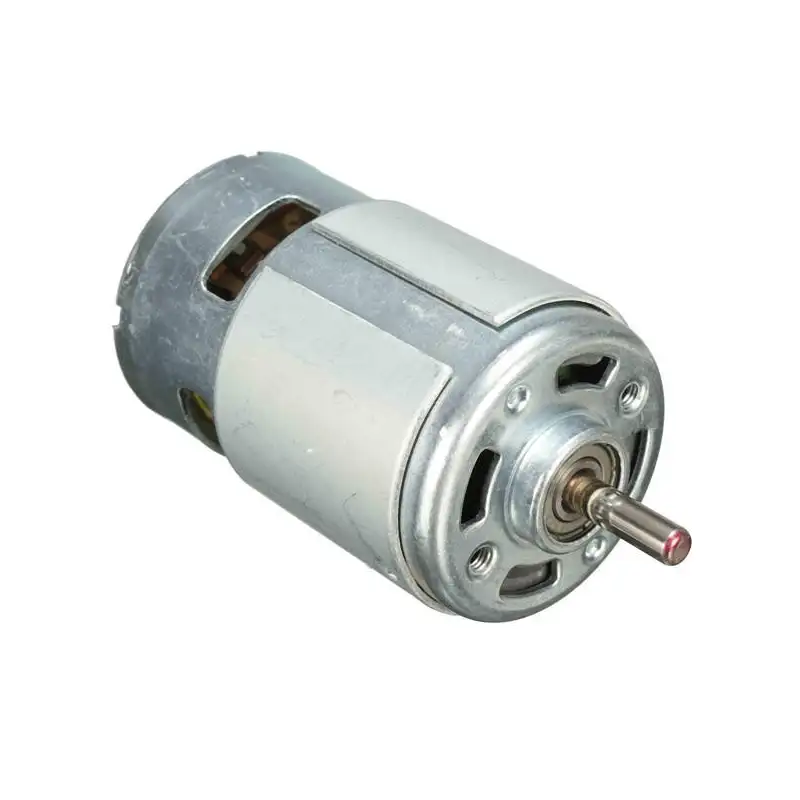

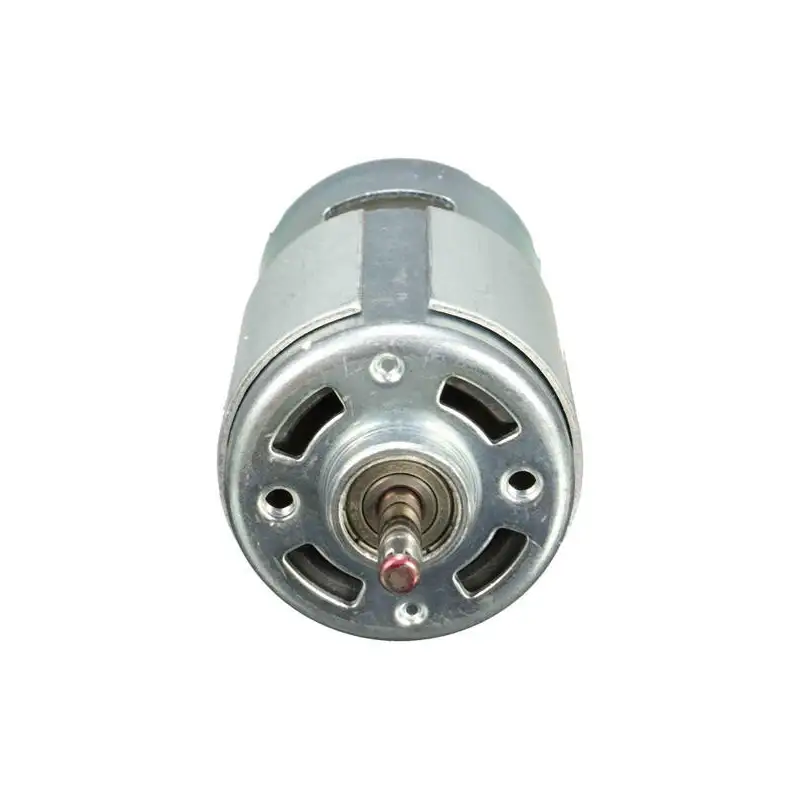

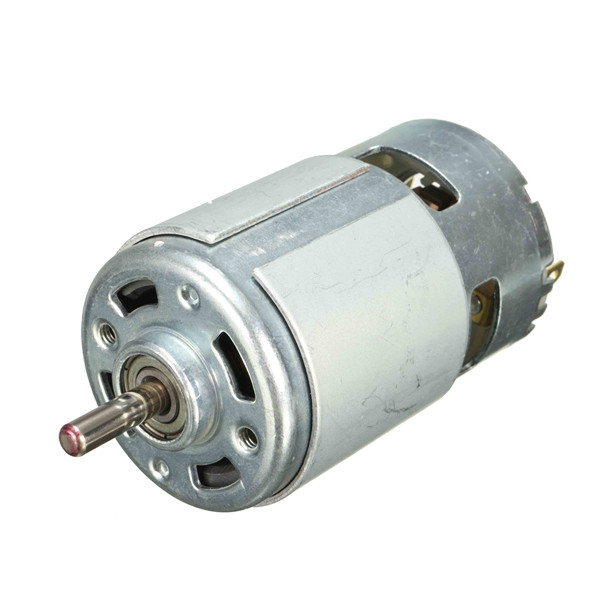

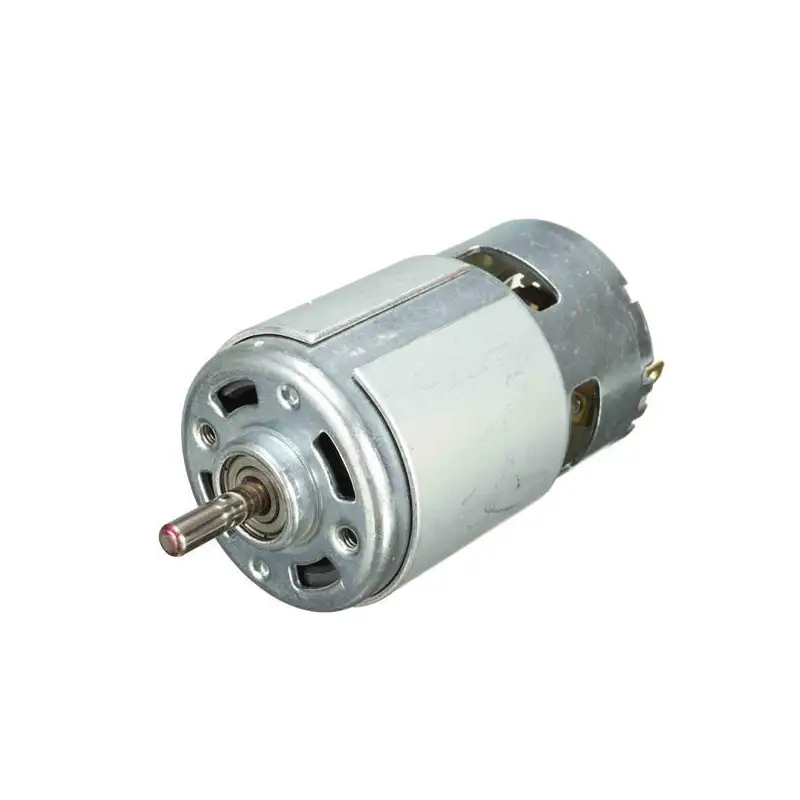

DC 6-30V Motor 775 Gear Motor Large Torque 8300RPM High Power Motor With Vent Holes

Reference: BG0052-9925166

Condition: New product

100 Items

$19.67

More info

Description:
DC 6-30V Motor 775 Gear Motor Large Torque High-power Motor With Vent Holes

The matched gear: Product ID: 1053636.

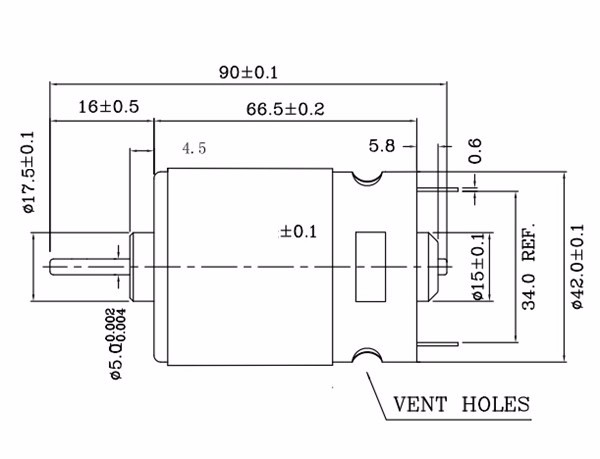

Specification:
The Outside Shaft Length: 16mm
Dia. of Shaft: 5mm
No load Current: 0.45A
Torque Current: Over 20A (About 24.5A)
Acceptable Volatge: 6-30V

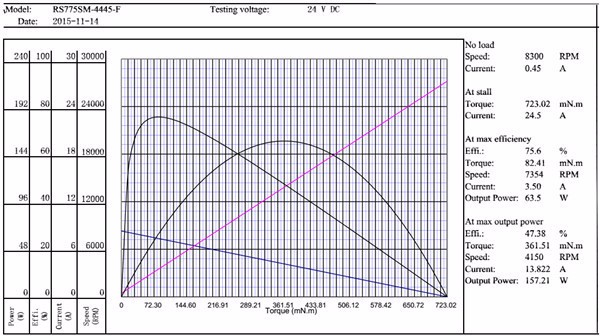

Voltage(V) No-load Speed(RPM)
6 2075
12 4150
24 8300
30 10375

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

Feature:

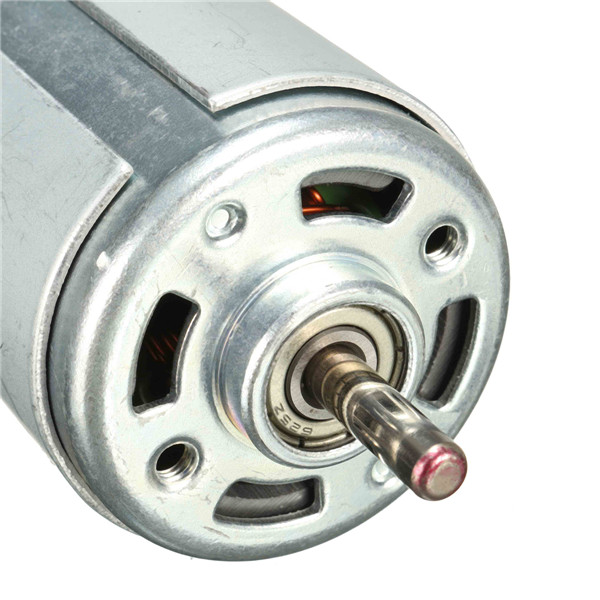

Ball bearing, with cooling fan.
Used in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.




DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939


Package Included:
1x DC motor

More Details:


DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939

DC-6-30V-Motor-775-Gear-Motor-Large-Torque-8300RPM-High-Power-Motor-With-Vent-Holes-1015939
