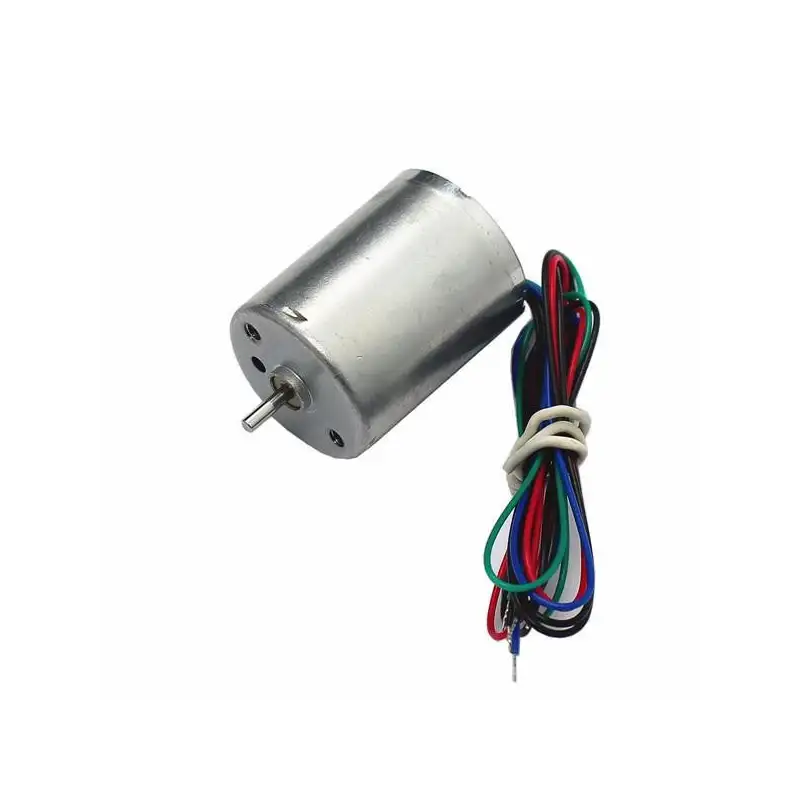

  4. DC 12V Brushless DC Motor Micro DC Motor

DC 12V Brushless DC Motor Micro DC Motor

Reference: BG0052-9408161

Condition: New product

100 Items

$15.93

More info

Description:

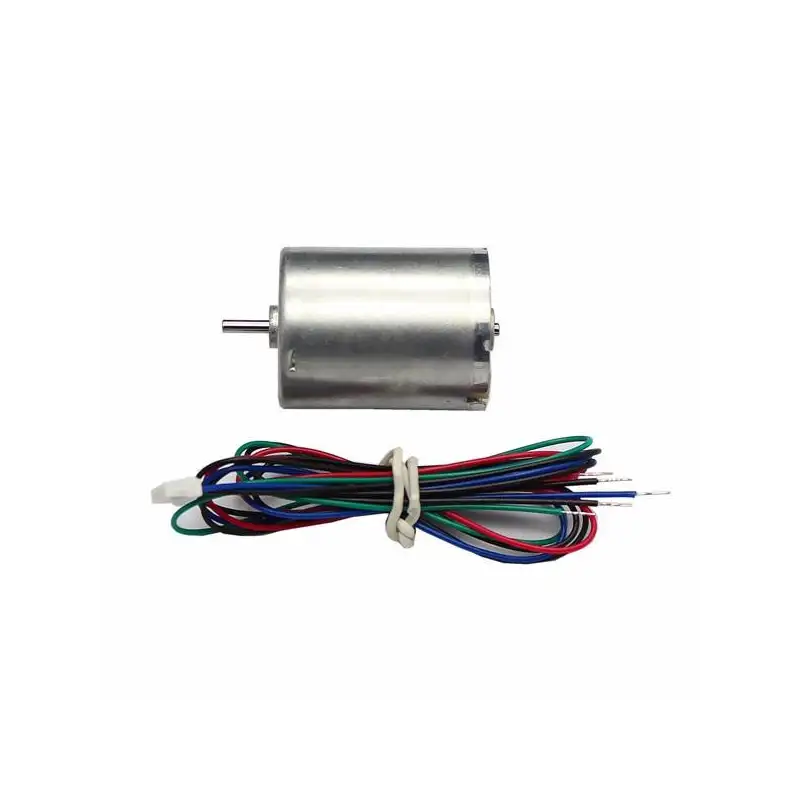

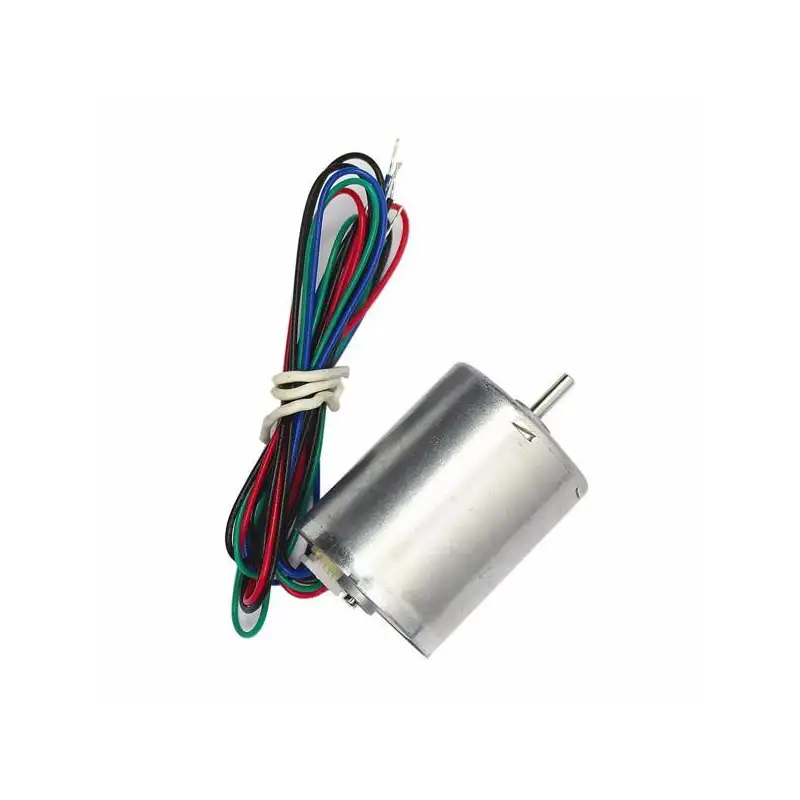

DC 12V Brushless DC Motor Micro DC Motor

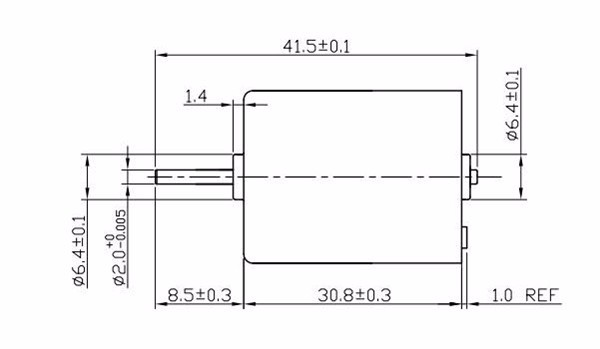

Specification:
Rated Voltage: DC12V
Rated Speed: 6000±10%rpm
The Outside Shaft Length: 8.5mm
Dia. of Shaft:  D2.0mm
Holzer drive inside with 5 lines.

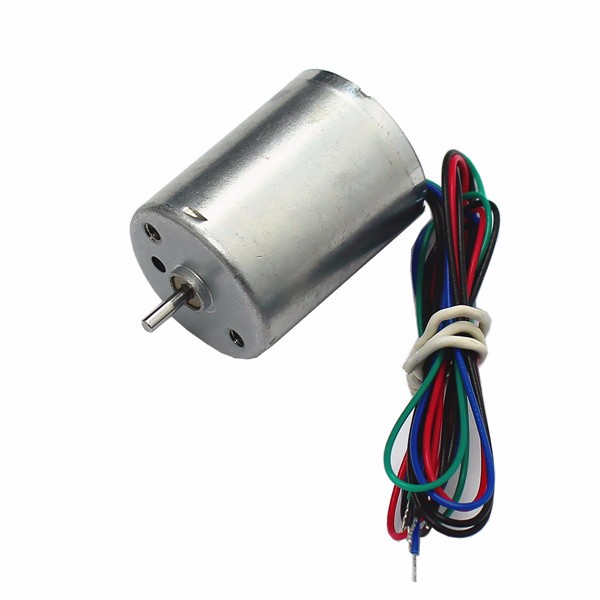

DC-12V-Brushless-DC-Motor-Micro-DC-Motor-1027938

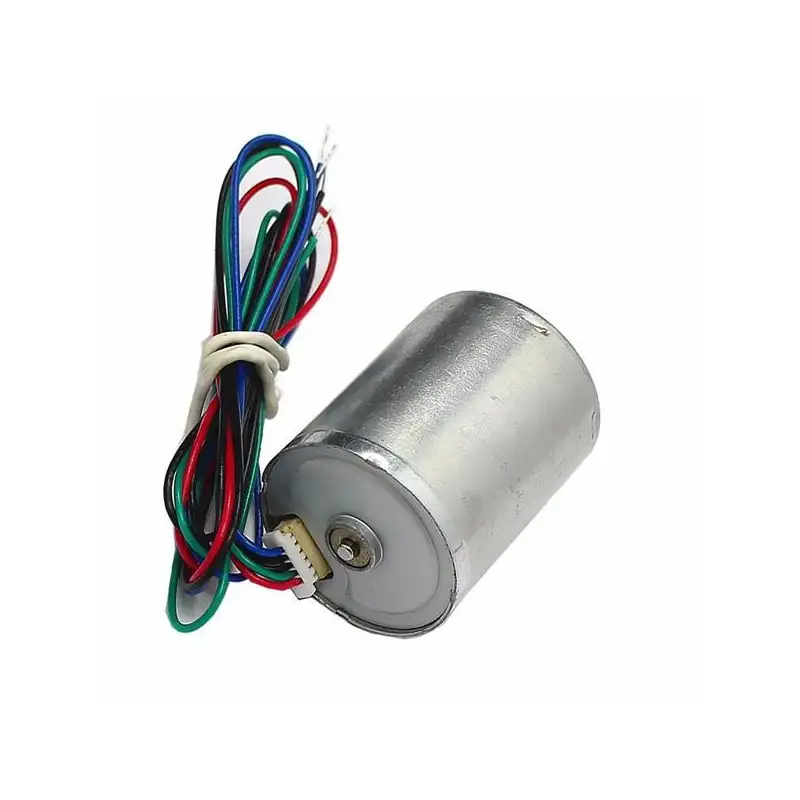

DC-12V-Brushless-DC-Motor-Micro-DC-Motor-1027938

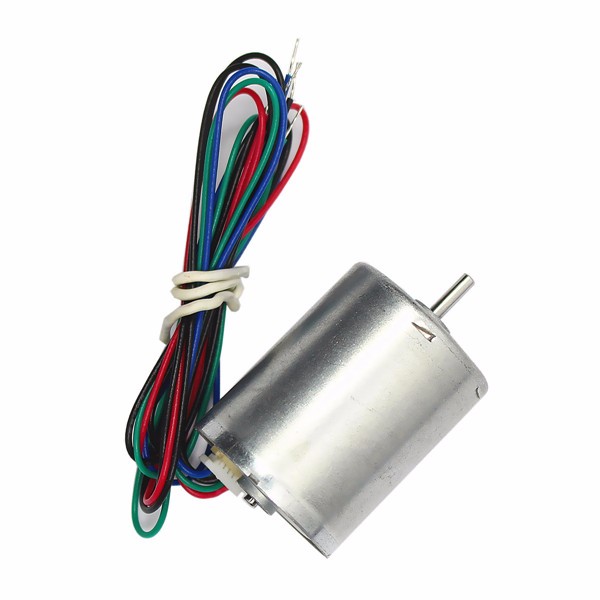

DC-12V-Brushless-DC-Motor-Micro-DC-Motor-1027938


一: Motor Termations

NO. SIGNAL I/O Specifications Note
1 Vm (red wire) IN DC12V±10% POWER
2 FG
VOH OUT 6.0V MAX Hall Signal Pulse Outputs
VOL 0.5V MAX
FG Singnal Current 2mA
Pulse Outputs of ratation 6Pulse / cycle
3 CW / CCW
CW / CCW Control (yellow wire)
Input Voltage Rotation IN [0V] [5V] High---motor CCW
Low---motor CW
VIH 2.0V Min. or open
VIL 0.5V Max.
4 GND OUT Power Ground Power Ground
5 PWM Control, (blue wire)  60K MAX  TYPICAL (15-25K)
Input Voltage Range IN [0V]  [5V]  0K-30K High---motor OFF
Low---motor ON
VIH 2.0V Min. or open
VIL 0.5V Max.

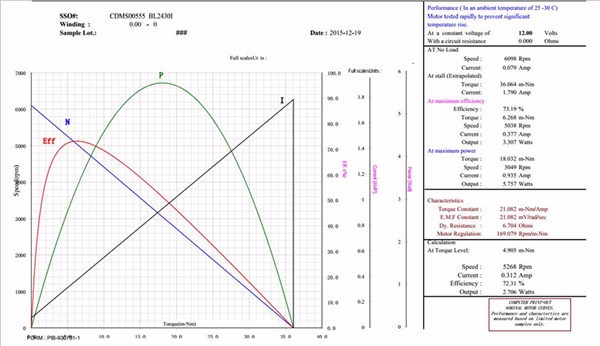

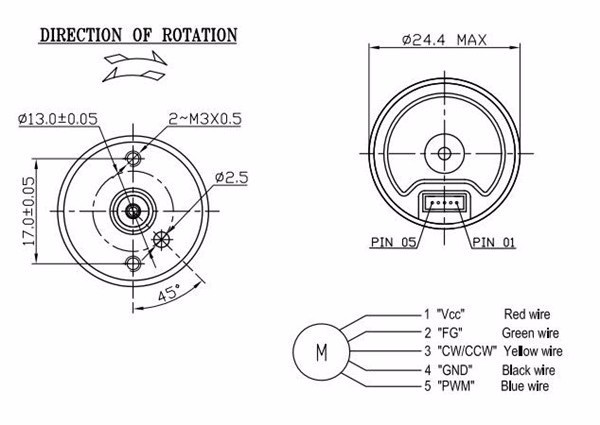

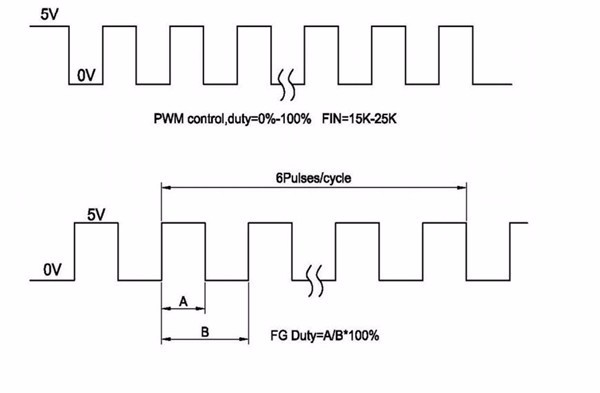

二: Block Diagram


DC-12V-Brushless-DC-Motor-Micro-DC-Motor-1027938


Applications:
Home appliances: small home appliances, kitchen appliances, micro actuator
Auto parts: micro pump, switch
Medical equipment: medical pump, liquid pump, gas pump, blood pressure meter, operation instrument
Power tools: electric pump, water pump, vacuum pump, micro valve
Business equipment: projector, printer, copier, scanner, currency-counting machine
Personal care: skin care, beauty equipment

Notes:
1. There must should be clean without anything surrounding the motor when using the motor.
2. For extend the lifetime of the motor, there could not be over-loaded or attached the things which might the normal rotating of the motor.
3. Plsase keep the surrounding enviroment clean, high temperature and extremely wet enviroment could affect the lifetime of the motor.
4.When soldering tin to the motor, please mind the plastic from being damaged, the temperature should be 340℃±40℃and within 3 seconds.
5. Be sure the screws are the right sizes and length.
