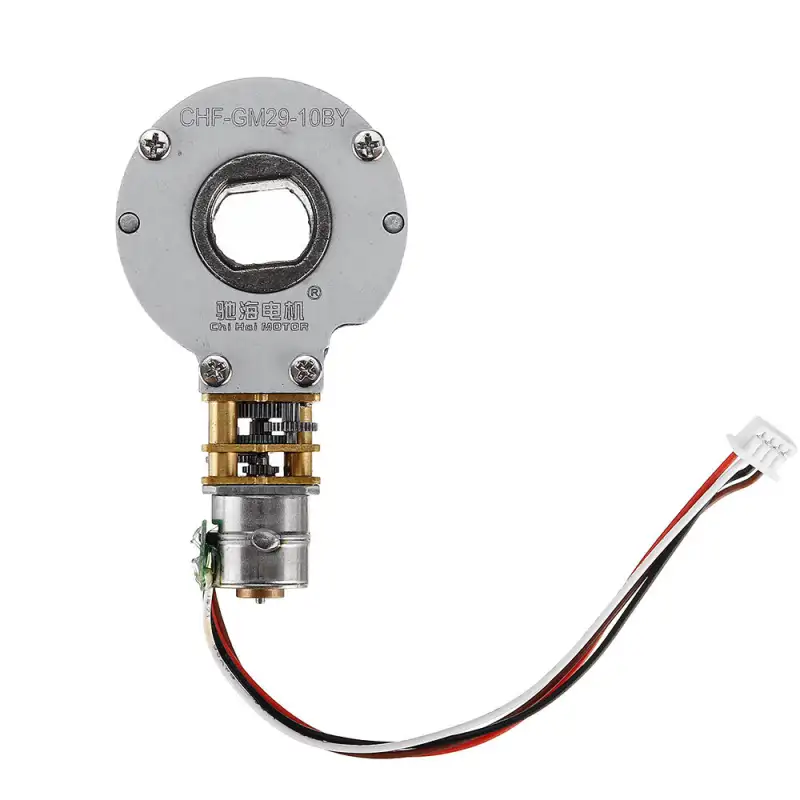

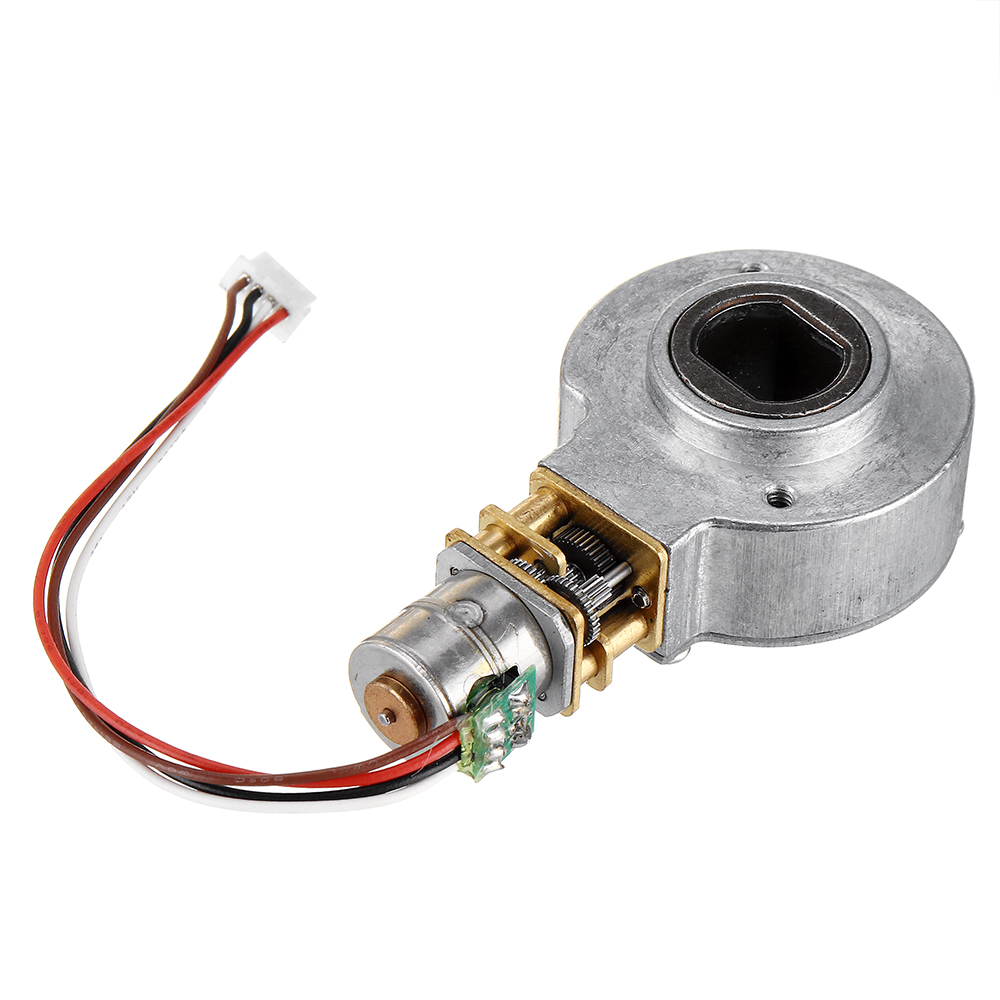

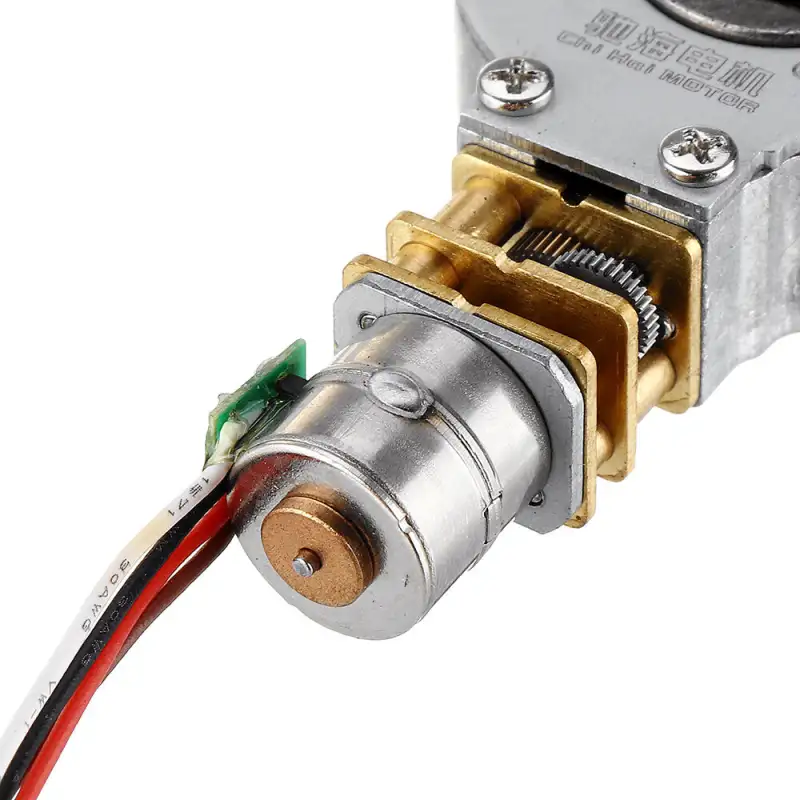

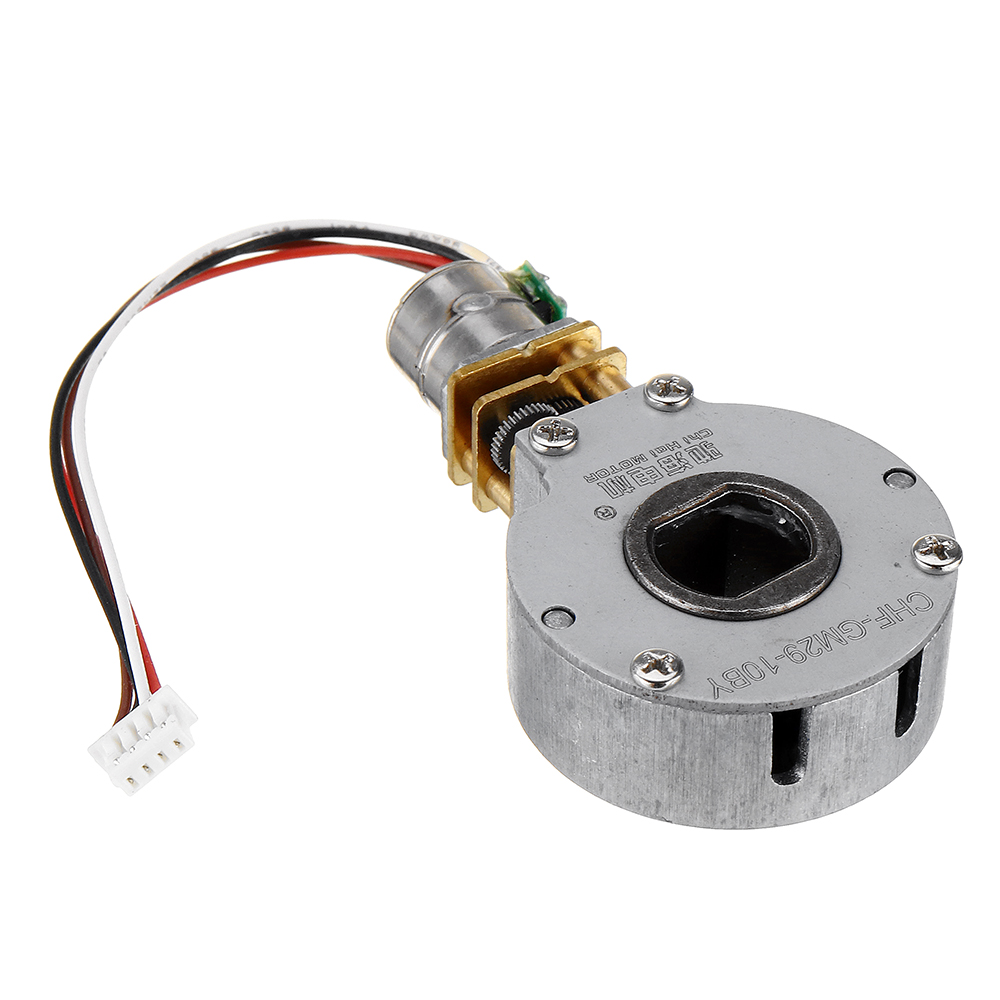

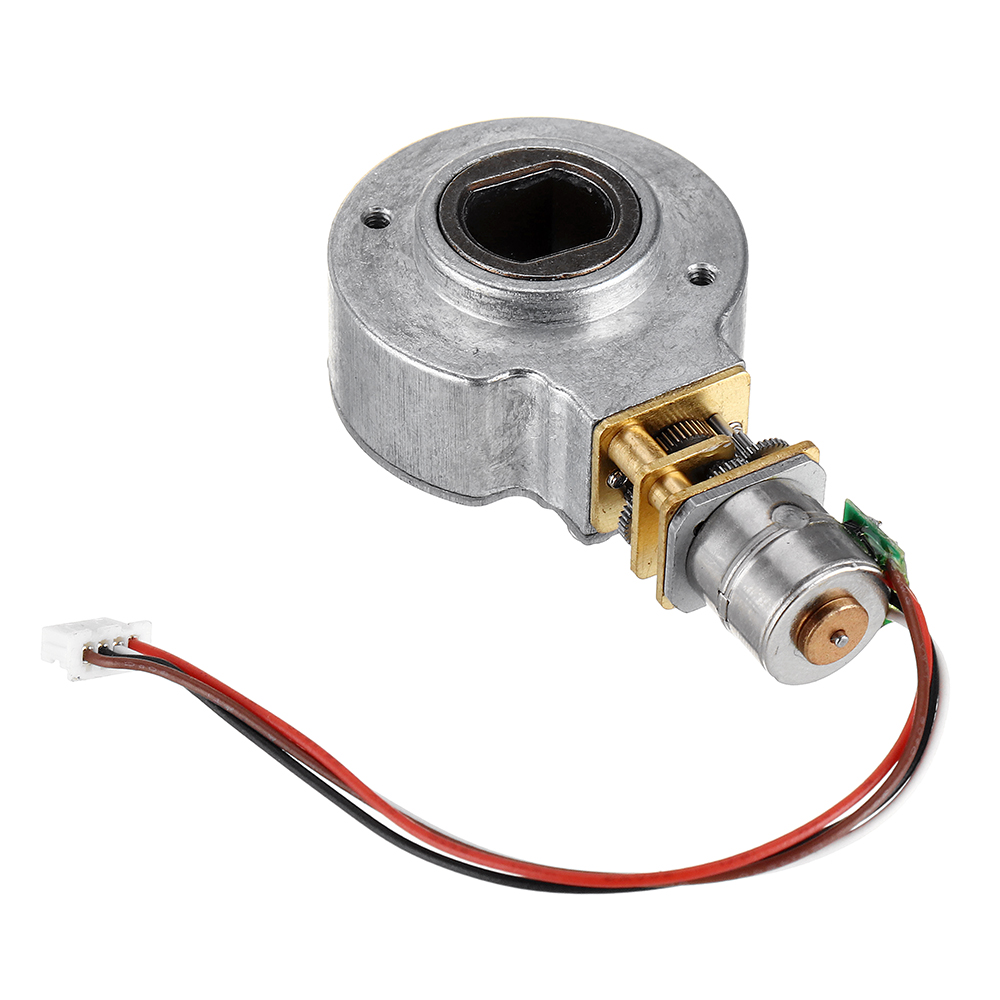

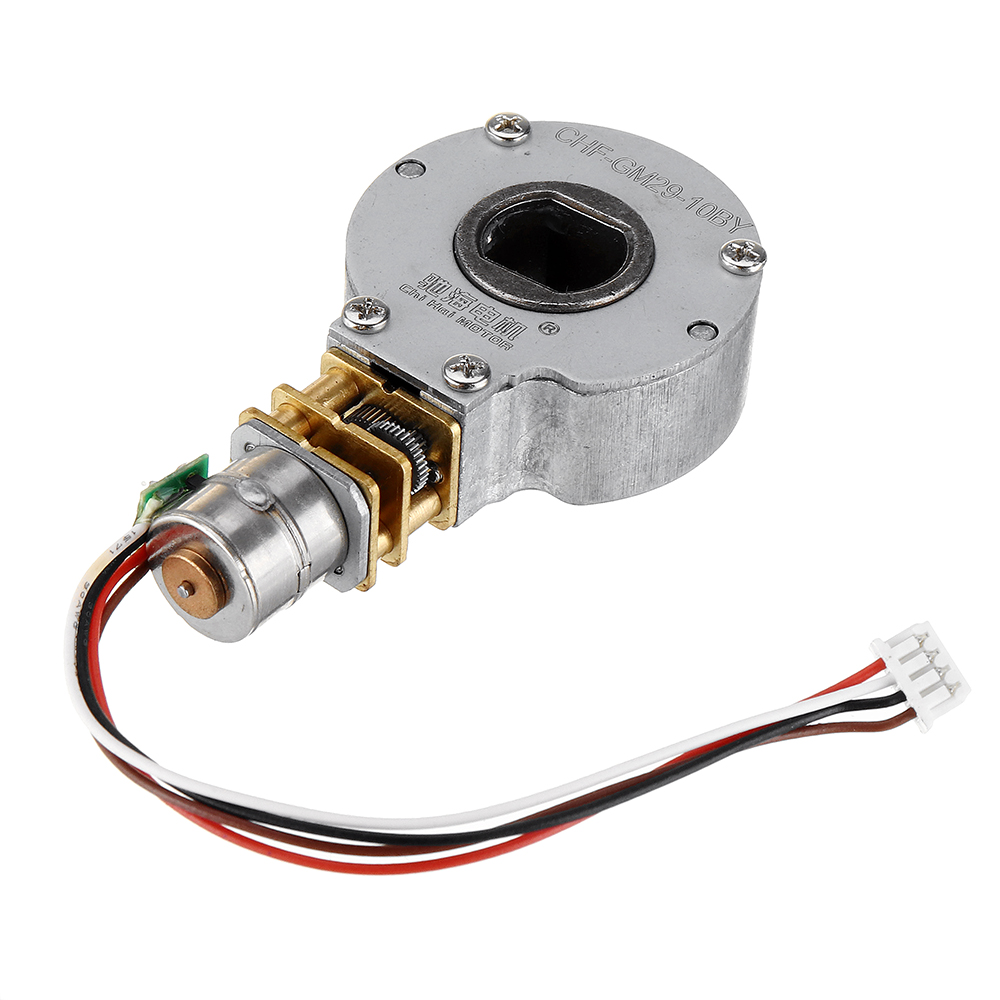

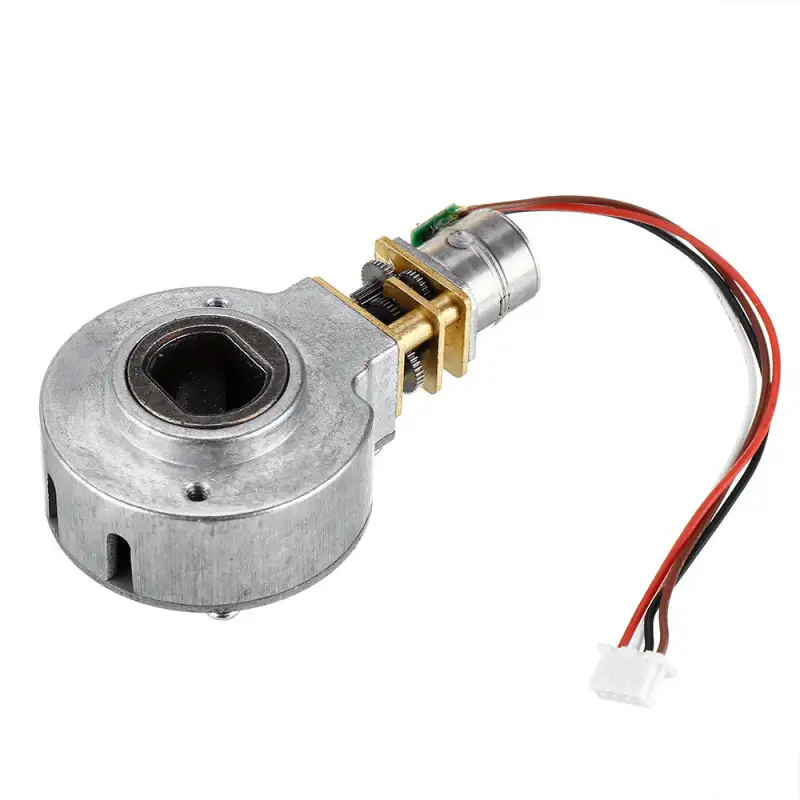

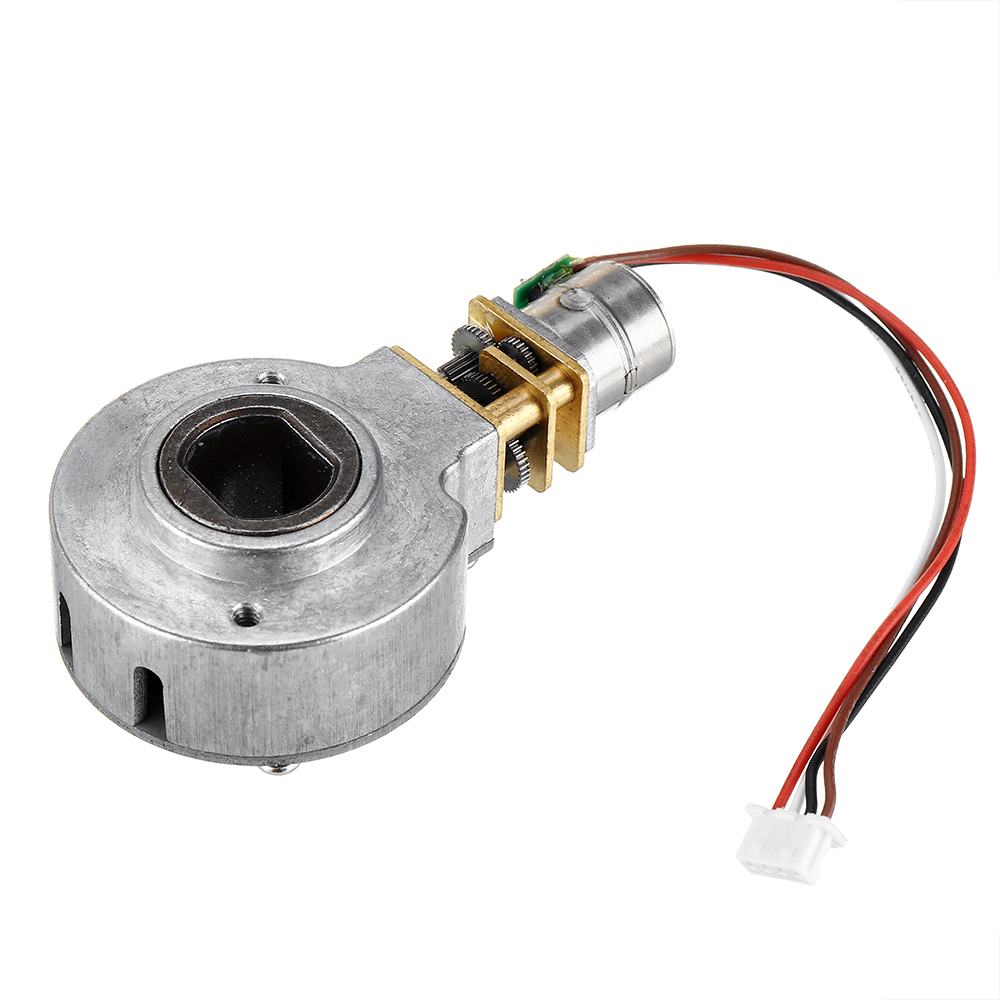

CHS-GM29-10BY DC 5V Micro Stepping Gear Motor Permanent Magnet Brushless Stepping Secondary Variable Speed Motor
Reference:
Condition: New product
Delivery on: Jul 29 2026
100 Items
More info
Description:

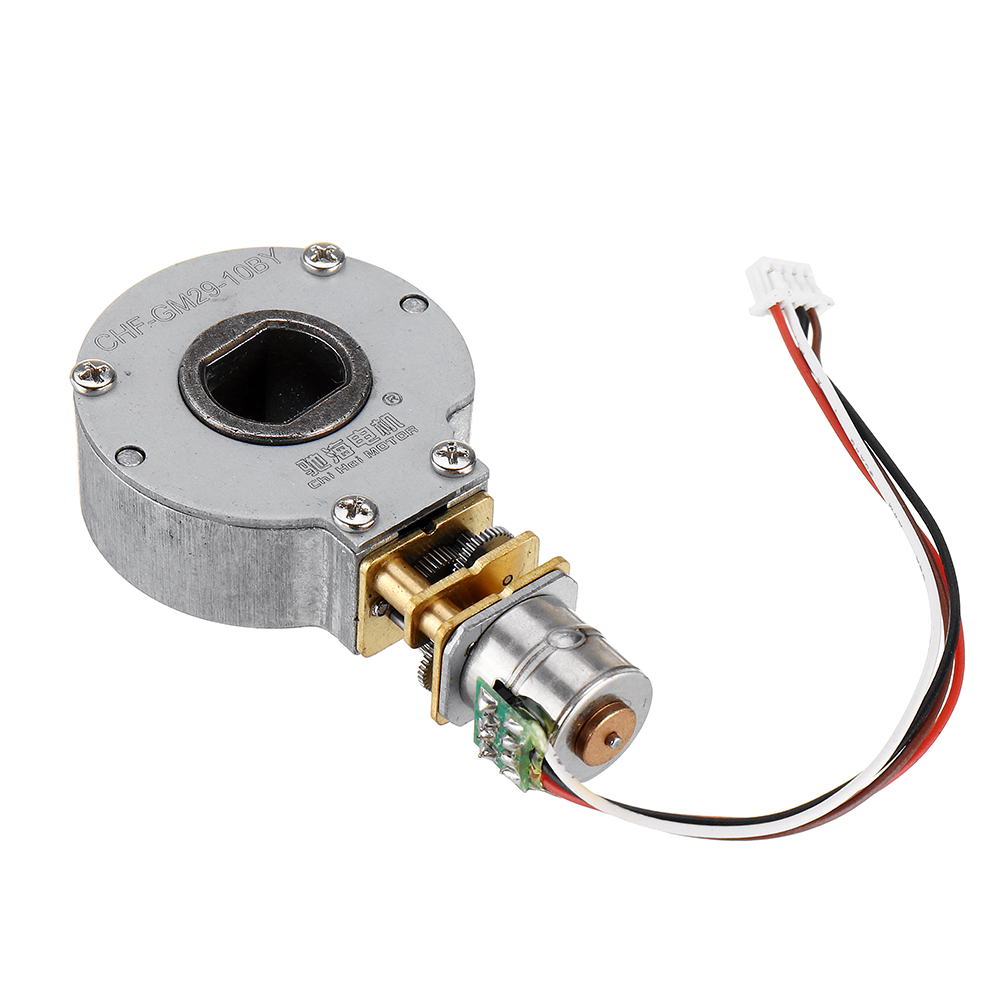

CHS-GM29-10BY DC 5V Micro Stepping Gear Motor Permanent Magnet Brushless Stepping Secondary Variable Speed Motor
Specifications:
| Product Name |
DC Brushless Stepping Secondary Variable Speed Motor |
| Brand |
CHIHAI |
| Model |
CHS-10BY-M1055 |
| Body Length |
51mm |
| Body Thickness |
11.65mm |
| Output Ahaft |

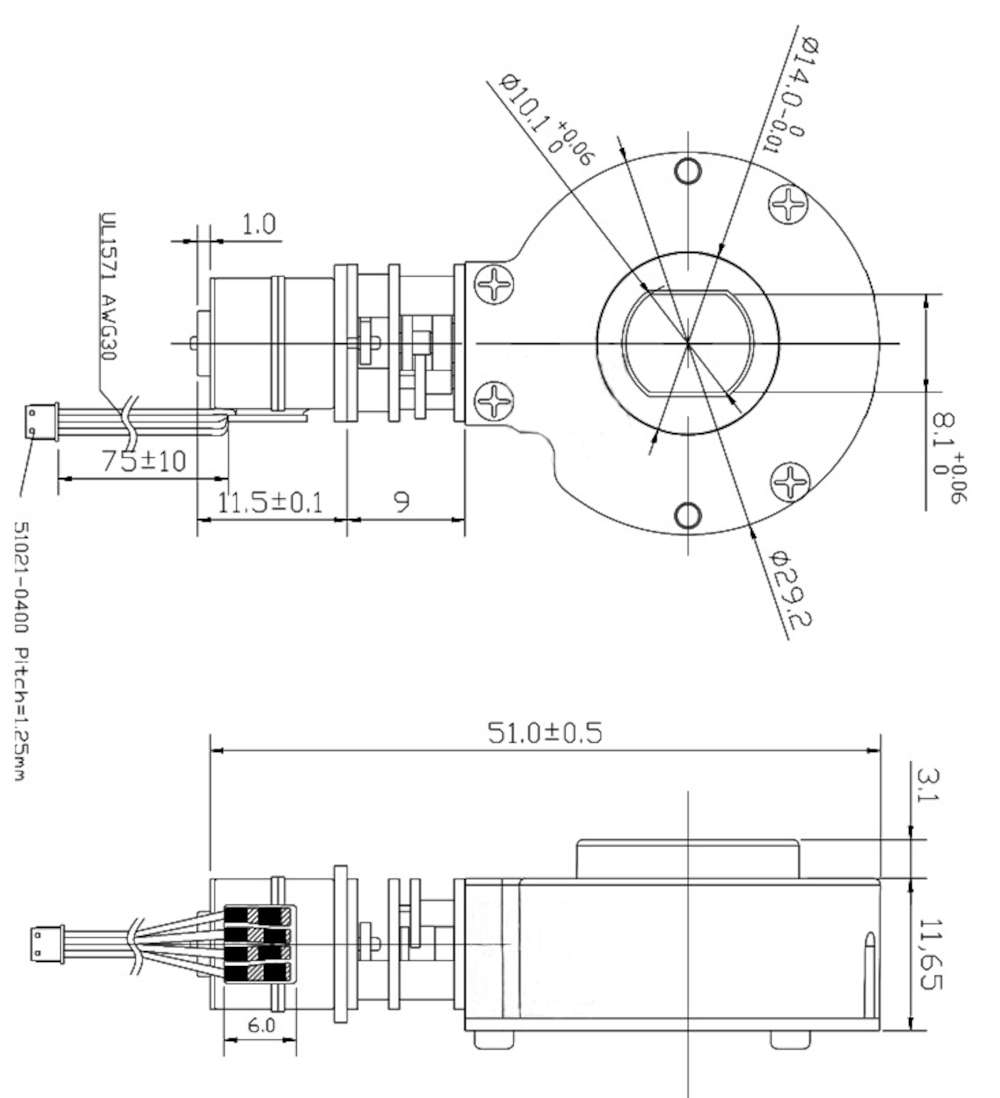

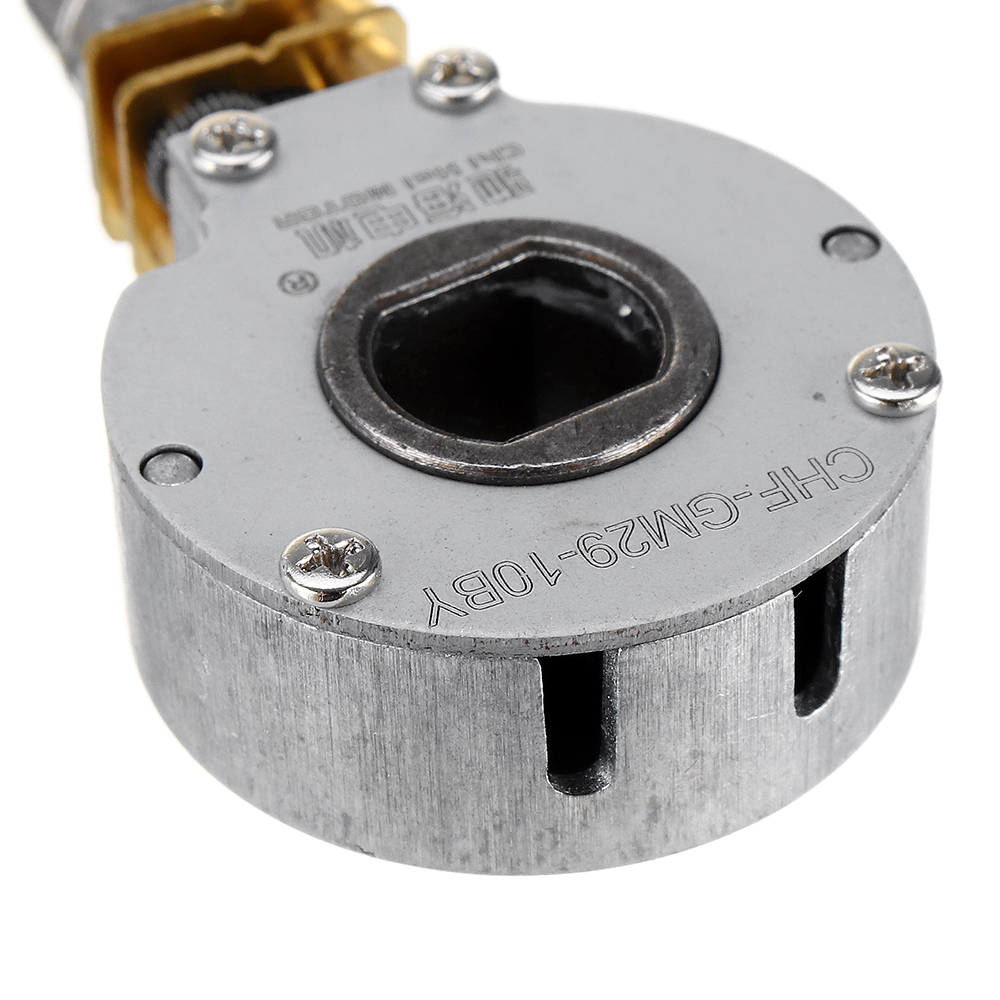

Hollow Heterosexual Coupling Shaft (see figure for details) |
| Weight |
Appr.43g |
| Quantity |
1 Pc × Gear Motor |
| Rated Voltage |
5V DC (DrIver IC:I6219) |
| Current Per Phase |
128mA/PHASE |
| Coil Resistance |
39±ohm/PHASE |
| NO.of PHASES |
2 PHASES |
| Step Angle |
18°/STEP |
| Excitation Method |
2 PHASES Excitation |

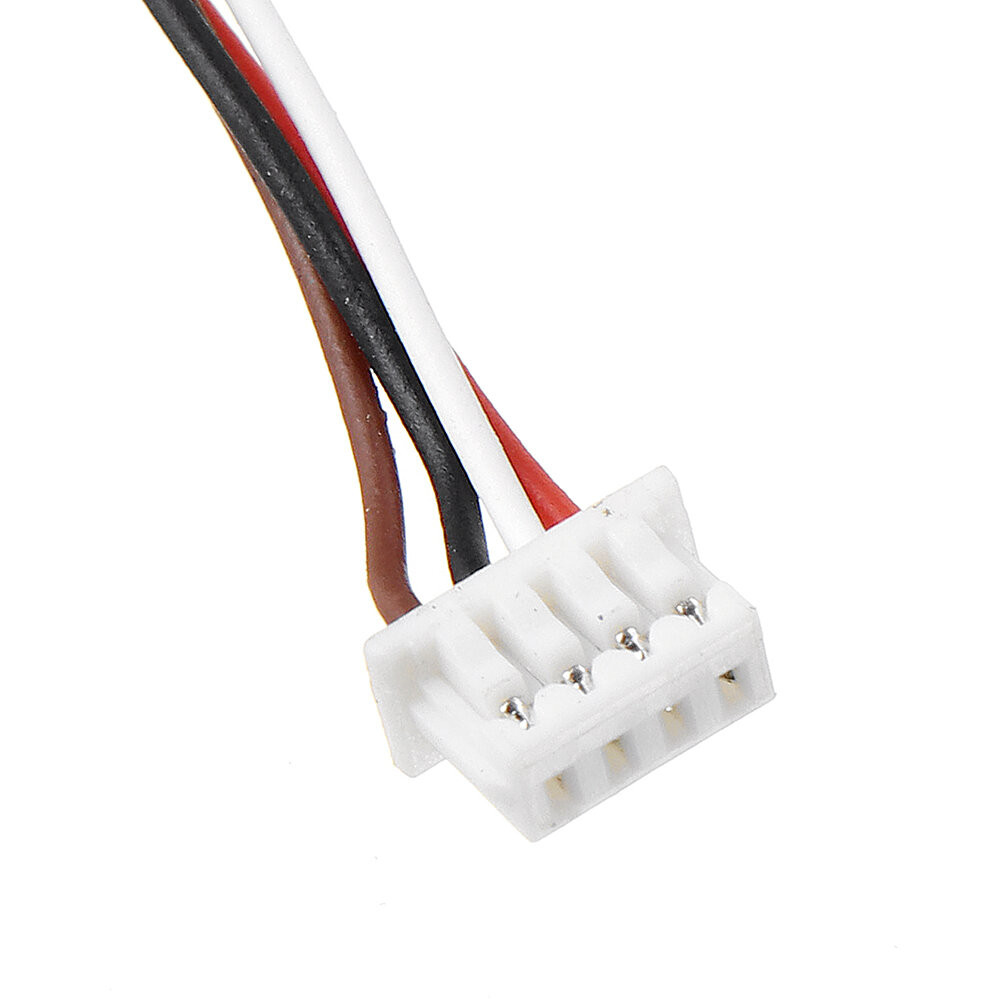

| Drive Mode |
Bipolar Drive |
| Coil Inductance |
14.3mH/PHASE |
| Pull-out Torque |
More Than 3.5 gf-cm AT 500 pps |
| Holding Torque |
More Than 13 gf-cm AT 0 pps |
| Max Response Frequency |
More Than 1200 pps |
| Max Starting Frequency |
More Than 900 pps |
| Insulation Class |
Class E For Coils |
| Insulation Strength |
100 V AC For One Second |
| Insulation Resistance |
500MΩ DC 500V |
| Operating Temperature |
-0~+55°C |
| Model: CHF-GM29-10BY | ||||
| Voltage: DC 5V | ||||
| Reduction ratio | Step | No-load characteristics 1000PPS （rpm） | Holding Torque (kg.cm) | Keep pulling out (kg.cm) |
| 1:5.58×4 | 0.80645 | 134 | ≥0.15 | ≥0.06 |
| 1:9.68×4 | 0.46488 | 77.5 | ≥0.35 | ≥0.12 |
| 1:20.50×4 | 0.21951 | 36.6 | ≥0.7 | ≥0.23 |
| 1:29.12×4 | 0.15453 | 25.8 | ≥0.9 | ≥0.38 |
| 1:49.99×4 | 0.09002 | 15 | ≥1.7 | ≥0.65 |
| 1:99.00×4 | 0.04545 | 7.6 | ≥3.5 | ≥1.2 |
| 1:151.55×4 | 0.02969 | 4.95 | Can't exceed 4.0kg.cm | ≥1.9 |
| 1:210.59×4 | 0.02137 | 3.56 | ≥2.6 | |
| 1:297.92×4 | 0.0151 | 2.51 | ≥3.8 | |
| 1:379.17×4 | 0.01187 | 1.98 | ≥4.5 | |
Features:
- Motor parameters support customization.
- The overall thin geared motor main body gives customers more room for design imagination and brings a lighter and ultrathin design to the power system of intelligent products.

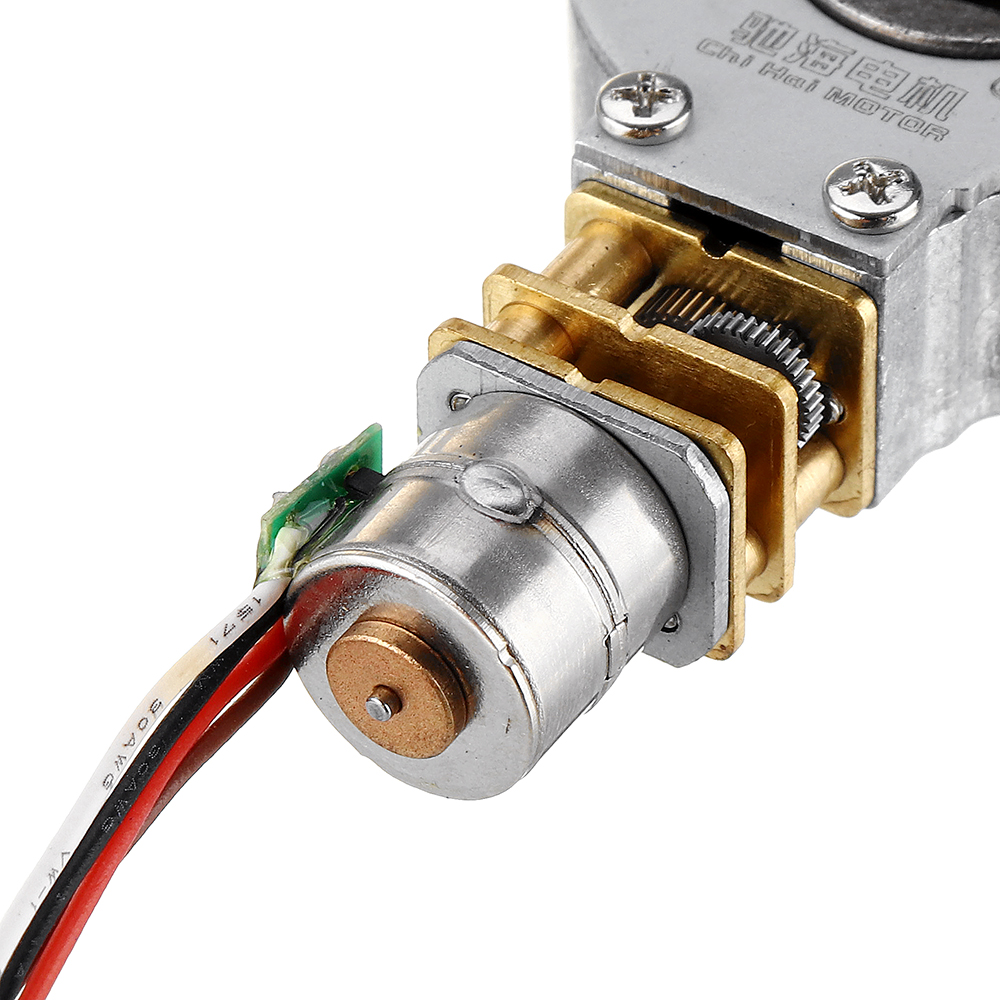

- The basic reduction structure adopts a tower wheel reduction mechanism.
- The secondary deceleration adopts a bevel gear transmission mechanism to change the output direction, increase the reduction ratio, increase the torque, reduce the output speed, and change the overall output space positioning design.
- Made of metal, compared with other motors, our noise is lower, the power is stronger, and the service life is longer.
Package Included:
| 1 × |
Gear Motor |
