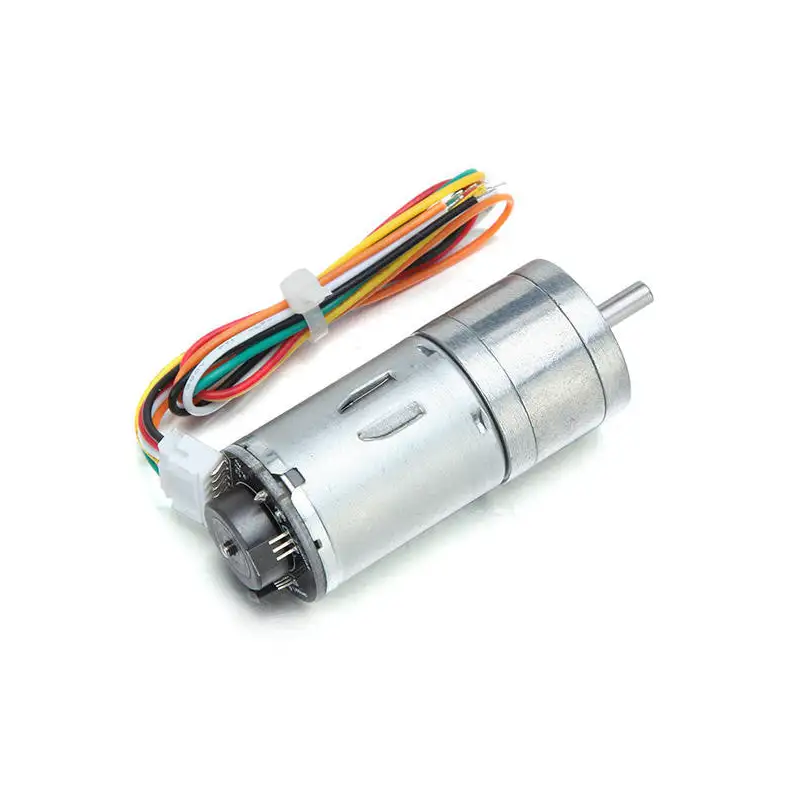

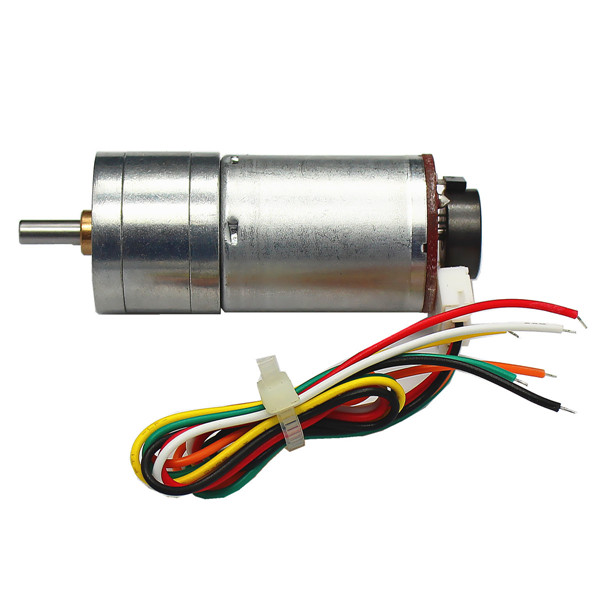

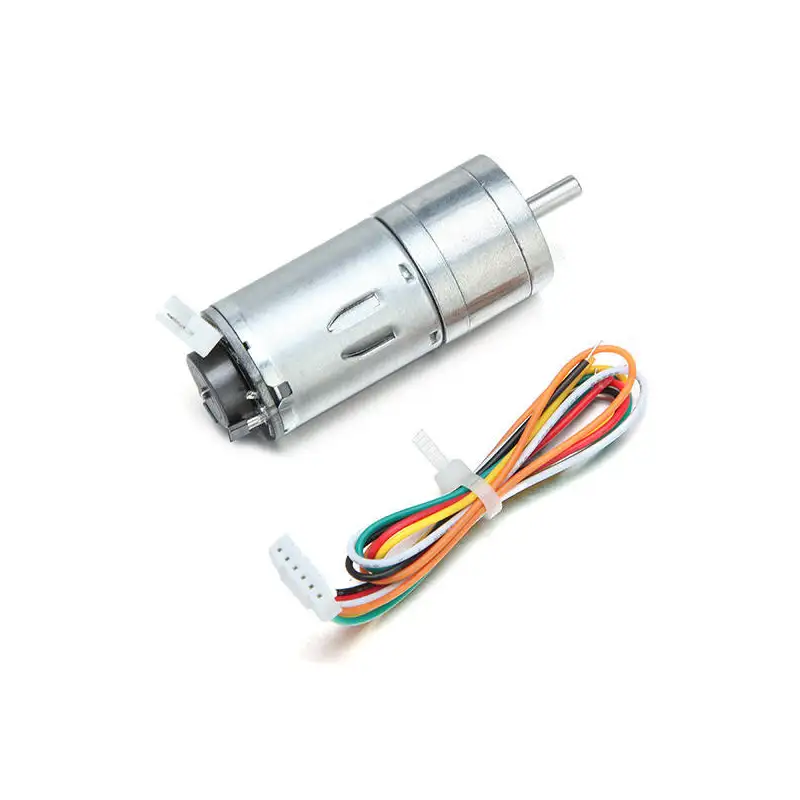

CHIHAI MOTOR GM25-370 DC Gear Motor 6V 100/210/300RPM Encoder Motor

Reference:

Condition: New product

299 Items

$14.26

More info

Description:

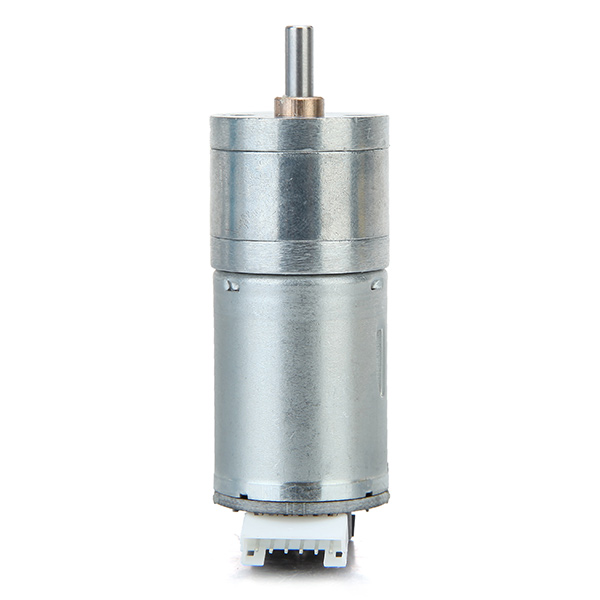

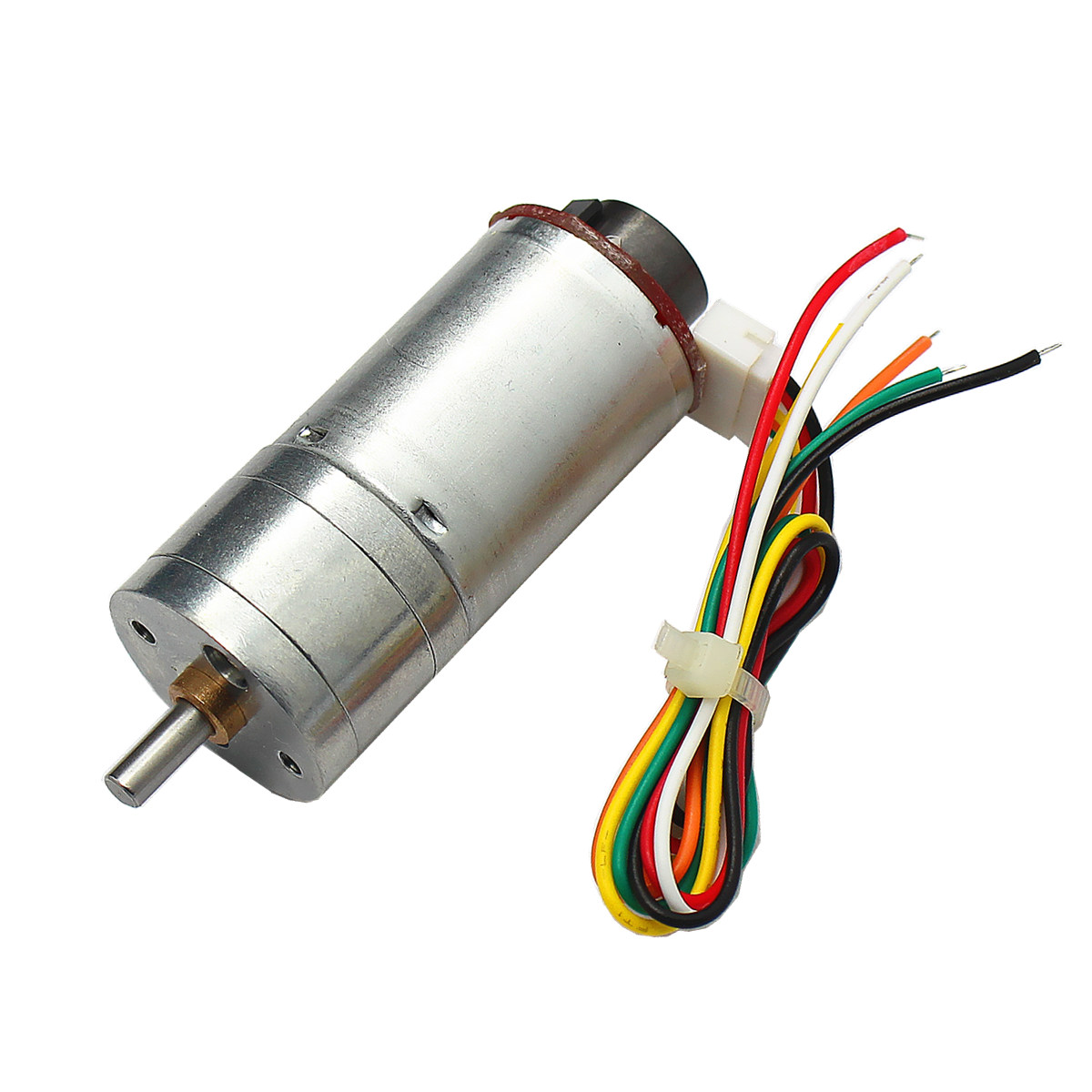

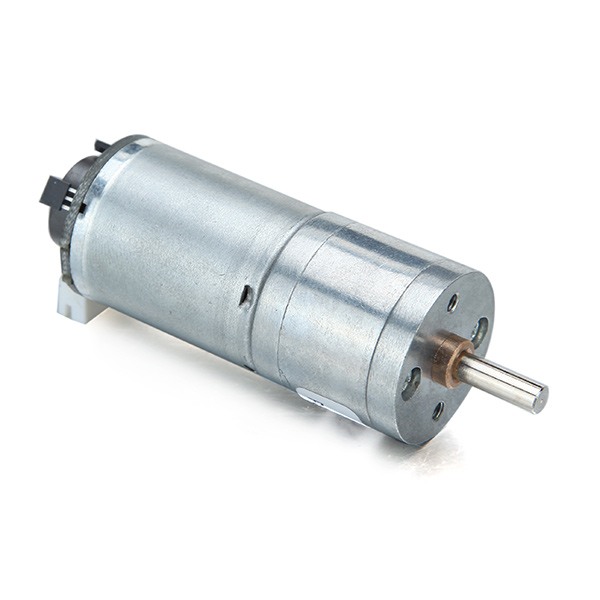

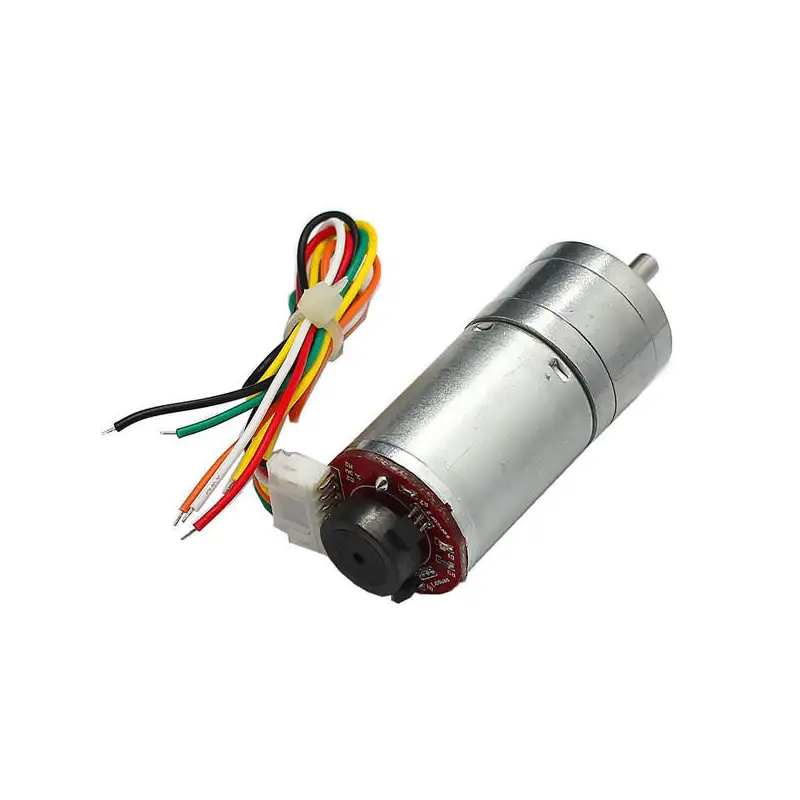

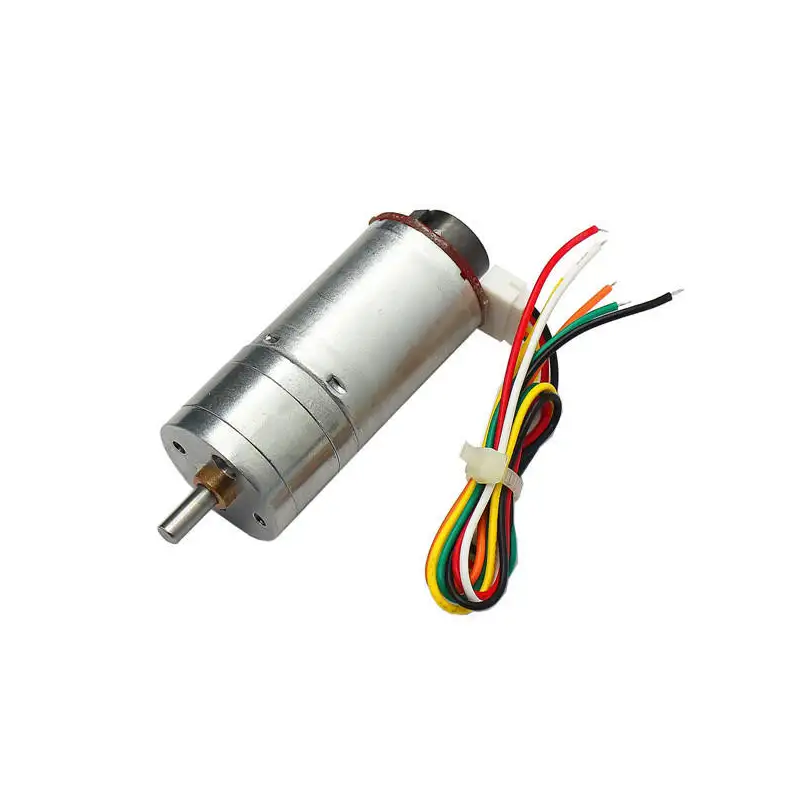

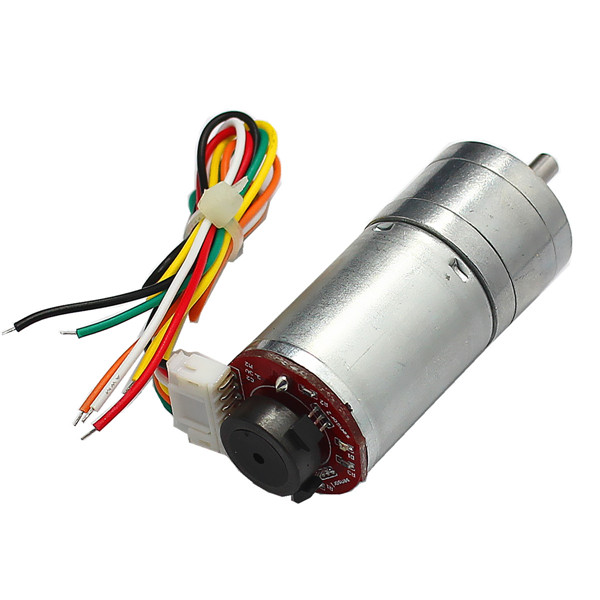

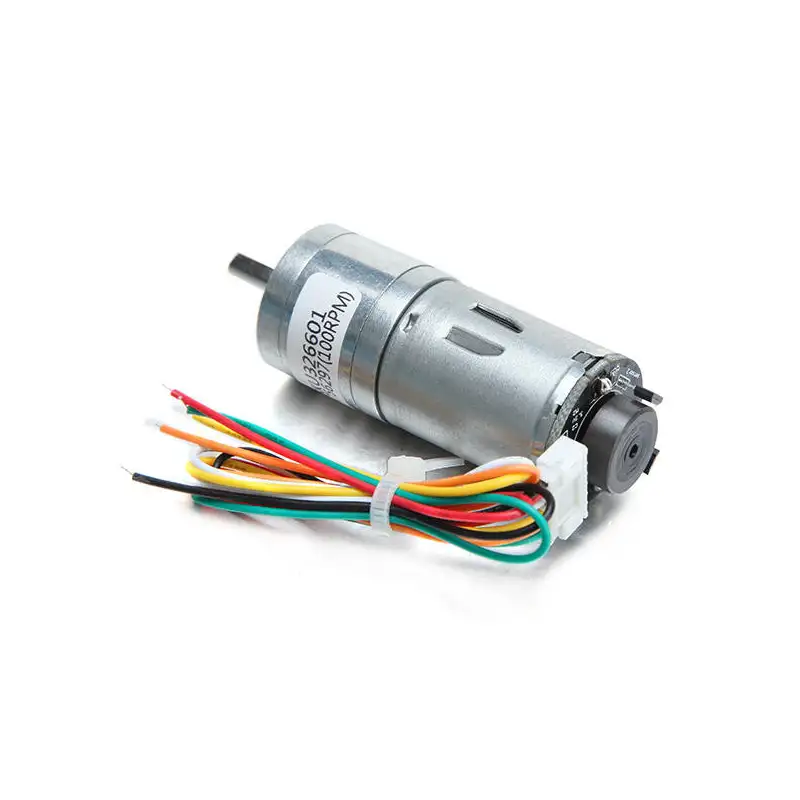

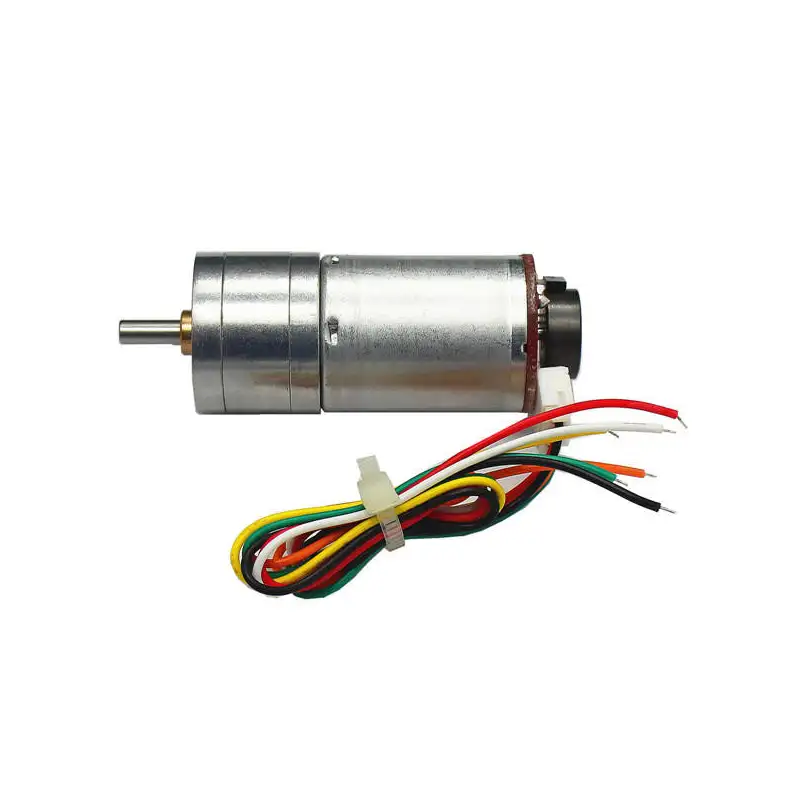

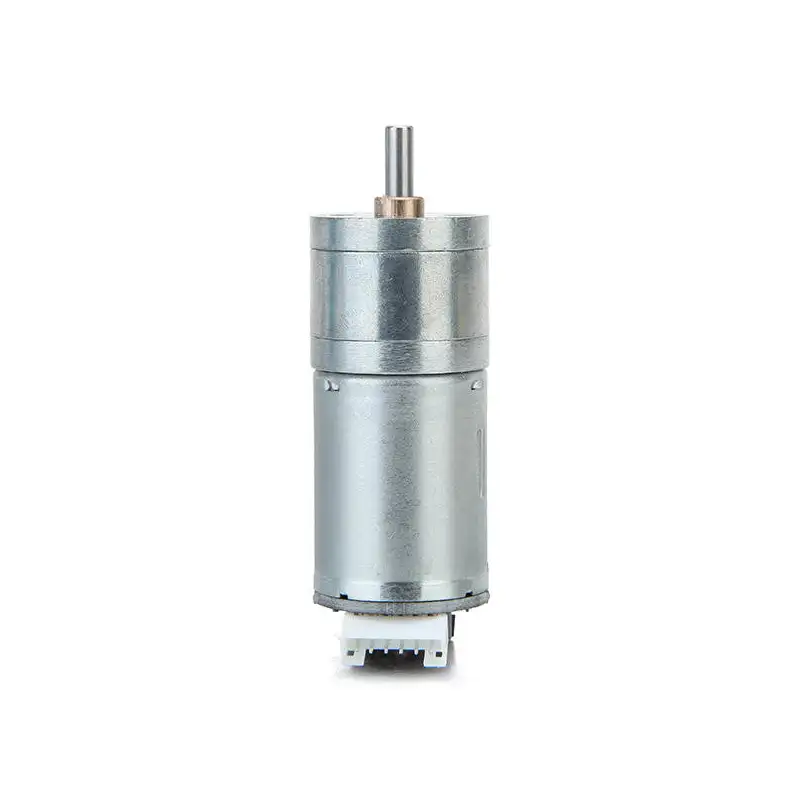

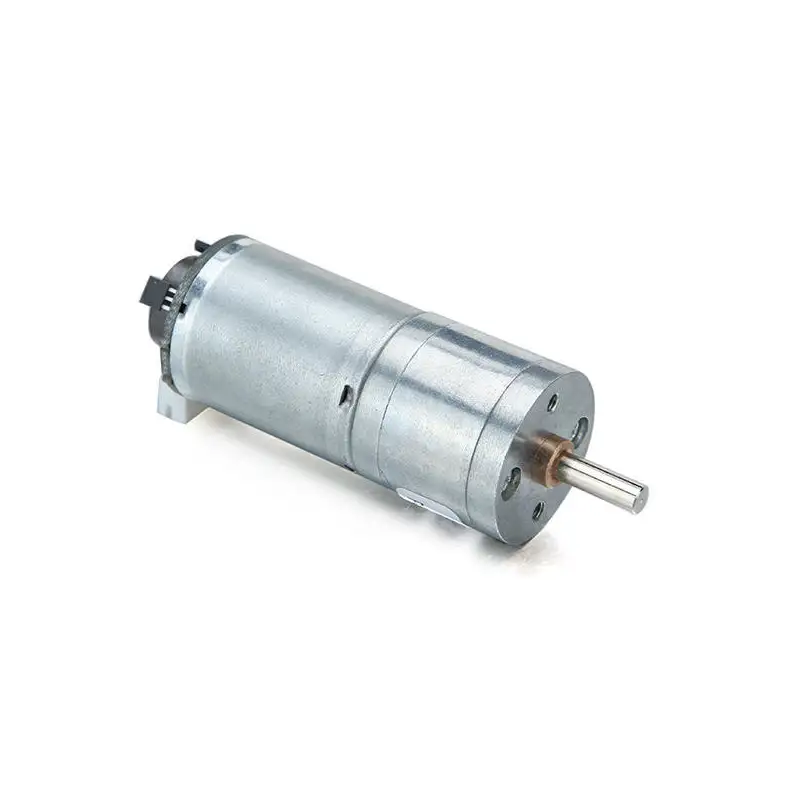

CHIHAI MOTOR 6V 100/210/300RPM Encoder Motor DC Gear Motor

Fixed Support Mounting Bracket for This Encoder Motor: Product ID: 1044065

Specification:
Brand:  CHIHAI MOTOR
Model:   GM25-370
Voltage: DC 6.0V
Speed: 100/210/300RPM
Shaft diameter: 4mm
Length: 12mm

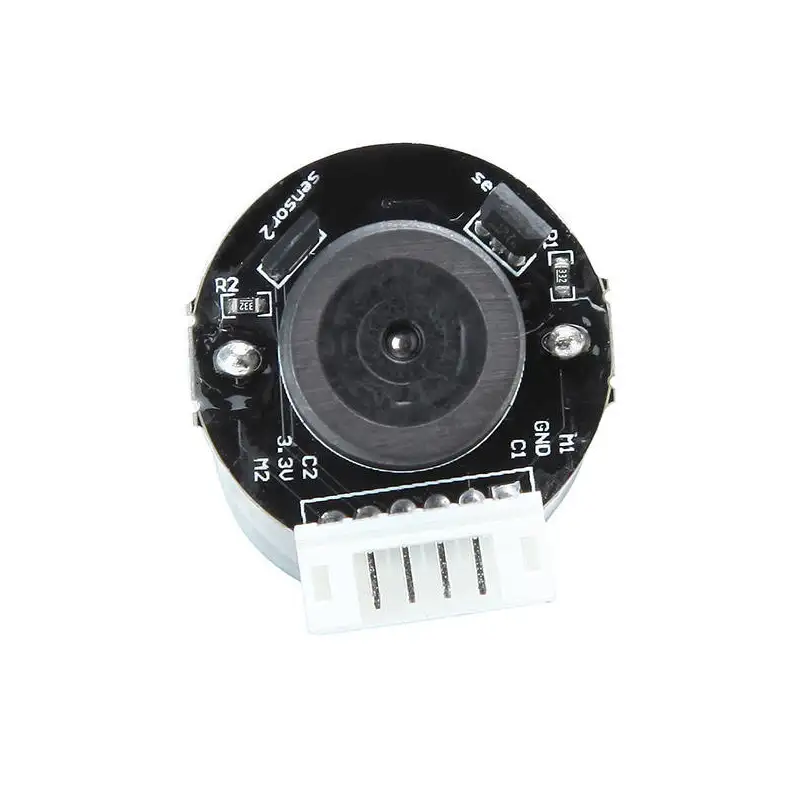

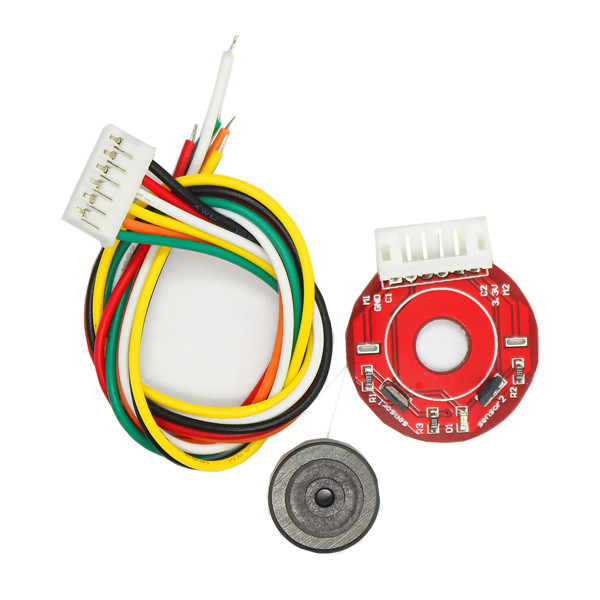

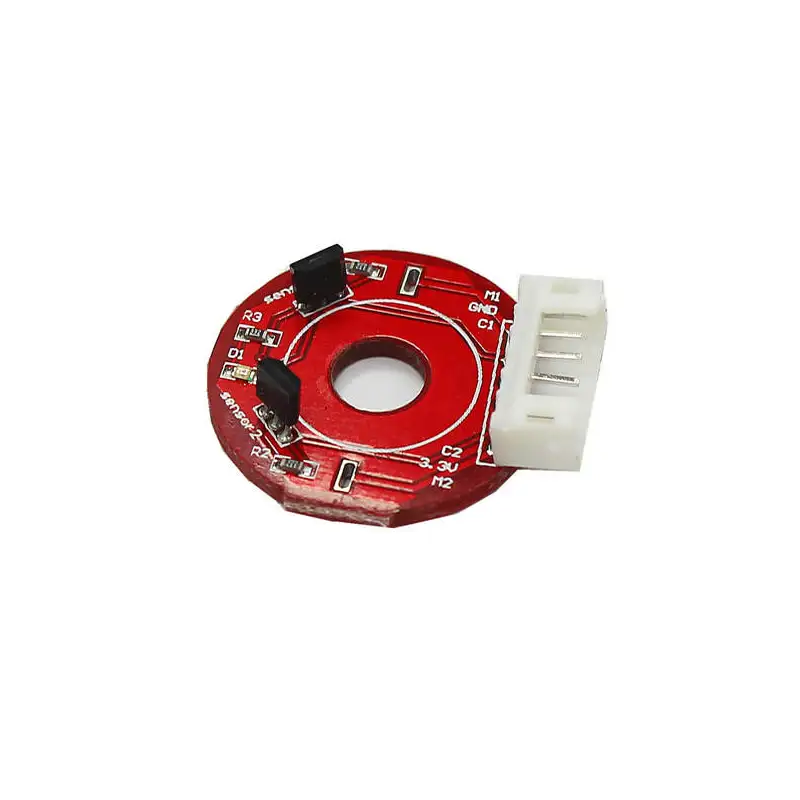

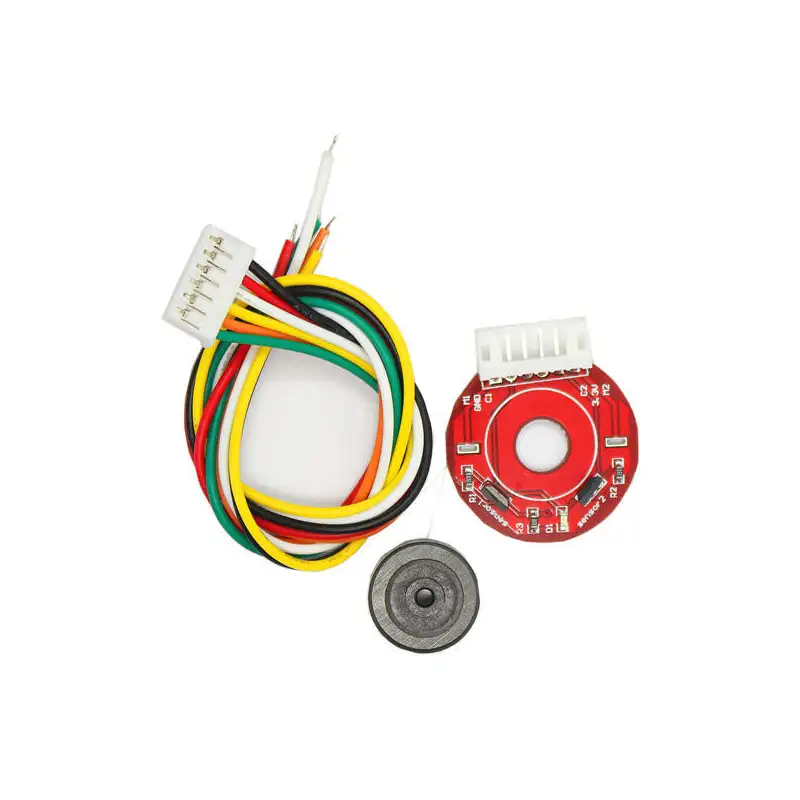

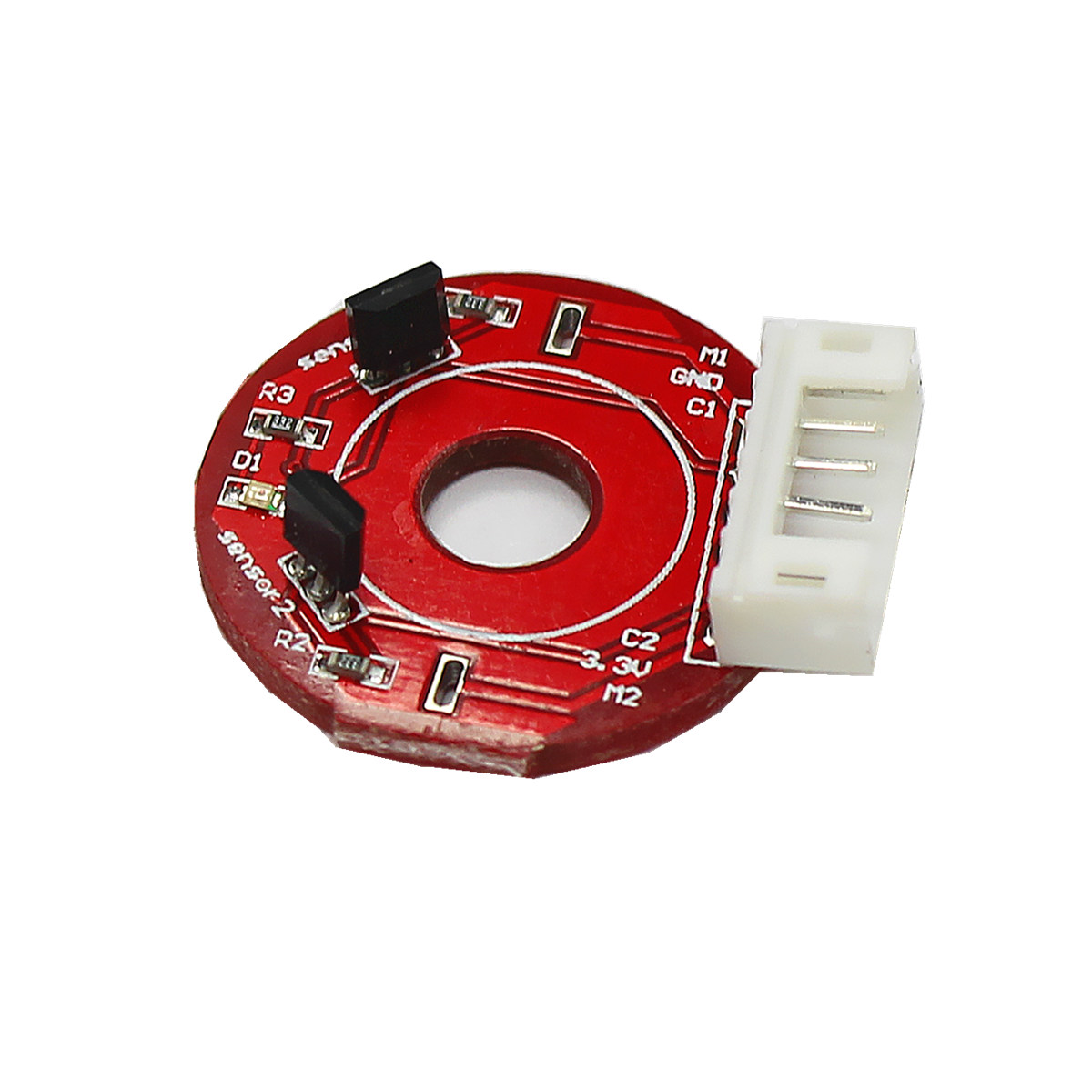

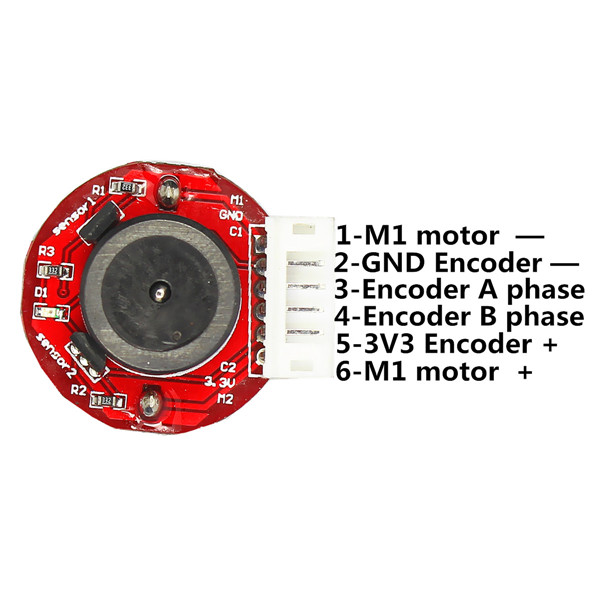

Encoder motor end 11 signals
Terminal connection length 20cm

Rated Voltage DC 6V DC 6V DC 6V
No-load Speed 100RPM 0.13A 210RPM 0.13A 300RPM 0.1A
Max Efficiency 1.0kg.cm/80rpm/1.7W/0.5A 2.0kg.cm/170rpm/2.0W/0.60A 0.7kg.cm/245rpm/1.2W/0.4A
Max Power  3.0kg.cm/55rpm/2.8W/1.0A 5.2kg.cm/110rpm/3.1W/1.10A 1.8kg.cm/160rpm/2W/0.8A
Stall Torque 6.5kg.cm 3.0A 10kg.cm 3.2A 3.6kg.cm 2.7A
Retarder Reduction Ratio 1 : 75 1 :34 1 : 20
Hall Resolution 11 x Ratio 74.83 = 823.1PPR Hall x Ratio 34.02 = 341.2PPR 11 x Ratio 20.4 = 224.4PPR

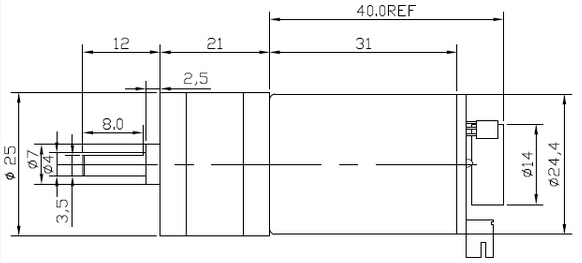

Outline Drawing:
CHIHAI-MOTOR-GM25-370-DC-Gear-Motor-6V-100210300RPM-Encoder-Motor-1016183


Note:
Please note that the package includes one motor only.
100/210/300RPM is available.

Package Included:
1 x Encoder Motor
