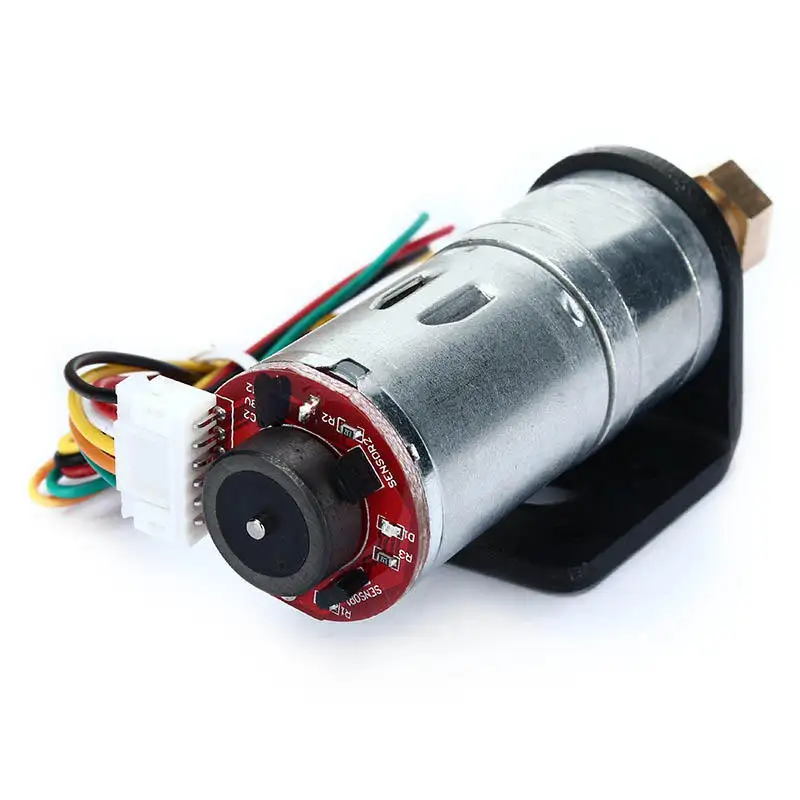

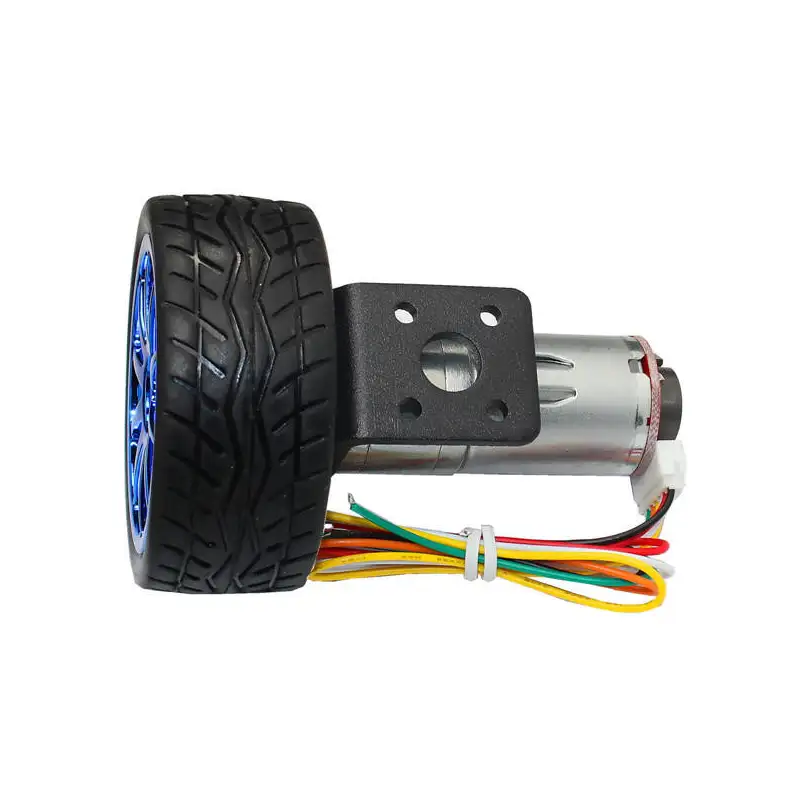

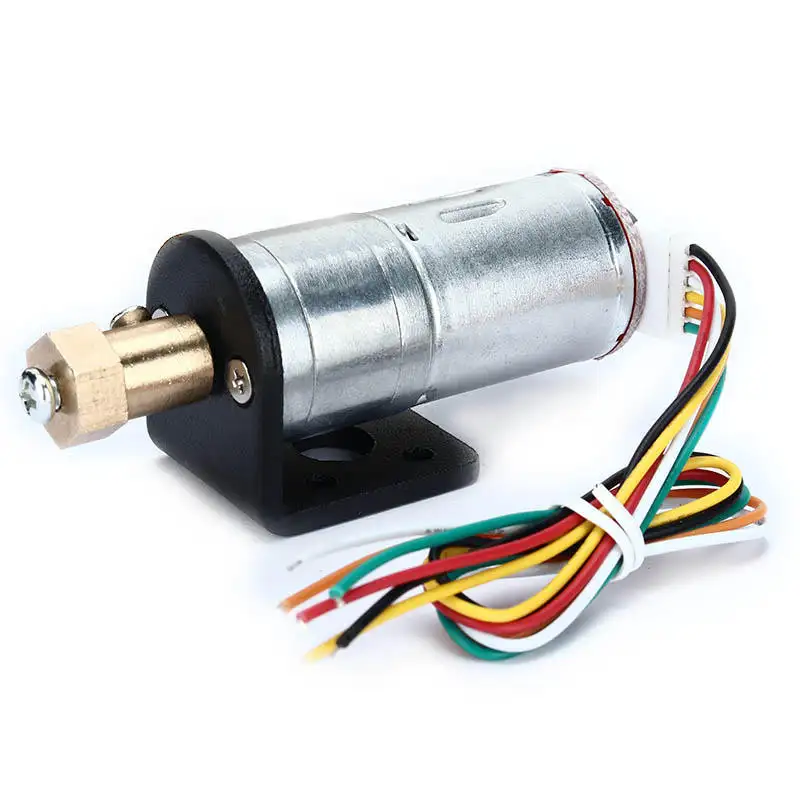

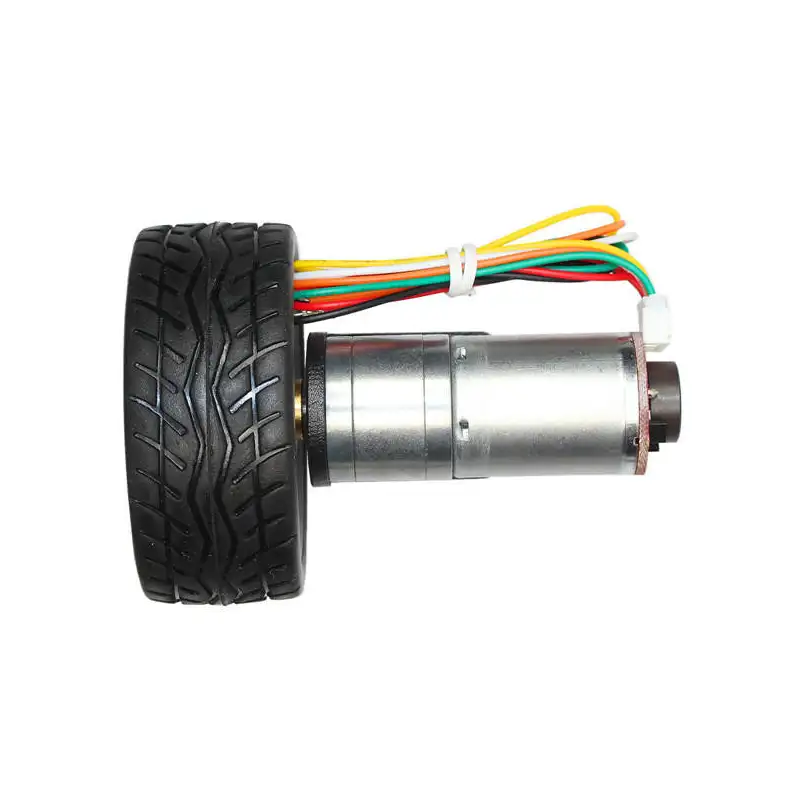

CHIHAI MOTOR 6V 210RPM Encoder Motor DC Gear Motor with Mounting Bracket and Wheel

Reference: BG0052-9596386

Condition: New product

100 Items

$19.46

More info

Description:
6V 210RPM Encoder Motor DC Gear Motor with Mounting Bracket and Wheel

Different speed encoder motors are available. Product ID: 1016183

Specification:
Voltage DC 6.0V
Speed 210RPM
Shaft diameter 4mm
Length 12mm

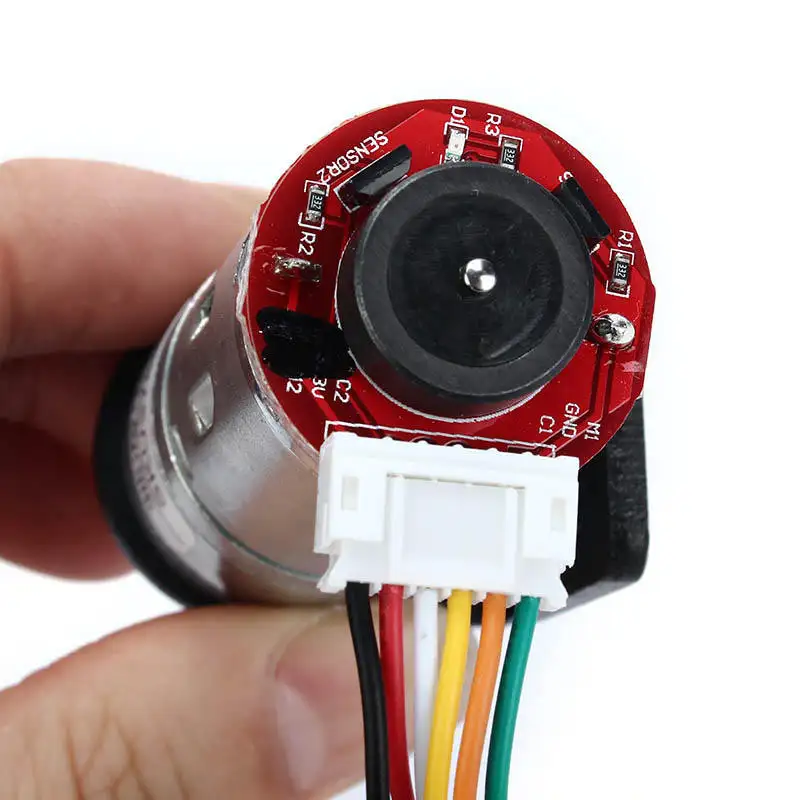

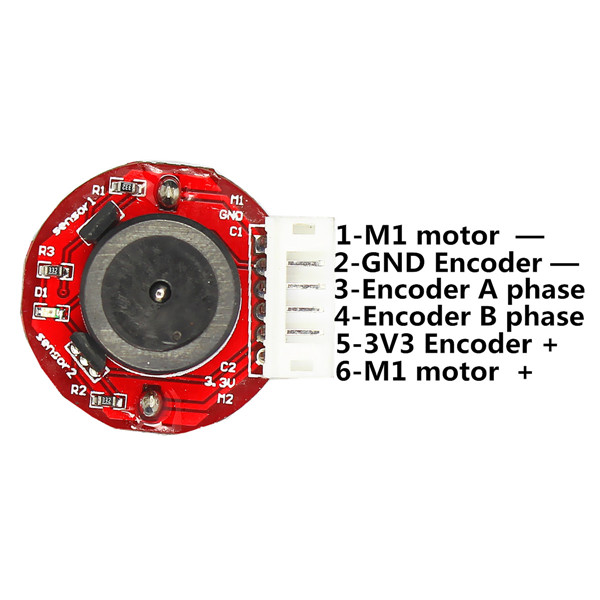

Encoder motor end 11 signals
Terminal connection length  20cm

Rated Voltage DC 6V
No-load Speed 210RPM 0.13A
Max Efficiency 2.0kg.cm/170rpm/2.0W/0.60A
Max Power  5.2kg.cm/110rpm/3.1W/1.10A
Stall Torque 10kg.cm 3.2A
Retarder Reduction Ratio 1 :34
Hall Resolution Hall x Ratio 34.02 = 341.2PPR

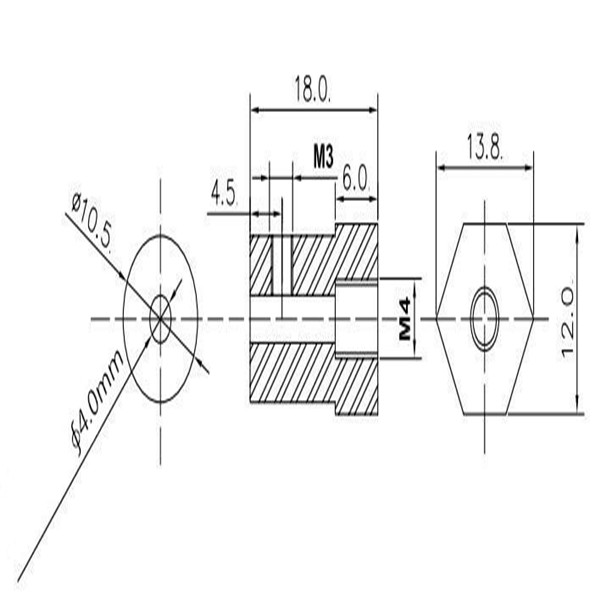

Outline Drawing:


CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064

CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064



CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064


CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064

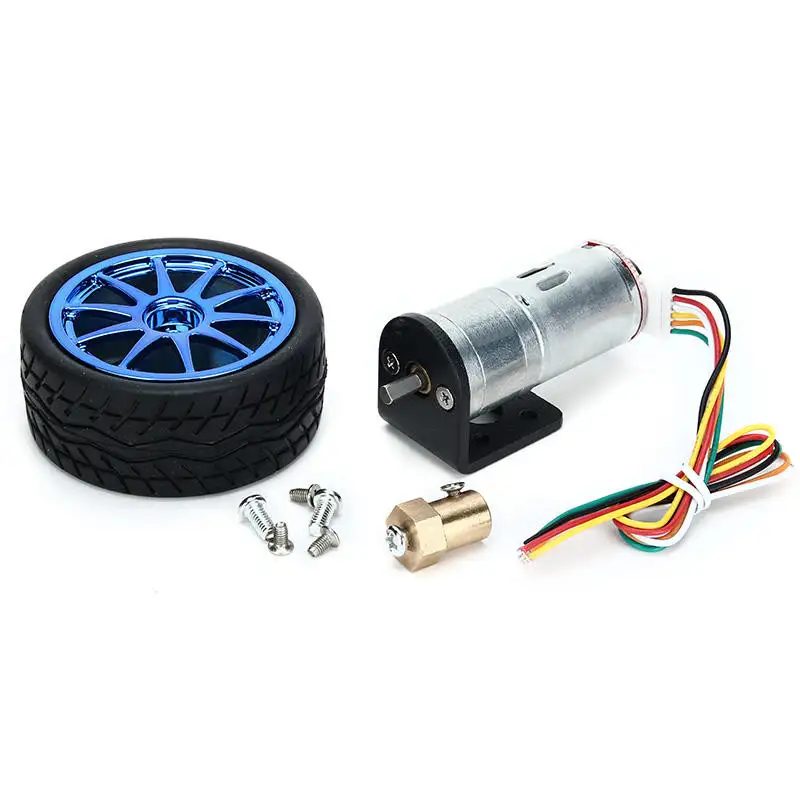

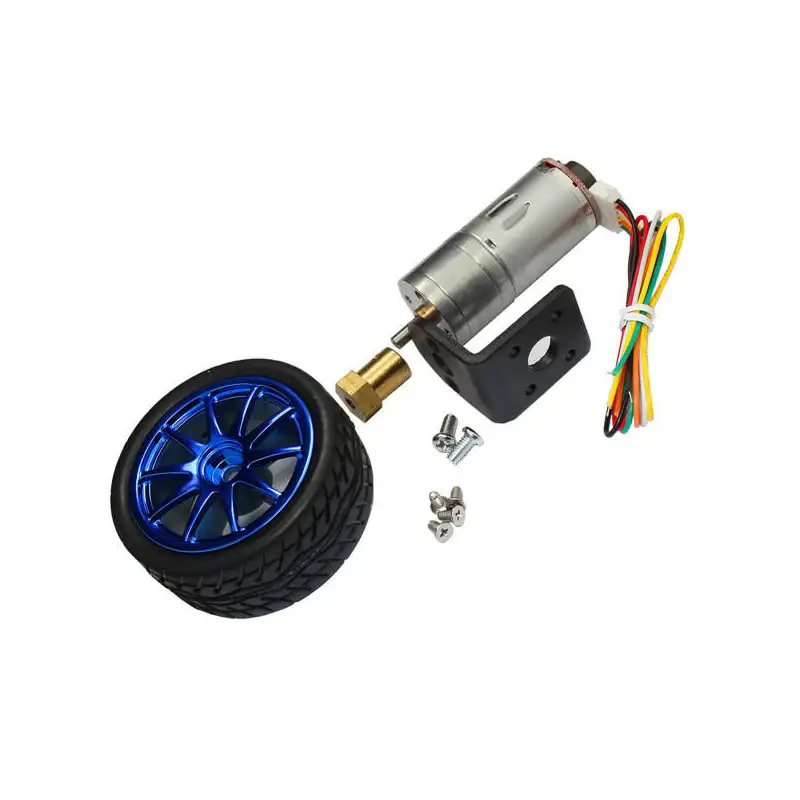

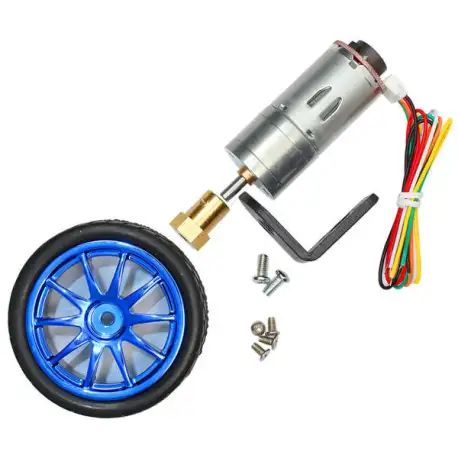

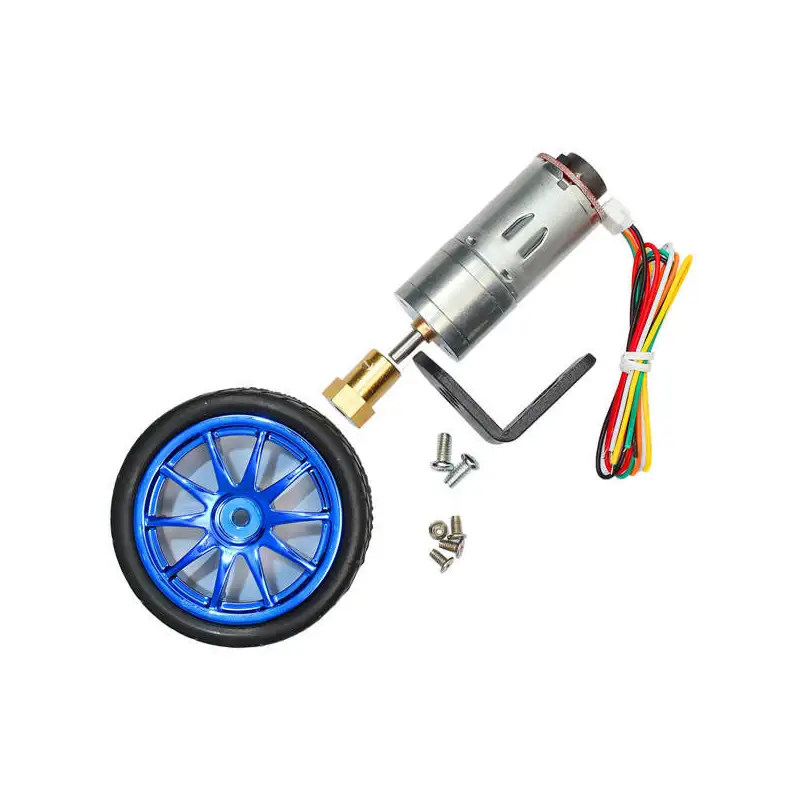

Package Included:
1 x Encoder Motor
1 x Mounting Bracket

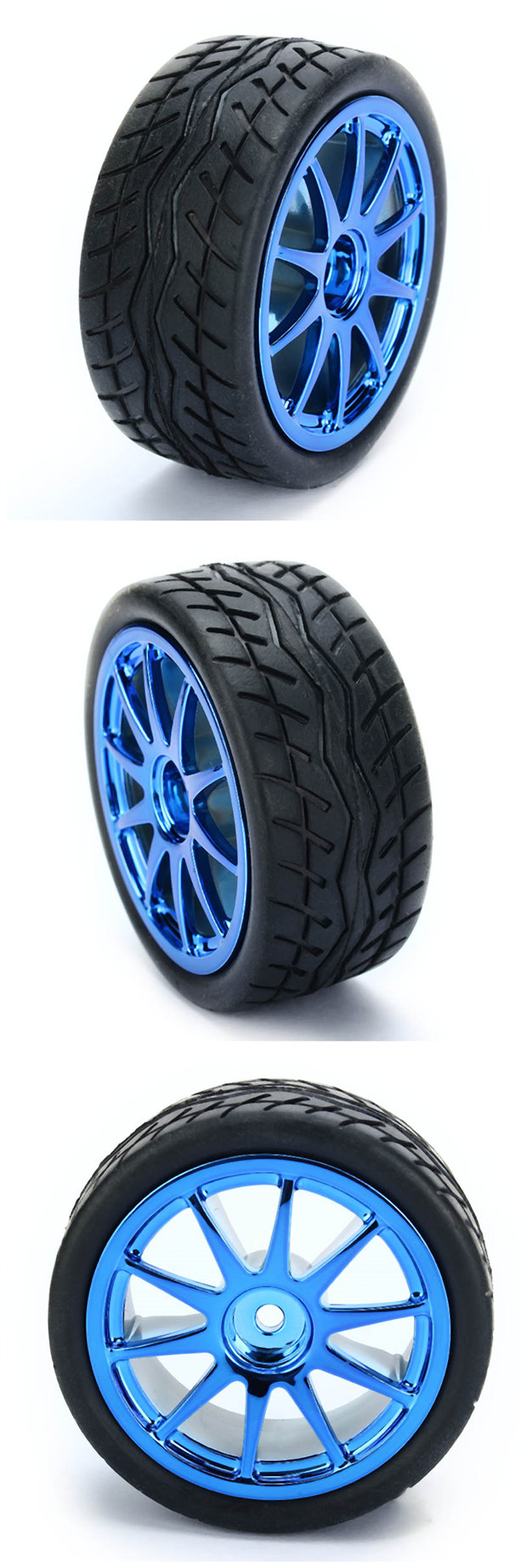

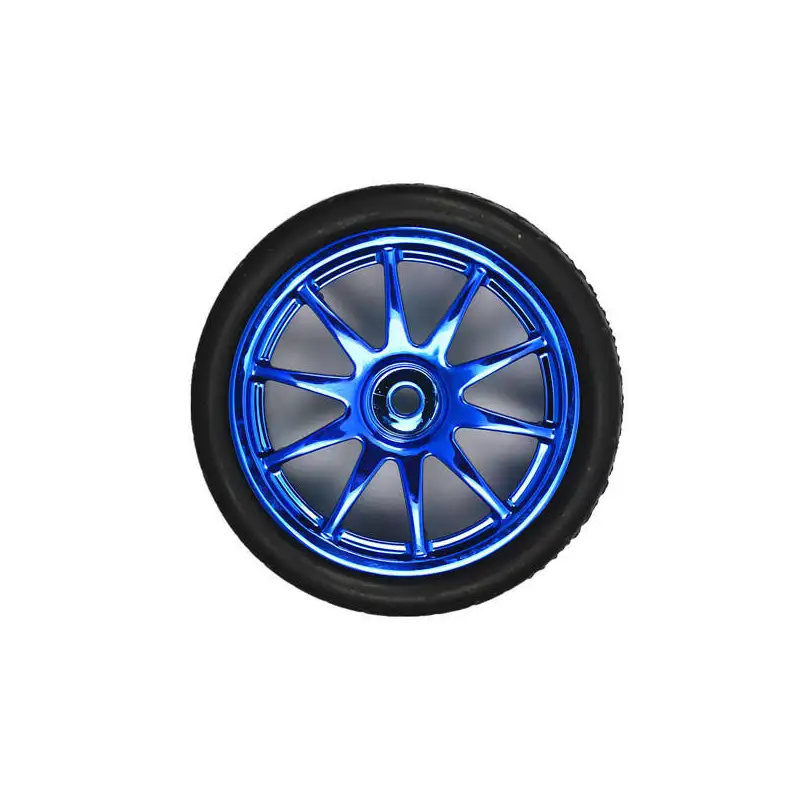

1 x Wheel

More Details:


CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064

CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064

CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064






CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064


CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064



CHIHAI-MOTOR-6V-210RPM-Encoder-Motor-DC-Gear-Motor-with-Mounting-Bracket-and-Wheel-1044064
