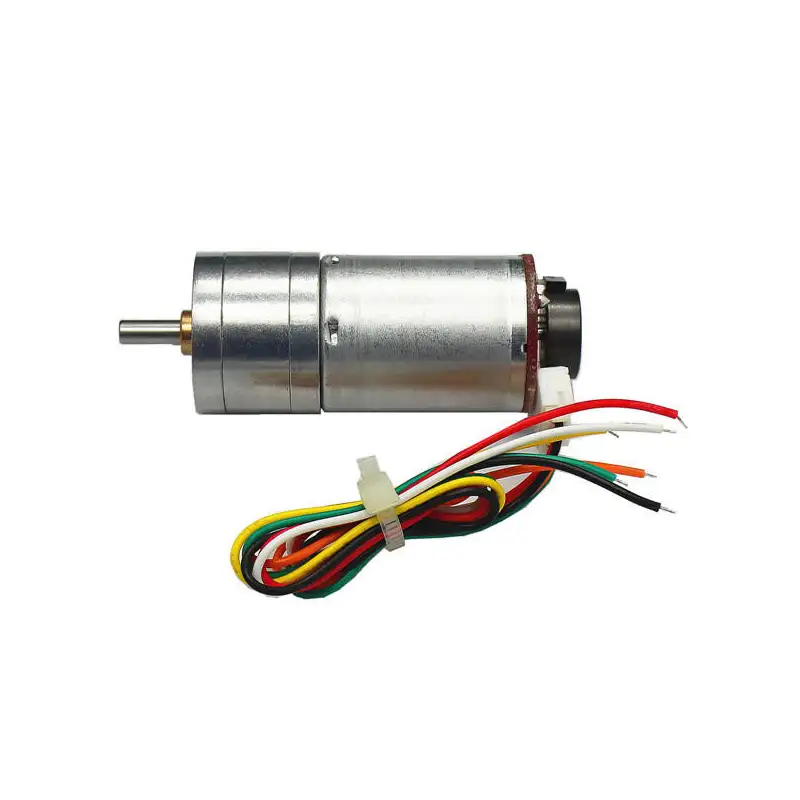

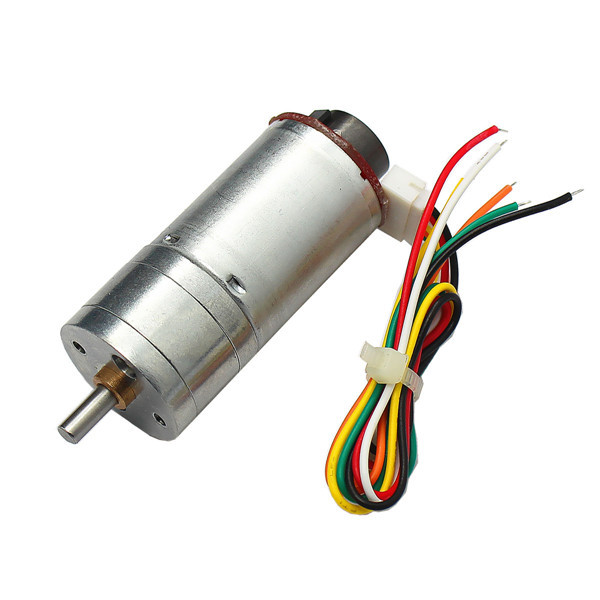

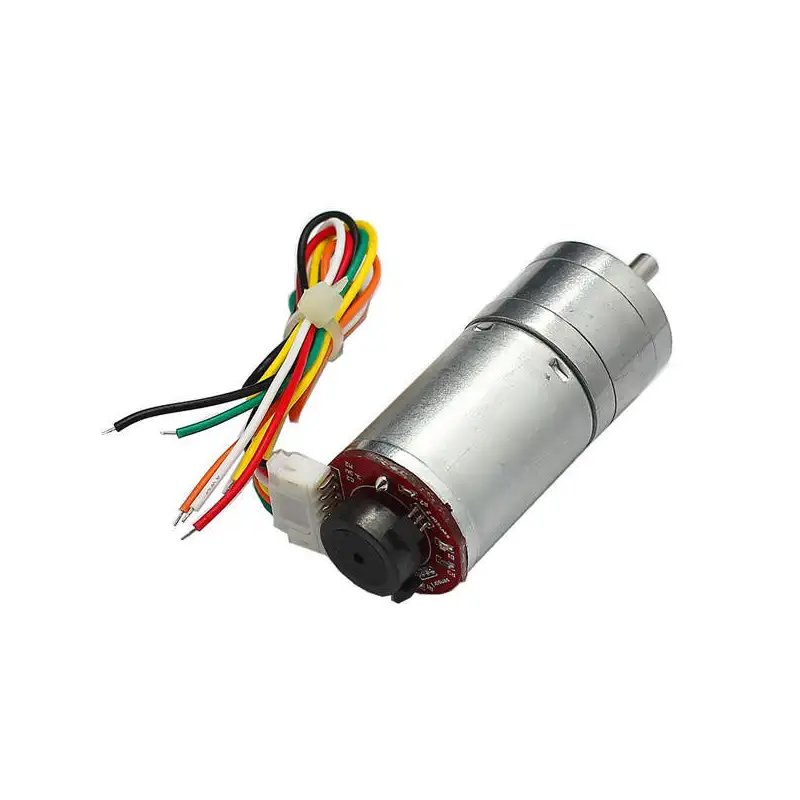

CHIHAI MOTOR 6V 100RPM Encoder Motor DC Gear Motor with Fixed Support Mounting Bracket

Reference: BG0052-9810965

Condition: New product

100 Items

$15.12

More info

Description:

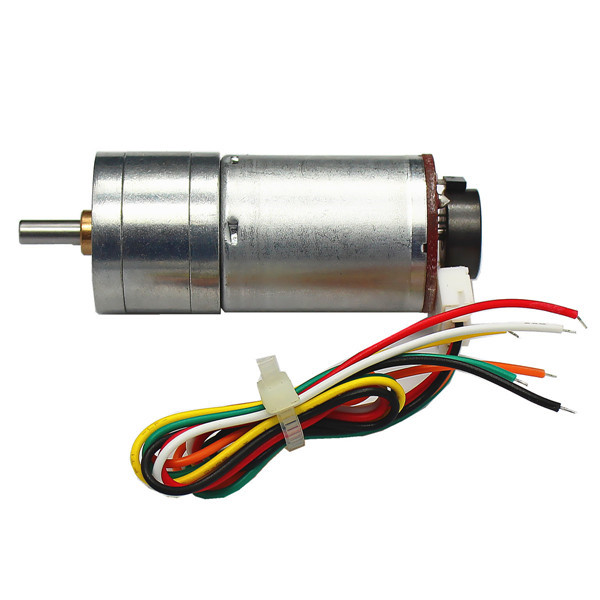

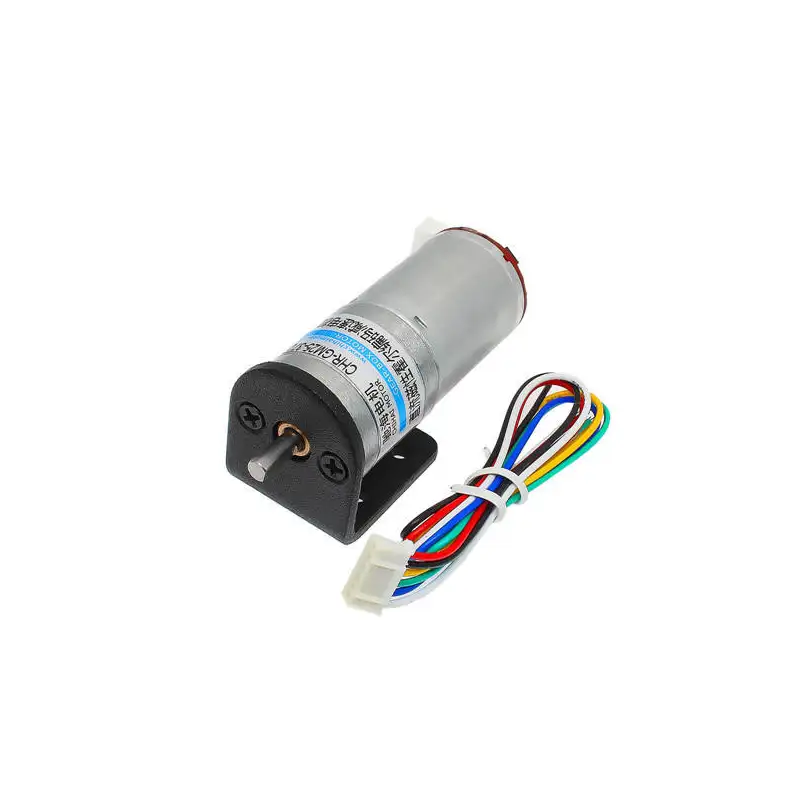

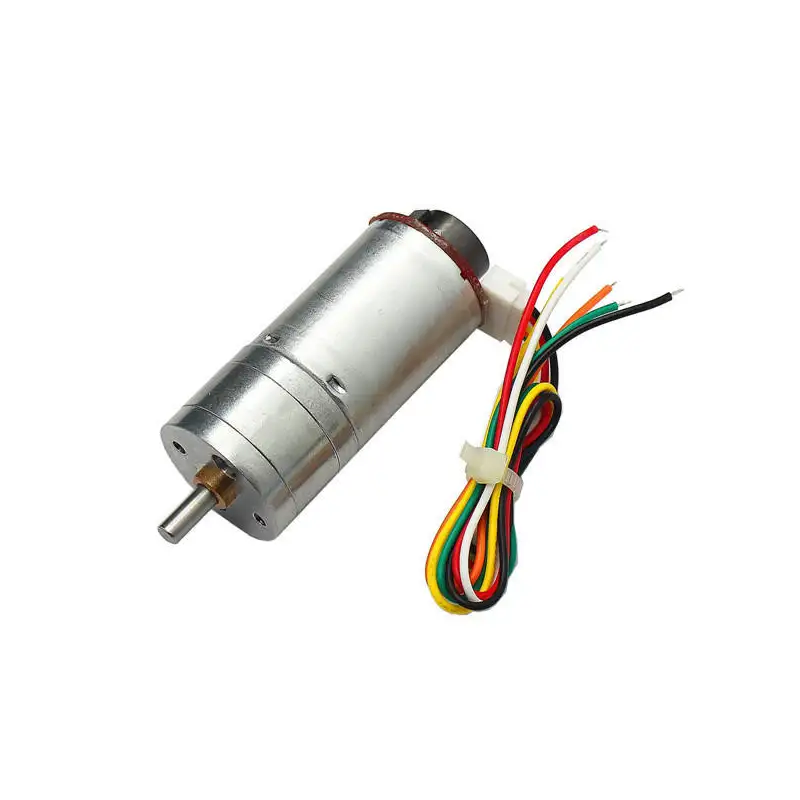

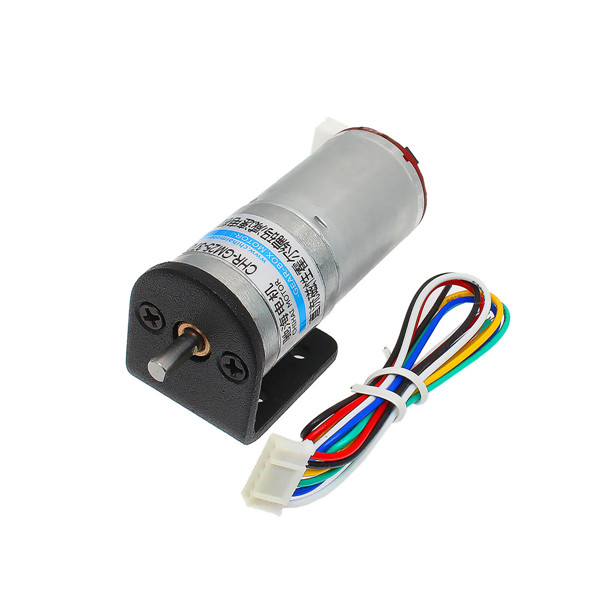

CHIHAI MOTOR 6V 100RPM Encoder Motor DC Gear Motor with Fixed Support Mounting Bracket

Specification:
Rated Voltage DC 6V
No-load Speed 100RPM 0.13A
Max Efficiency 1.0kg.cm/80rpm/1.7W/0.5A
Max Power  3.0kg.cm/55rpm/2.8W/1.0A
Stall Torque 6.5kg.cm 3.0A
Retarder Reduction Ratio 1 : 75
Hall Resolution 11 x Ratio 74.83 = 823.1PPR

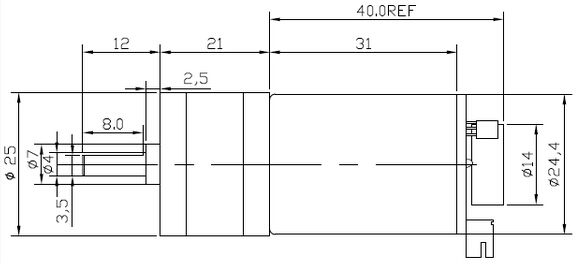

Shaft diameter 4mm
Length 12mm


CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683

CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683
CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683
Features:
Easy to install and convenient for using.
Durable for using.

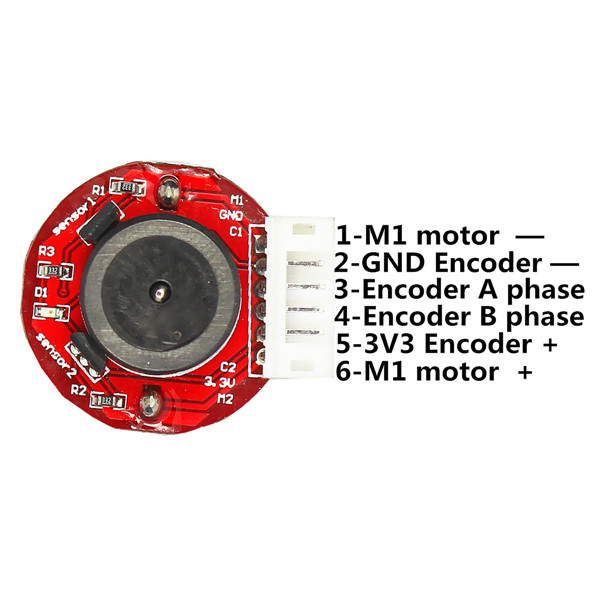

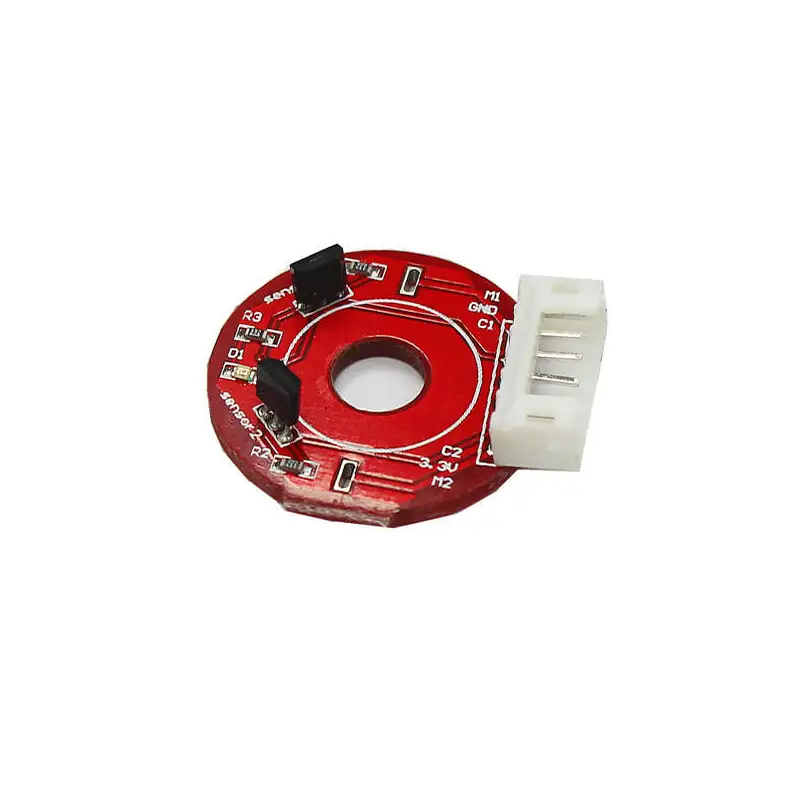

Encoder motor end 11 signals
Terminal connection length 20cm.

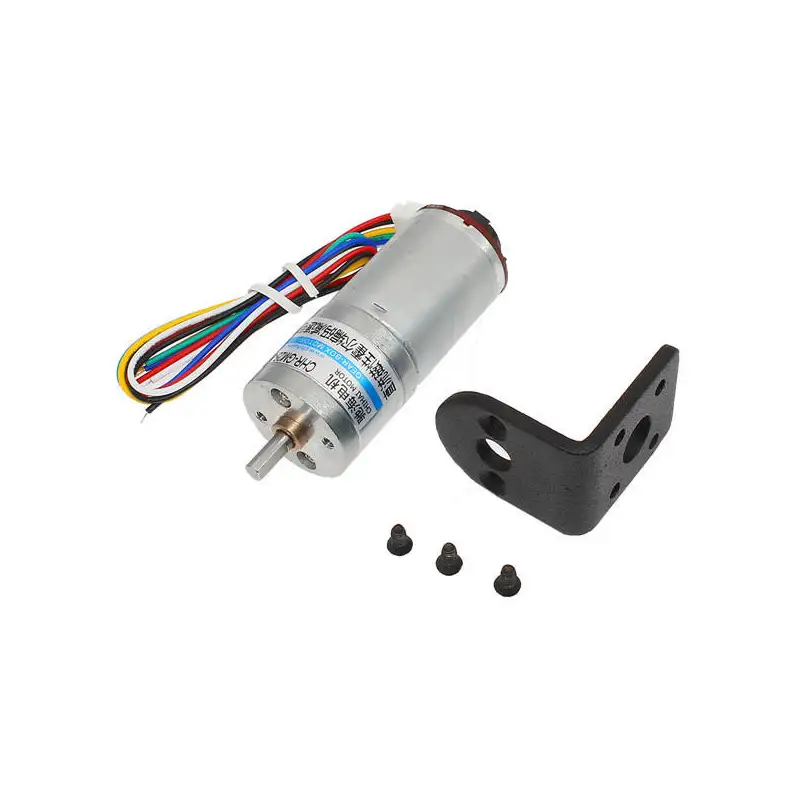

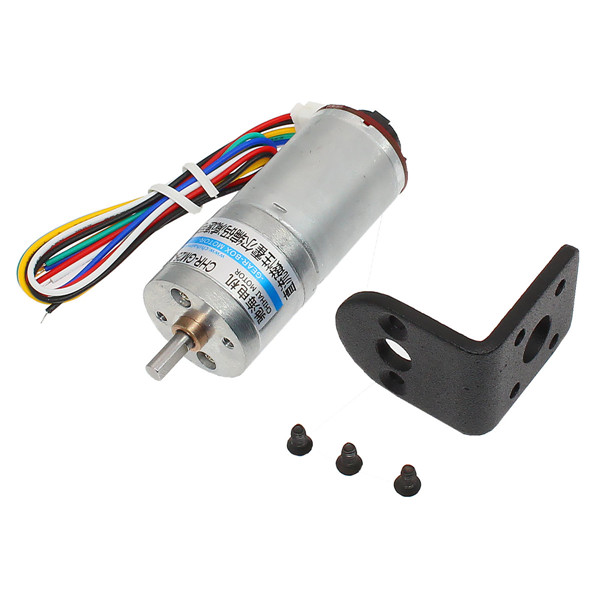

Package Included:
1 x Encoder Motor

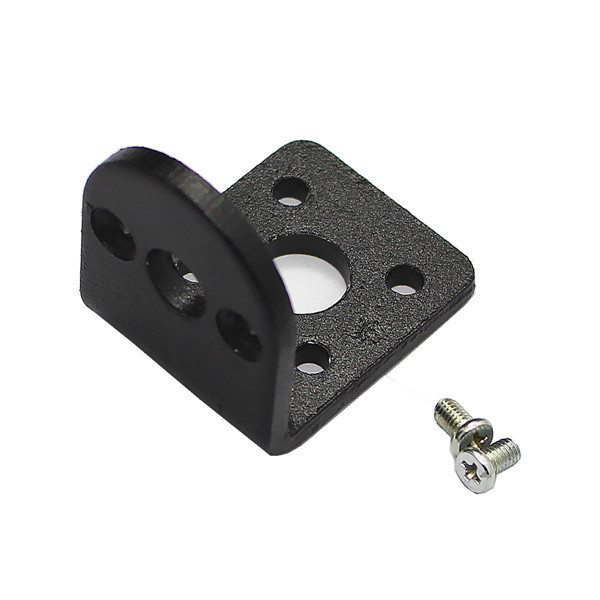

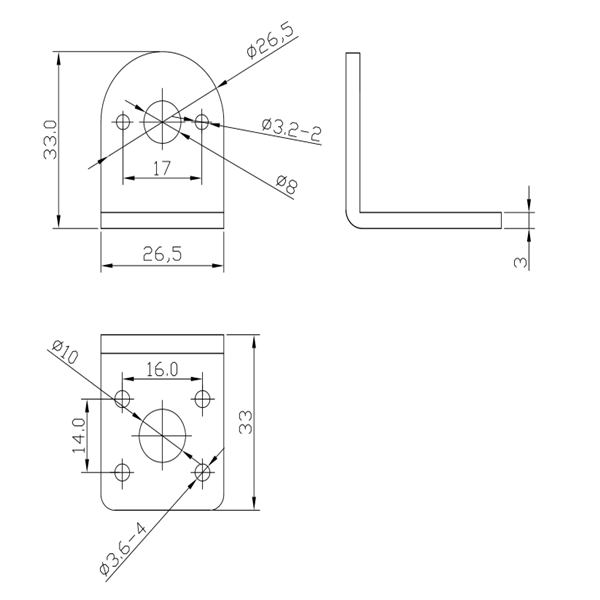

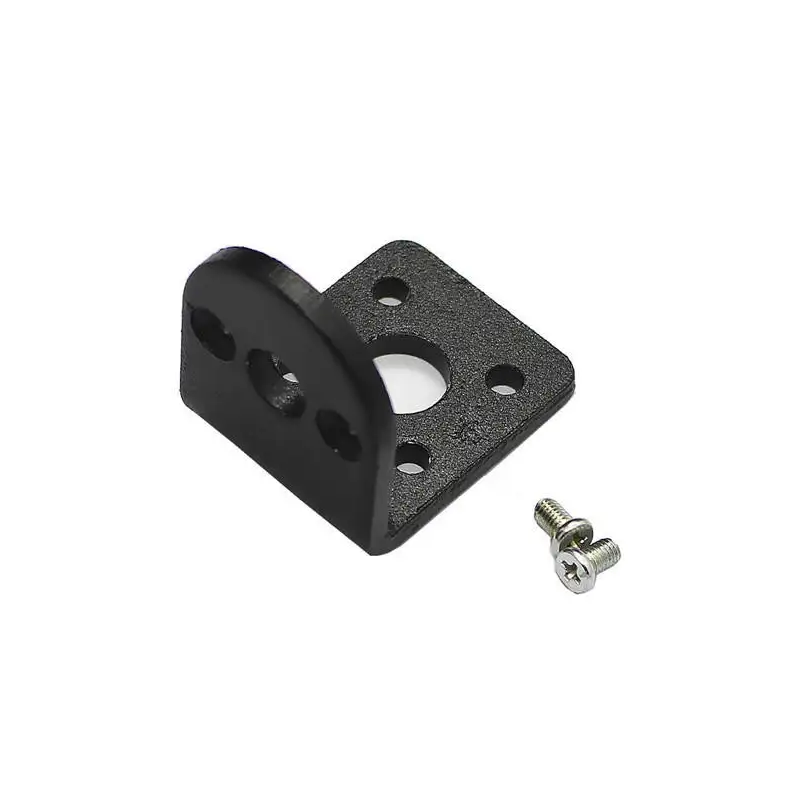

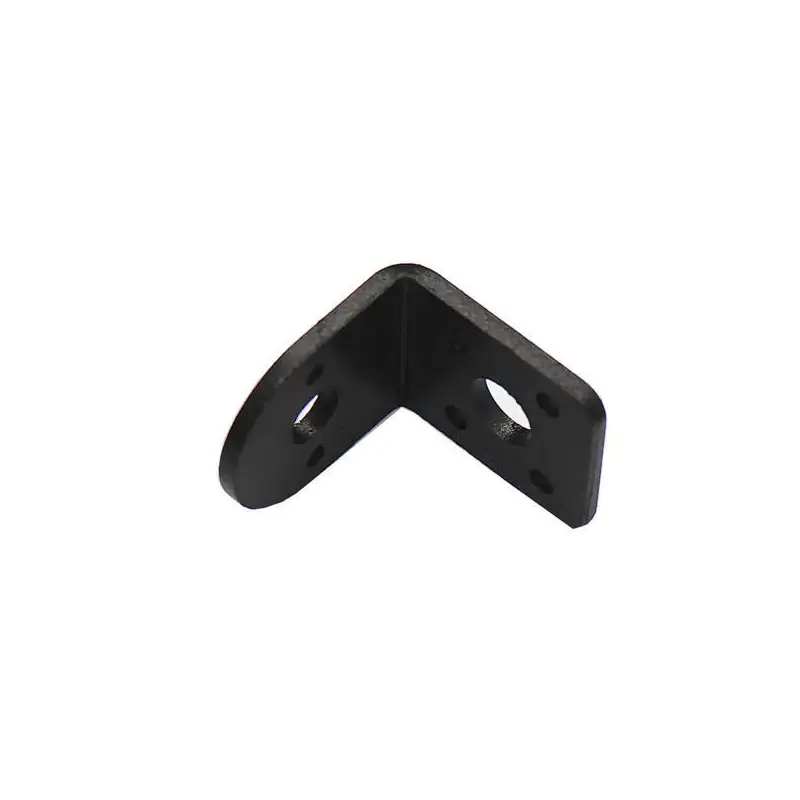

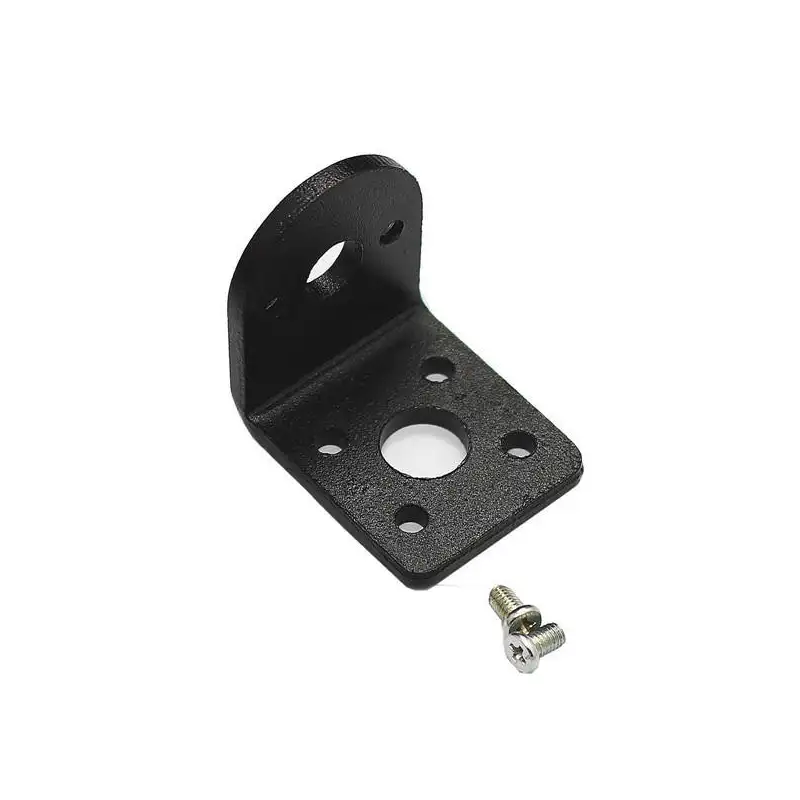

1 x Motor Bracket

More Details:



CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683


CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683

CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683

CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683

CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683

CHIHAI-MOTOR-6V-100RPM-Encoder-Motor-DC-Gear-Motor-with-Fixed-Support-Mounting-Bracket-1230683
