Chihai CHW-GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor
Reference: BG0052-9617662
Condition: New product
Delivery on: Jul 29 2026
96 Items
More info

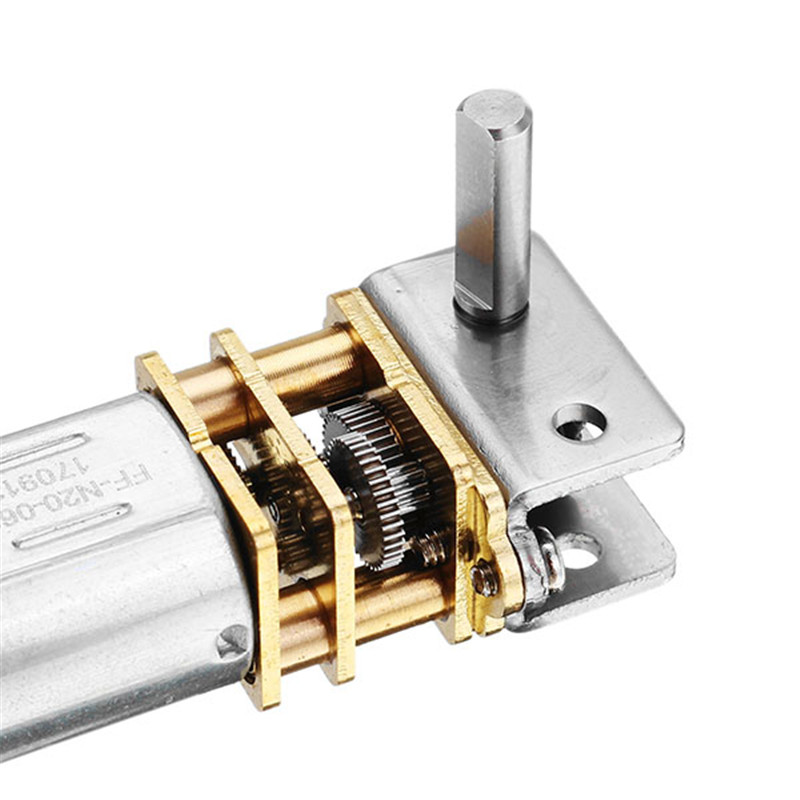

Chihai CHW-GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor
Specification:
| Model | CHW-GM12-N20VA |
| Voltage | DC 6V |
| Max power | 0.6W |
| Ratio | 1:900 |
| No-load current | ≤ 70mA |
| No-load speed | 18rpm |
| Rated torque | 3.0kg.cm |
| Rated-load speed | 12rpm |
| Rated-load current | ≤ 0.25A |
| Stall torque | ≥ 4.0kg.cm |
| Stall current | ≤ 0.65A |
Features:
This type is a miniature DC worm gear motor, reversible, variable and self-lock.
With self-locking function, the output shaft can't be rotated by certain force when switching off.
Gearbox output shaft and motor shaft are 90 degrees, it's widely used in various of occasions that require special install size.
According to these characteristics, worm gear motors are widely used in windows and doors opening and household electrical appliances, car model, boat model,
robot model, DIY engine, Industry application, house application, home automation, mini winch and other occasions.
Note:
Torsion of motor is too large. Frenquent start-up or blockage of motor is prohibited.
Package Included:Note:
Torsion of motor is too large. Frenquent start-up or blockage of motor is prohibited.
1 x CHW-GM12-N20VA Worm Gear Motor
