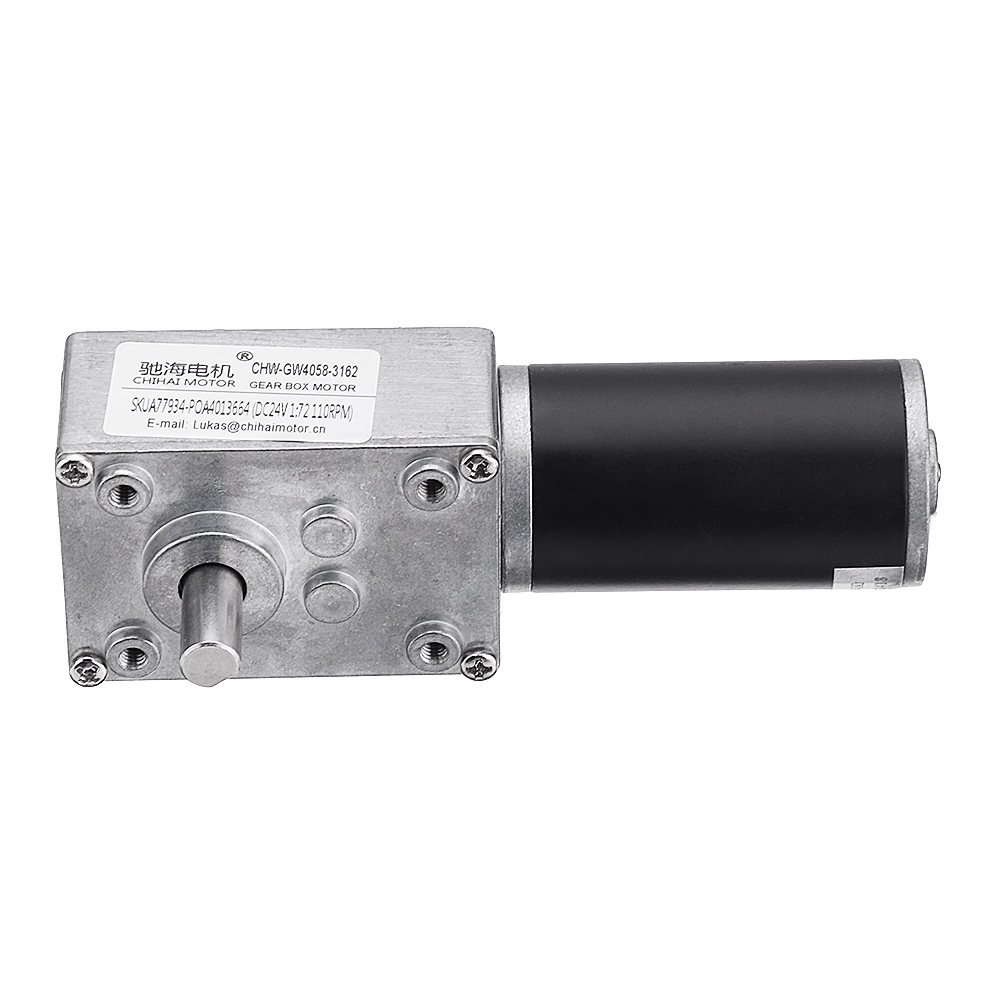

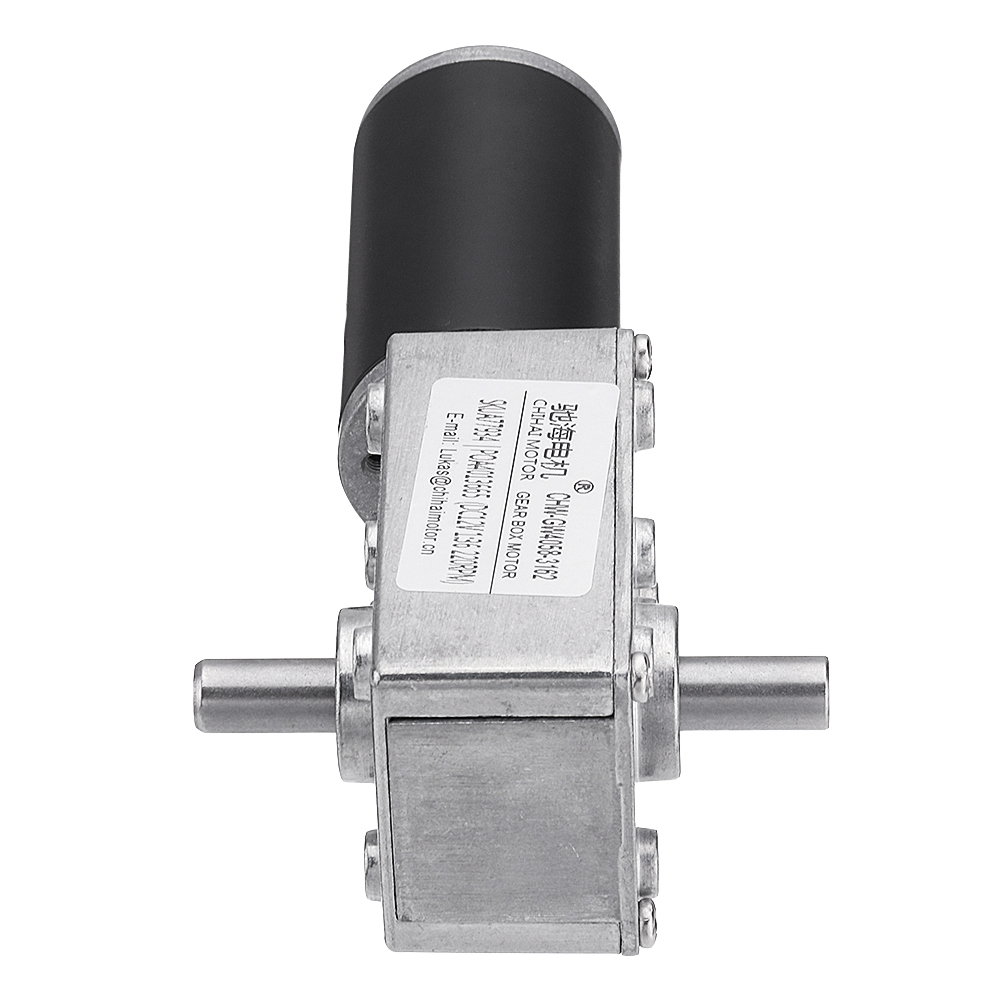

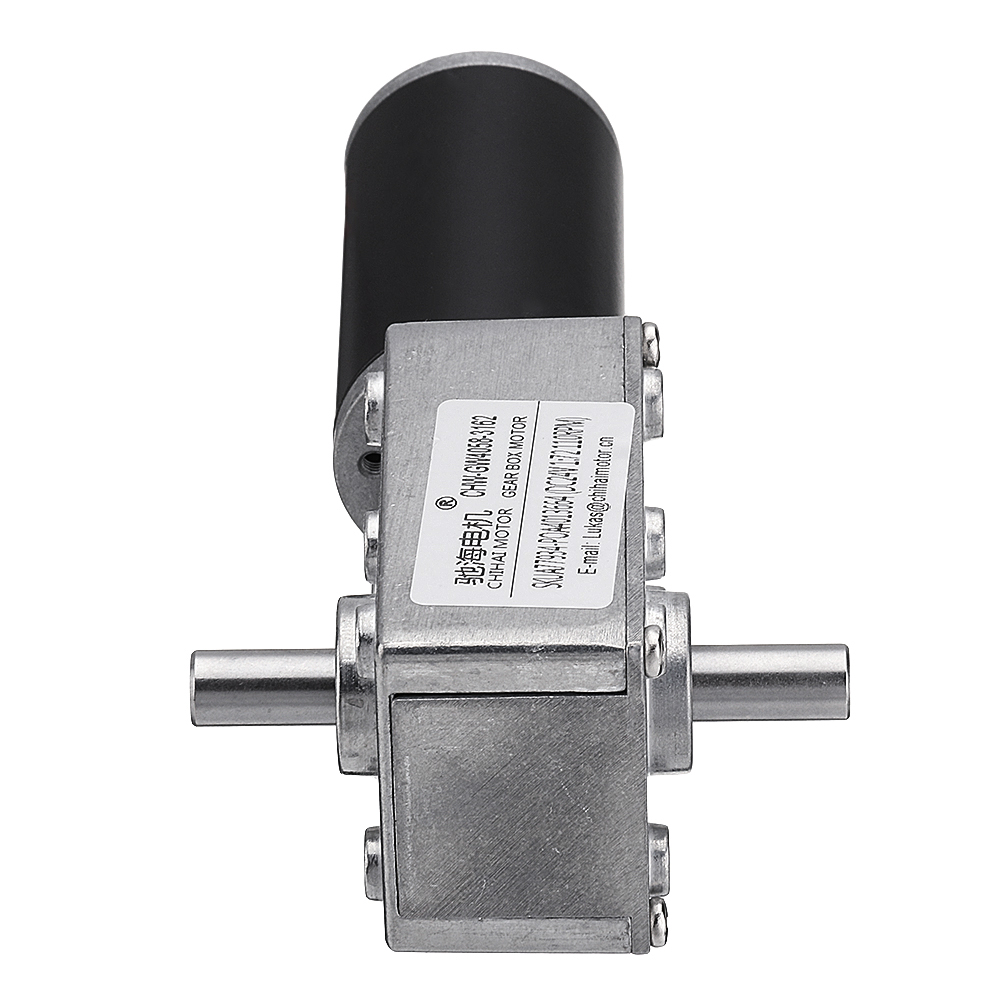

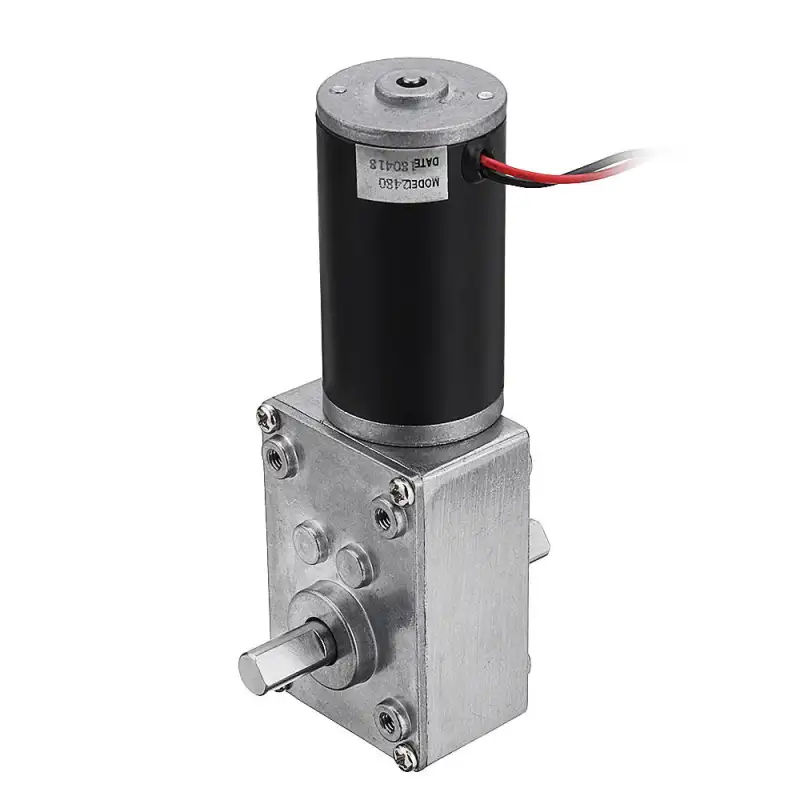

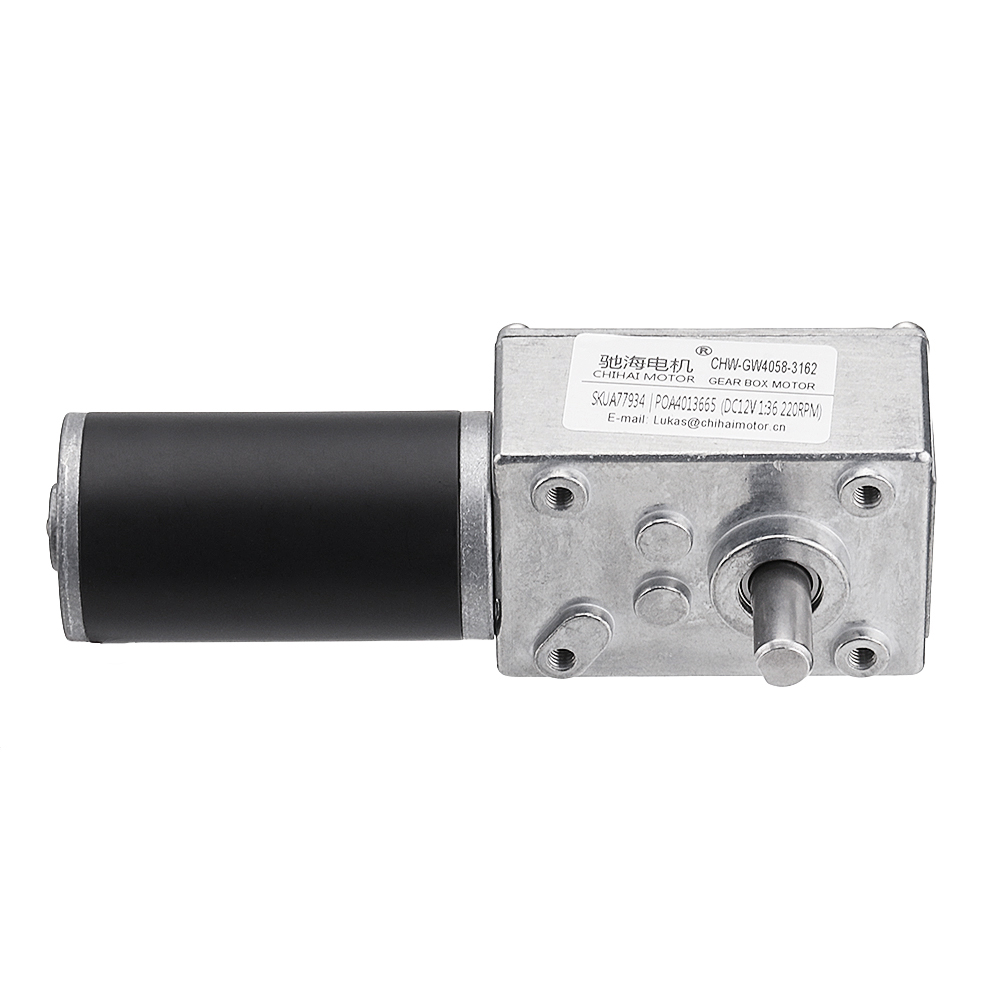

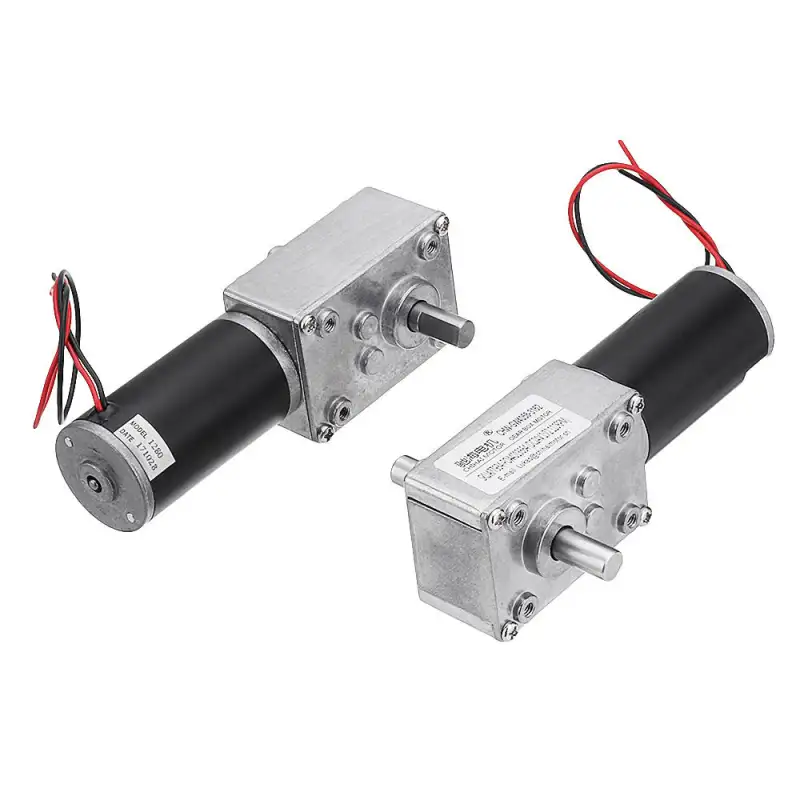

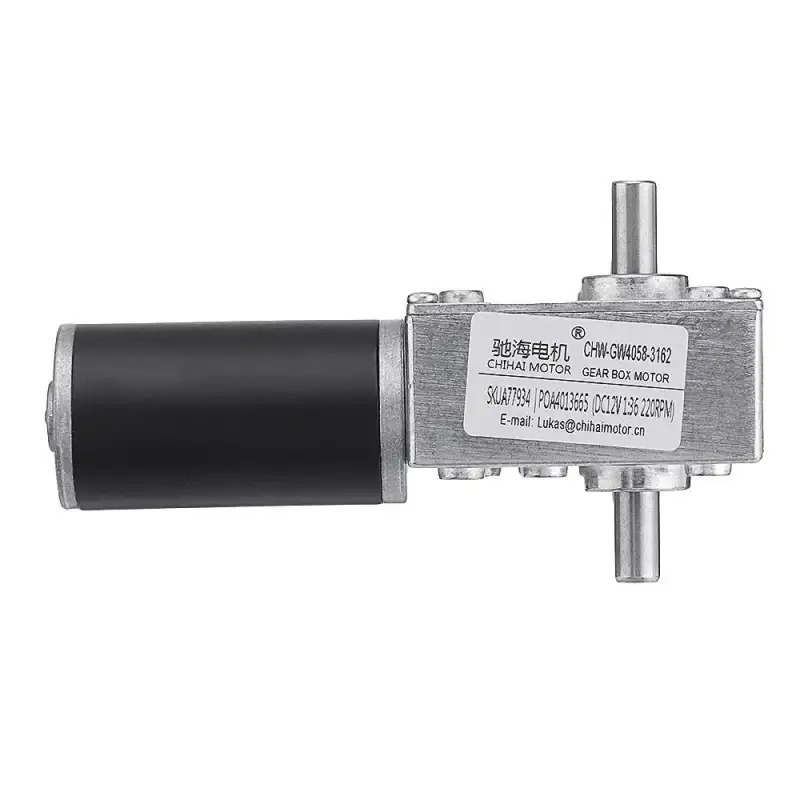

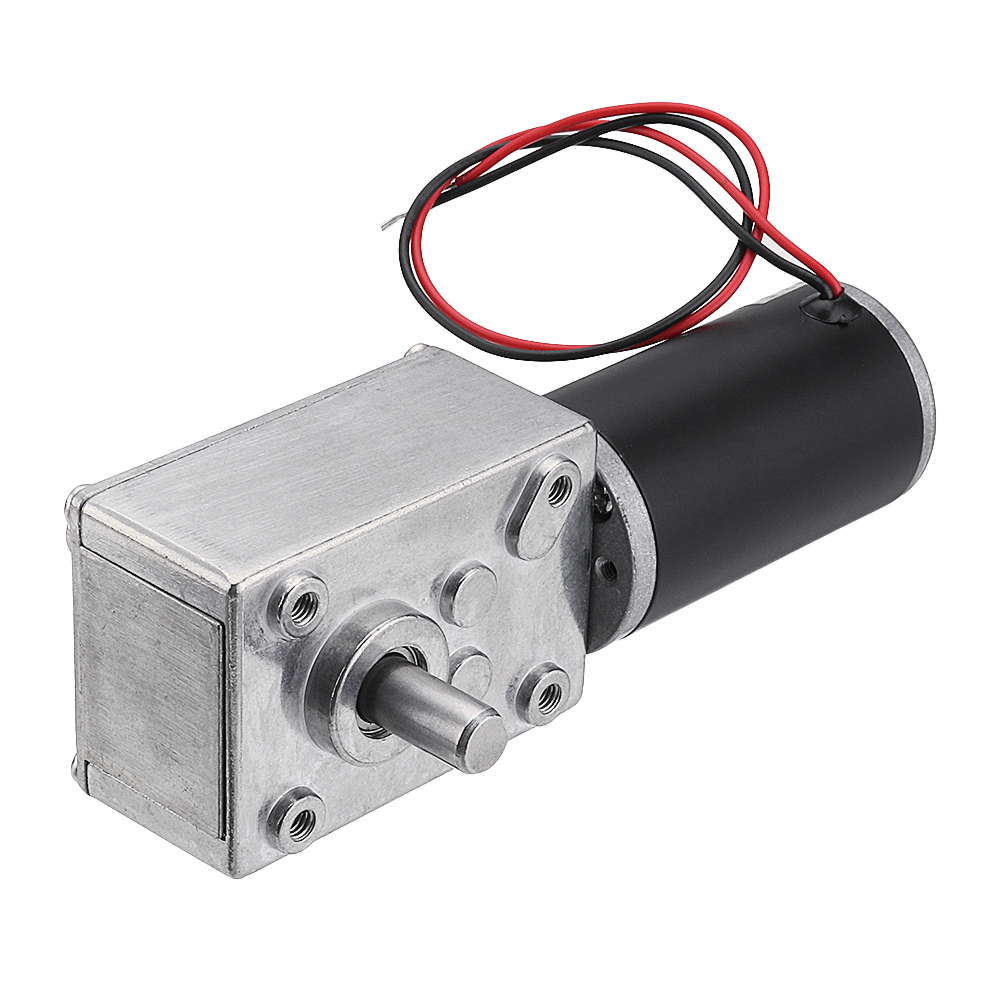

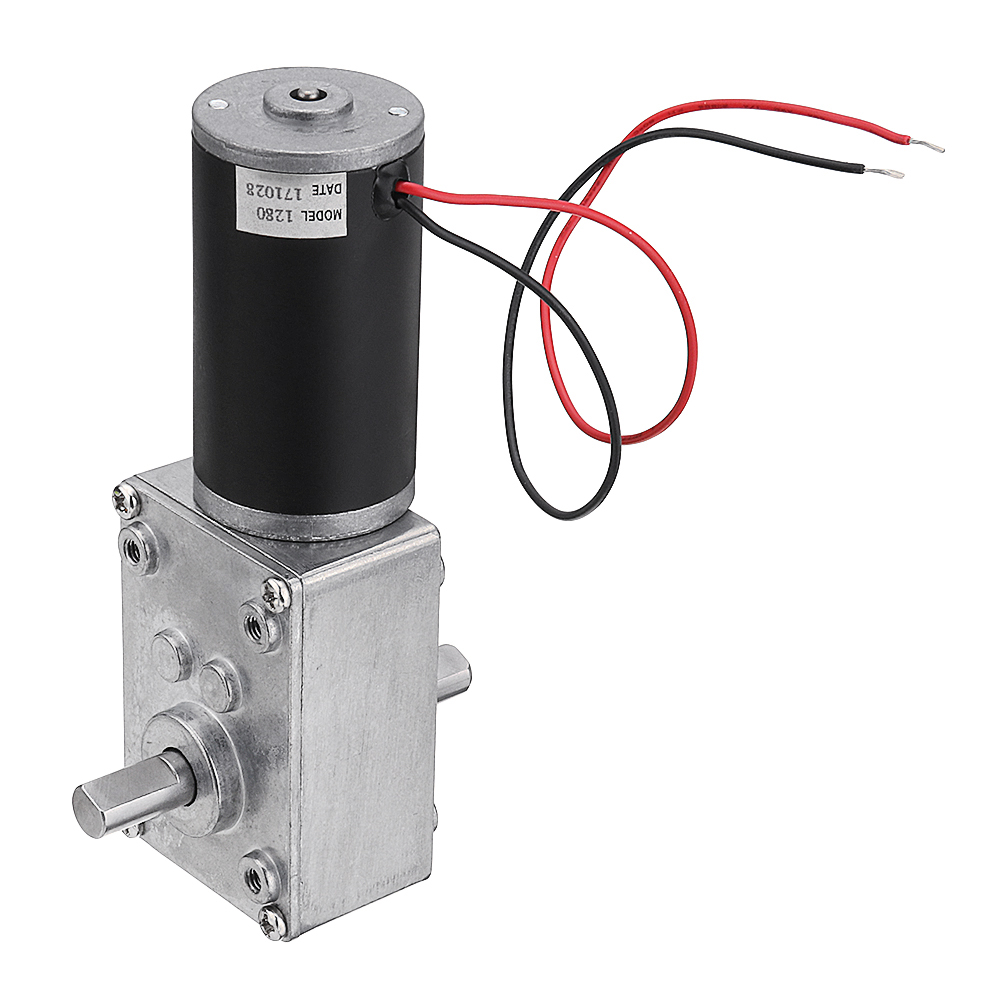

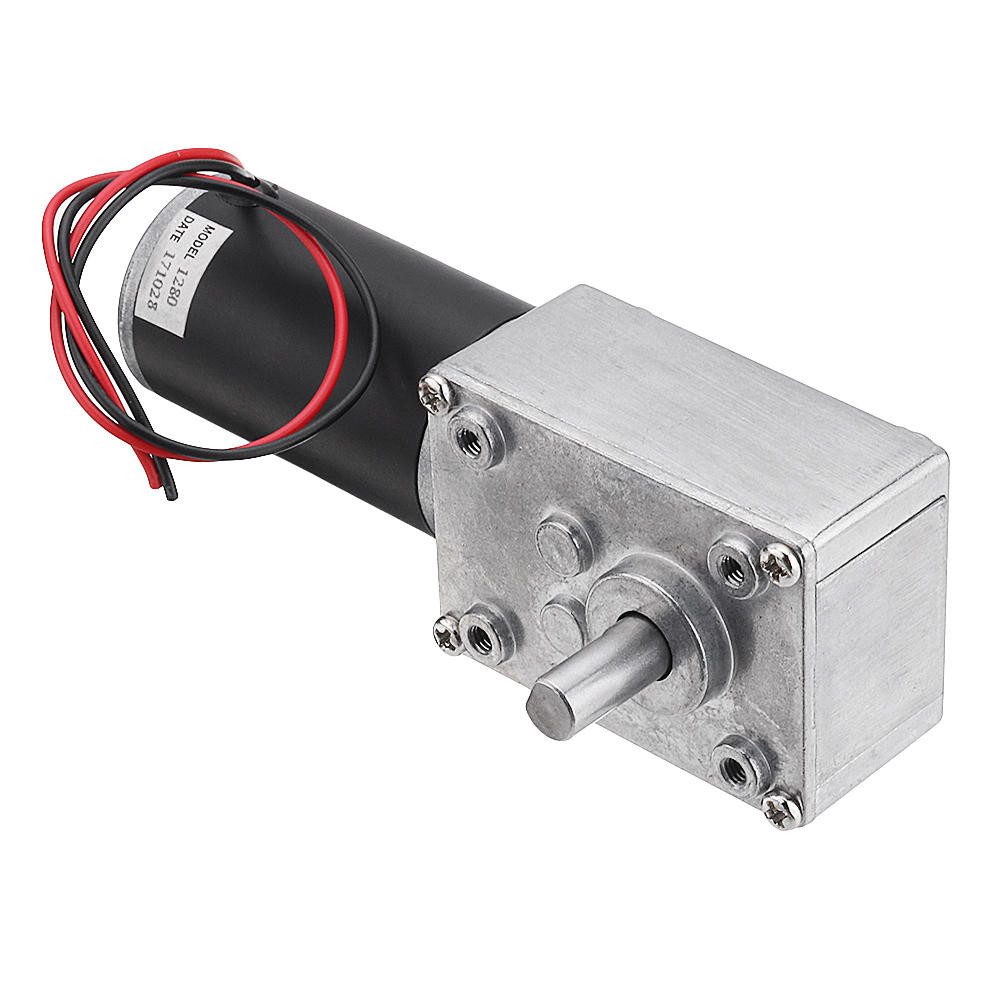

ChiHai CHW-4058-3162 Double Shaft Metal Gear Motor DC 12/24V 110/220RPM Worm Gear Reducer Motor

Reference:

Condition: New product

100 Item Items Warning: Last items in stock!

$36.09

Voltage

Quantity

More info

Description:
ChiHai CHW-4058-3162(31ZY) DC 12/24V 110/220RPM permanent magnetic worm gear reducer motor fits for intelligent car engine.

Specification:
Model: CHW-4058-3162(31ZY)

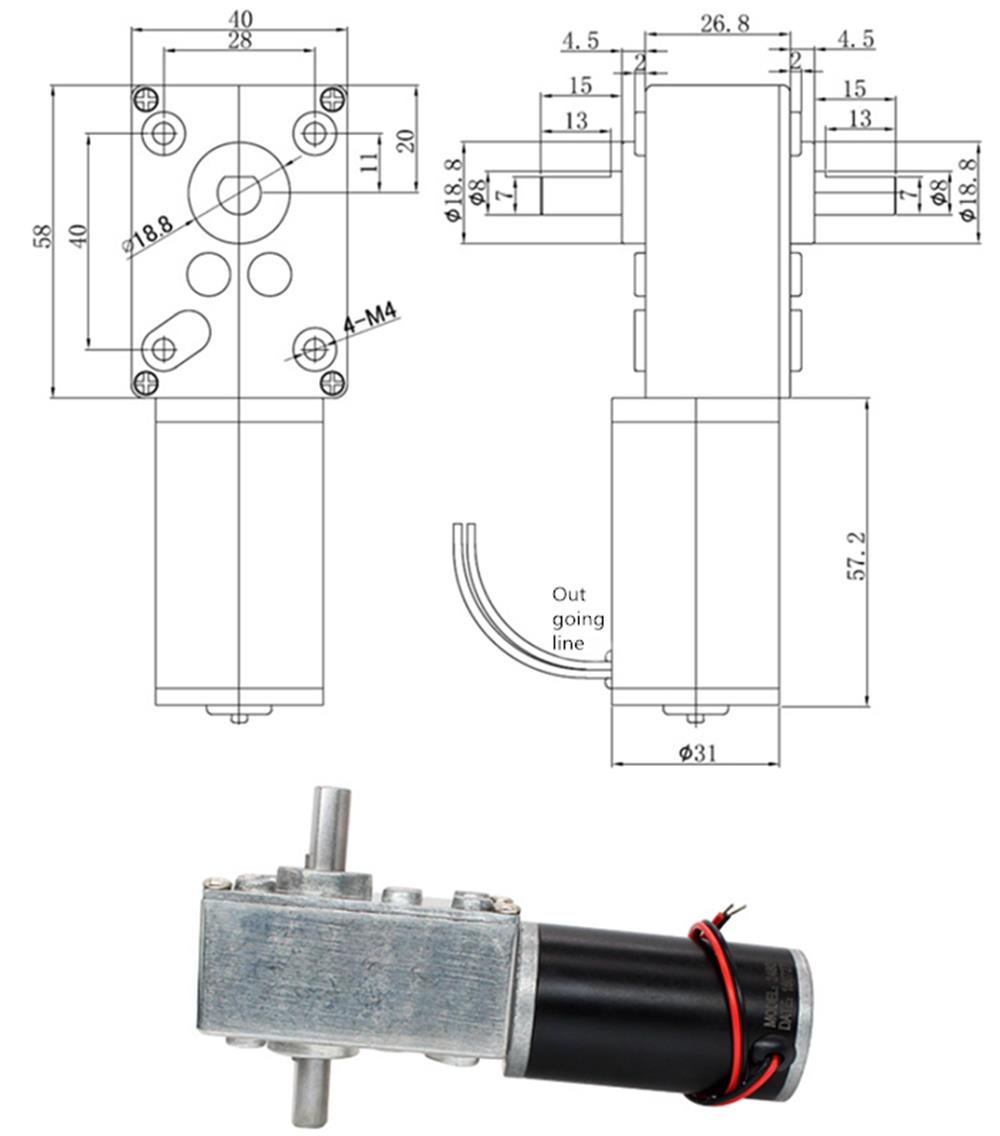

Outer Diameter Size: 40 x 36 x 117mm (excluding axle and wiring terminals)

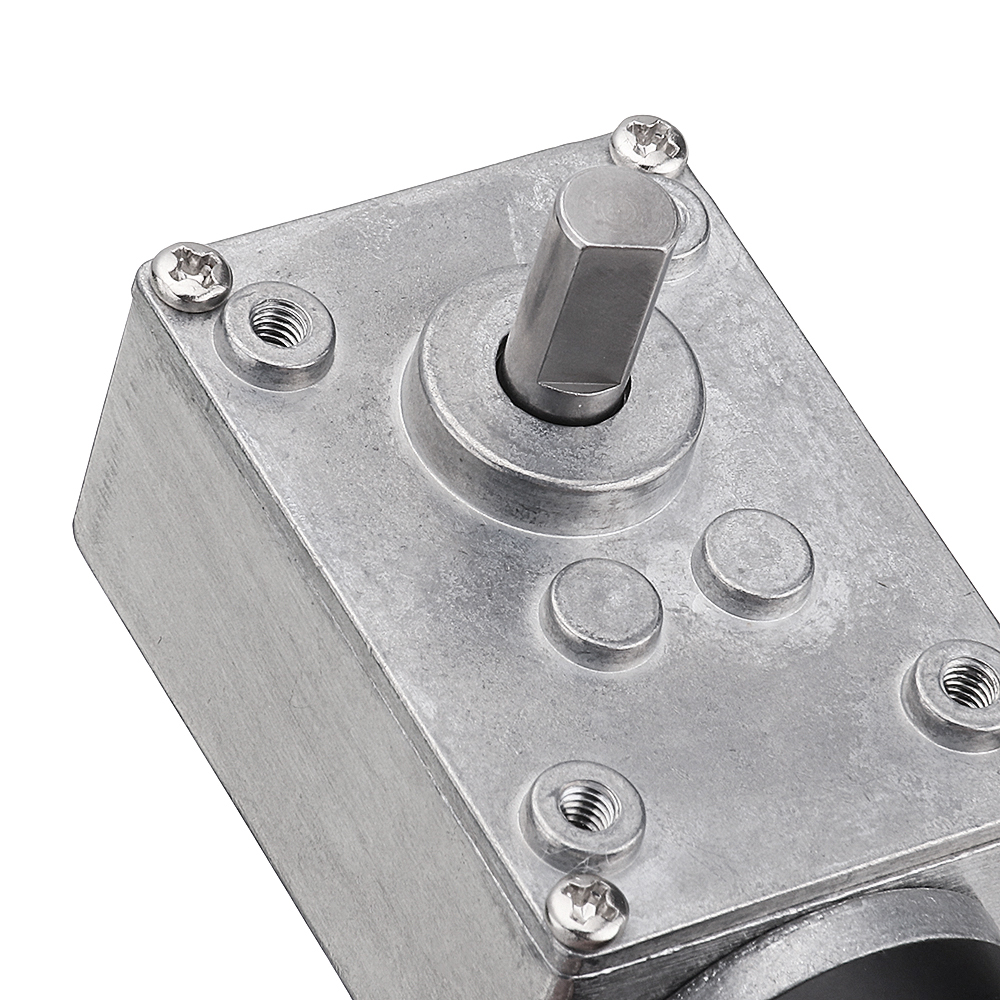

Axle Diameter: Axle Output Diameter 8mm, D Type, D Thickness 7.0mm

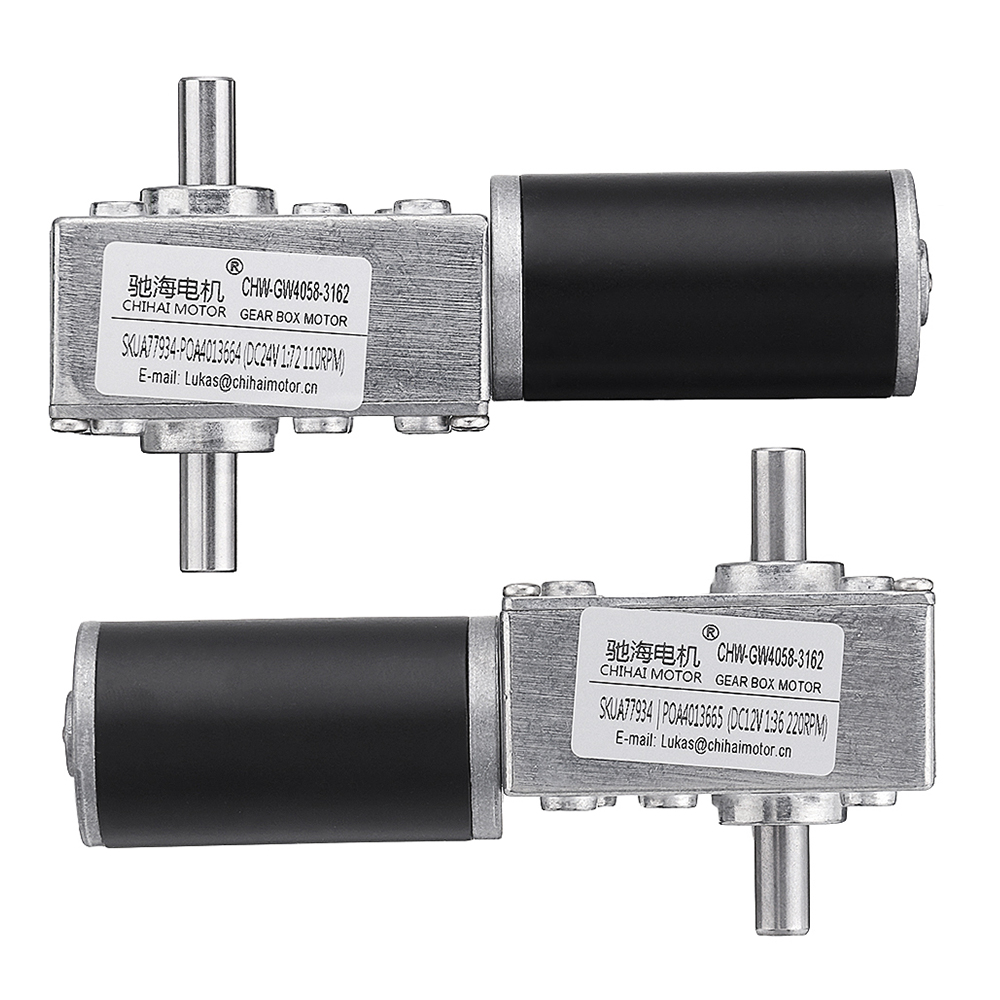

Output shaft length: 15mm D length, 13mm long, both sides output shaft

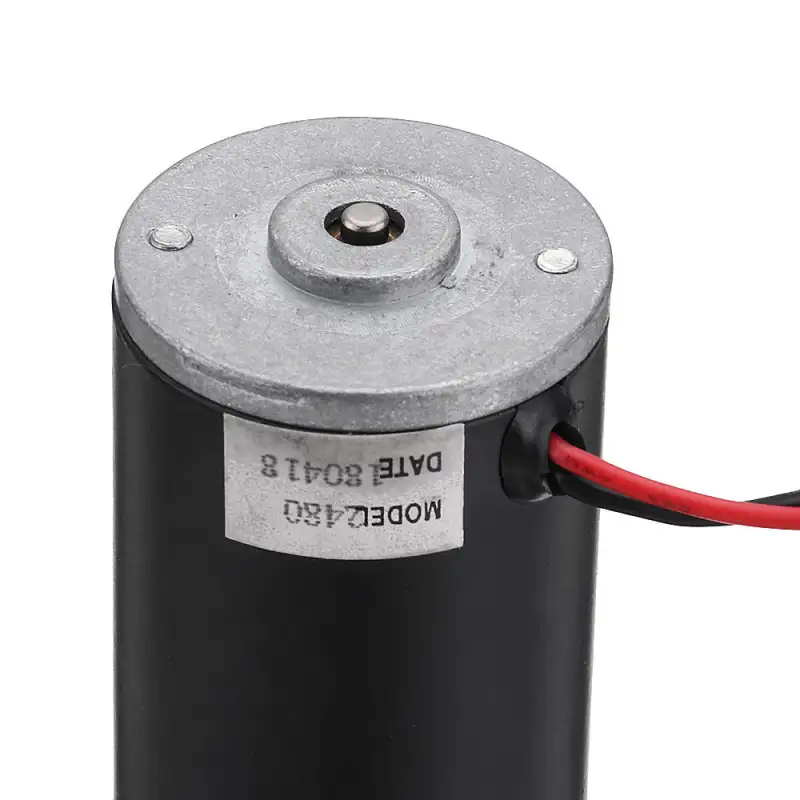

Type	80 Type input motor
Working Voltage (V)	DC 12.0	DC 24.0
Max. power (W)	20	35
Reduction ratio	1:36	1:72
No-load current (mA)	≤400	≤200
No-load speed (RPM)	220	110
Rated torque (kg.cm)	8.0	16.0
Rated speed (RPM)	175	87
Rated current (A)	≤1.6	≤1.2
Plugging torque (kg.cm)	≥25.0	≤50
Blocking current (A)	≤6.5	≤5.0

Features:

1. Pure copper winding wire

The rotor is made of pure copper with low resistance and high conductivity, which improves the motor torque.

2. D axis font

D-shaped shaft, more convenient to install, not easy to slide, save installation time.

3. All metal structure

Wear resistant, torsion resistant, long service life, smooth operation.

4. Reducer adopts ball bearing structure

Low friction resistance, low noise, long service life, fast heat dissipation, high precision and strong composite capacity.

5. The service life in the nominal torsion range is more than 2000H, delivery of the maintenance. (Ultra-twist life is going to be drastically reduced)

6. frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

Package Included:
1 X CHW-4058-3162 DC Motor
