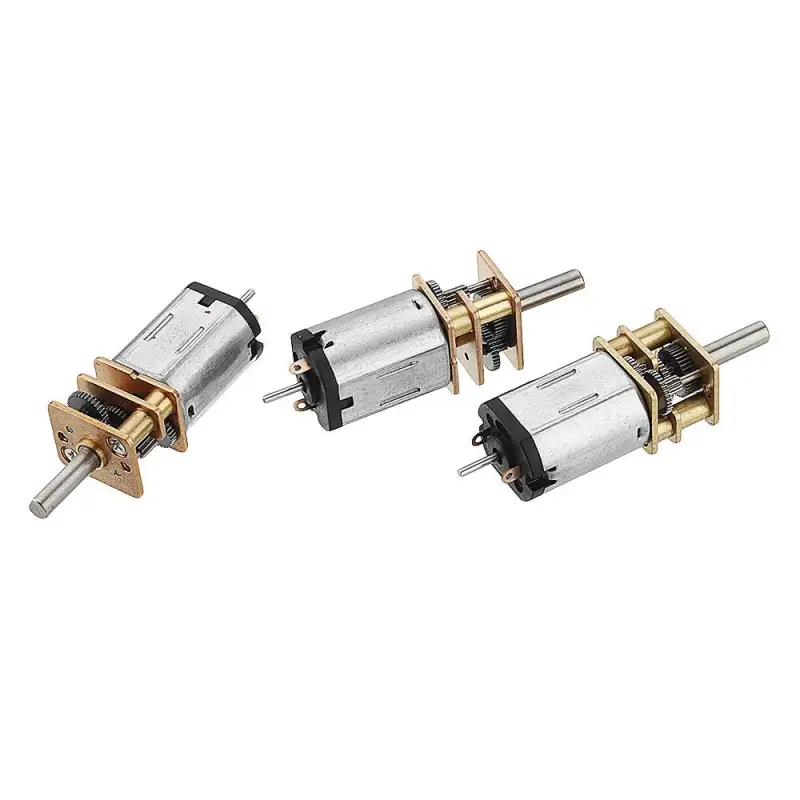

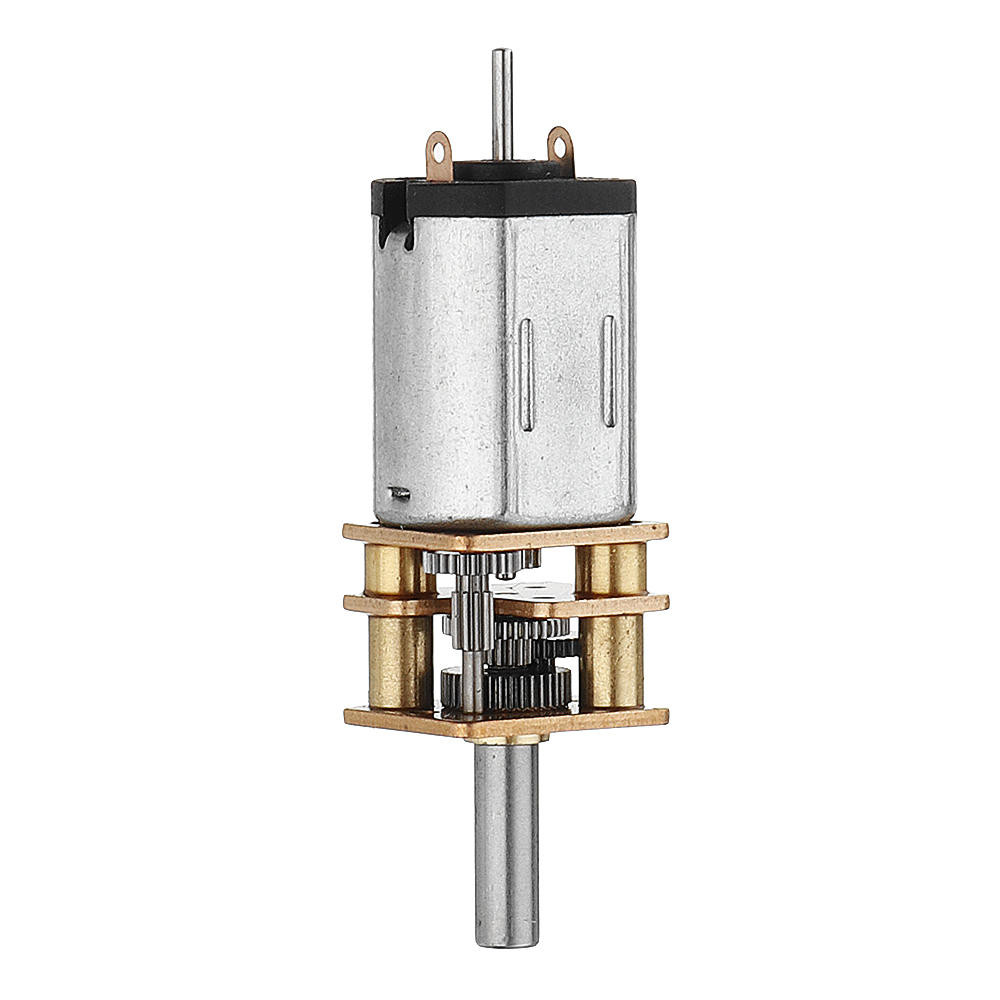

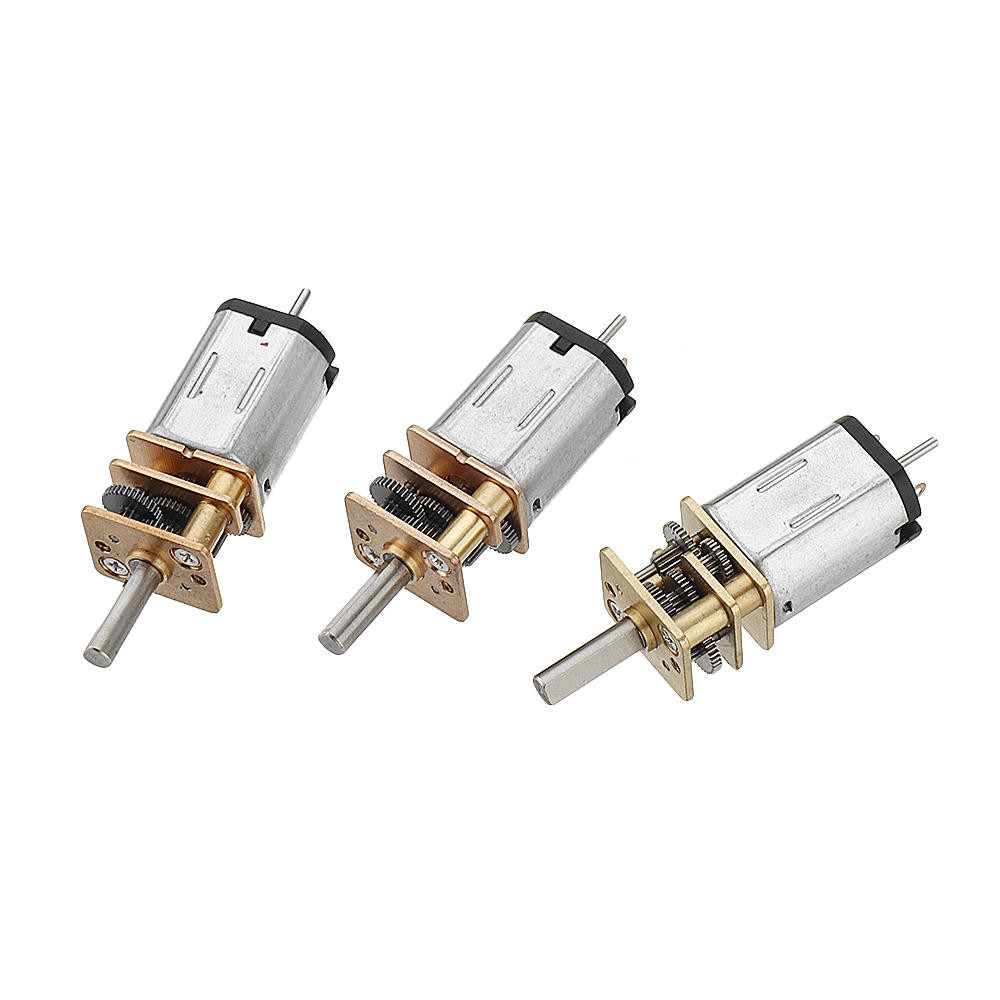

Chihai CHF-GM12-N20VA DC 12V Double Shaft Gear Motor Reducer Reduction Motor

Reference:

Condition: New product

200 Items

$8.32

More info

Descriptions:

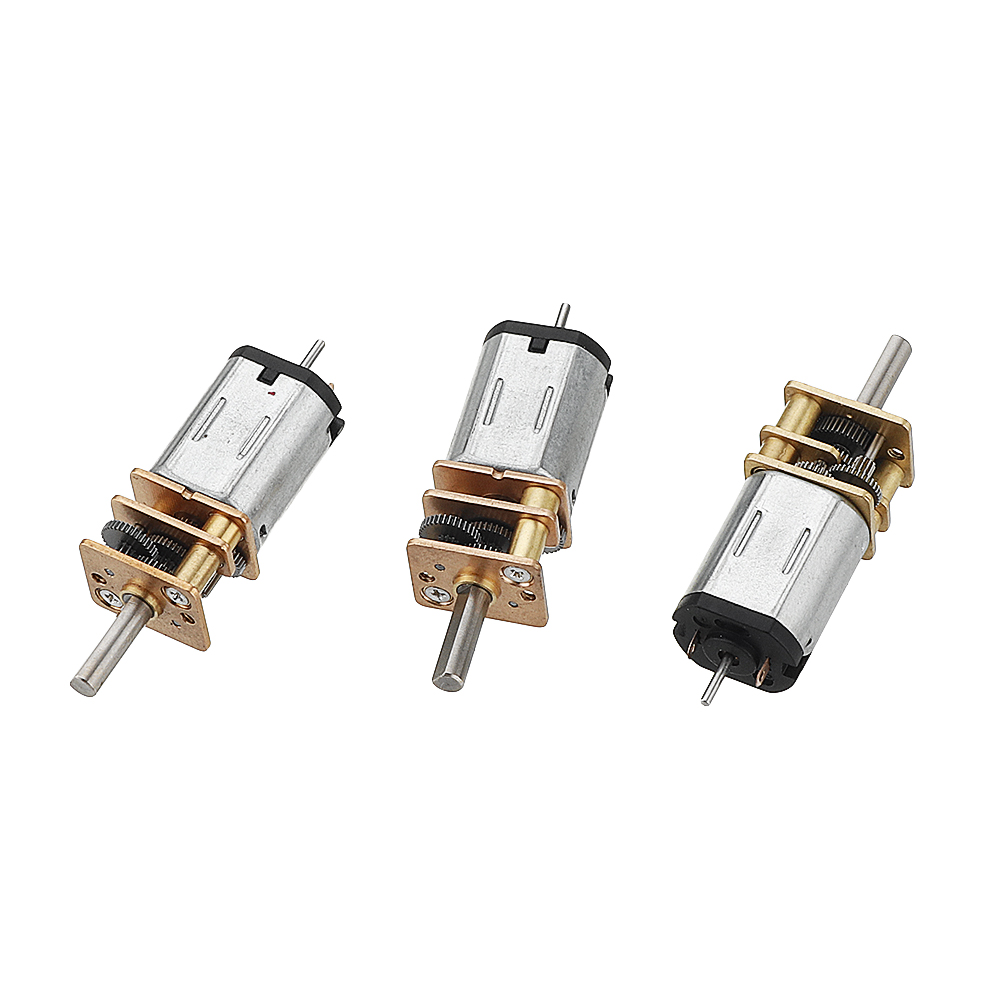

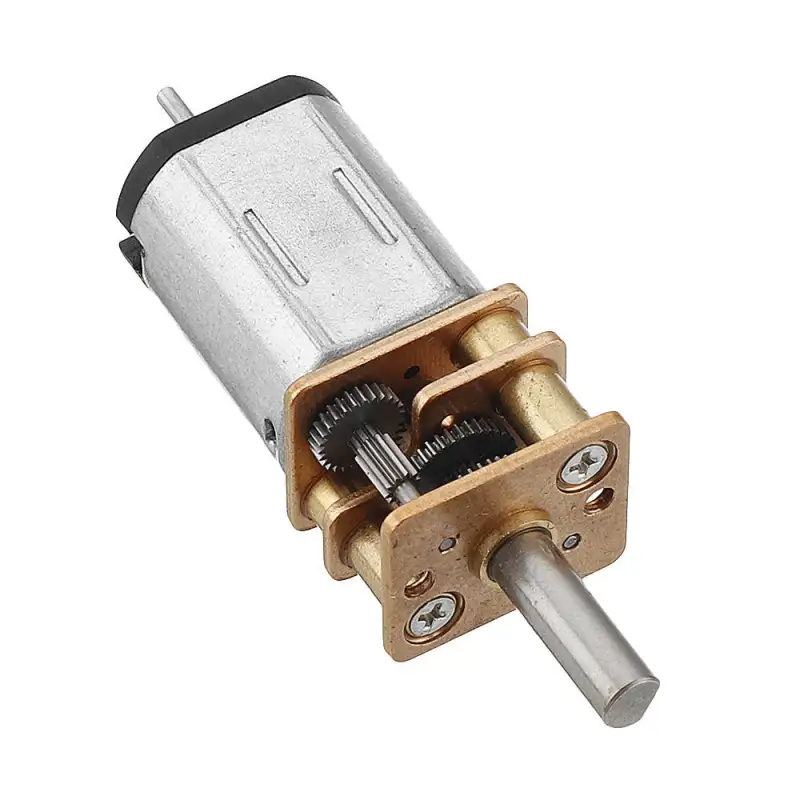

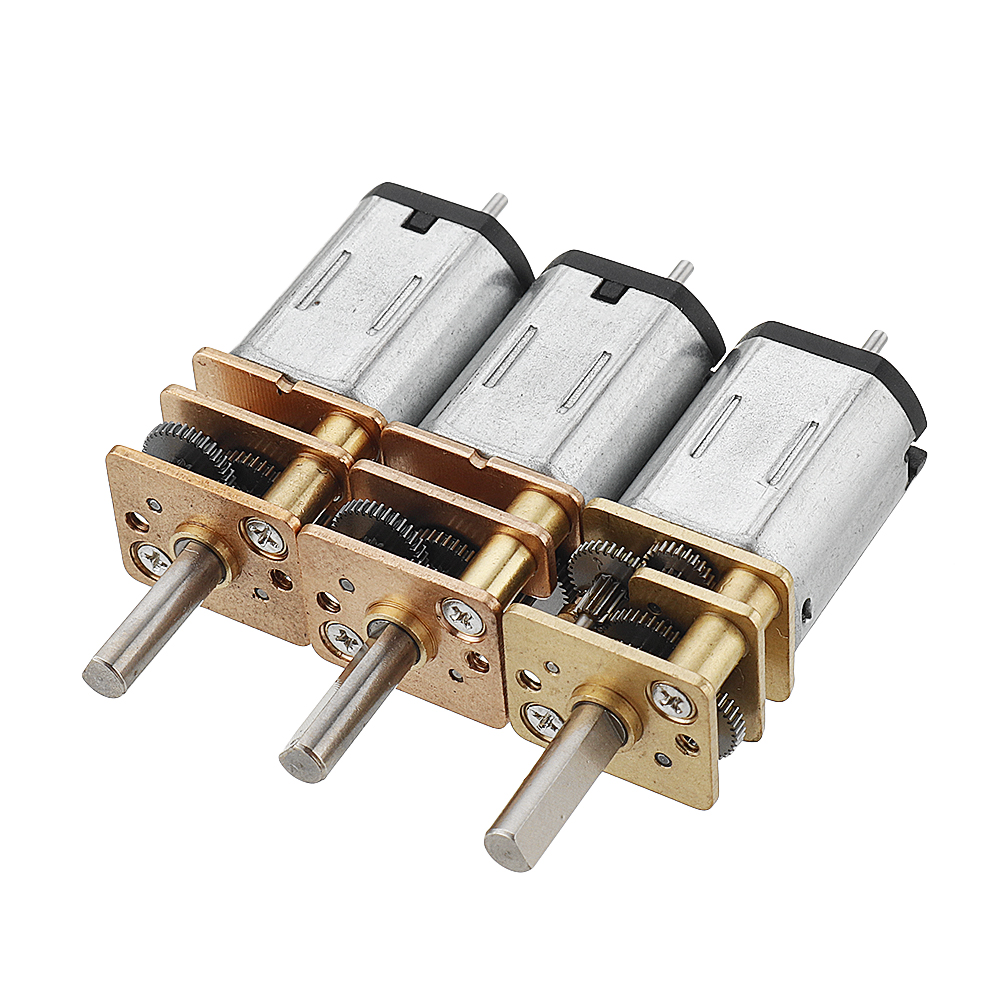

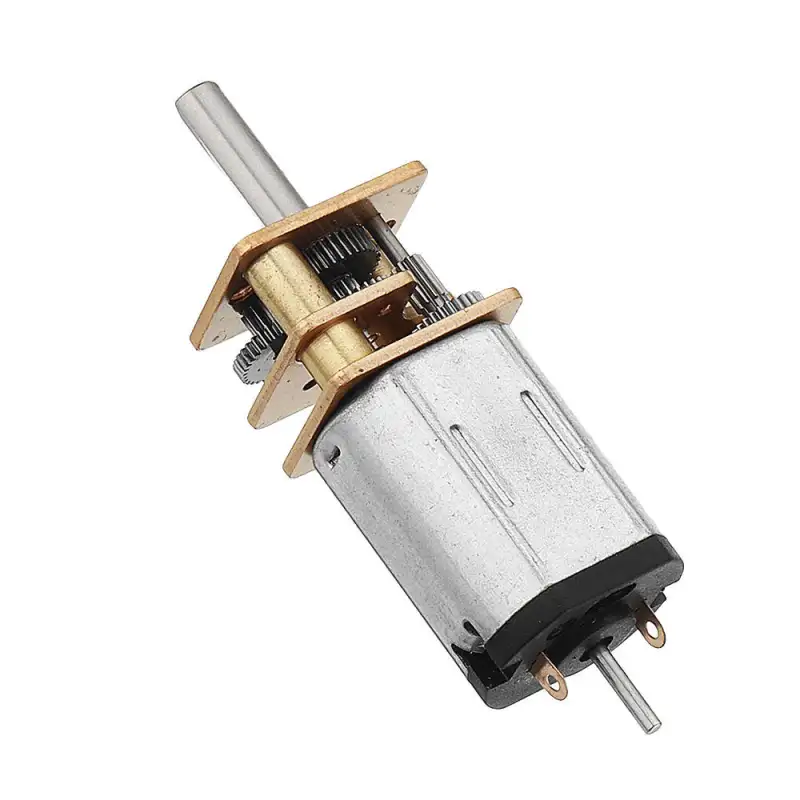

Chihai CHF-GM12-N20VA 12V double shaft gear reducer reduction motor

Specifications:
Brand: Chihai Motor
Model: CHF-GM12-N20VA 12V Double Shaft Gear Reducer

Type Rated voltage Max. input power Ratio No load Rated Blocking
Current Speed Torque Speed Current Current Torque
A DC12.0V 0.9W 1:50 ≤62mA 440rpm 0.40Kg.cm 39.2mN.m 230rpm ≤0.22A 3.4A 0.65Kg.cm
1.3Kg.cm
B 1:100 ≤63mA 220rpm 0.80Kg.cm 78.4mN.m 130rpm 4.4A
C 1:298 ≤66mA 73rpm 2.30Kg.cm 225.5mN.m 42rpm 7.4A 3.0Kg.cm

Features:

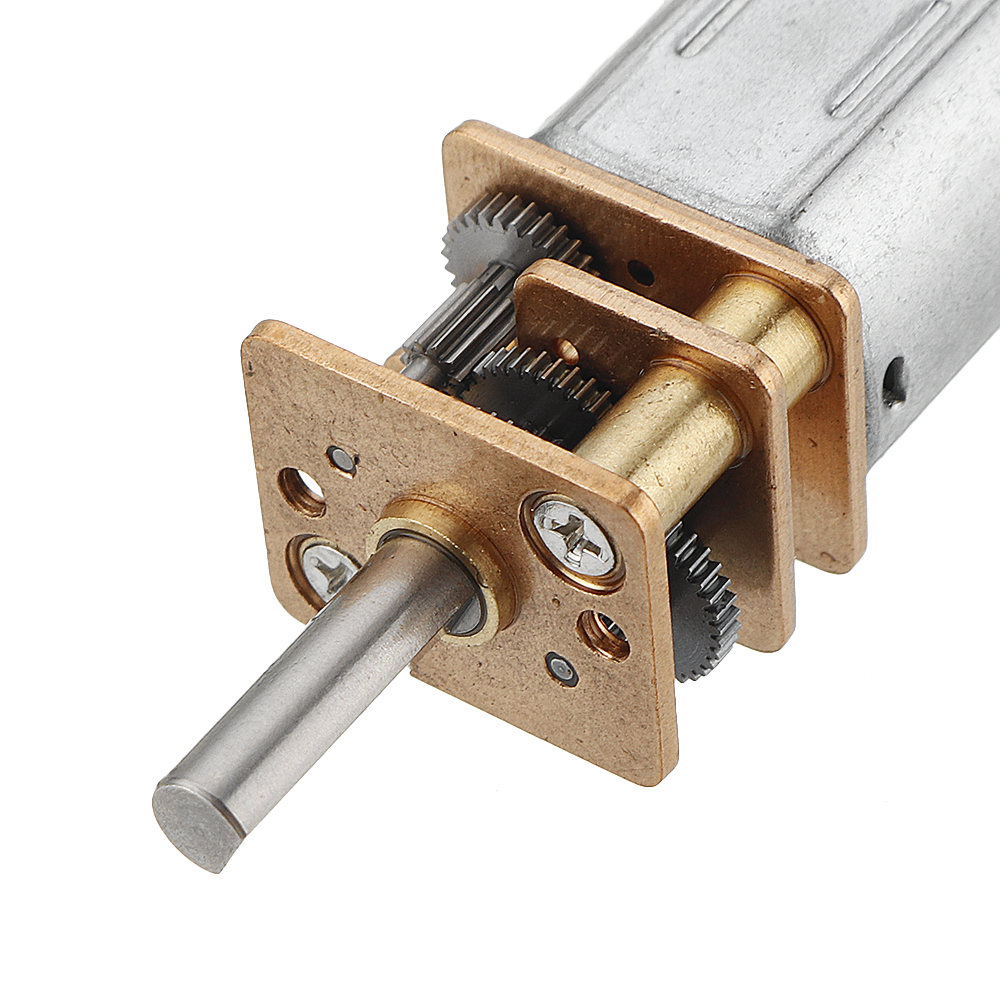

- Stainless steel shaft, military manufacturing technology, high-precision reducer mechanism, smooth and quiet operation;
- Galvanized steel tensile shell with a bright surface;
- High-performance core material with additional DV de-sparking parts for the rotor;

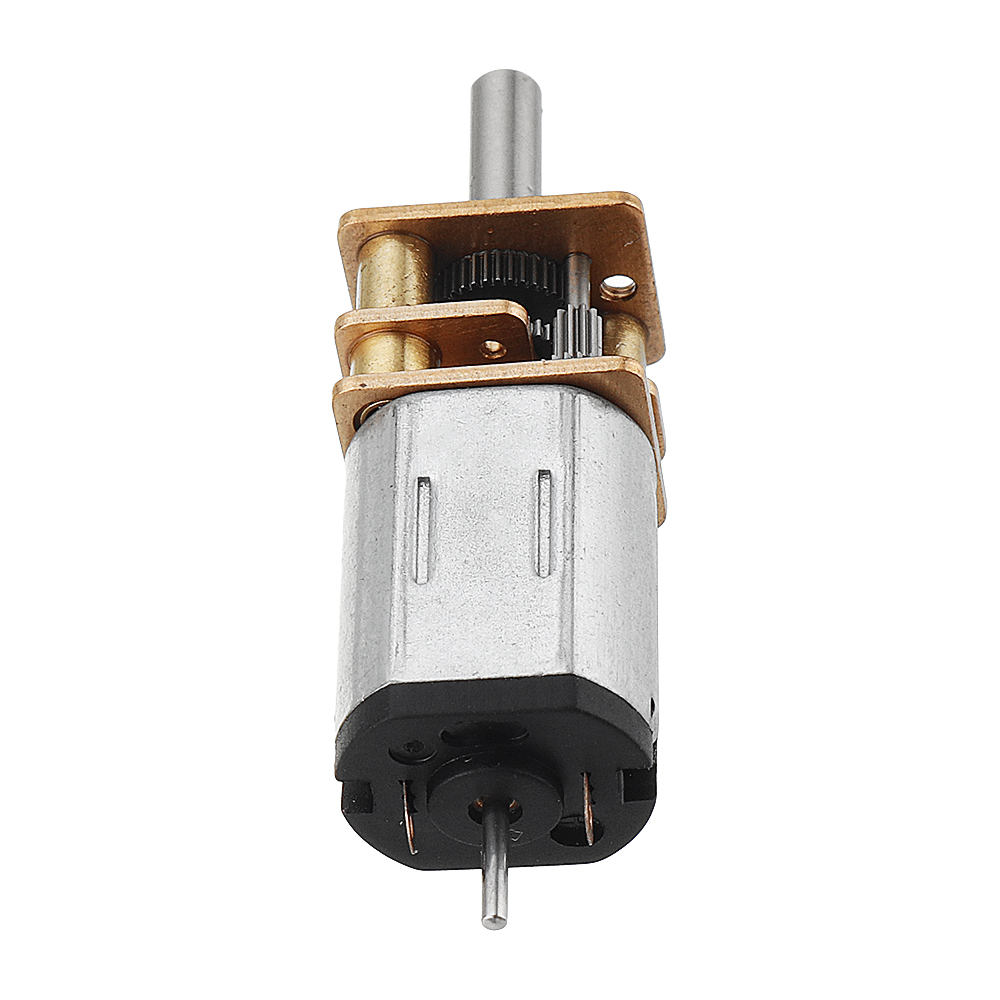

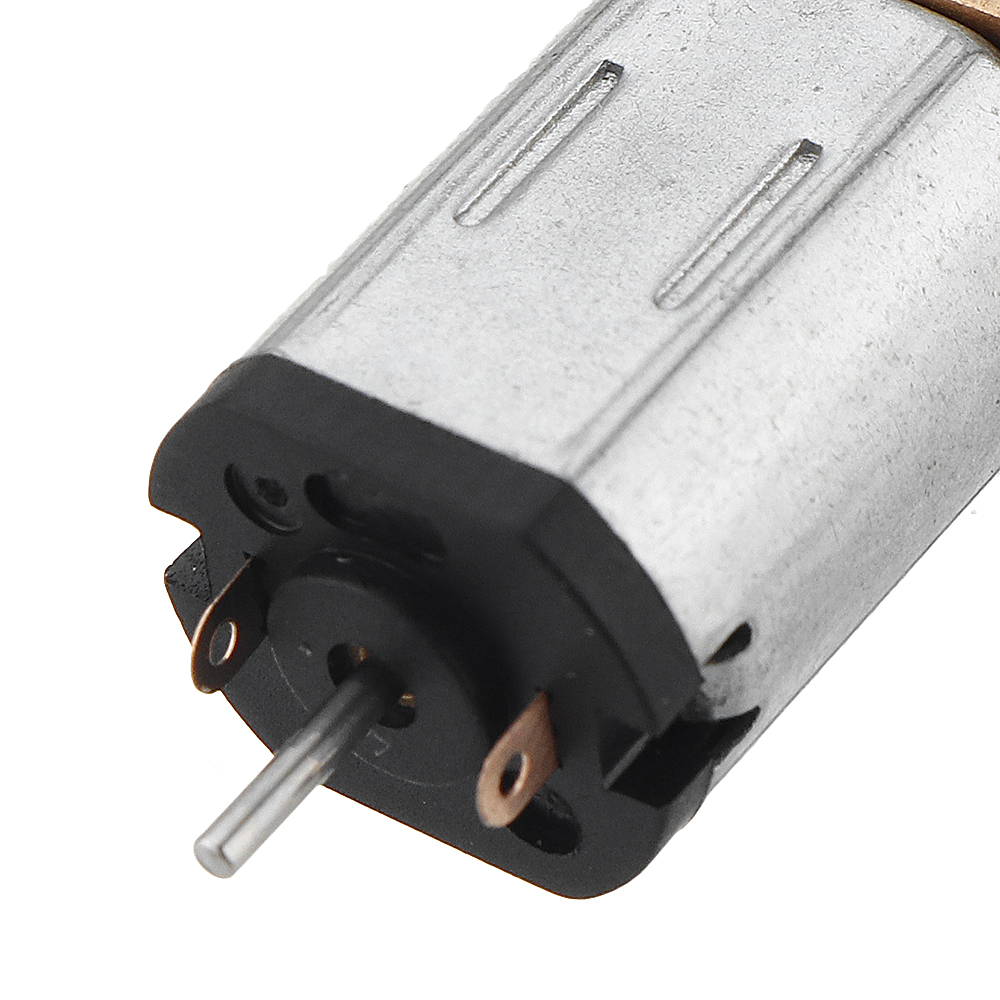

- The rear output shaft is convenient for mounting the code wheel or magnetic ring.

Package Included:
1 x 12V Double Shaft Gear Reducer

More Details:


Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199

Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199Chihai-CHF-GM12-N20VA-DC-12V-Double-Shaft-Gear-Motor-Reducer-Reduction-Motor-1476199
