Reference: BG0052-9936881
Condition: New product
100 Item Items Warning: Last items in stock!
Availability date: 05/17/2021
Description:

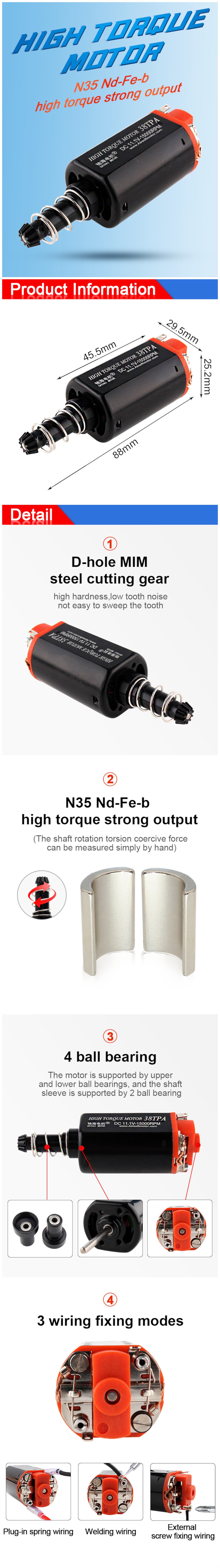

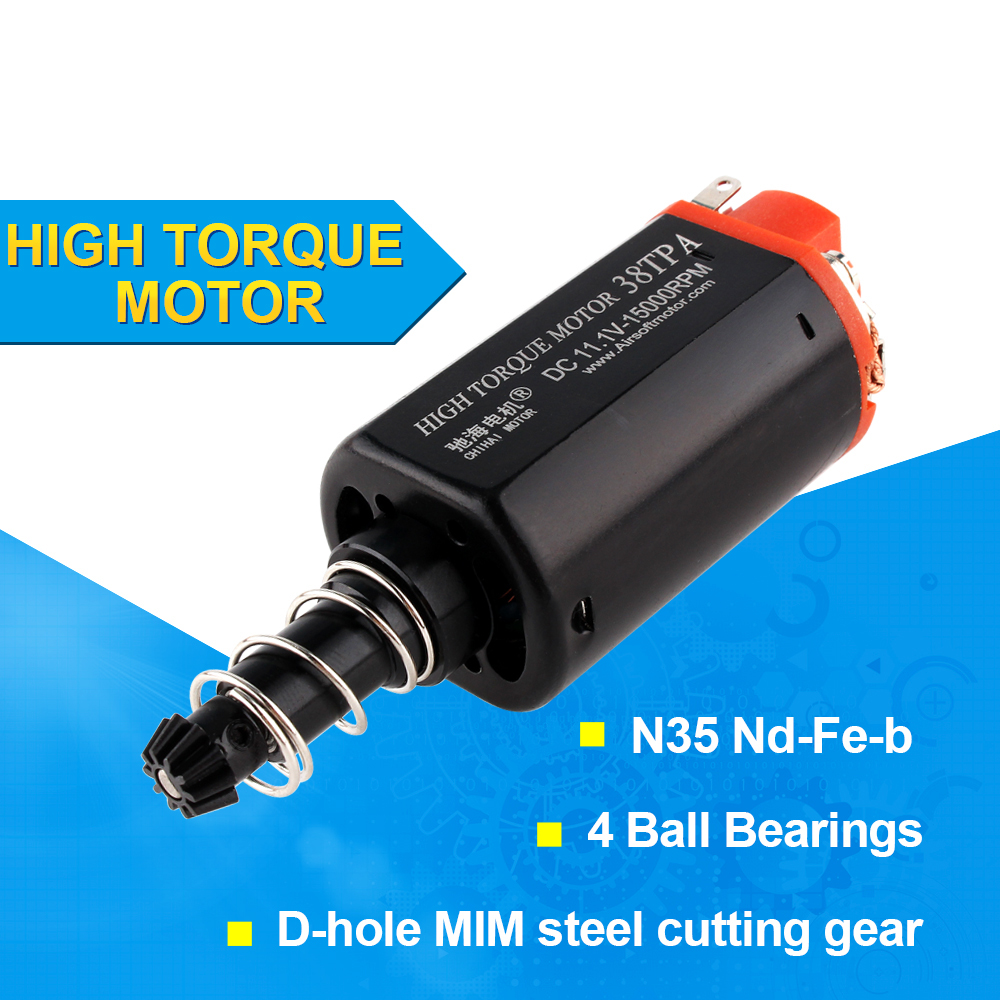

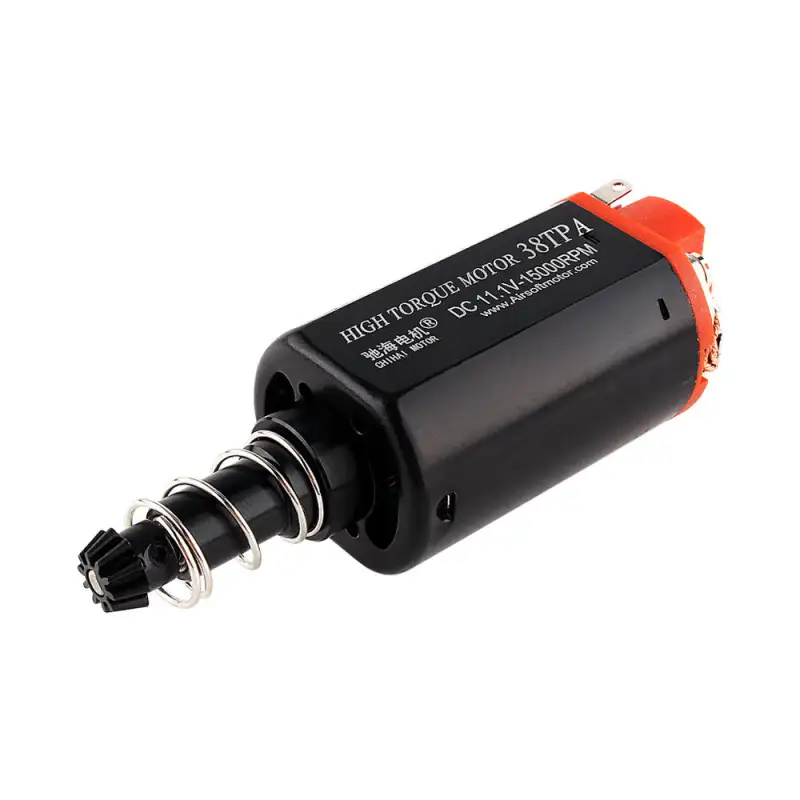

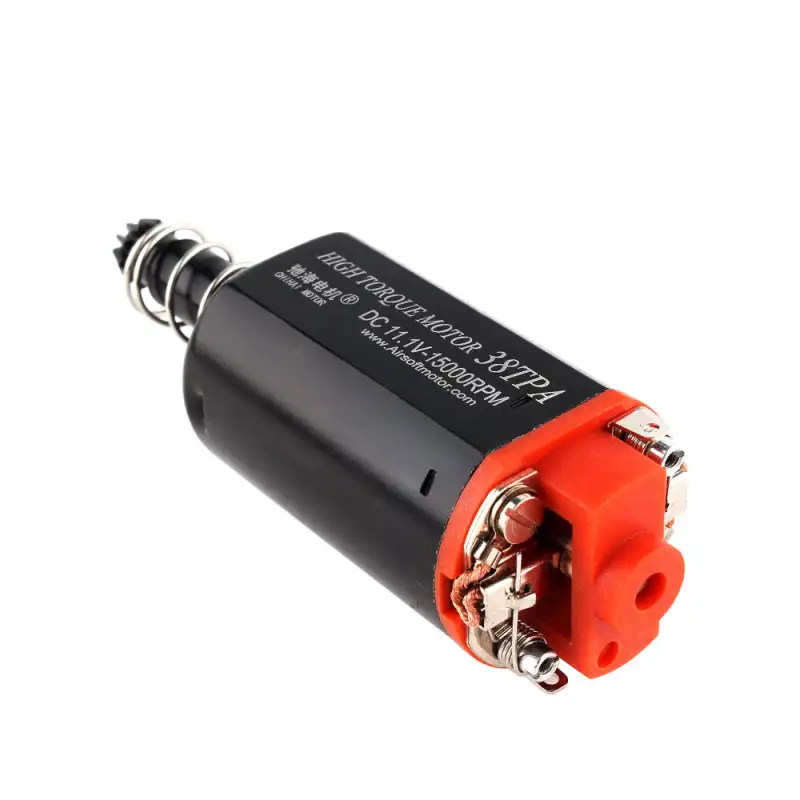

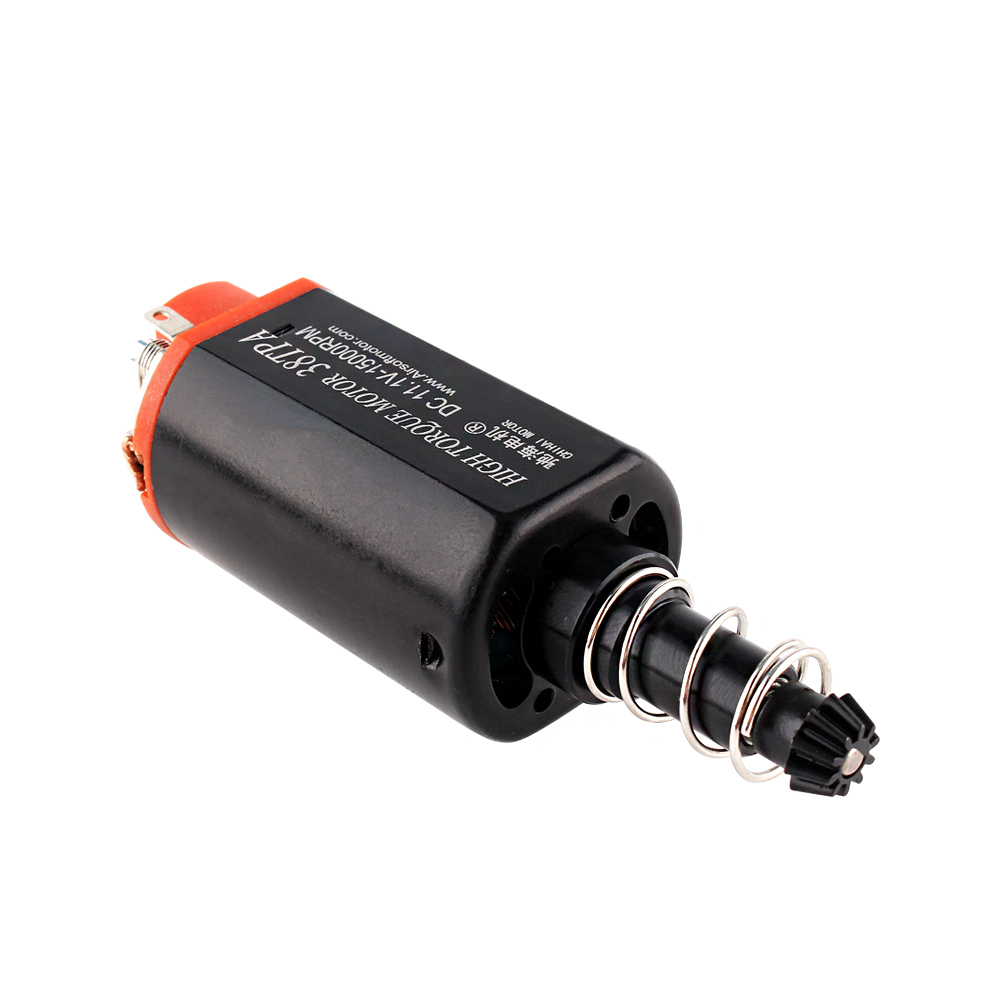

CHIHAI CHF-480WA-8014T Gear Motor DC 11.1V 15000rpm High Torque Gear Motor NdFeB Strong Magnetic High Torque Motor
Specifications:
| Product Name | High Torque Gear Motor |
| Brand | CHIHAI |
| Model | CHF-480WA-8014T |
| Appearance | Shell paint/200℃ Thermostable back cover |
| Magnetic Materials | N35 Nd-Fe-b high torque strong output |
| DC11.1V Speed | 15000 rpm |
| No Load Speed | 15000 rpm |
| No Load Current | 1.50A |
| At Stall Torque | 230.9524 mN.m |
| At Stall Current | 33.6428A |
| Weight | 150g |
| Size | 29.5×25.2mm×88mm (including output shaft and gear) |
| Adaptation Type |
No. 2 wave box Airsoft spear JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor insertion |
| Special Wave Box Type |
WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4 FB WAVE BOX FIGHTING BRO |
| Quantity | 1 Pc × Motor |
Features:
- D-hole MIM steel cutting gear, high hardness, low tooth noise not easy to sweep the tooth.
- N35 Nd-Fe-b high torque strong output, the shaft rotation torsion coercive force can be measured simplu by hand.

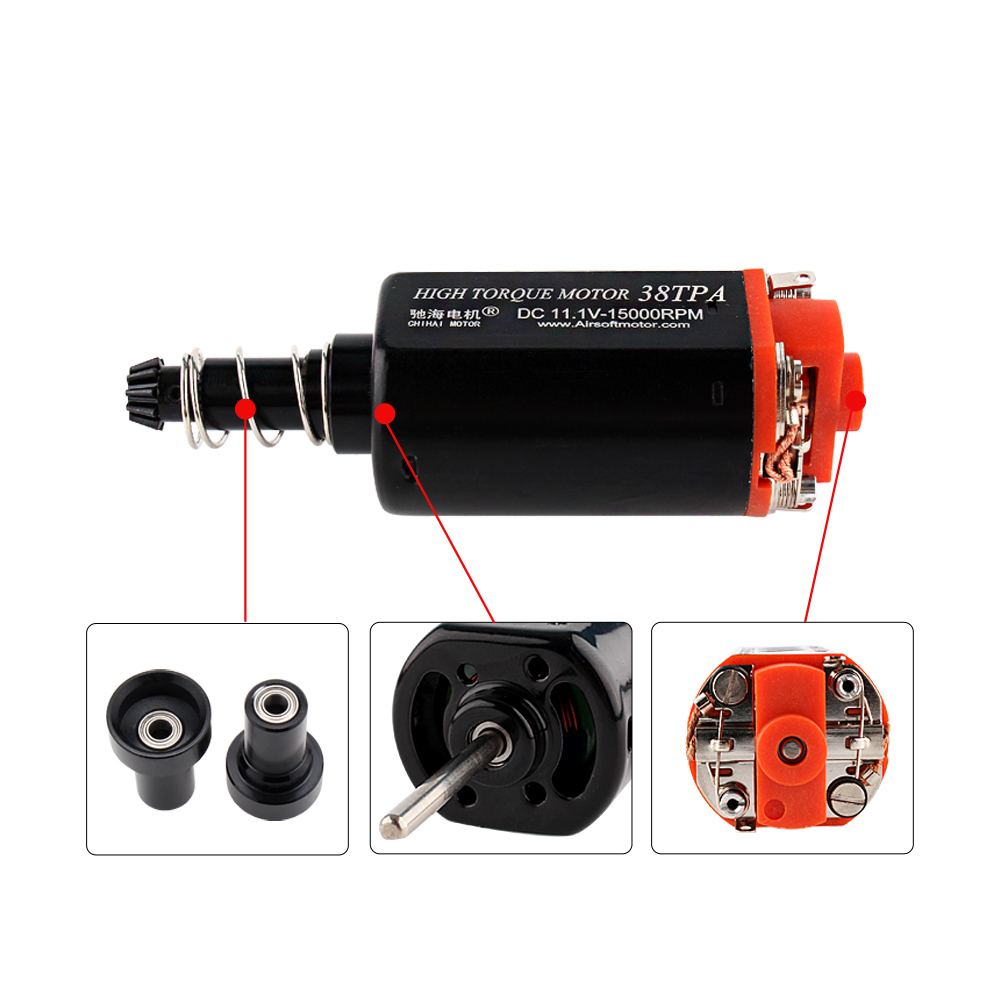

- 4 ball bearing. The motor is supported by upper and lower ball bearings, and the shaft sleeve is supported by 2 ball bearing.
Package Included:
| 1 Pc × |
Motor |
