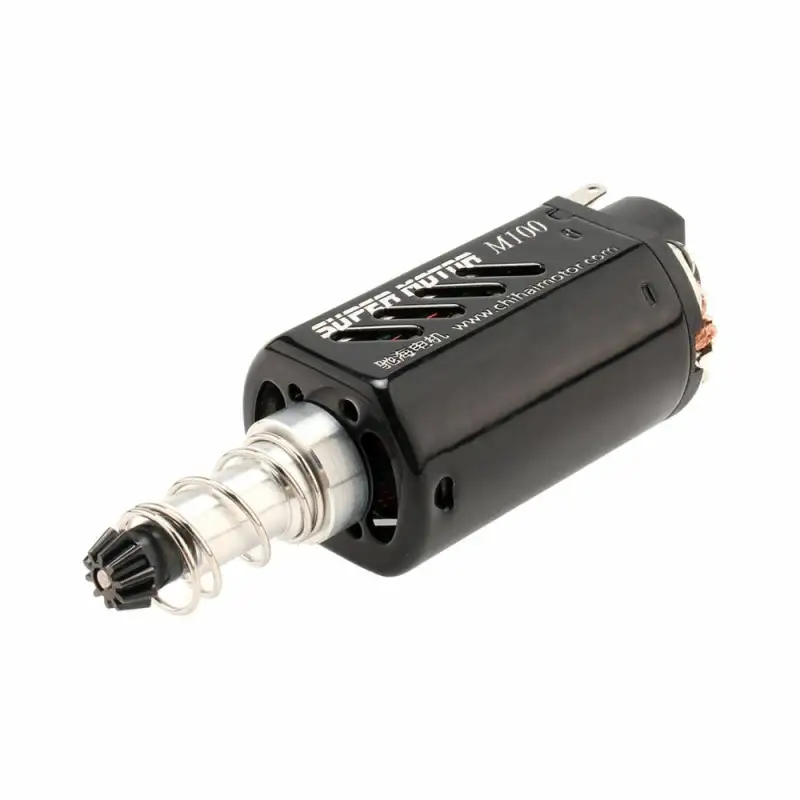

Chihai CHF-480SA-11340 DC 11.1V 34000rpm Motor High Speed Long Shaft Airsoft Motor for Jinming New Well

Reference: BG0052-9521727

Condition: New product

100 Items

$21.09

More info

Description:

CHF-480SA-11340 High-speed and High-torque Long Shaft Motor Double Ball Bearing Airsoft Motor for Jinming New Well

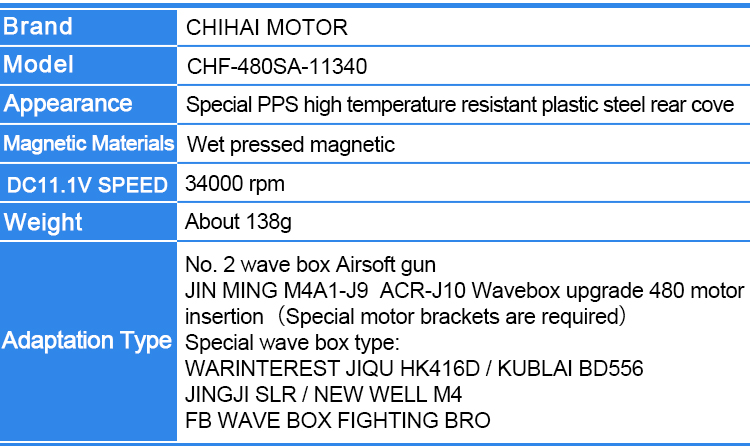

Specifications:

Product Name NdFeB strong magnetic high torque motor
Model CHF-480SA-11340
Magnetic Materials Wet pressed magnetic
Appearance Special PPS high temperature resistant plastic steel rear cove
Voltage DC 11.1V
Speed 34000rpm
Weight 138g
Adaptation Type

JIN MING M4A1-J9 ACR-J10 Wacebox upgrade 480 motor insertion (Special motor brackets are required)

Special wave box type:

WARINTEREST JIQU HK416D/ KUBLAI BD556

JINGJI SLR/ NEW WELL M4

FB WAVE BOS FIGHTING BRO
Quantity 1 Pcs × NdFeB strong magnetic high torque motor


NO LOAD NO LOAD AT STALL A STALL
Speed Current Torque Current
34000 rpm 2.30 A 272mN.m 109.06A


AT MAX EFFICIENCY:

Speed Current Torque Output Power Efficiency
29689 rpm 15.84 A 136mN.m 107.3W 61.03483%


AT MAX OUTPUT POWER:

Speed
 Current
 Torque
 Output Power
 Efficiency
17000 rpm 55.68 A 136mN.m 242.2619W 39.19%


Features:

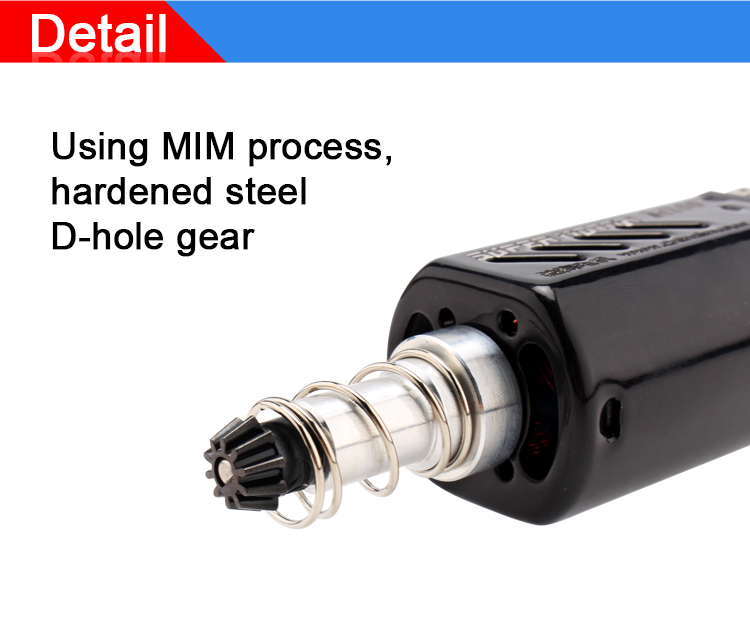

- Using MIM process, hardened steel D-hole gear.

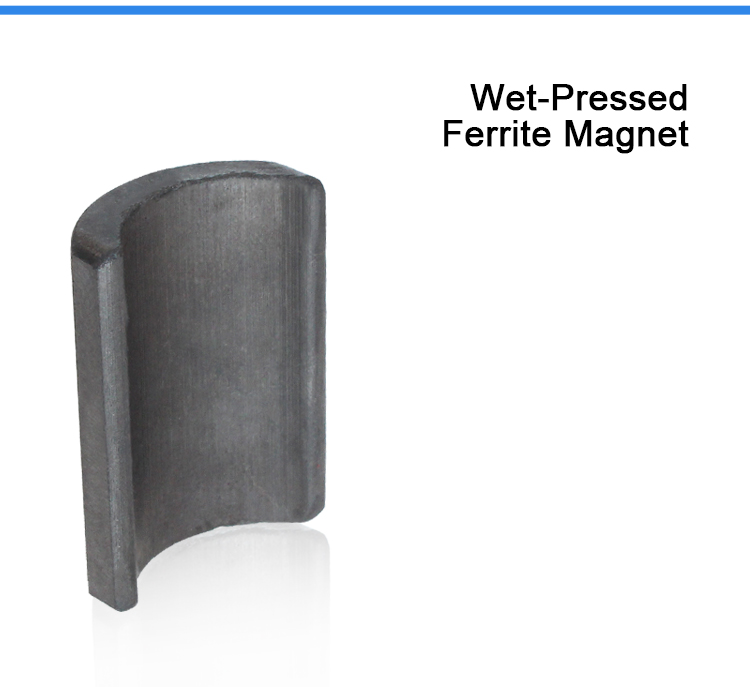

- Wet-pressed ferrite magnet

 11.1V 33000rpm.

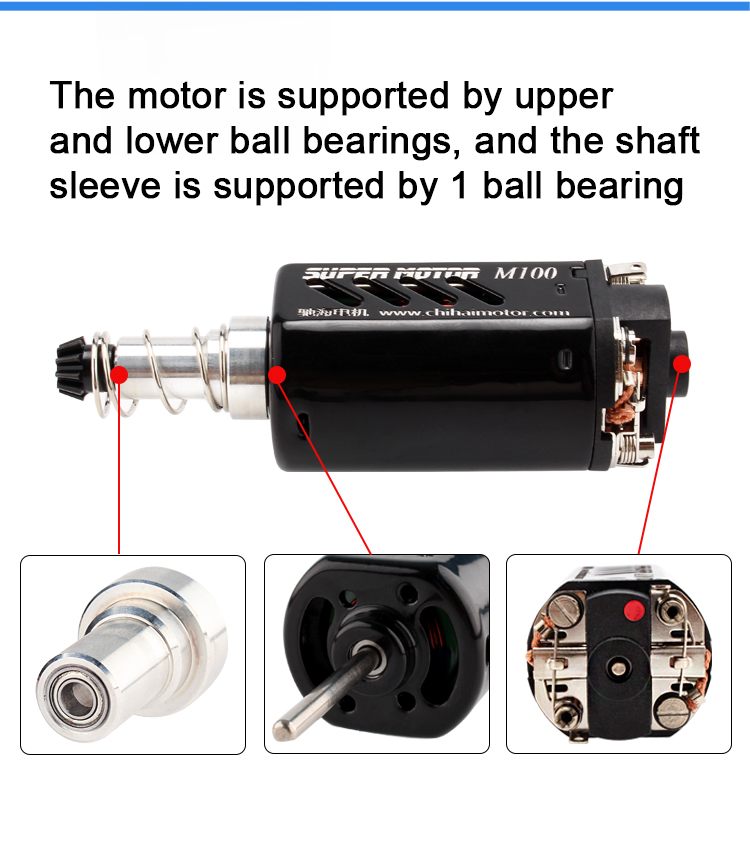

- The motor is supported by upper and lower ball bearings, and the shaft sleeve is supported by 1 ball bearing.

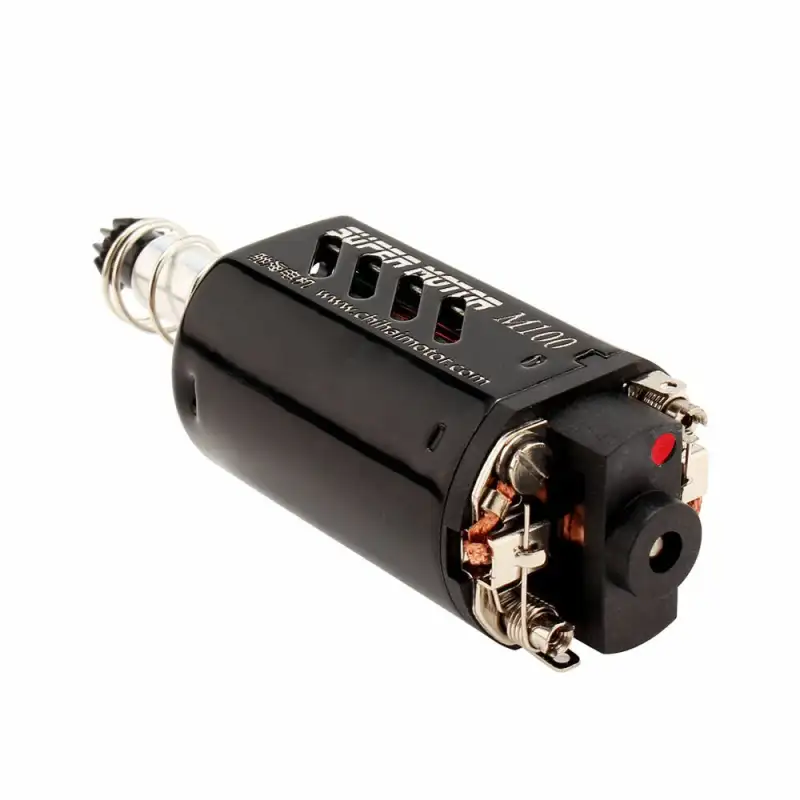

- Tree wiring fixing modes, such as plug-in spring wiring, welding wiring, external screw fixing wiring.

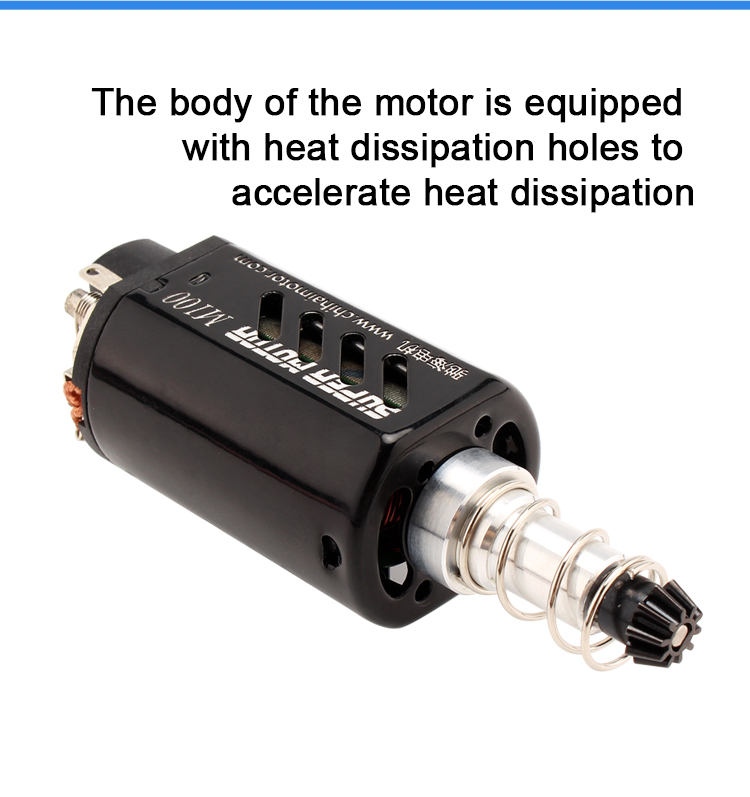

- The body of the motor is equipped with heat dissipation holes to accelerate heat dissipation.

- Special PPS high temperature resistant plastic steel rear cove.


Package Included:

1 × High torque motor
