CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Motor

Reference: BG0052-9448603

Condition: New product

100 Items

$7.97

More info

Description:

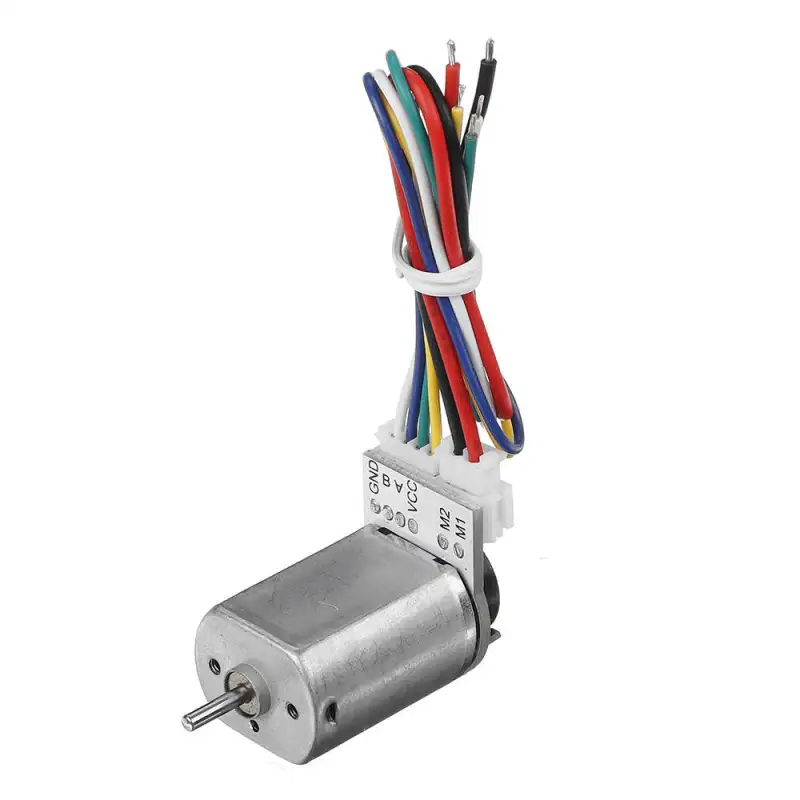

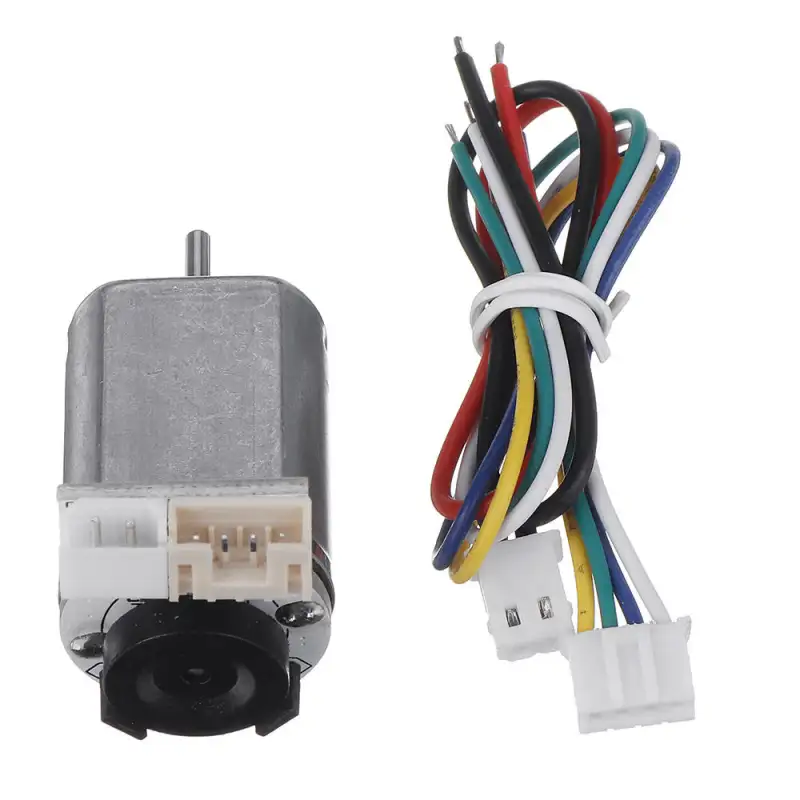

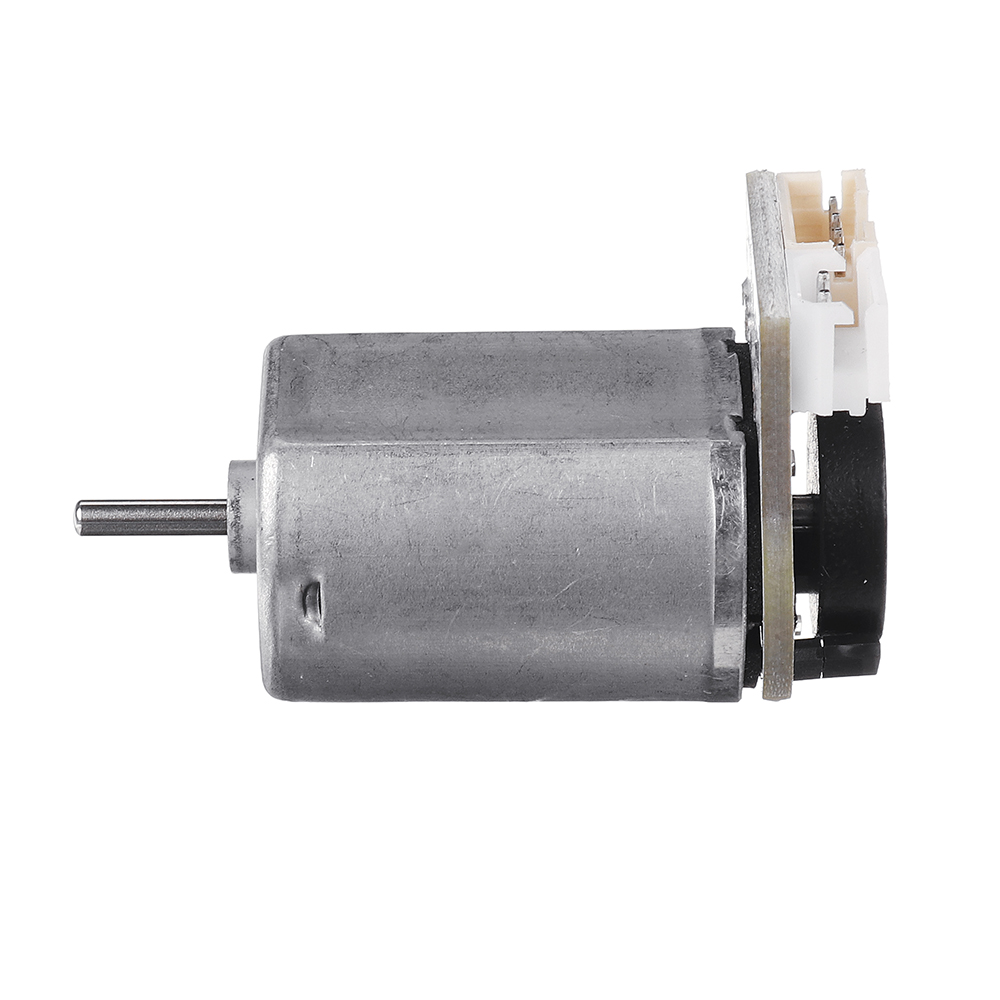

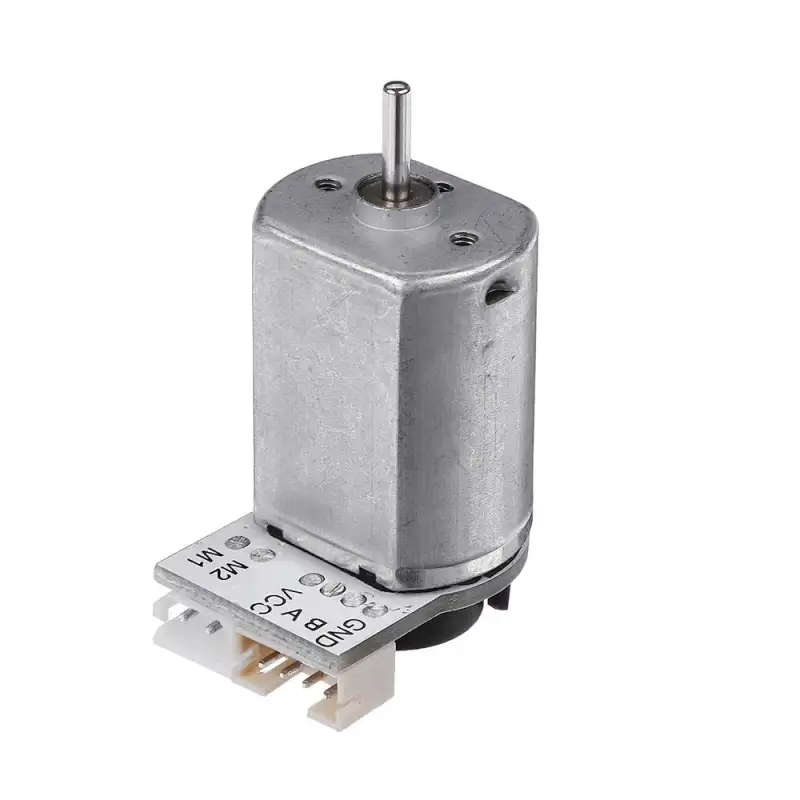

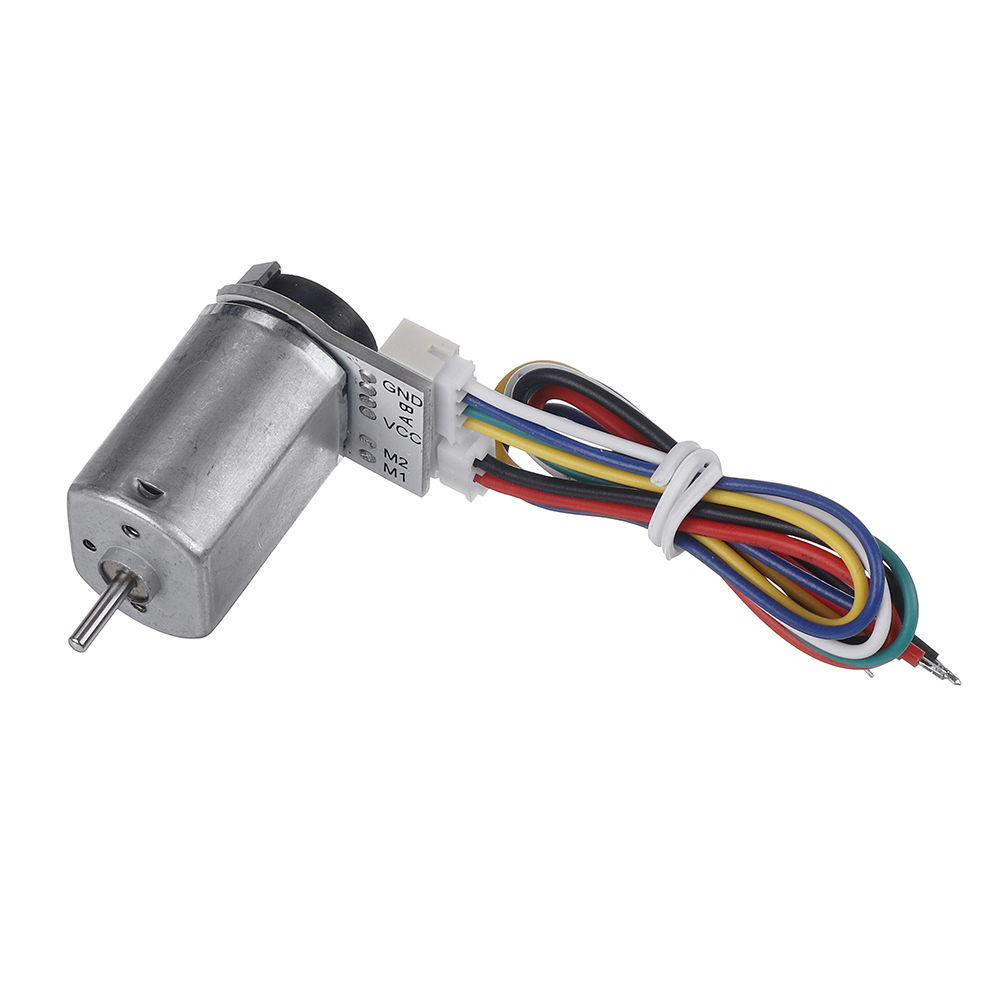

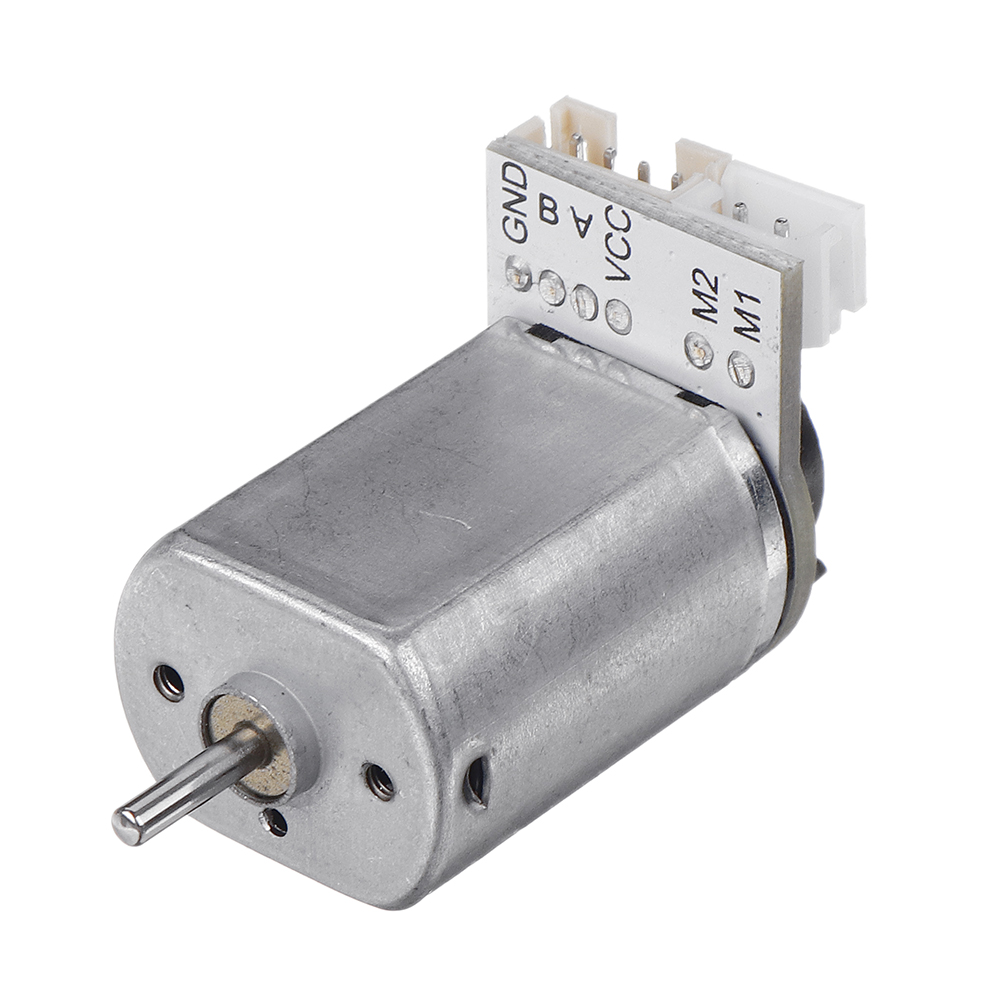

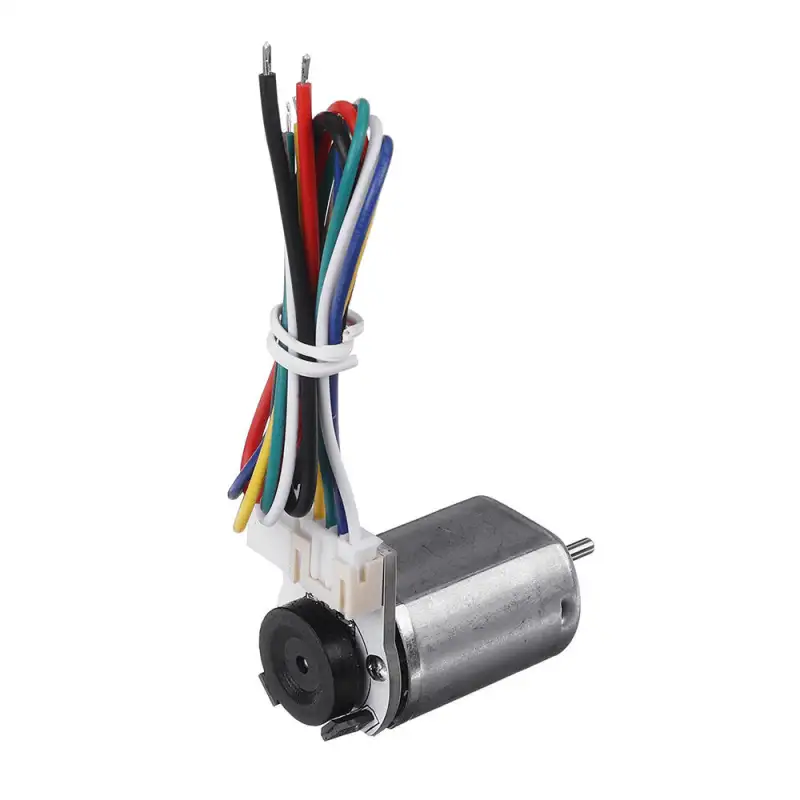

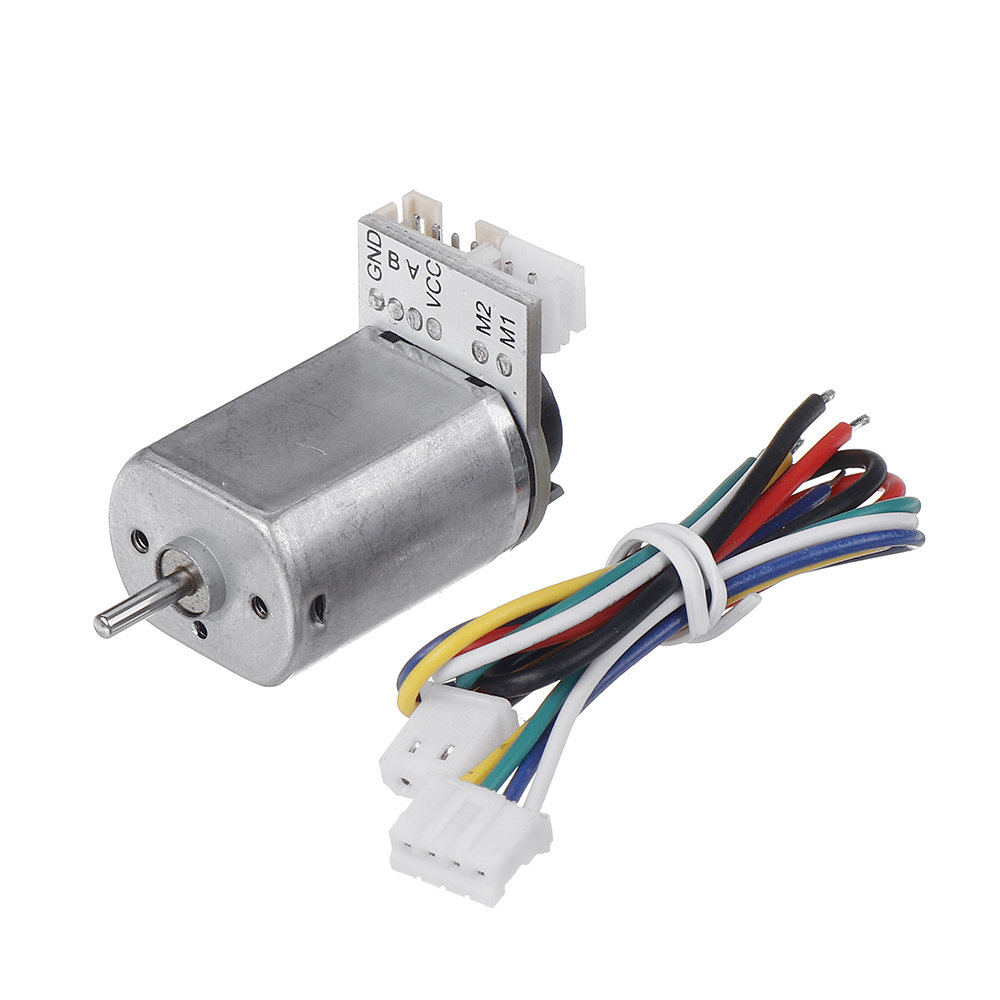

CHIHAI CHF-130SA-ABHL 6V Permanent Magnet DC Hall Coded Reduction Gear Motor

Specification:
Brand Chihai motor
Model CHF-130SA-ABHL (Permanent magnet dc hall coded reduction motor)
Shaft diameter ∮2mm
Shaft Length 10mm
Weight  About 28g
Applications Automation of bathroom appliances,robot education, Applications TT motor coding input,smart toys,smart instrument,etc

Voltage DC6.0V
No-load Speed 9500±10% rpm
No-load Current ≤150mA
Rated load 20 g.cm
Rated speed 6200±10%rpm
Rated Current 0.55 A MAX
Rated Power 1.3W
STALL Torque ≥45 g.cm
STALL Current 1.2A

Feature:
- N-S 14 pole magnet.

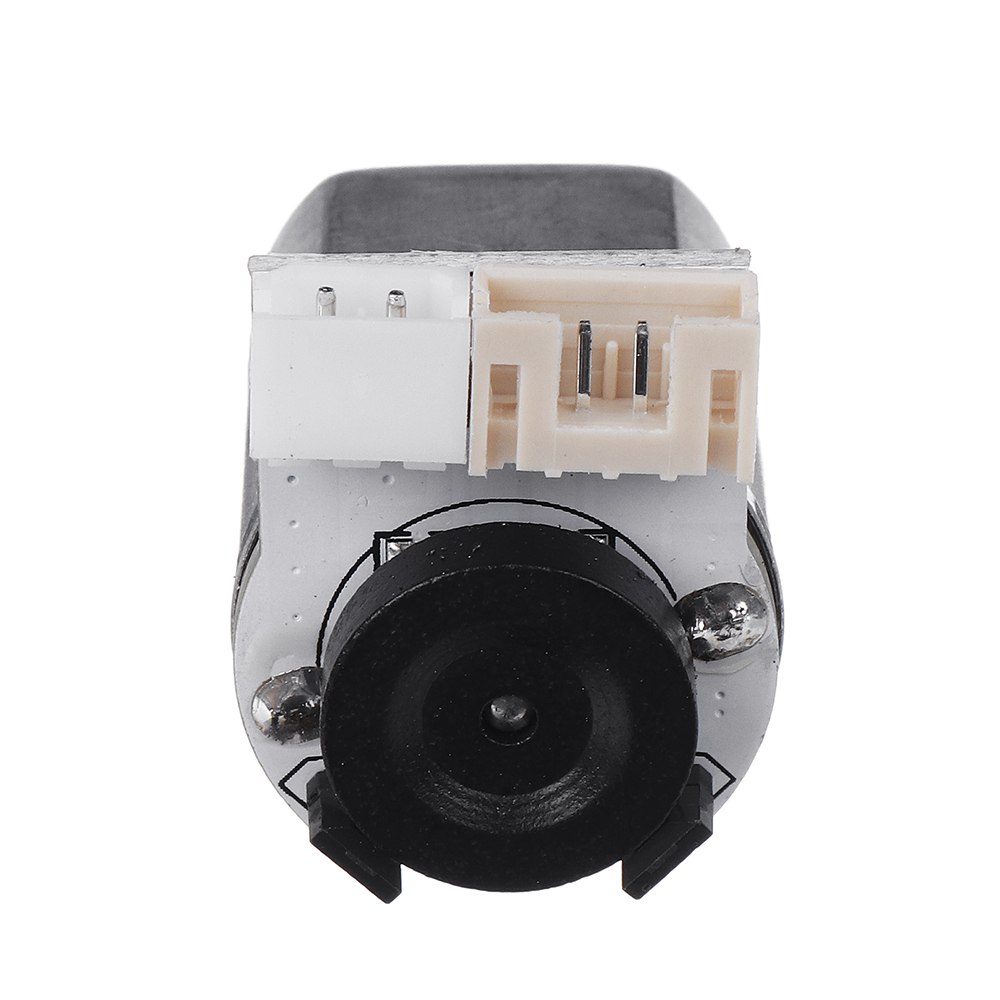

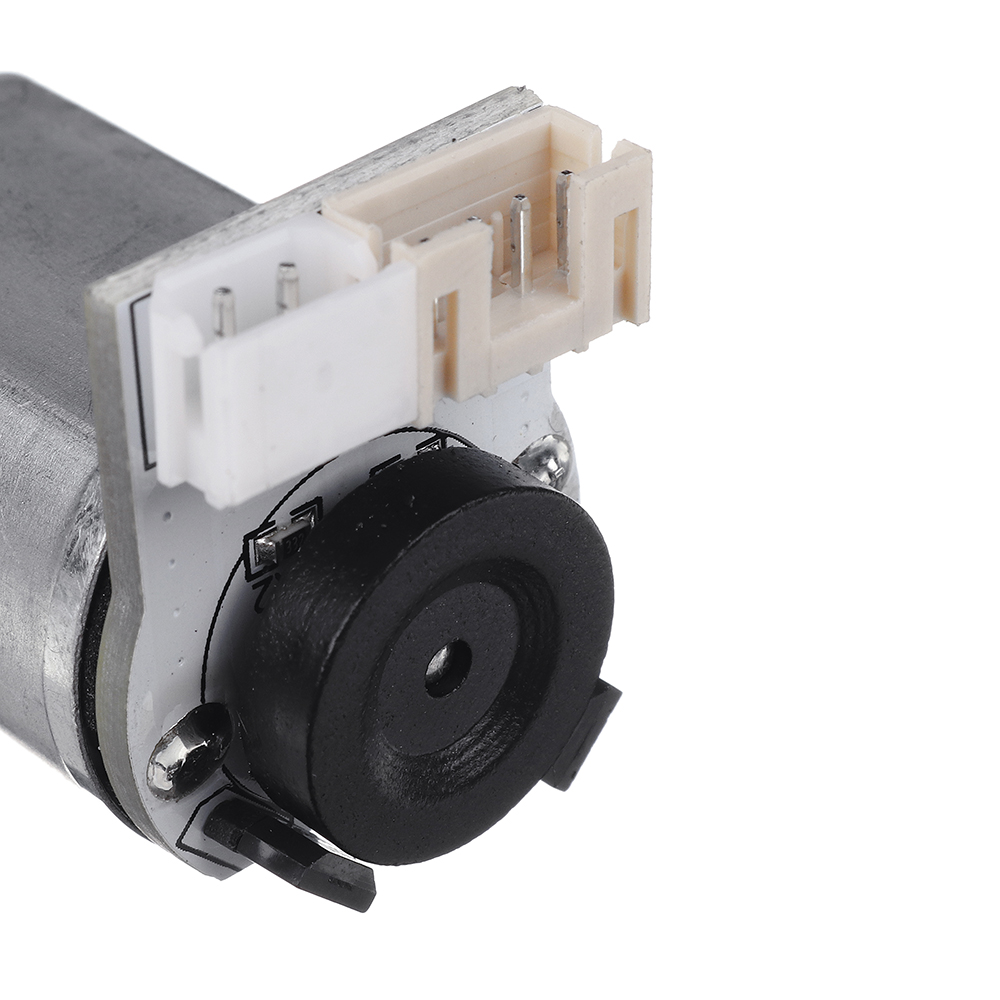

- AB phase dual hall encoding board withbuilt-in pull-up resistence.
- Metal gear reduction mechanism: high strength, stable transmission, high efficiency and high torque.
-  Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

Package Included:
1 x Reduction Gear Motor

More Details:






CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634

CHIHAI-CHF-130SA-ABHL-6V-9500rpm-Gear-Motor-Permanent-Magnet-DC-Hall-Coded-Reduction-Encoder-Gear-Motor-1628634
