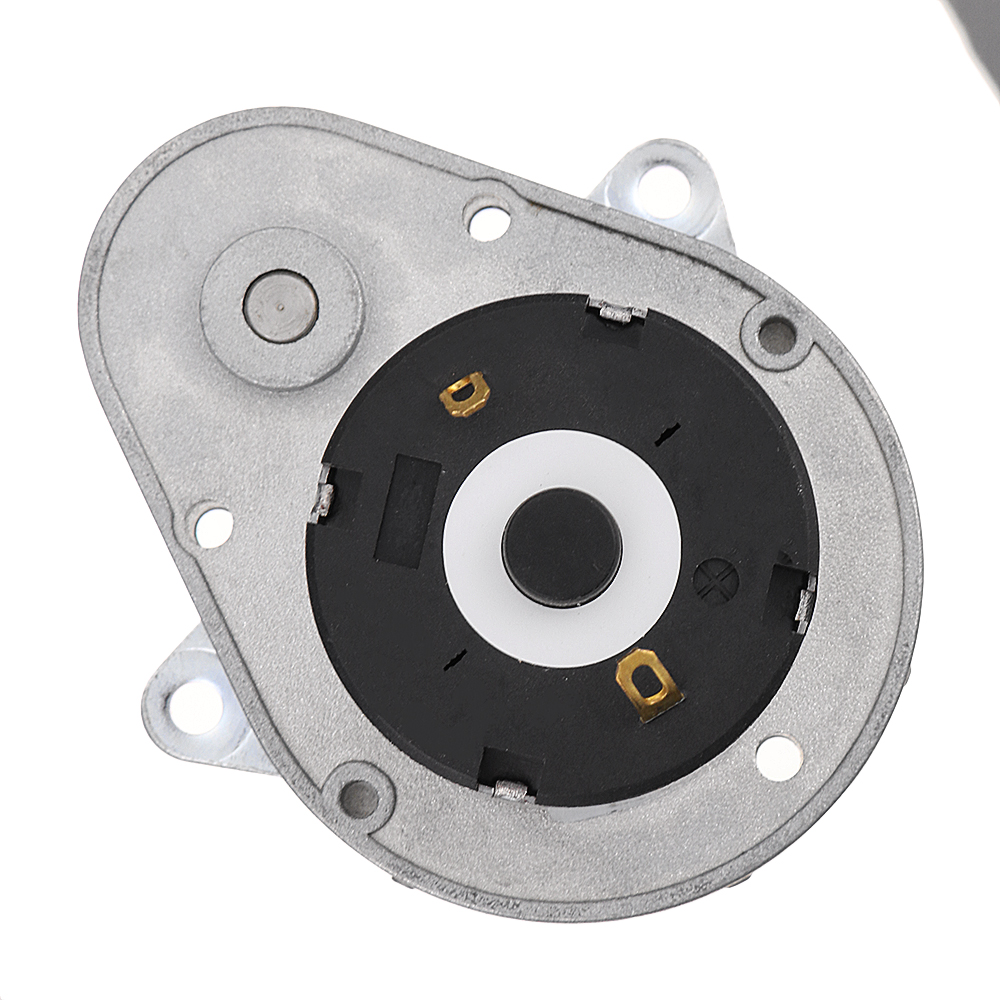

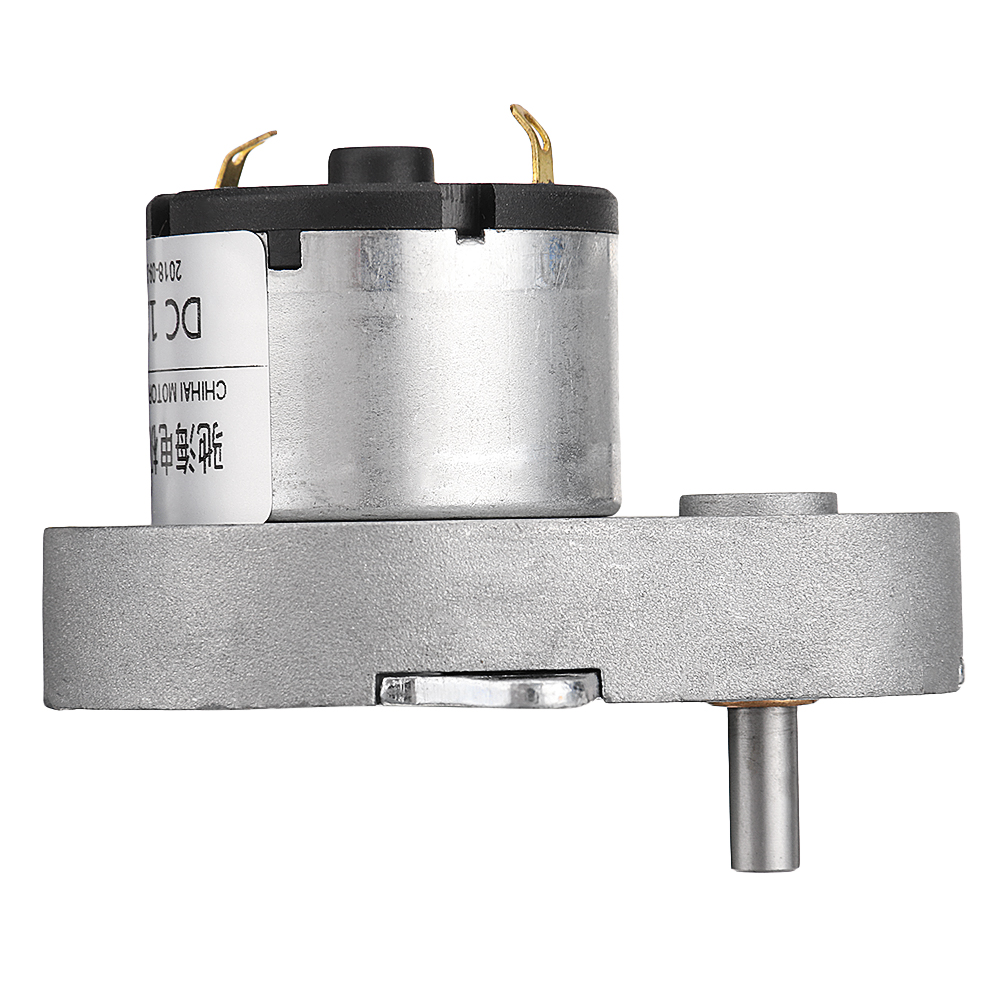

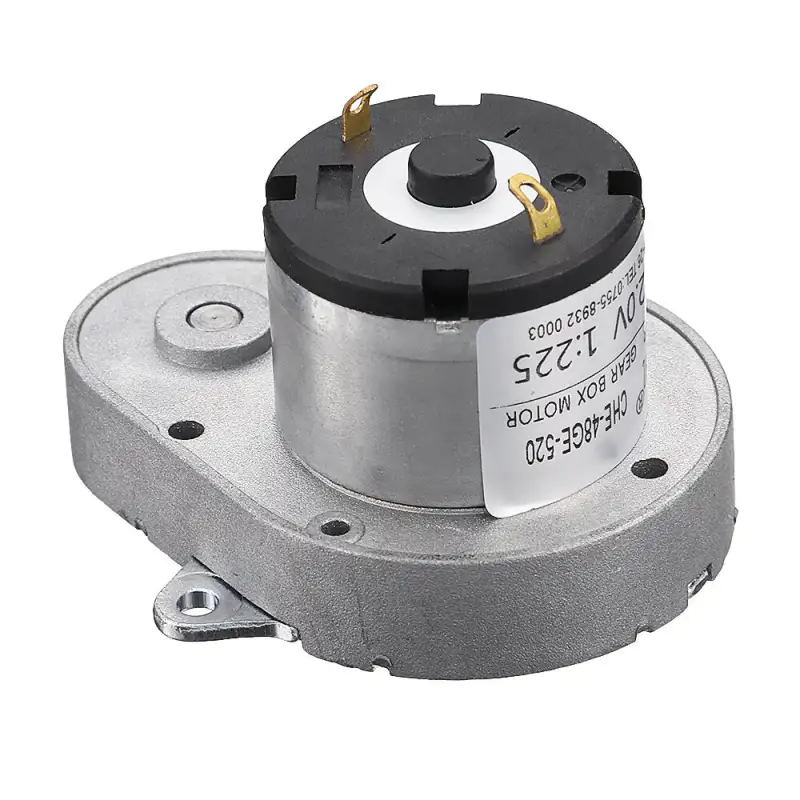

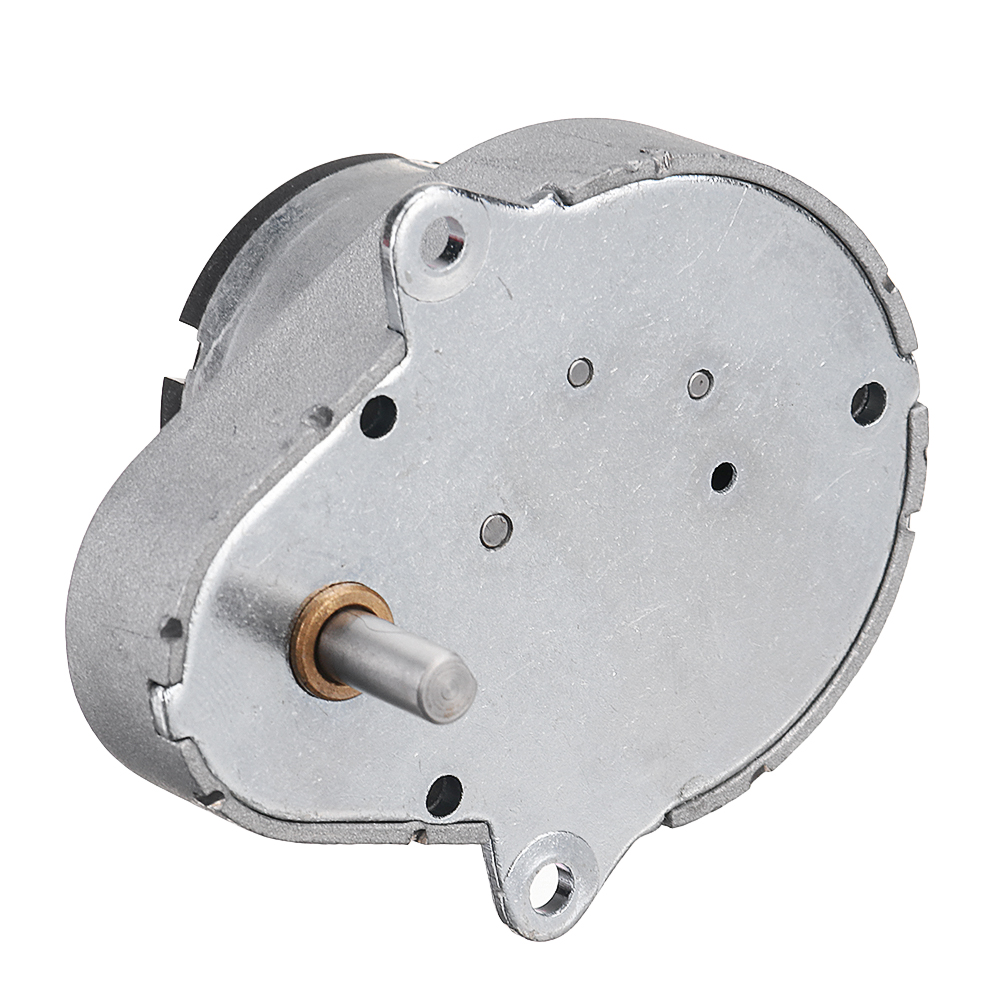

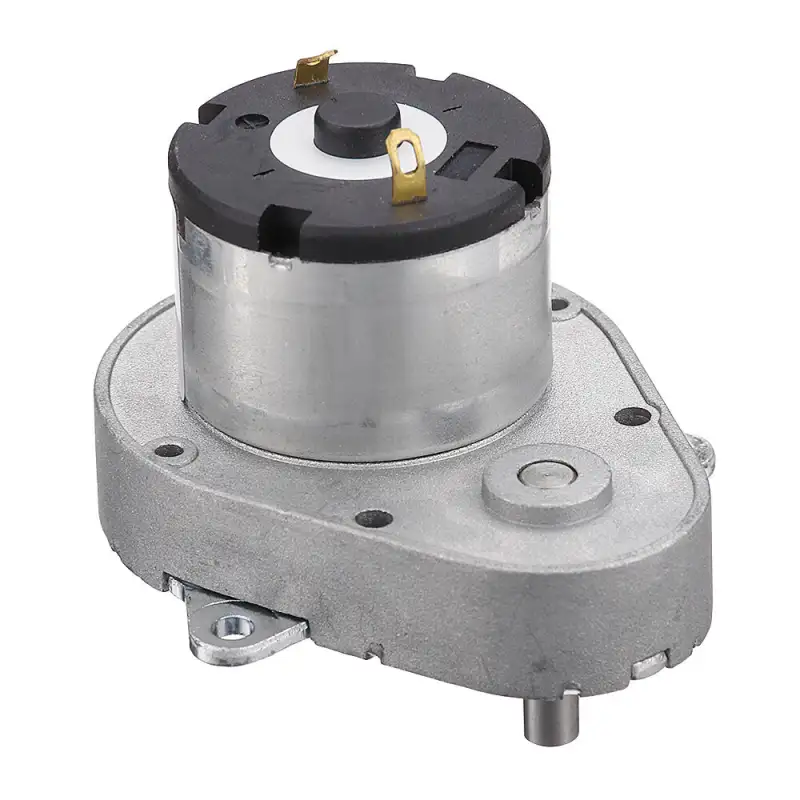

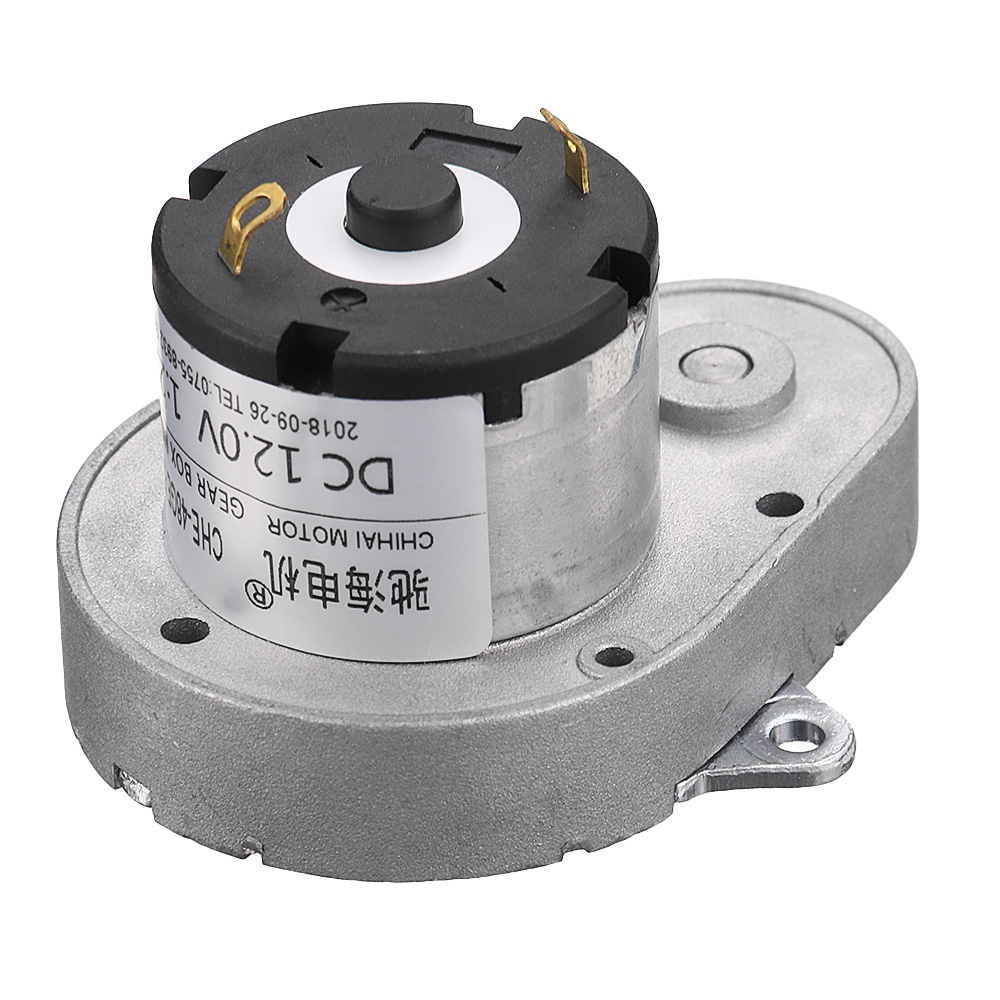

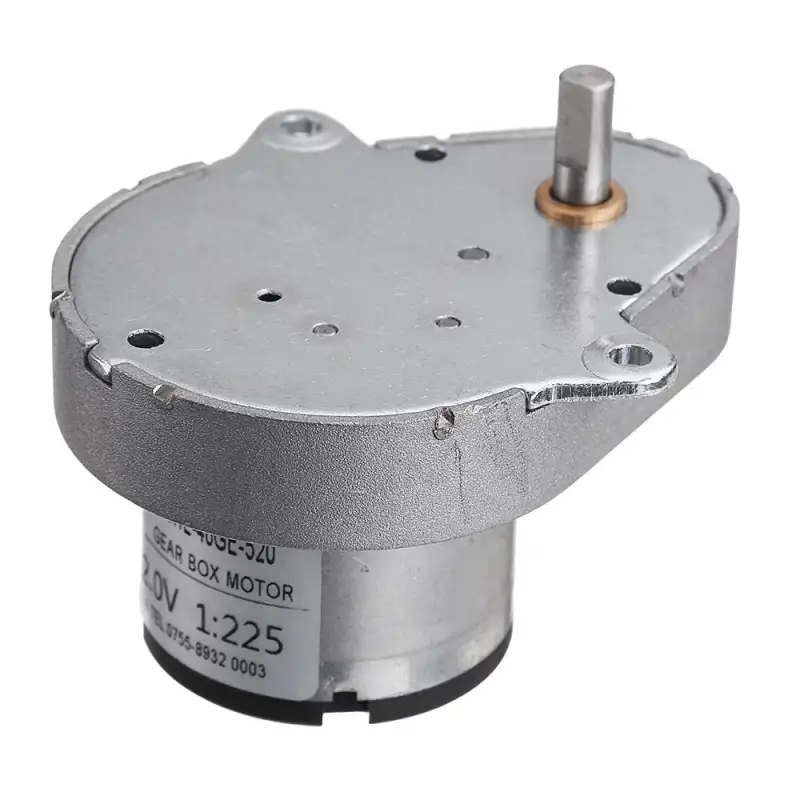

Chihai CHE-48GE-520 DC 12V 28rpm 1:225 Ratio Micro Permanent Magnet Reduction Gear Motor

Description:
 CHIHAI CHE-48GE-520 DC 12V 28rpm 1:225 ratio DC motor, permanent magnet micro reduction gear motor.

Specification:

Type	CHE-48GE-520

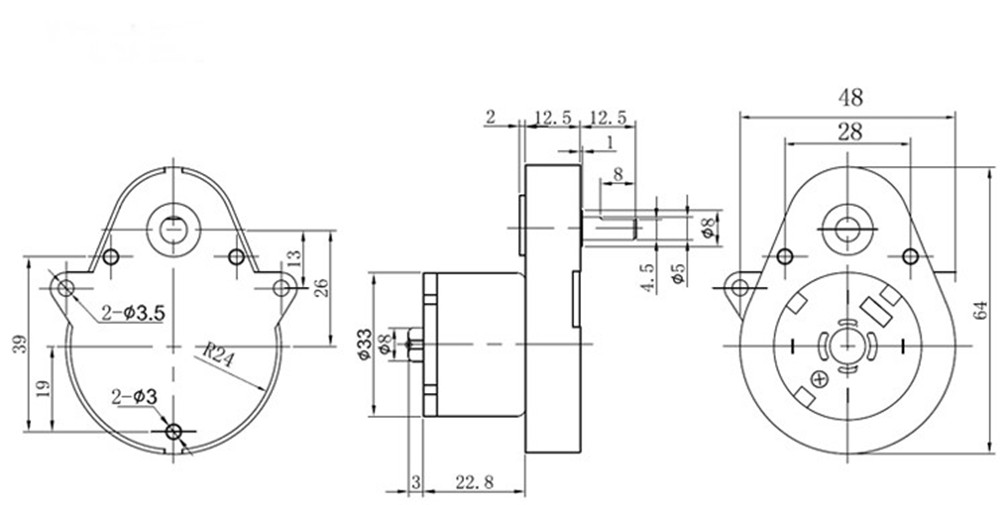

Shaft diameter	5mm
Shaft length	12.5mm, D type
Voltage	DC 1.5V-24V
Working voltage	12V
Power max	2.3W
Reduction ratio	1:225
No-load current	≤65A
No load speed	28RPM
Rated torque	9.50kg.cm
Rated speed	20RPM
Rated current	≤0.50A
Locked-rotor torque	≥30kg.cm
Plug the plug to turn the current	≤1.7A(Do not allow long time block or repeated start)
Application	Intelligent toilet, intelligent trash can, intelligent robot, etc.

Features:
1. Pure copper winding: the rotor is made of pure copper, with small resistance and strong conductivity, which increases the torque of the motor.
2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.
3. Carbon brush structure, stable life.With a damping strip, elastic and stable.
4. High torque, adjustable, low energy consumption, low noise, stable life, long life.

Package Included:
1 X DC Reduction Motor

More Details:
