37GB-545 DC 24V 140RPM Gear Reducer Motor with Encoder Geared Reduction Motor

Reference: BG0052-9156836

Condition: New product

100 Items

$26.41

More info

Descriptions:
37GB-545 DC 24V micro gear reduction motor with encoder speed dial reducer

Specification:
Voltage: DC 24V

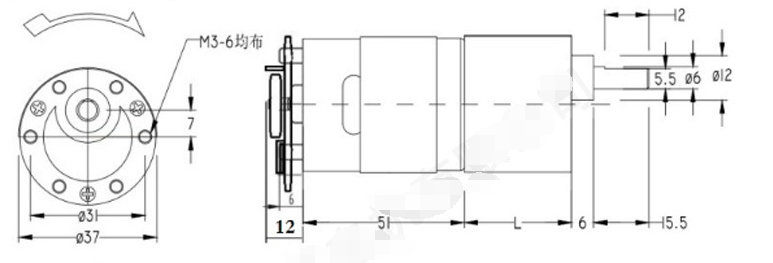

Size(approach):
Output Shaft Dia.: 6mm
Axis Length: 12mm
Axle Shaft Length: 21mm
Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

Wiring:
Red: Motor power + positive (change can control motor forward and reverse)
Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V)
Yellow: Signal feedback (11 signals from the motor)
Green: Signal feedback (11 signals from the motor)
Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)
White: Motor power - negative (change can control motor forward and reverse)

Parameter:
Voltage  RATIO No-load Rated-load Stall
Current
(A) 		  Speed(rpm)
±10%rpm		 Torque
(kg.cm)		 Speed(rpm)
±10%rpm		 Current
(A) 		 Torque
(kg.cm)		 Current
(A) 		 L Size (mm)
DC 24.0V 1:90 ≤0.4 140 14 115 ≤1.9
 35 11 24

Features:
- All the gear of metal mechanism
Wear resistance, strong resistance to torsion, smooth transmission, compact structure.
- D-shaped double axis
D-shaped double shaft, excellent thermal conductivity.

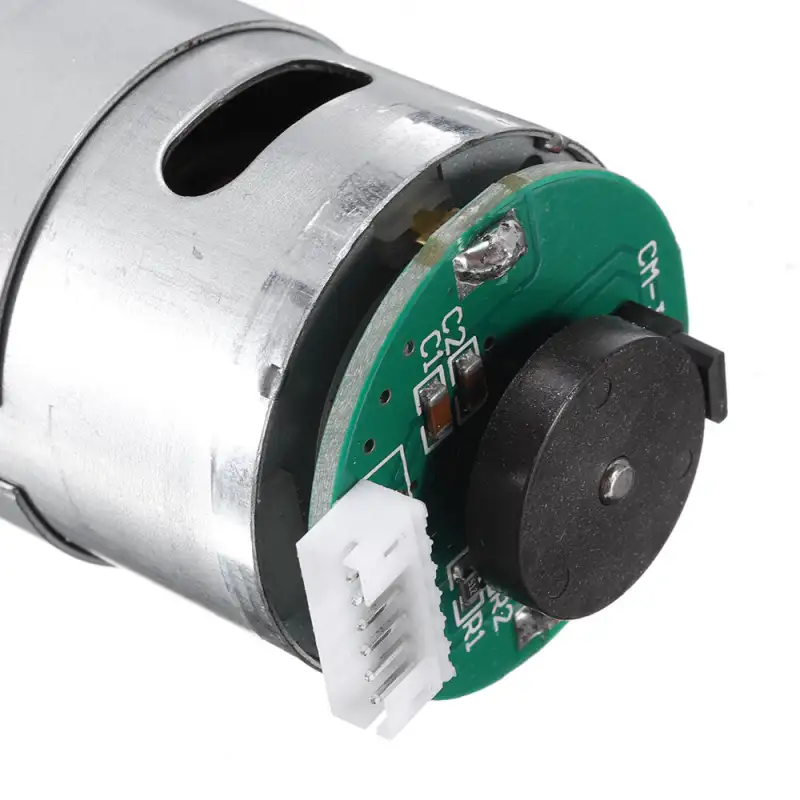

- Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.
- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

Package Included:
1pc x 24V Micro Reduction Gear Motor

More Details:

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110

37GB-545-DC-24V-140RPM-Gear-Reducer-Motor-with-Encoder-Geared-Reduction-Motor-1676110
