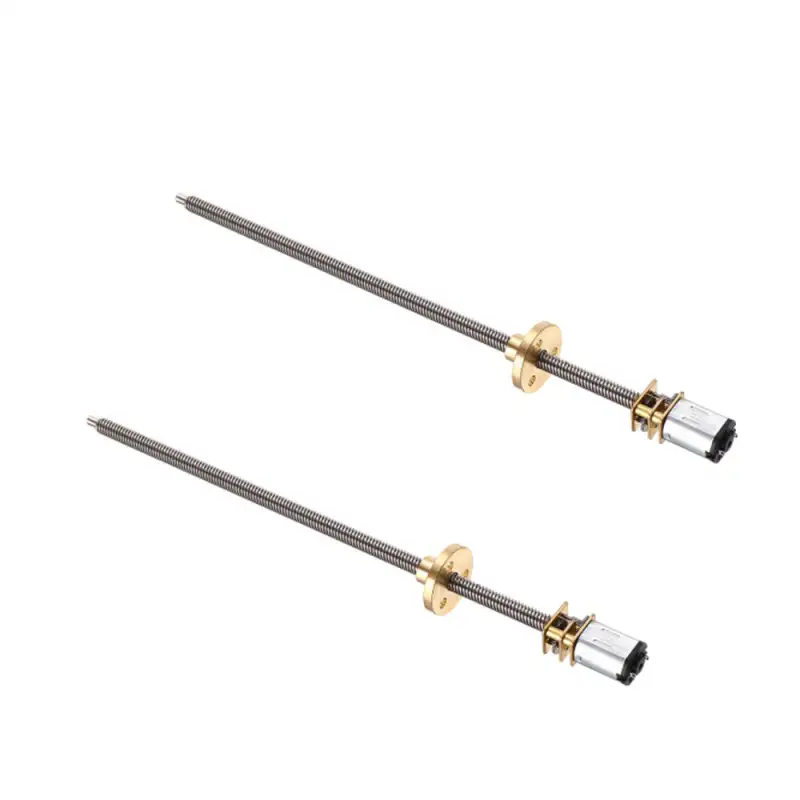

2Pcs T5×160mm DC 6V N20 Geared Motor 4mm Fast Screw Motor With Flange Screw Motor
Reference:
Condition: New product
Delivery on: Jul 28 2026
1310 Items
More info
Description:
2Pcs T5×160mm DC 6V N20 Geared Motor 4mm Fast Screw Motor With Flange Screw Motor
Specifications:
| Product Name | T5 Screw Geared Motor |
| Material |
Motor: Electroplated stainless steel Output Shaft: 304 stainless steel |
| Color |
Motor: Gold and silver Flange: Gold Screw: Silver |
| Output Shaft Type |
T type quick thread |

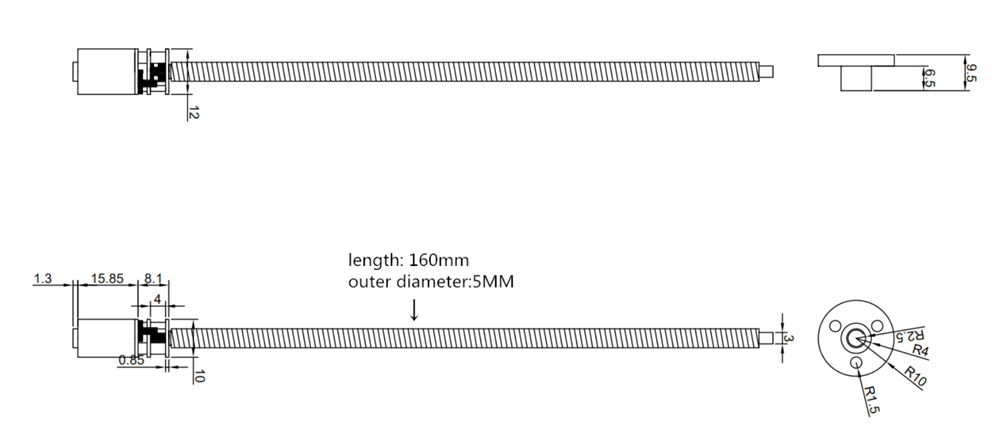

| Output Shaft Diameter |
5mm |
| Output Shaft Length |
160mm |
| Output Shaft Pitch |
4mm (Faster than nomal 0.7mm) |
| Quantity |
2 Pcs x T5 Screw Geared Motor 2 Pcs x Flange |
| VOLTAGE | GEAR RATIO | NO LOAD | LOAD TORQUE | STALL | ||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | CURRENT | TORQUE | ||
| 6V | 1:298 | 60rpm | ≤40MA | 50rpm | ≤40MA | 560g.cm | ≤1.1A | 3.6KG.CM |
| 6V | 1:100 | 100rpm | ≤50MA | 83rpm | ≤45MA | 320g.cm | 2.25KG.CM | |
| 6V | 150rpm | 130rpm | 260g.cm | 2.5KG.CM | ||||
| 6V | 1:50 | 200rpm | 180rpm | 160g.cm | 1.6KG.CM | |||
| 12v | 1:298 | 60rpm | ≤60MA | 45rpm | ≤50MA | 750g.cm | 5.2KG.CM | |
| 12v | 120rpm | 100rpm | ≤60MA | 880g.cm | 4.8KG.CM | |||
| 12v | 1:100 | 200rpm | ≤50MA | 160rpm | 450g.cm | 3.2KG.CM | ||
| 12v | 300rpm | 240rpm | 550g.cm | 3.6KG.CM | ||||
| 12v | 1:50 | 400rpm | 310rpm | ≤45MA | 280g.cm | 2.4KG.CM | ||

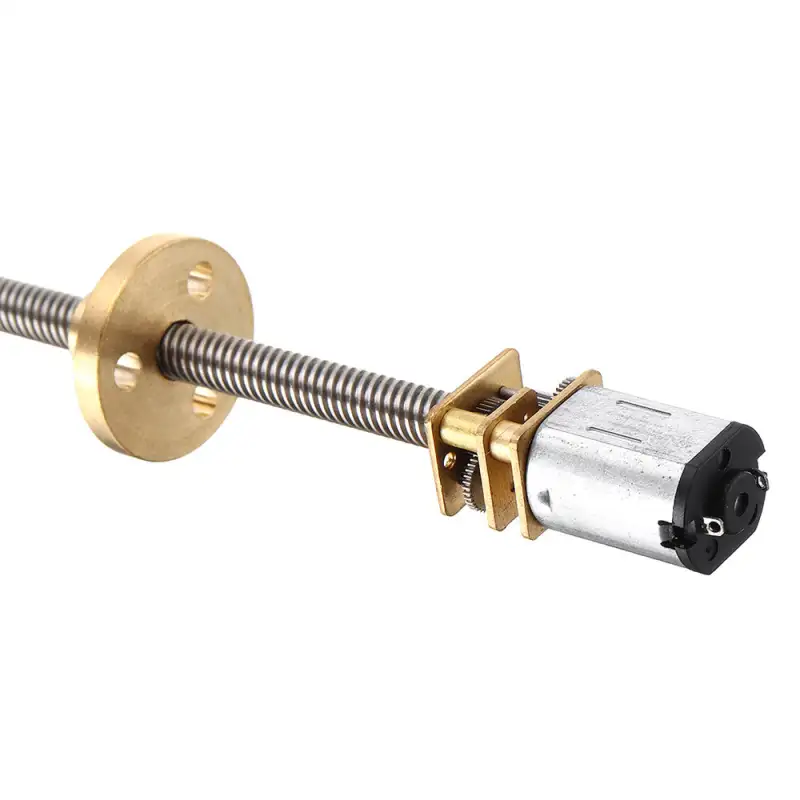

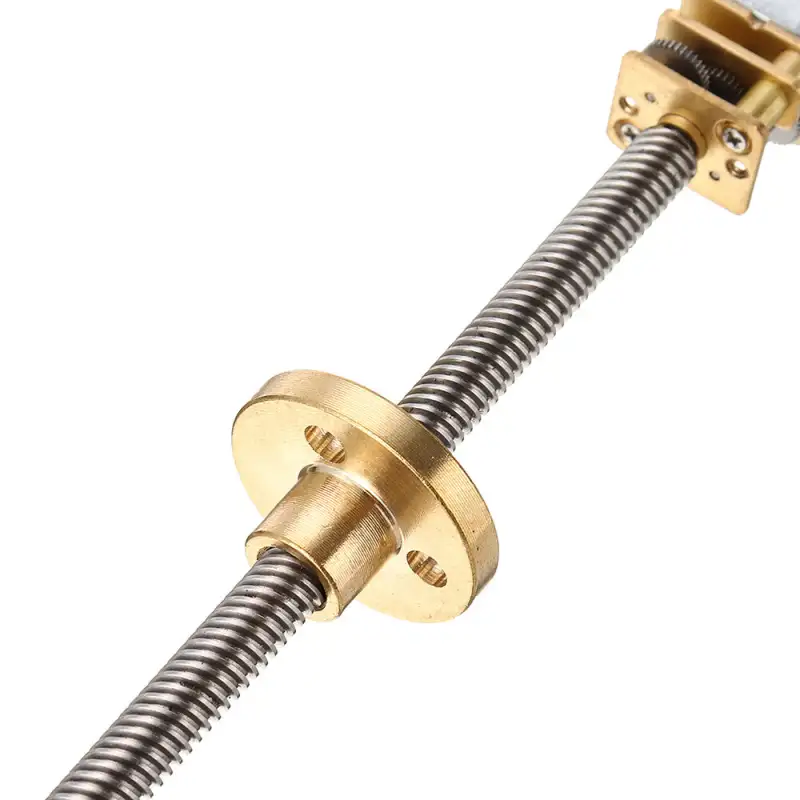

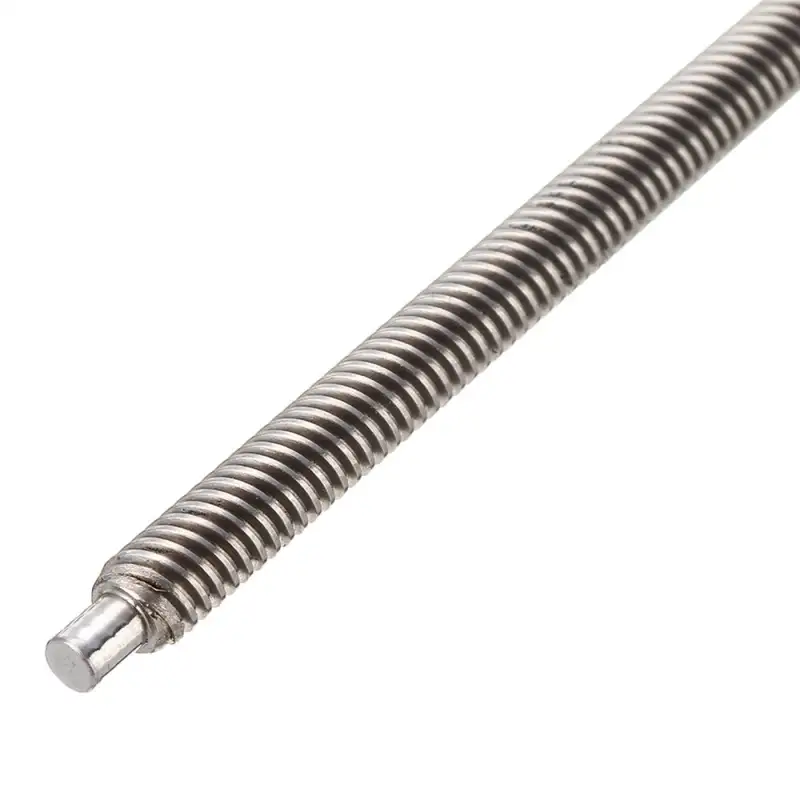

- 4mm T-shaft quick screw, with flange.
- The output shaft is made of 304 stainless steel.
- It can be used as a conveyor belt, a lifting home, a lifting platform.
Package Included:
| 2 Pcs × | T5 Screw Geared Motor |
| 2 Pcs x | T5 Flange |
