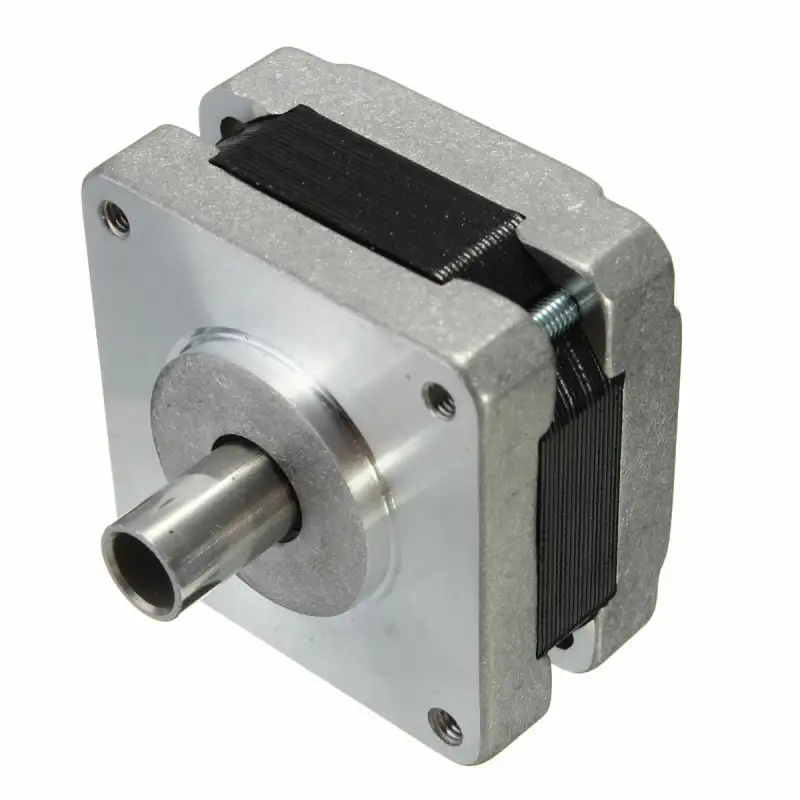

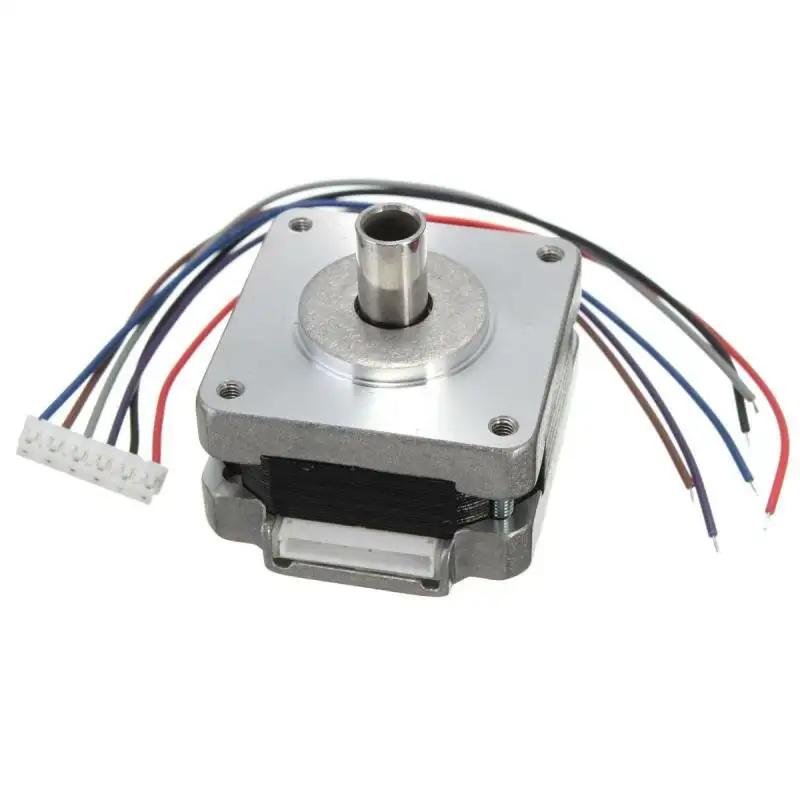

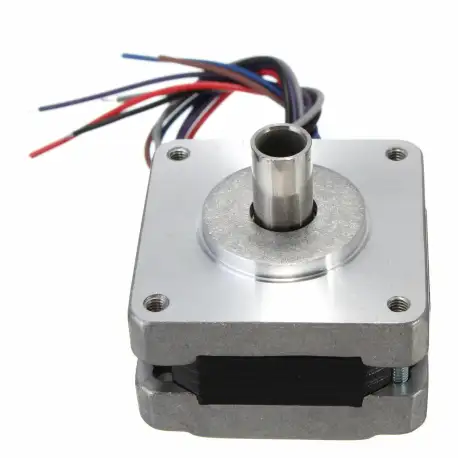

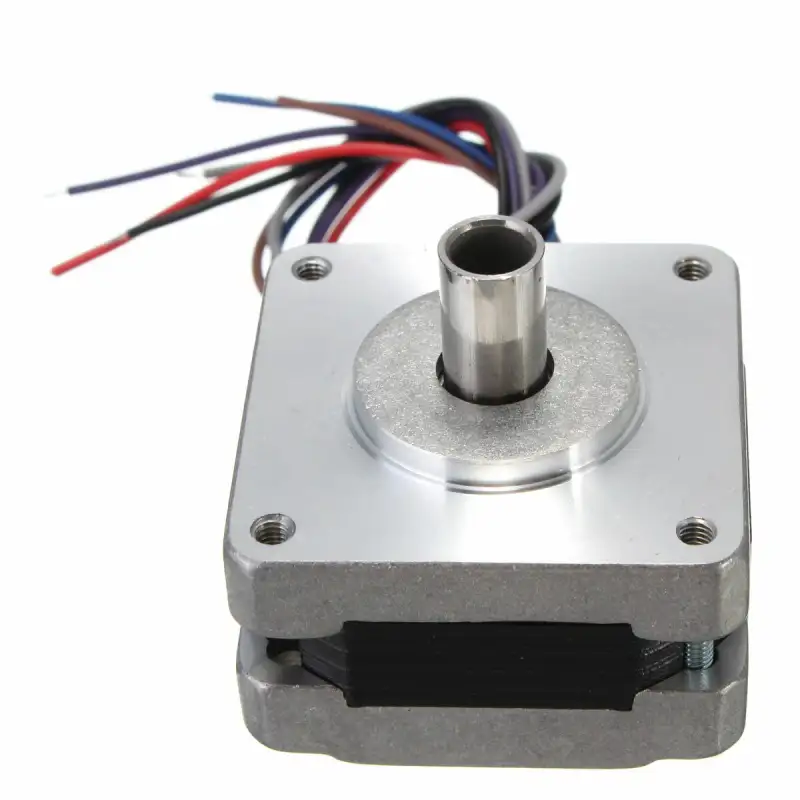

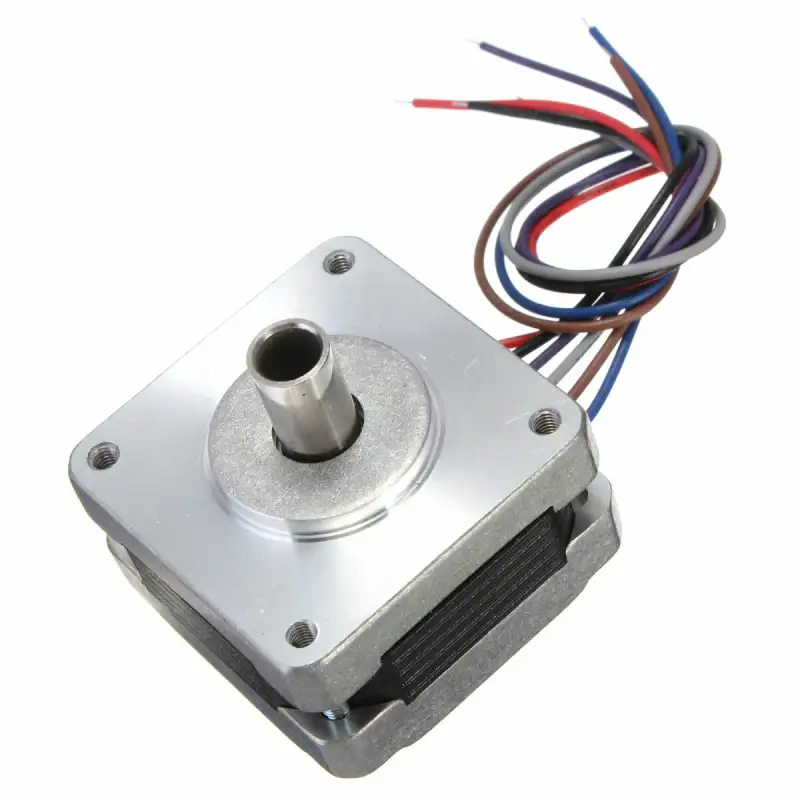

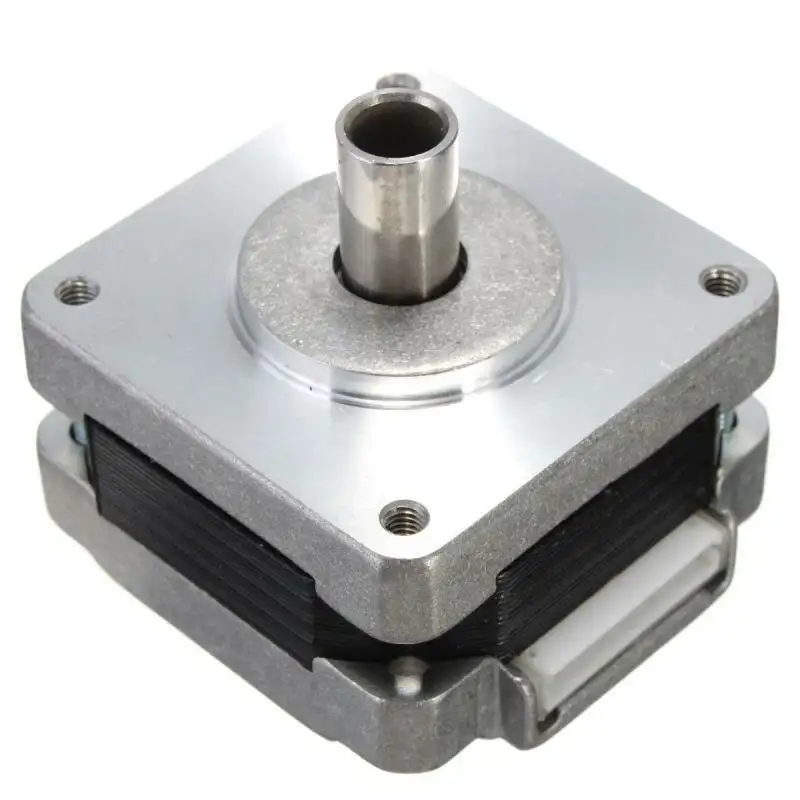

2Pcs 39MM Hollow Shaft Hybrids Stepper Motor 4 Phase 5 Wire Square 1.8 Degrees Stepper Motor

Reference: BG0052-9788347

Condition: New product

99 Item Items Warning: Last items in stock!

$14.69

Quantity

More info

Description:
2Pcs 39MM Hollow Shaft Stepper Motor 4 Phase 5 Wire Square 1.8 Degrees Stepper Motor

Specifications:

Length	39mm
Height	22mm
Output shaft	8 mm(middle of the through-hole diameter of 6.15mm)
Output shaft length	13mm
Step Angle	1.8 Degree
Resistance	Intermediate tap:54 ohms Both Ends: 108 ohms
Lead	5
Cable length	140mm
12V Short circuit current	Intermediate Tap:0.2 A, Both Ends: 0.1A
Rated Voltage	DC 12V
Rated Current	0.05A
Rated Power	5W
Weight	60G

Note:
Motor is a two-phase six-wire stepper motor, but inside the wiring put two phases middle of tap connected to a second
terminal, so from the outside look, it is a four-phase five-wire stepper motor.

Connecting Tipes:
Pinout: A- Purple, A+ Red, B- Blue, B+ White, Brown and Black not connected.

Package included:
2 Pcs x Hollow Shaft Stepper Motor

Q&A:
1. How do I wire this stepper motor directly to a 2-wire DC12V power source?
This motor cannot be directly connected to the power supply. You need to connect the power supply to the (A + A-B + B-) drive, and then use the motor link to drive it.
