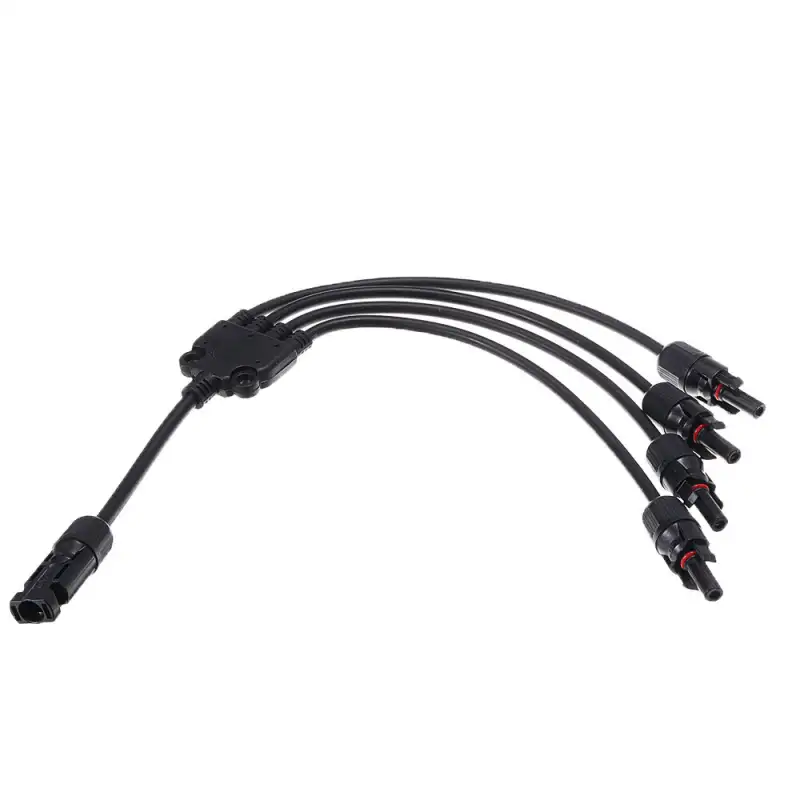

Y Branch MC4 Solar Panel Adaptor Cable Connector(1, M/FFFF and F/MMMM)

Reference: BG0052-9330497

Condition: New product

100 Items

$19.59

More info

Description:

Compatible MC4
Double seal rings for better waterproof effect
Compatible with PV cables with different insulation diameters
It can be used in harsh environment
With excellent aging resistance and UV endurance
Created seal, design of dust proof
Load capability with big current and high voltage
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Strong pulling force capability
Resistance of extra high & low temperature and fireproof
Lower contact resistance

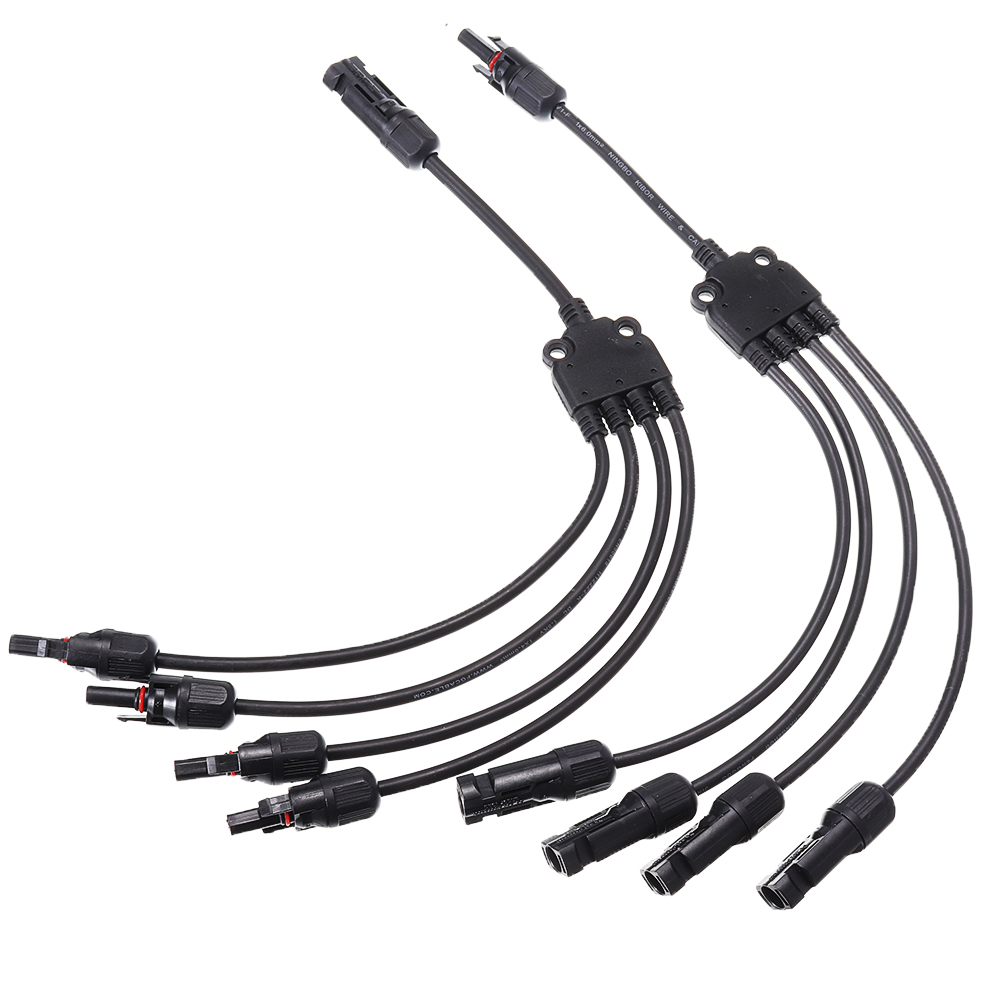

Including 1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)

Specification:

Insulation material: TPE PPO
Rated current: 15A
Rated voltage: 1000V(TUV)&600V(UL)
Test voltage: 6kV(50Hz,lmin)
Typical contact resistance: less than equal 0.2mmΩ
Contact material: Copper,Tin plated
Degree of protection: IP67
Safety degree: ll
Flame class: UL94-V0
Material RTl: 110℃
Ambient temperature range: -40℃ until+85℃
Wire Size:2.5-10mm²
Weight: 0.48kg

Package included:

2 x Y Branch MC4 Connector
