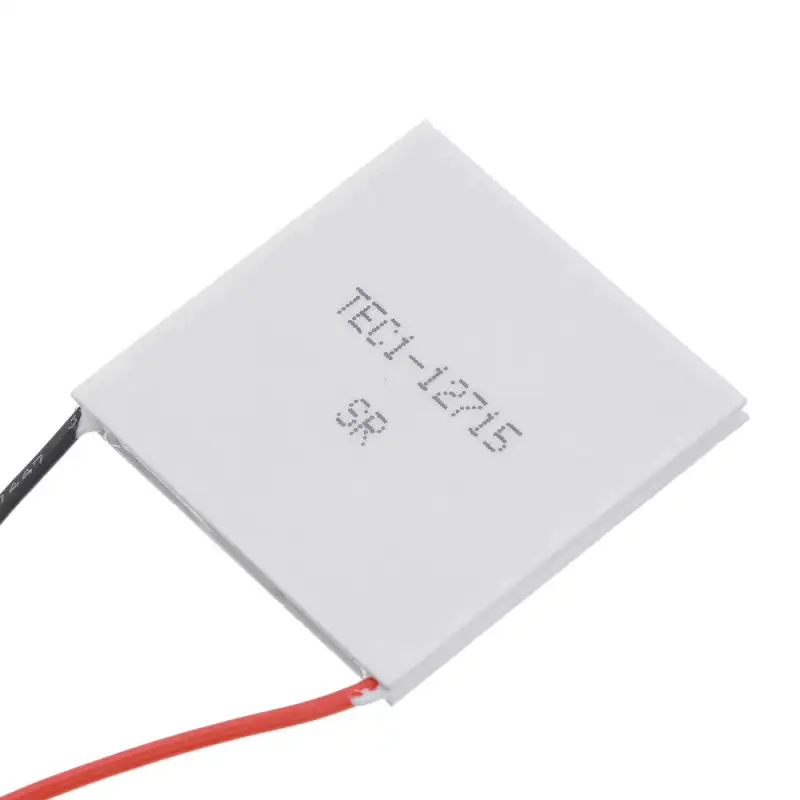

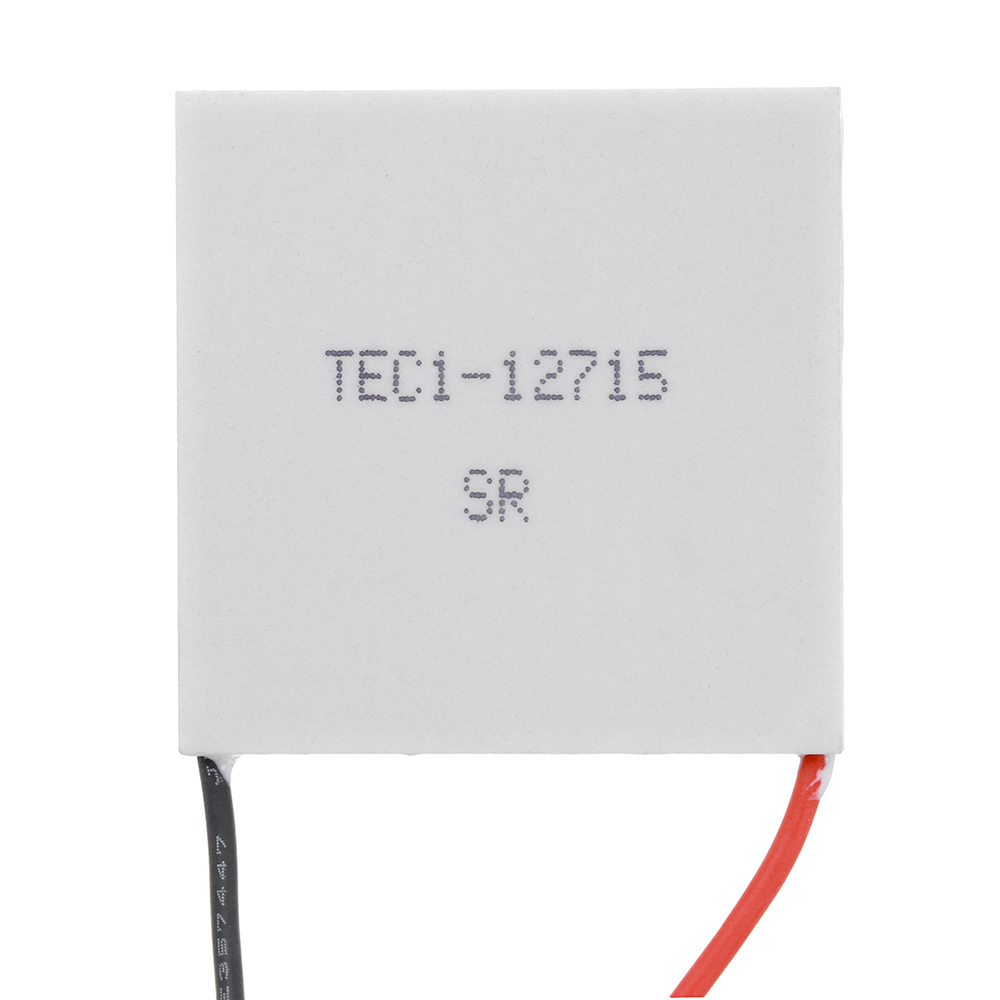

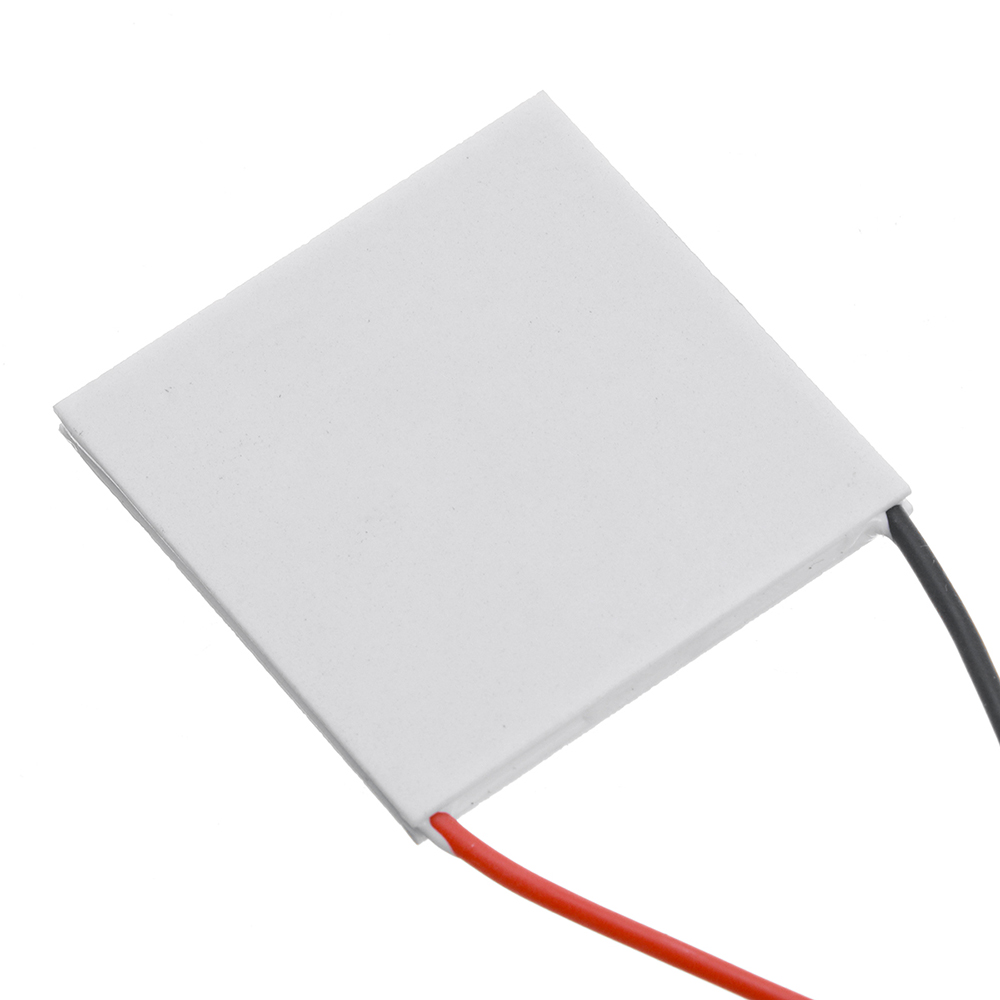

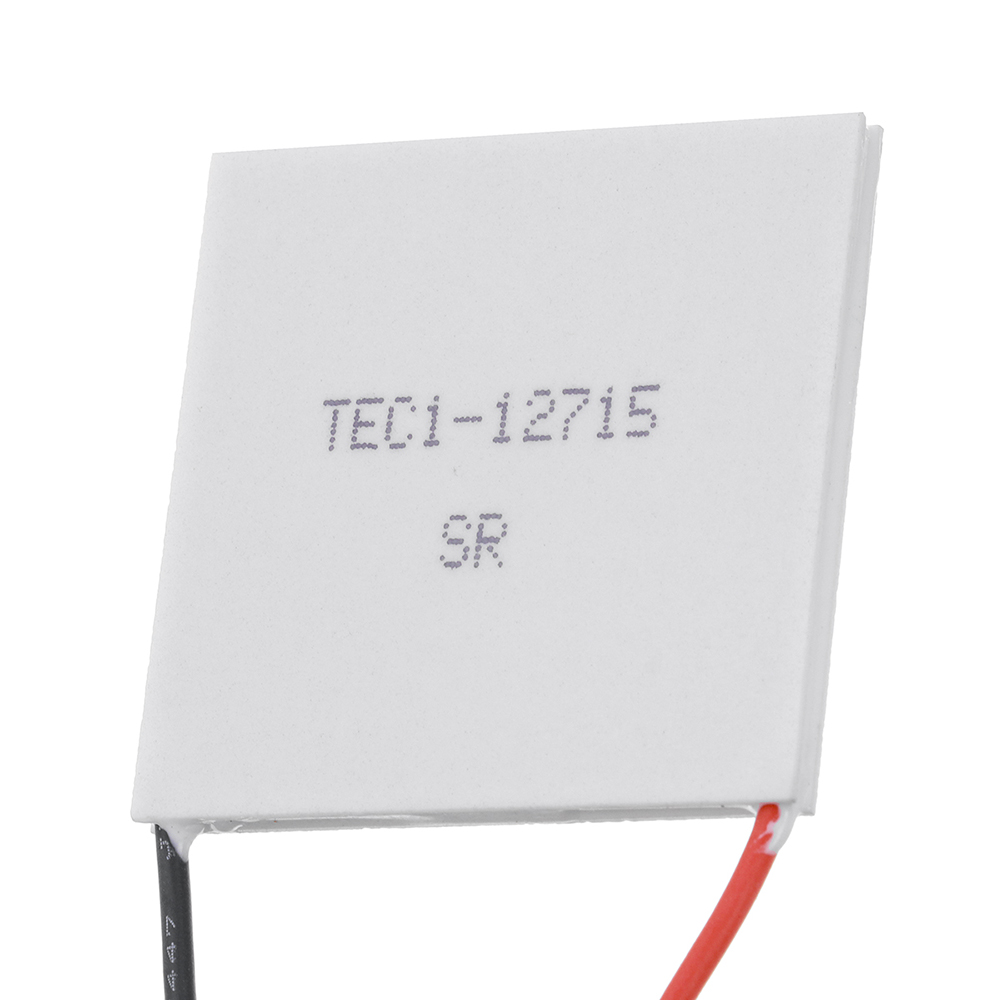

TEC1-12715 12V Heatsink Cooling Peltier TEC Semiconductor Thermoelectric Cooler 40mm*40mm*3.6mm

Description:

Can be used in refrigerator,Portable cooling car box,
Liquid Cooling,Temperature stabilizer etc.
No need to move internal parts when in transit
Solid state, vibration free, noise-free
Should use with a heat sink
Simple to install and operate
Long life time
Slim and compact

Parameter:

Chip Model: TEC1-12715

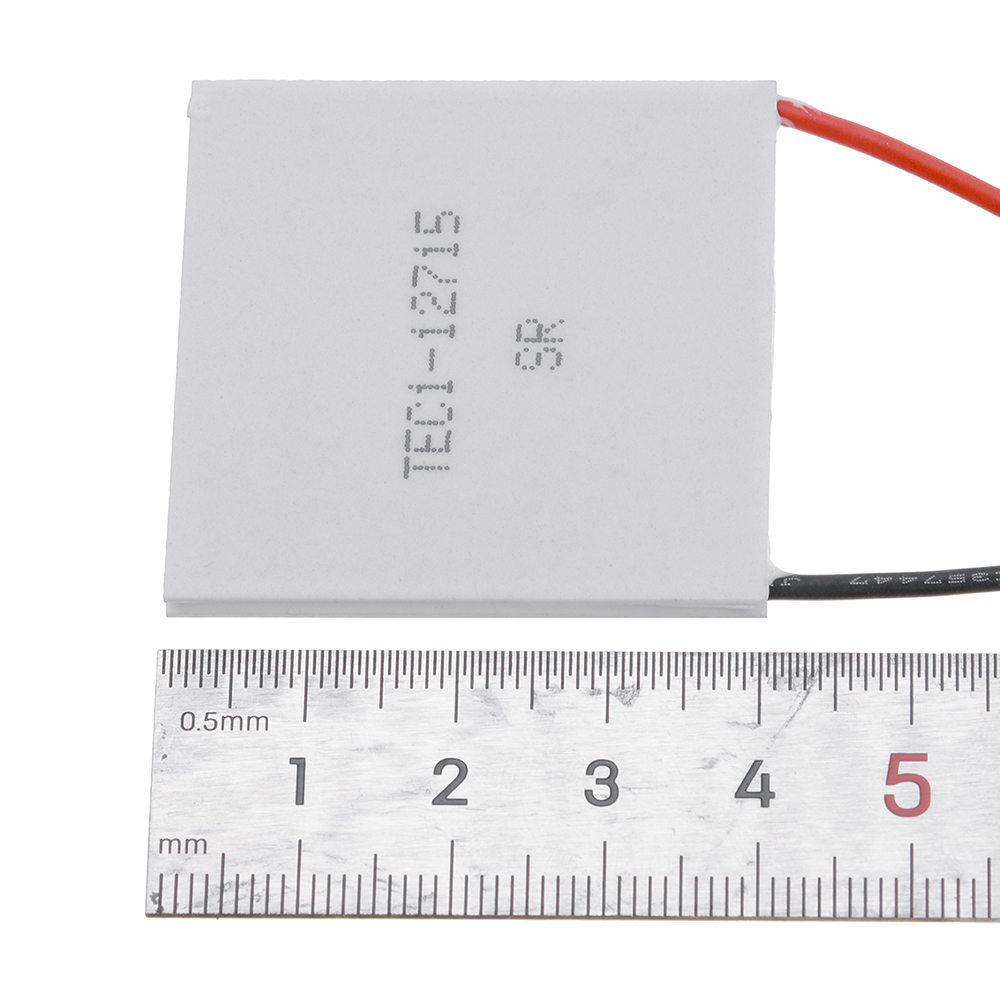

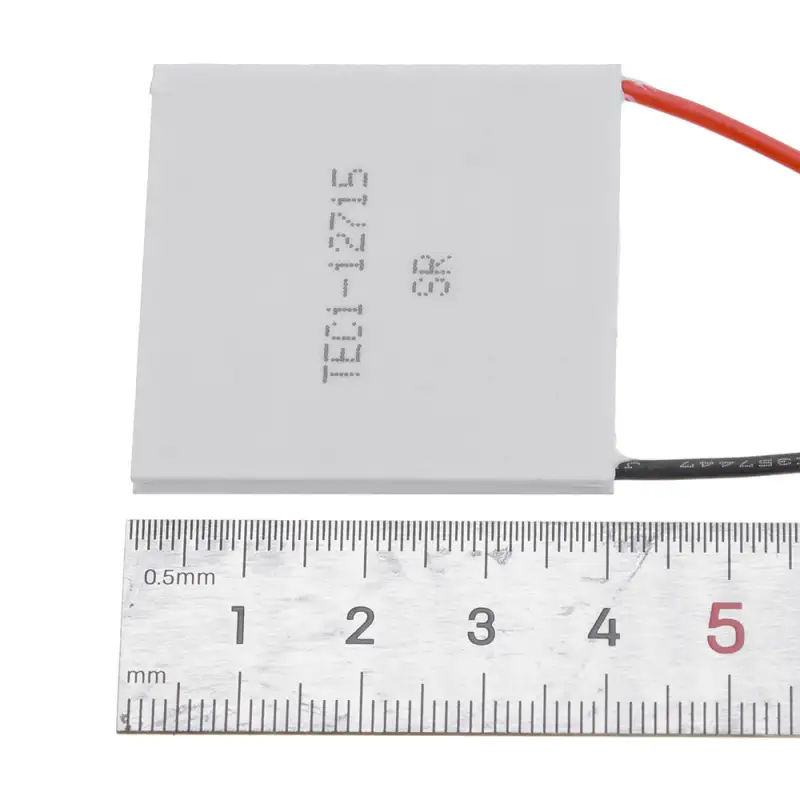

Dimensions: 40*40*3.6mm

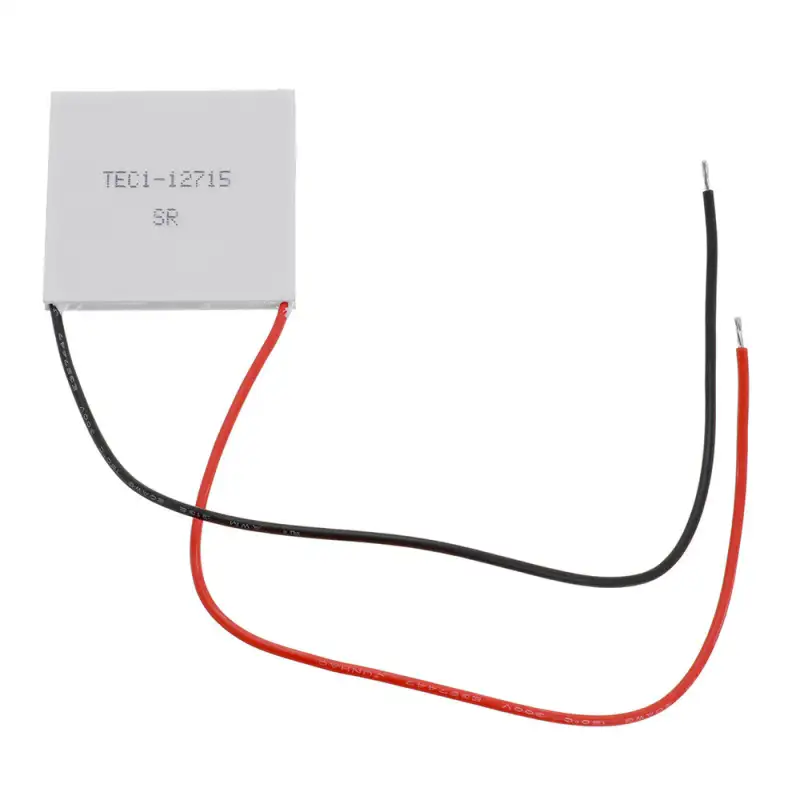

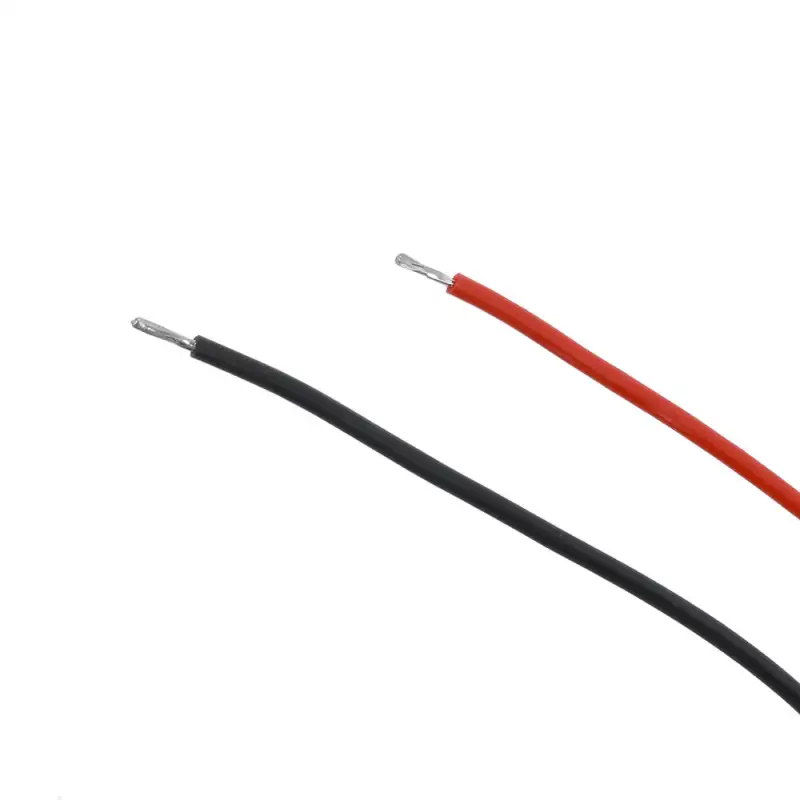

Wire Size: Lead Length 200±8mm RV Standard Wire Single Head 5mm Tin Plated
Internal resistance: 0.8~0.9Ω (ambient temperature 23±1°C, 1kHZ Ac test)
Maximum temperature difference: above 62°C
Operating current: Imax=15A (maximum voltage 15.5V 15A at startup)
Rated voltage: DC12V (maximum voltage: 15.5V)
Cooling power: 142W (heating surface temperature is too high will reduce the cooling power)
Assembly pressure: 85N/cm2
Working environment: Temperature range -55°C～83°C (excessive ambient temperature will directly affect the cooling efficiency)
Storage conditions: -40~60°C

Package Included:

1 x TEC1-12715 Heatsink
