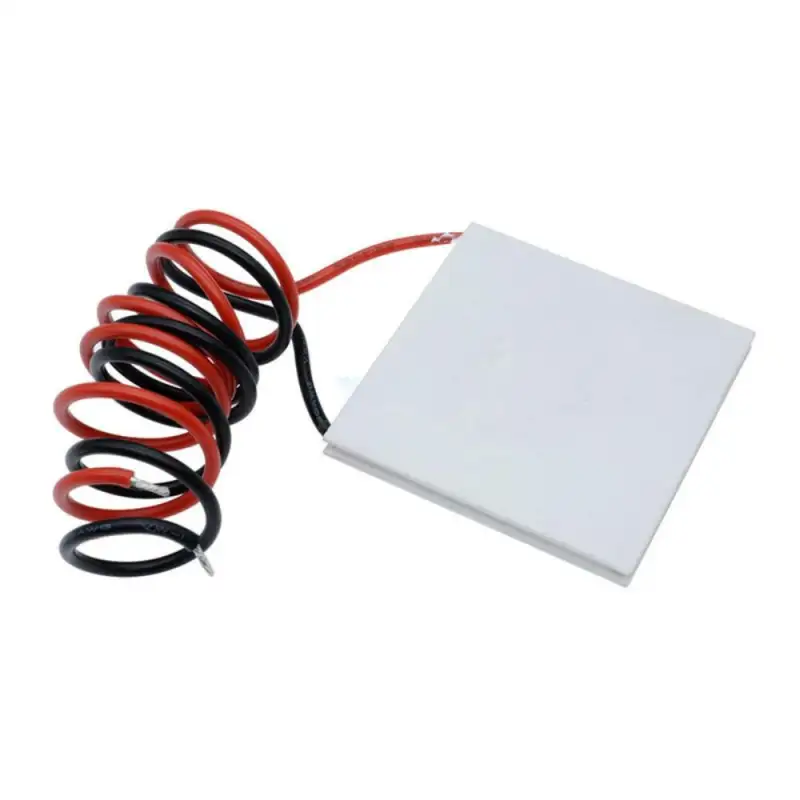

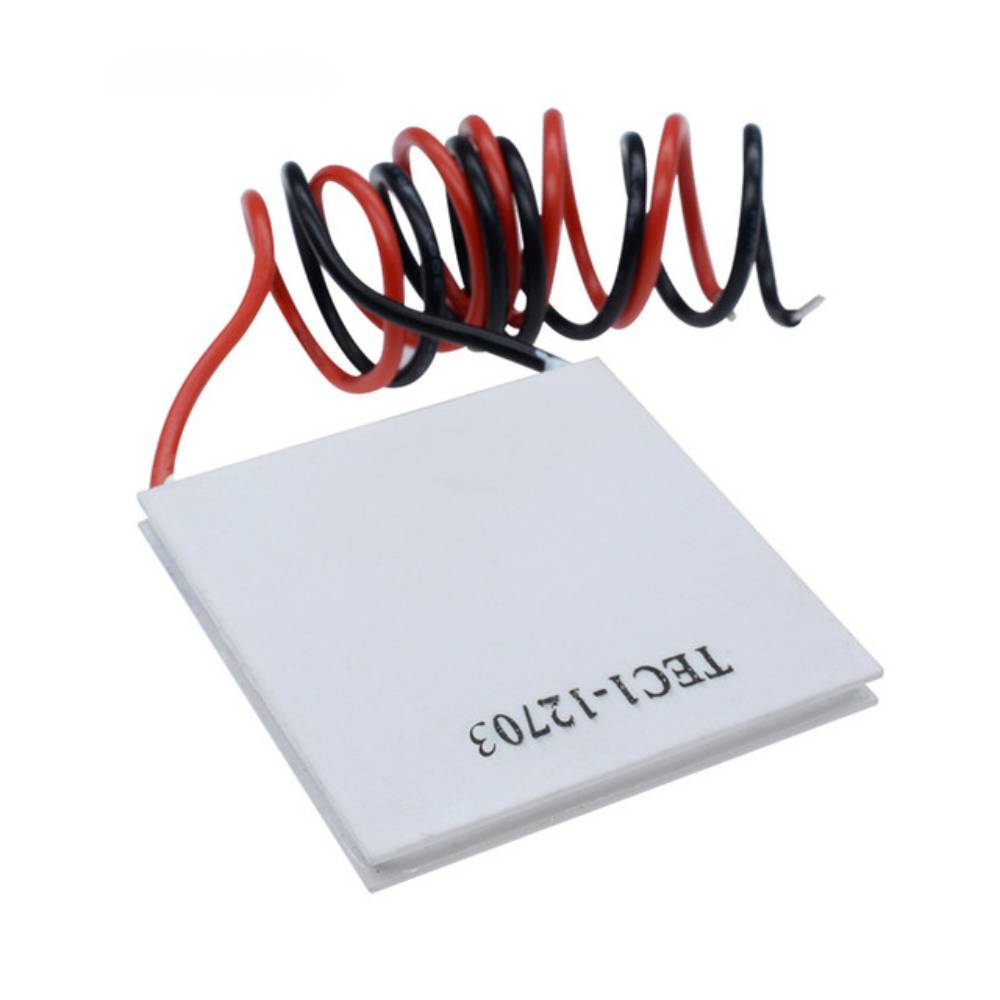

TEC1-12703 12V Heatsink Cooling Peltier TEC Semiconductor Thermoelectric Cooler 40mm*40mm*3.5mm

Description:

Can be used in refrigerator,Portable cooling car box,
Liquid Cooling,Temperature stabilizer etc.
No need to move internal parts when in transit
Solid state, vibration free, noise-free
Should use with a heat sink
Simple to install and operate
Long life time
Slim and compact

Parameter:

Chip Model: TEC1-12703

Dimensions: 40 * 40 * 3.5mm± 0.1
Wire specification: Lead length 310mm ± 5mm RV Standard wire Single head 5mm tinned
Internal resistance: 4.0 ~ 4.3 (ambient temperature 23 ± 1 °, 1kHZ Ac test)
Maximum temperature difference: Tmax (Qc = 0) above 60 °.
Operating current: Imax = 12 (rated voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 27W
Assembly pressure: 85N / cm2
Working environment: temperature range -55 ° ~ 83 ° (too high ambient temperature directly affect the cooling efficiency)
Storage conditions: -40 ~ 60 °

Package Included:

1 x TEC1-12703 Heatsink
