Condition: New product

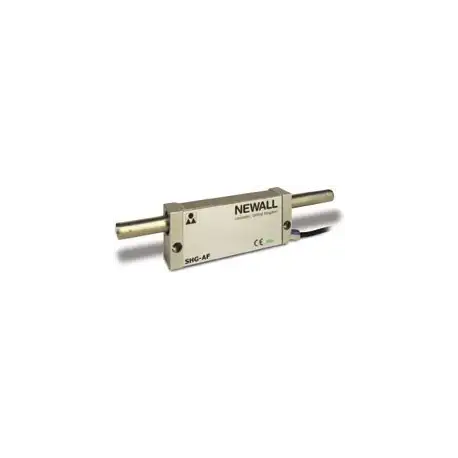

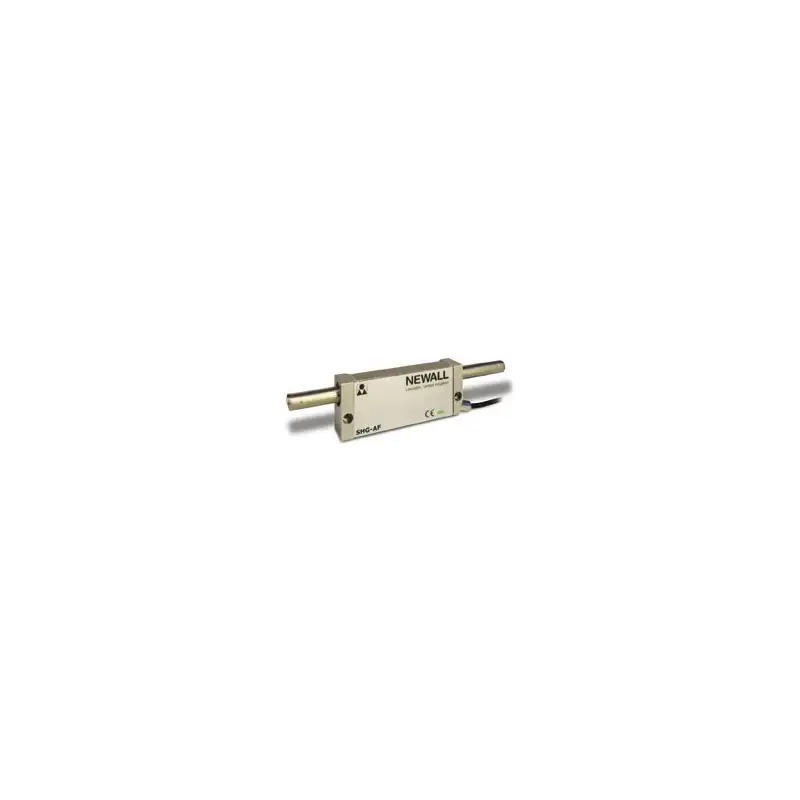

Developed to meet a wide range of feedback applications, the
SHG-AF absolute linear encoder provides a true absolute position immediately upon power-up. The encoder does not use batteries or static memory to retain the positional data. True position can be reacquired once power is applied, regardless of duration or power-off movements.
100 Item Items Warning: Last items in stock!
Availability date:
This protocol is proprietary to Fanuc and available on all of their control systems. The controller makes a request for positional data and the encoder has to respond correctly with data within a strictly controlled time state. Developed to meet a wide range of feedback applications, the
SHG-AF absolute linear encoder provides a true absolute position immediately upon power-up. The encoder does not use batteries or static memory to retain the positional data. True position can be reacquired once power is applied, regardless of duration or power-off movements.
|
Specifications
|
|---|
| Output Signal | Fanuc serial absolute |
|---|---|
|
Accuracy/Meter
|
±0.0004", ±0.0002", ±0.0001"(±10µm, ±5µm, ±3µm)
|
|
Resolutions
|
10µm, 5µm, 1µm or 0.5µm
|
|
Scale Travels
|
4" to 137.8" (102mm to 3.5m)
|
|
Scale Diameter
|
0.601" (15.25mm)
|
|
Reader Head Dimensions
|
2.05"H x 5.16"L x 1.10"D (52mm x 131mm x 28mm)
|
|
Reference Marker
|
n/a
|
|
Maximum Traverse Rate
|
n/a
|
|
Power Supply
|
5VDC ±5%, <350mA
|
|
Shock (11ms)
|
100g (IEC 69-2-6)
|
|
Vibration (55-2000Hz)
|
30g (IEC 68-2-27)
|
|
Sample Period
|
50µs
|
|
Environmental Rating
|
IP67, fully submersible (IEC 529) - Exceeds NEMA 6
|
|
Operating Temperature
|
32° to 131°F (0° to 55°C)
|
|
Coefficient of Expansion
|
12 x 10-6K
|
|
Scale Material
|
316 stainless steel
|
|
Overall Scale Length
|
Scale travel length + 10.2" (258mm)
|
|
Standard Cable
|
15 core, 11.5' (3.5m) armored
|
|
Maximum Cable Length
|
65.6' (20m)
|
|
Standard Connector
|
15 pin "D" type
|
|
EMC Compliance
|
BS EN 61000-6-2 and BS EN 61000-6-4
|
|
Options
|
|---|
|
Resolutions
|
Custom resolutions available
|
|---|---|
|
Non-Armored Cable
|
PUR (polyurethane)
|
|
Connectors
|
• None - Flying Lead
|
|
Cable Lengths
|
22' (7m) or 19.68" (0.5m)
|
Quick and Easy Installation
The design of these linear encoders allow installment in almost any position, unlike glass-scale linear encoders, which usually need to be installed with the lip seal facing downwards to prevent contamination. Self-aligning fixing brackets allow virtually effortless scale mounting, needing only a single hole for each set of brackets.
Download SHG-AF Linear Encoder Documents:
SHG-AF Protocol (pdf)
SHG-A_ Installation Manual (pdf)
Dimensional Drawing (<100" travel) (pdf)
Dimensional Drawing (≥100" travel) (pdf)
Newall Linear Encoder Catalog (Newall Linear Encoder Catalog)
