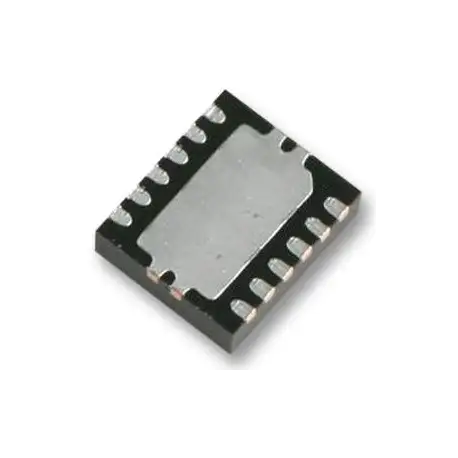

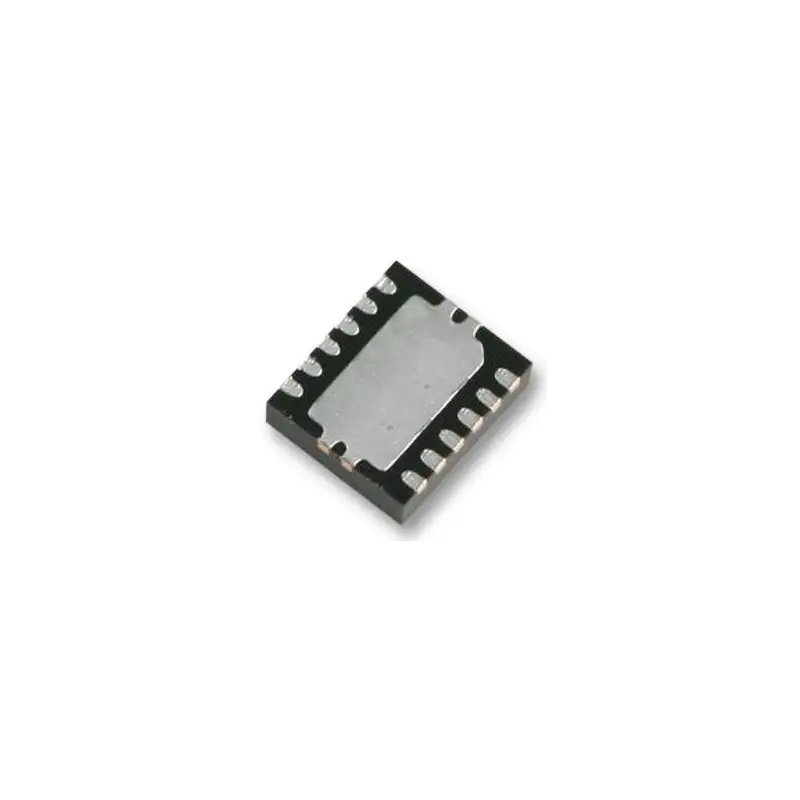

FTDI FT234XD-R USB TO UART BRIDGE

FTDI FT234XD-R USB TO UART BRIDGE

Reference: BG0052-9677310

Condition: New product

Manufacturer
FTDI, Future Technology Devices International Ltd
Manufacturer Product Number
FT234XD-R
Supplier
FTDI, Future Technology Devices International Ltd
Description
IC USB SERIAL BASIC UART 12DFN
Detailed Description
USB Bridge, USB to UART USB 2.0 UART Interface 12-DFN (3x3)

315 Items

$1.87

The minimum purchase order quantity for the product is 50

More info

The FT234XD-R is an USB2.0 Full Speed IC, offers a basic UART to USB bridge. The device is an UART, capable of operating up to 3Mbaud, with low power consumption (8mA). The FT234XD-R includes the complete FT-X series feature set, including battery charging detection and enables USB to be added into a system design quickly and easily over a UART interface.
  • Single Chip USB to Asynchronous Serial Data Transfer Interface
  • Entire USB Protocol Handled on Chip, No USB Specific Firmware Programming Required
  • Fully Integrated 2048-byte EEPROM for Storing Device Descriptors and CBUS I/O Configuration
  • Fully Integrated Clock Generation with no external crystal required + Optional clock o/p selection
  • Data Transfer Rates from 300 Baud to 3Mbaud
  • 512-byte Transmit and Receive Buffer utilising buffer smoothing technology for high data throughput
  • Royalty-free VCP and Direct (D2XX) drivers eliminate requirement for USB driver development
  • Configurable CBUS I/O Pins
  • Transmit and Receive LED Drive Signals
  • UART Interface Support for 7 or 8 Data Bits, 1 or 2 Stop Bits and Odd/Even/Mark/Space/No Parity
  • Synchronous and Asynchronous Bit Bang Interface Options with RD# and WR# Strobes
  • Battery Charger Detection, presence of a charger on USB port to enable faster charging of Batteries
  • Device Supplied Pre-programmed with Unique USB Serial Number
  • Supports Bus Powered, Self-powered and High-power Bus Powered USB Configurations
  • Integrated +3.3V Level Converter for USB I/O
  • True 3.3V CMOS drive output and TTL input (Operates down to 1V8 with external pull up)
  • Configurable I/O Pin Output Drive Strength
  • Integrated Power-on-reset Circuit
  • UART Signal Inversion Option
  • Internal 3.3/1.8V LDO Regulators

Applications

Signal Processing, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Sensing & Instrumentation, Industrial, Power Management

Warnings

Absolute maximum ratings for devices are as mentioned, accordance with the Absolute Maximum Rating System (IEC 60134), exceeding these may cause permanent damage to the device.
