Condition: New product
100 Item Items Warning: Last items in stock!
Availability date: 08/27/2021
Description:

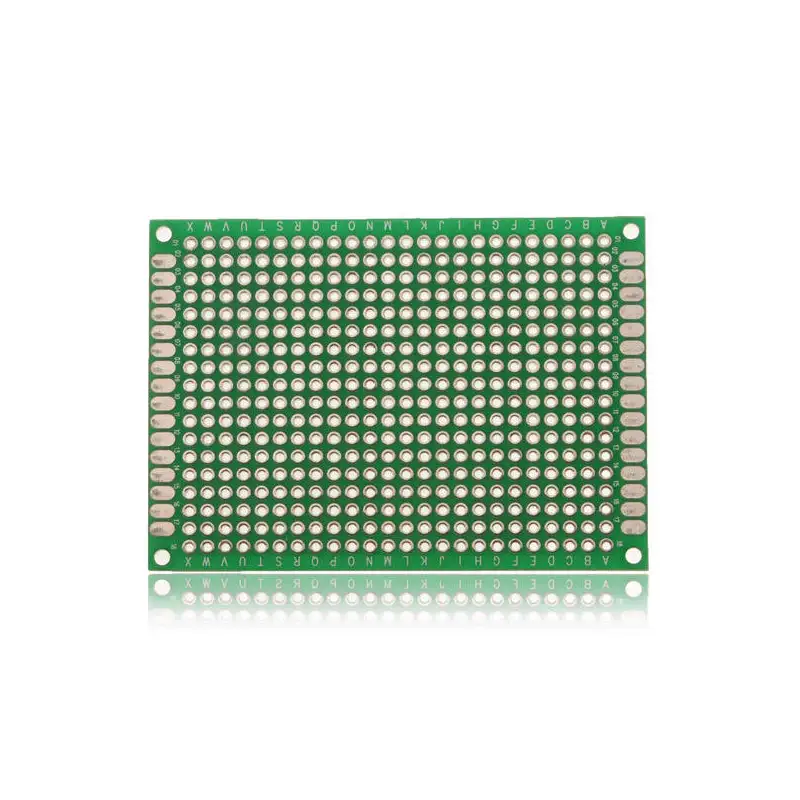

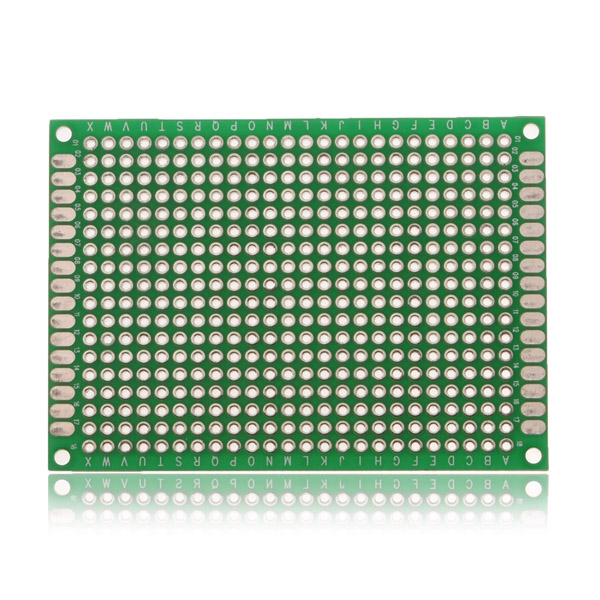

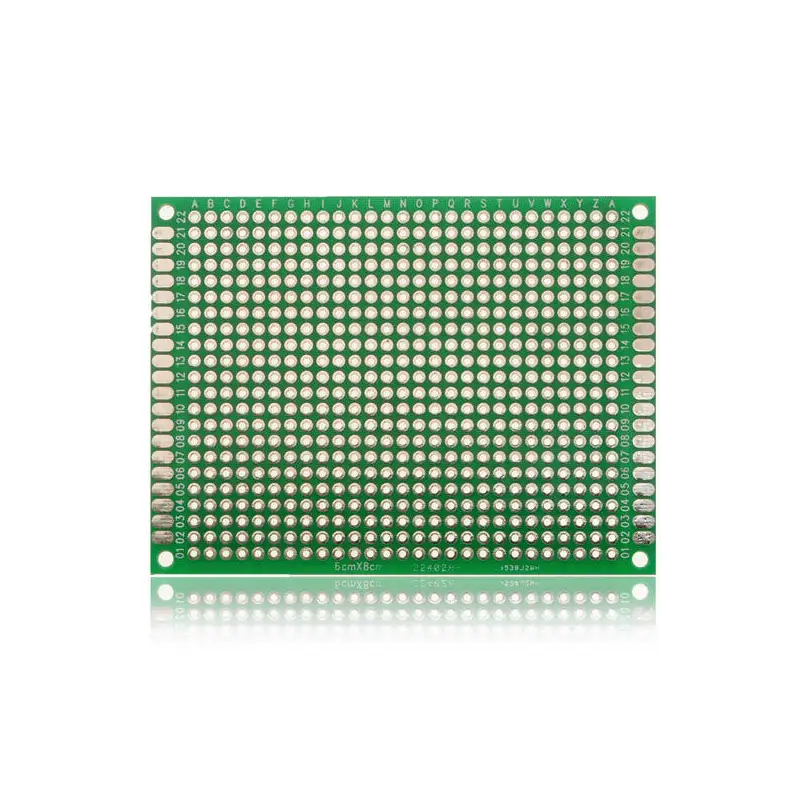

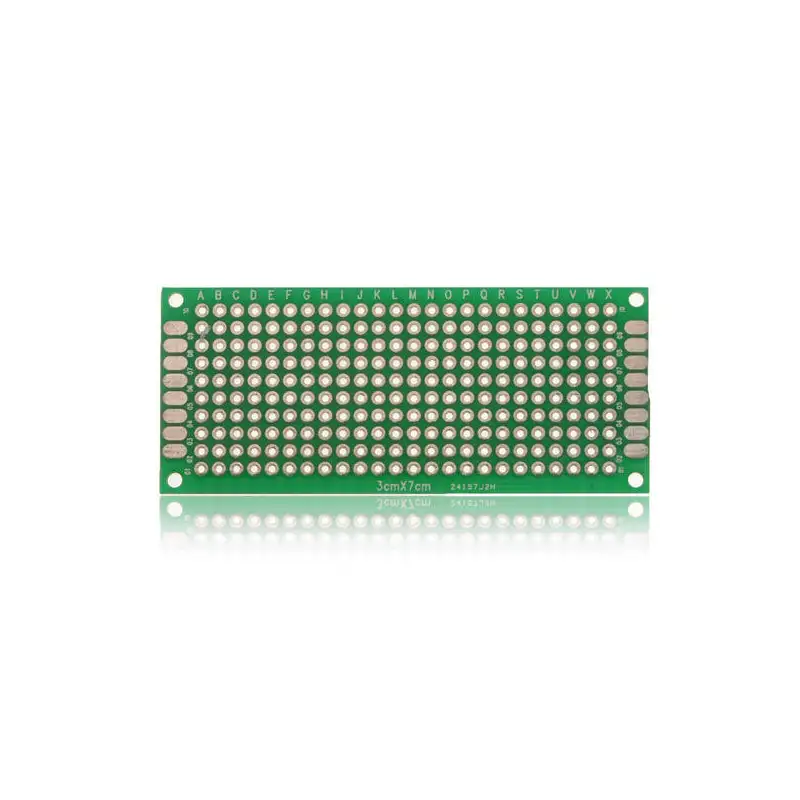

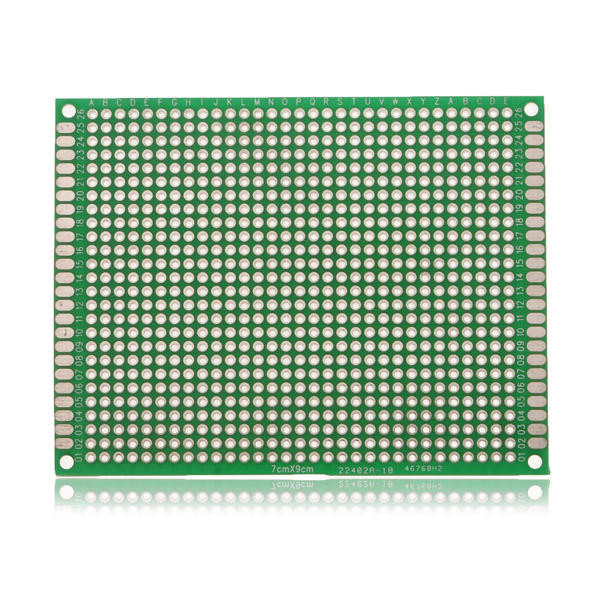

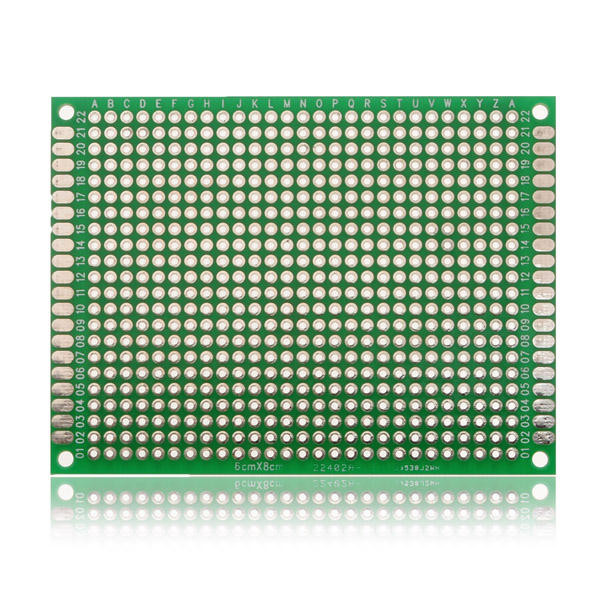

Double-Side Prototype Board
Grid: 0.1inch (2.54mm)
Thickness: 1.6mm
Hole diameter: 0.9mm
Hole spacing: 2.54mm (100mil) (mm)
Material: FR-4 (glass fiber)
All holes are plated through
Both sides are identical
For point to point prototyping
Specification:

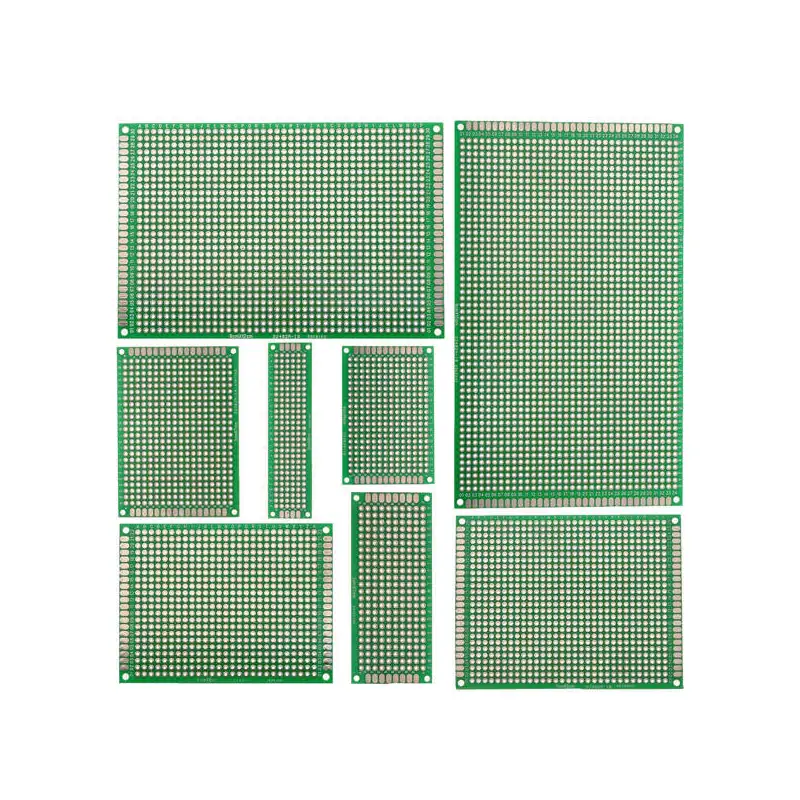

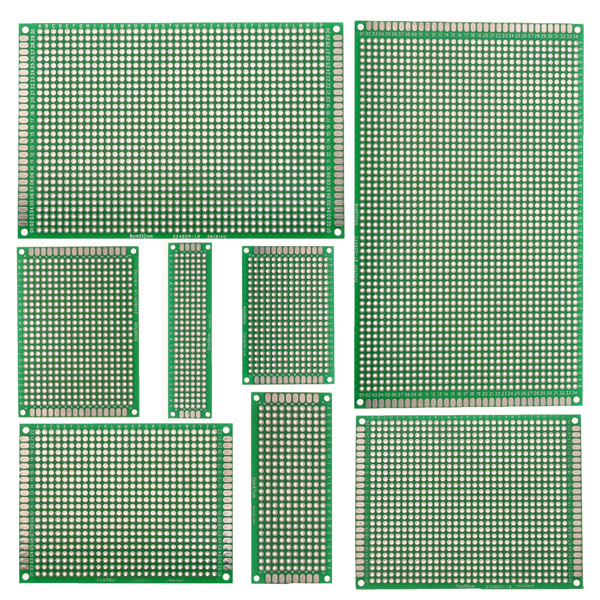

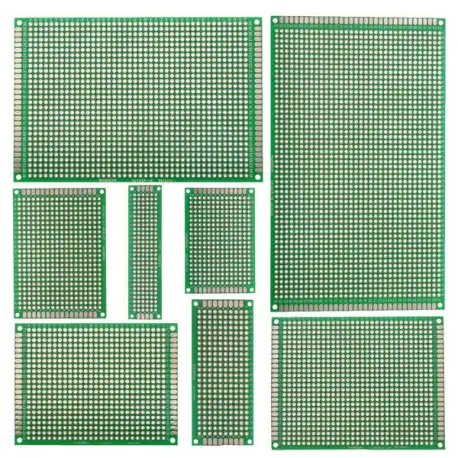

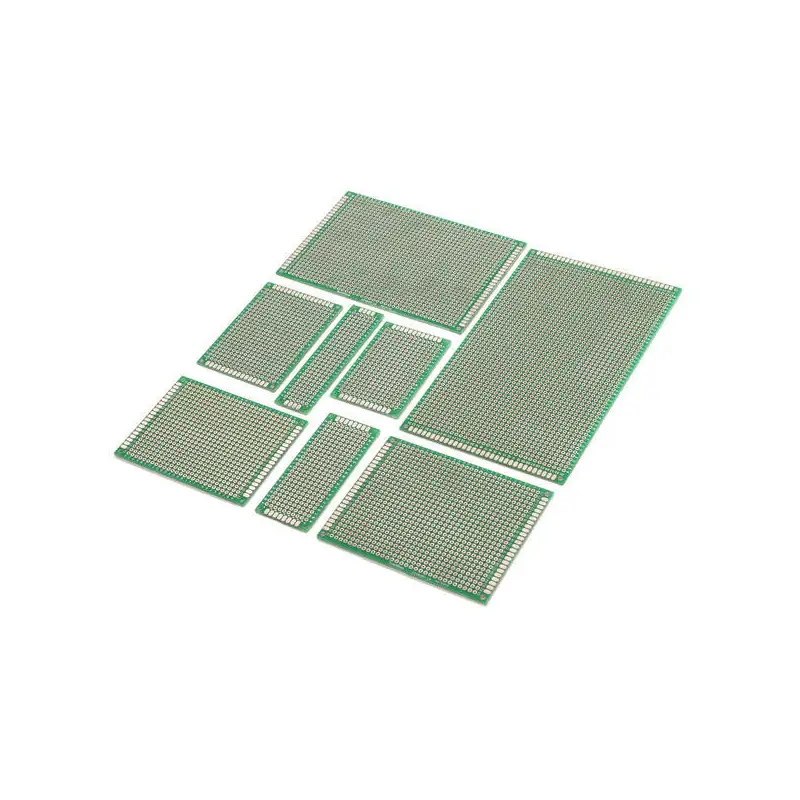

| Dimension W x L (mm) | Dimension W x L (inch) | Hole (column x row) |

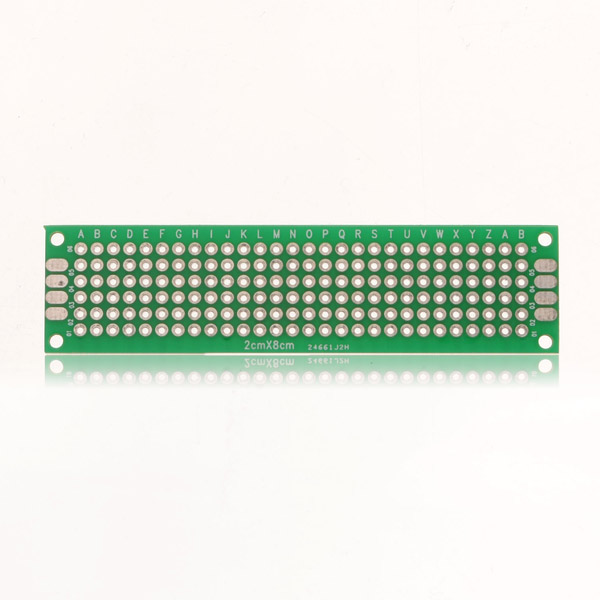

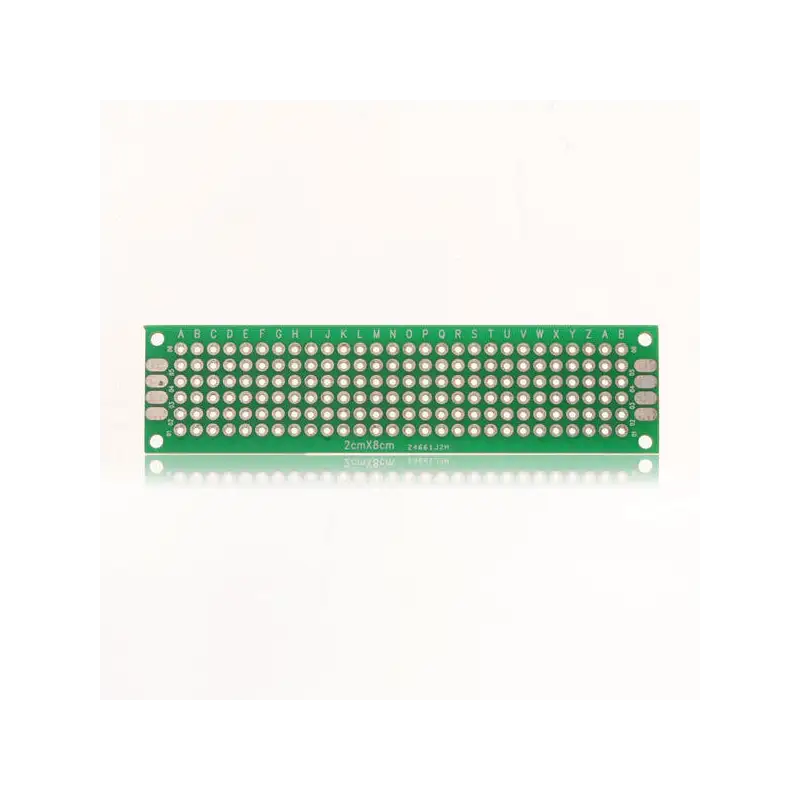

| 20mm x 80mm | 0.8 x 3.2 inch | 6 x 28 |

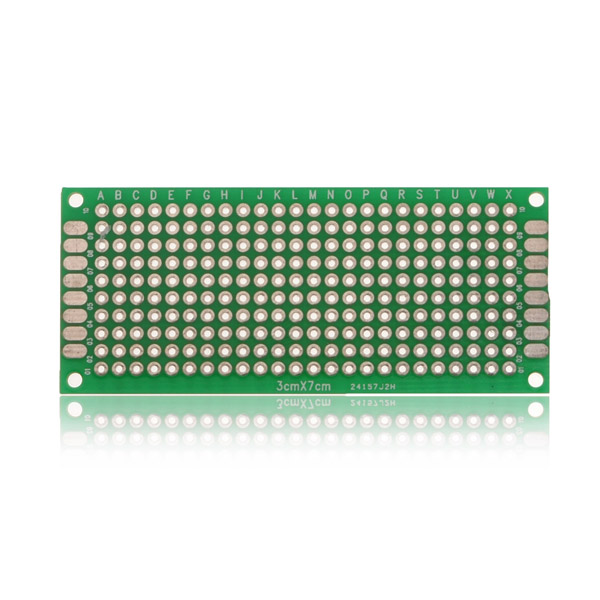

| 30mm x 70mm | 1.2 x 2.8 inch | 10x24 |

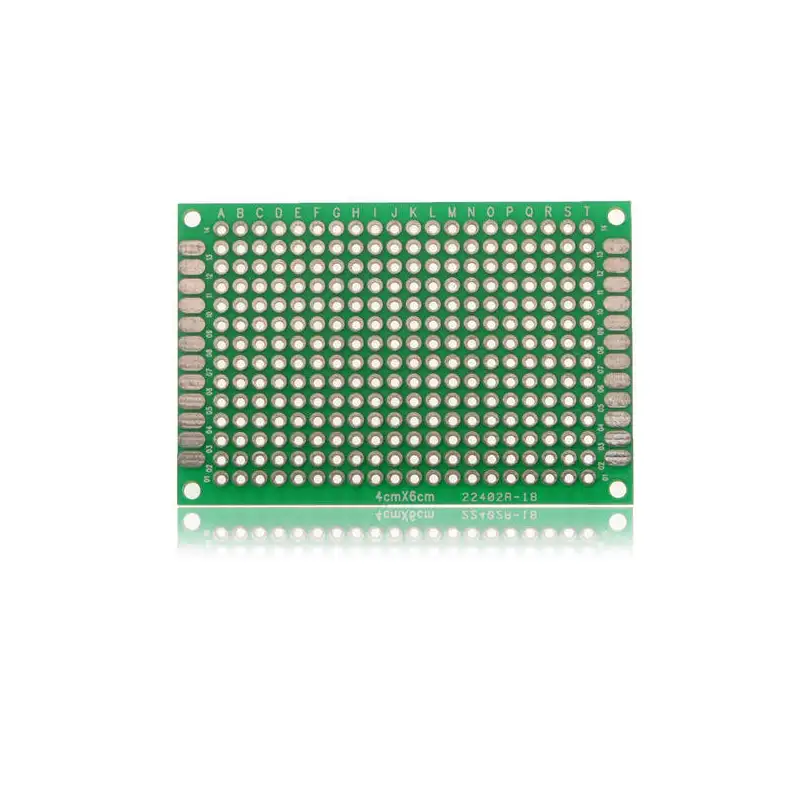

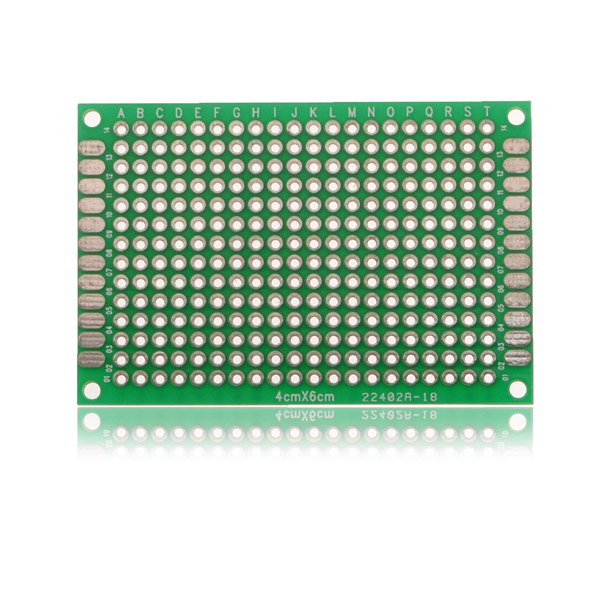

| 40mm x 60mm | 1.6 x 2.4 inch | 14 x 20 |
| 50mm x 70mm | 2.0 x 2.8 inch | 18 x 24 |

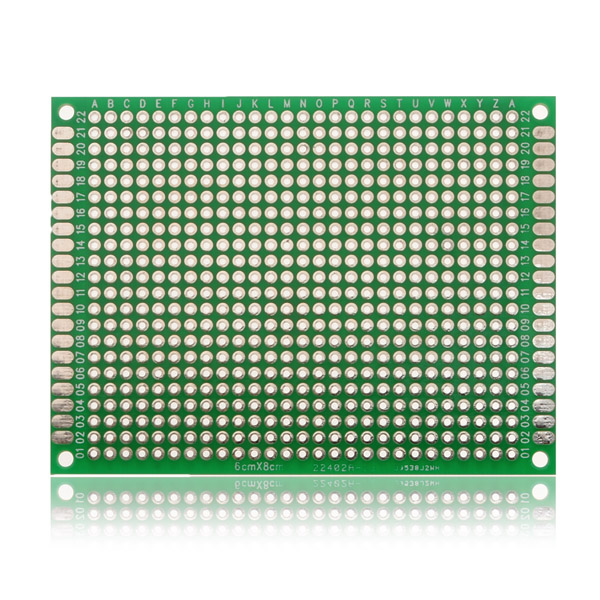

| 60mm x 80mm | 2.4 x 3.2 inch | 22 x 27 |

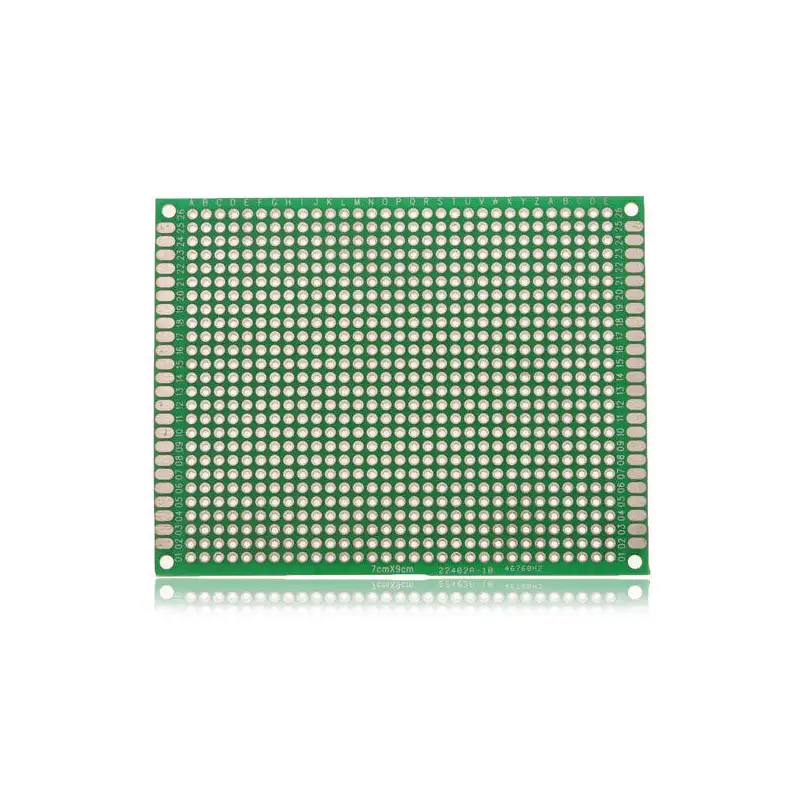

| 70mm x 90mm | 2.8 x 3.5 inch | 26 x 31 |

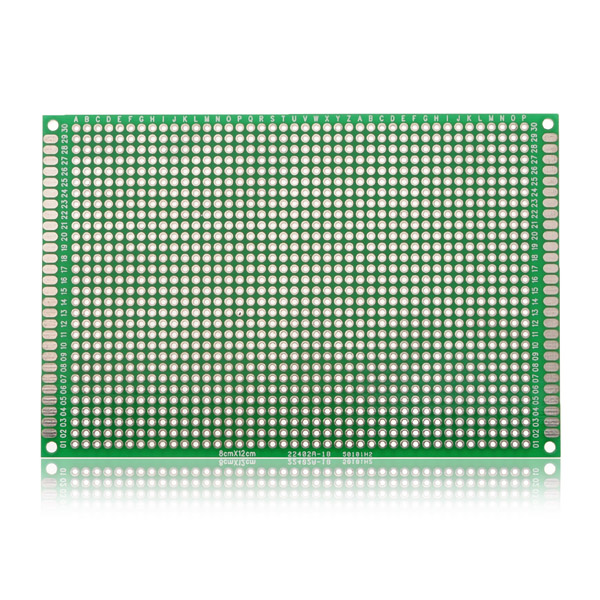

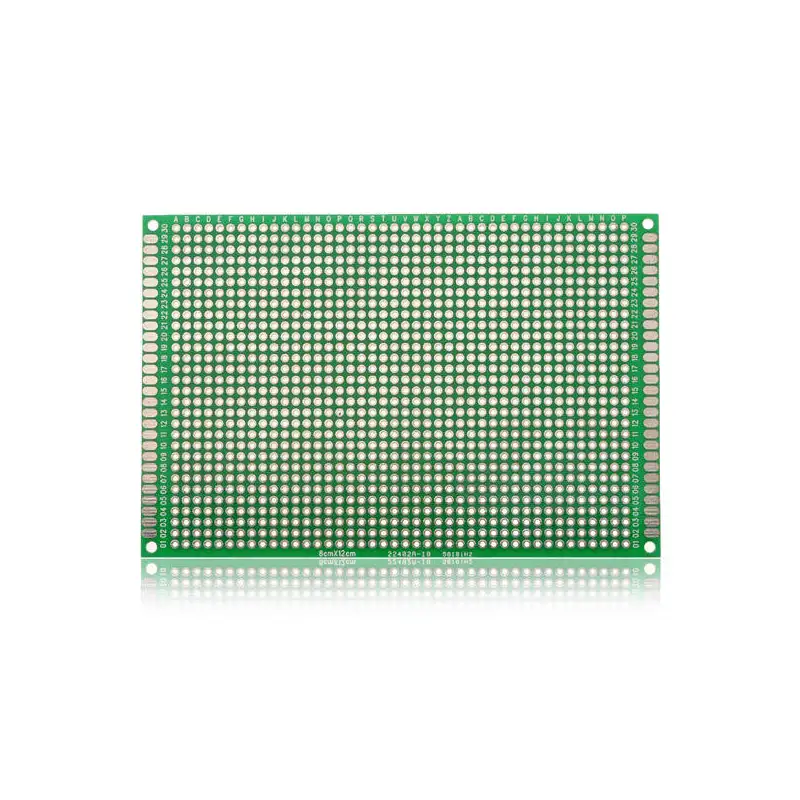

| 80mm x 120mm | 3.2 x 4.7 inch | 30 x 42 |

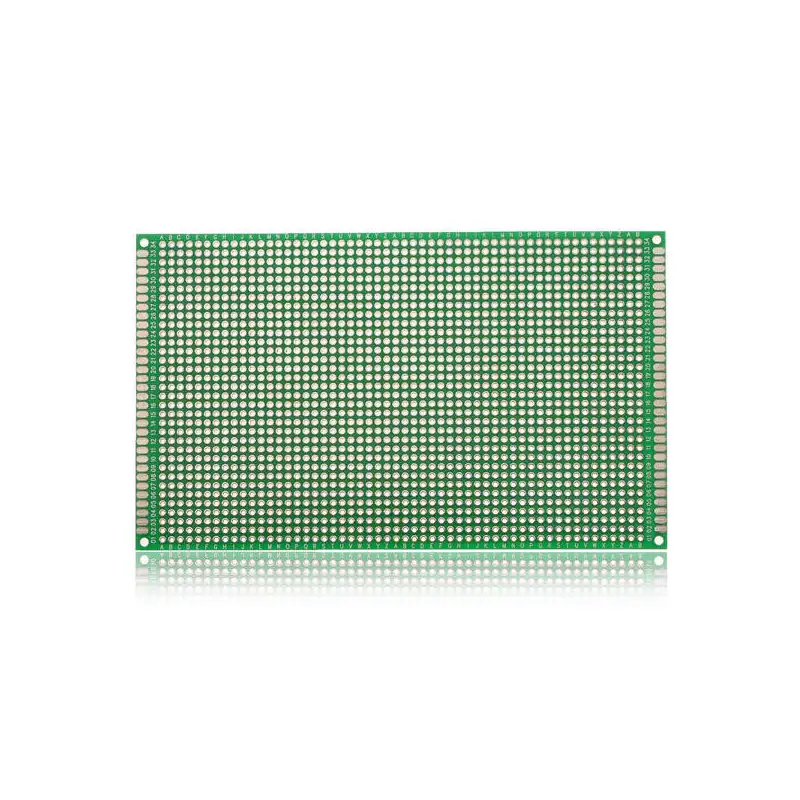

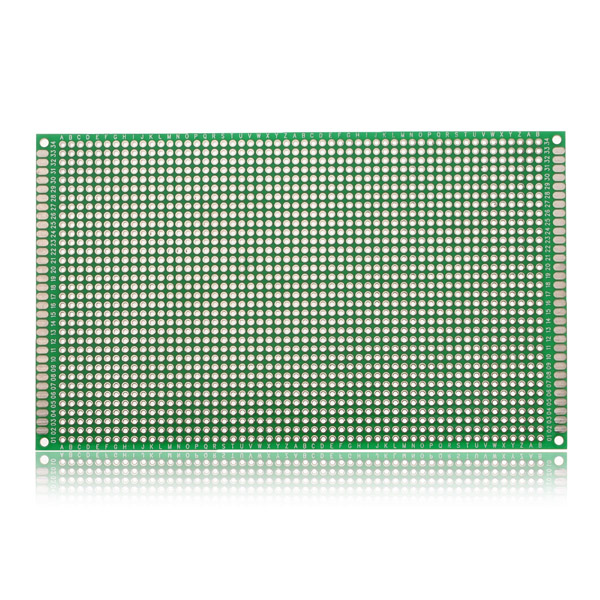

| 90mm x 150mm | 3.5 x 5.9 inch | 34 x 54 |
Package included:
1 x Double-Side Prototype PCB universal board (Size as your choice)
Description:
Double-Side Prototype Board
Grid: 0.1inch (2.54mm)
Thickness: 1.6mm
Hole diameter: 0.9mm
Hole spacing: 2.54mm (100mil) (mm)
Material: FR-4 (glass fiber)
All holes are plated through
Both sides are identical
For point to point prototyping
Specification:
| Dimension W x L (mm) | Dimension W x L (inch) | Hole (column x row) |
| 20mm x 80mm | 0.8 x 3.2 inch | 6 x 28 |
| 30mm x 70mm | 1.2 x 2.8 inch | 10x24 |
| 40mm x 60mm | 1.6 x 2.4 inch | 14 x 20 |
| 50mm x 70mm | 2.0 x 2.8 inch | 18 x 24 |
| 60mm x 80mm | 2.4 x 3.2 inch | 22 x 27 |
| 70mm x 90mm | 2.8 x 3.5 inch | 26 x 31 |
| 80mm x 120mm | 3.2 x 4.7 inch | 30 x 42 |
| 90mm x 150mm | 3.5 x 5.9 inch | 34 x 54 |
Package included:
1 x Double-Side Prototype PCB universal board (Size as your choice)
