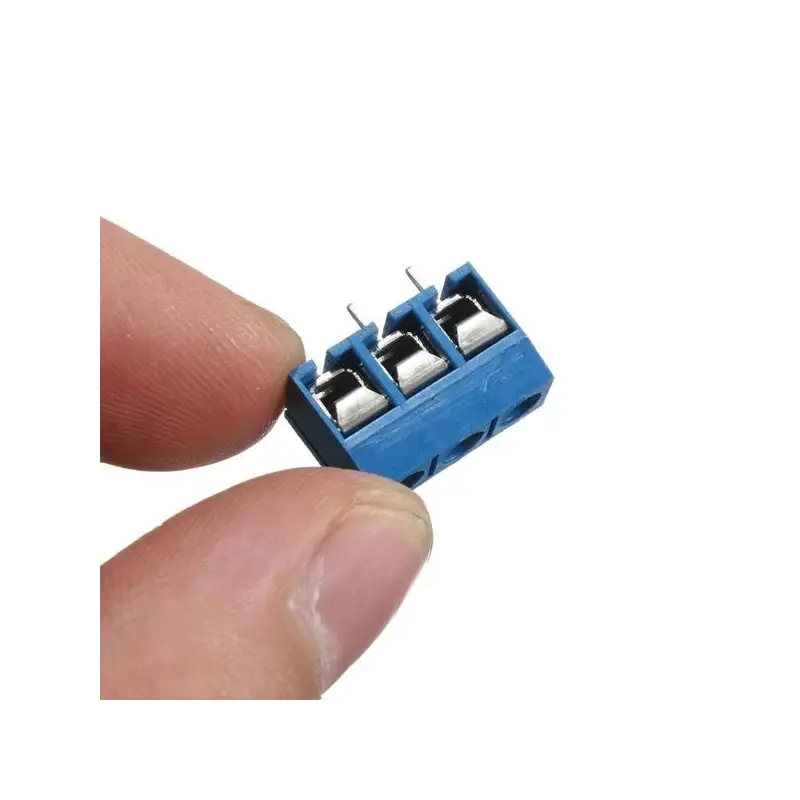

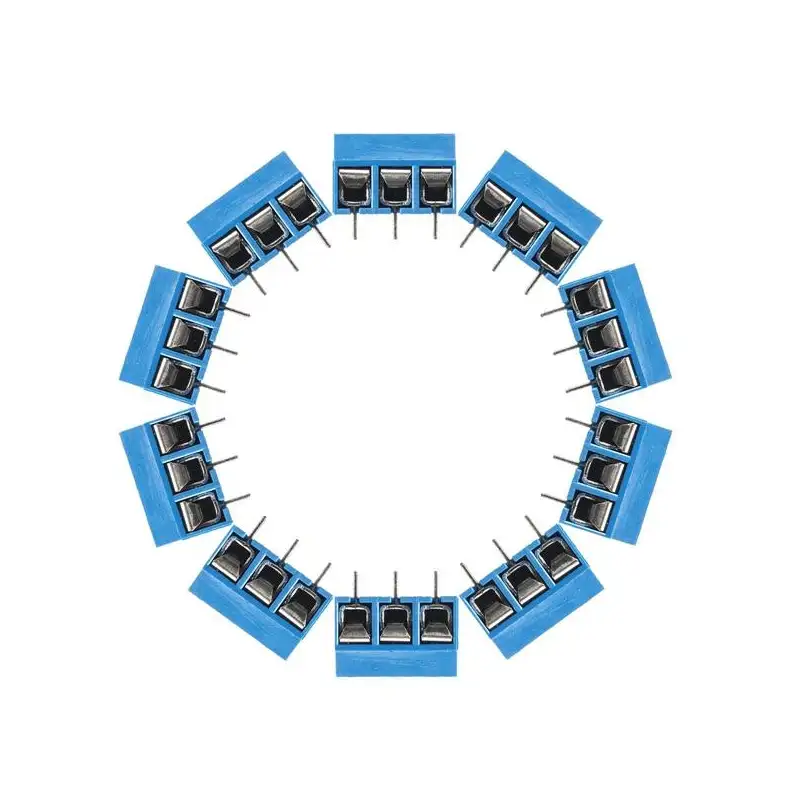

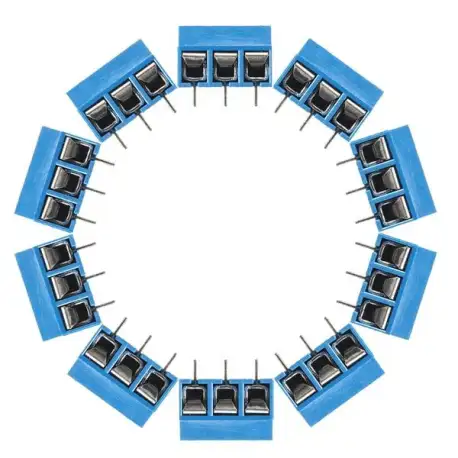

50pcs 5mm KF-301 3 Pin PCB Mount Block Screw Terminal NF Connector

Reference: BG0052-9965531

Condition: New product

100 Items

$10.88

More info

Feature:

5mm spacing, 3-pin, screw type.
Widely used in electronics, communications equipment, instruments, calculator, automatic control system, home appliance and warning devices, etc.

Specifications:

Total area: 15 x 8 x 14 mm / 0.59 " x 0.31" x 0.55" (l * w * h)
Voltage: 300V
Rated current: 16A
Screw: M2.5 Steel Zinc Plated or stainless stell
Temperature: - 30 to + 120 degrees celsius
Torque: 0.5Nm (3.6lb.in)
Contact resistance: 20mΩ
Insulation resistance: 5000mΩ/1000V
Withstanding voltage: AC1500V/1Min

Packaged, includes:

50 x 3 pin terminal connector
