  4. 1Set GX16-8 Pin Male And Female Diameter 16mm Wire Panel Connector GX16 Circular Aviation Connector Socket Plug

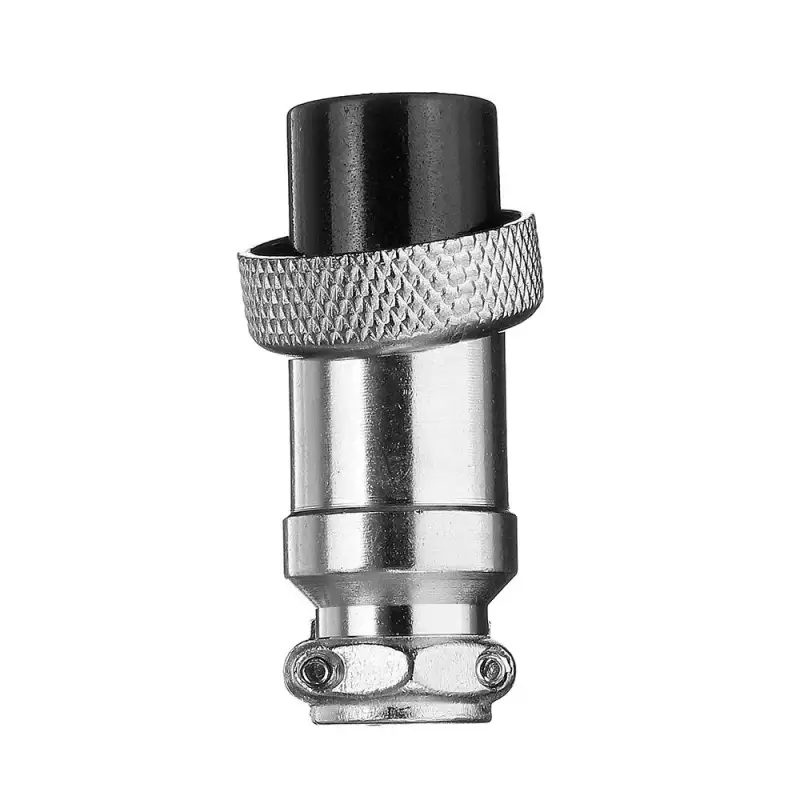

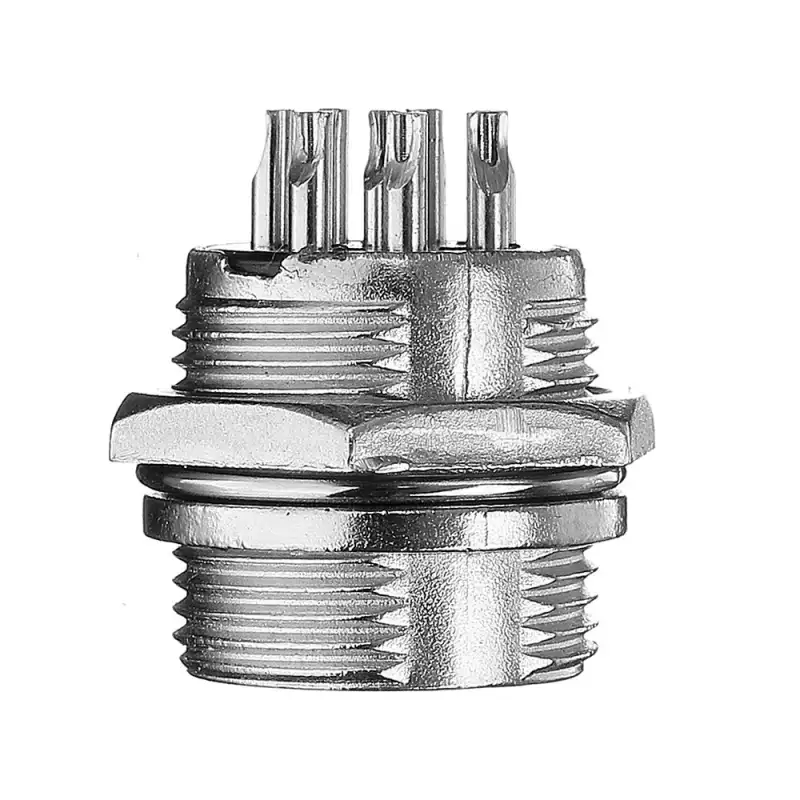

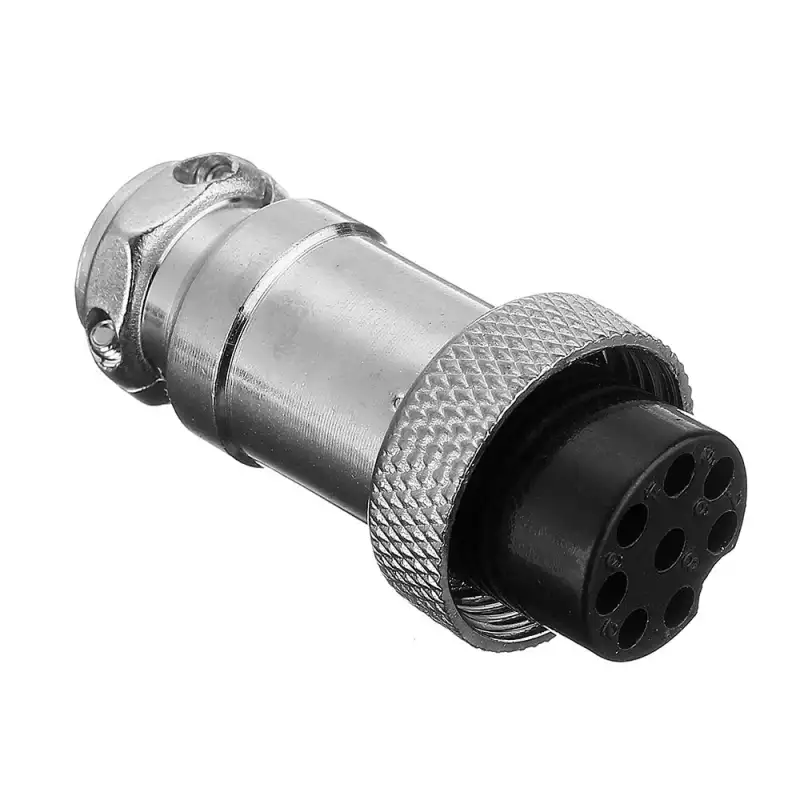

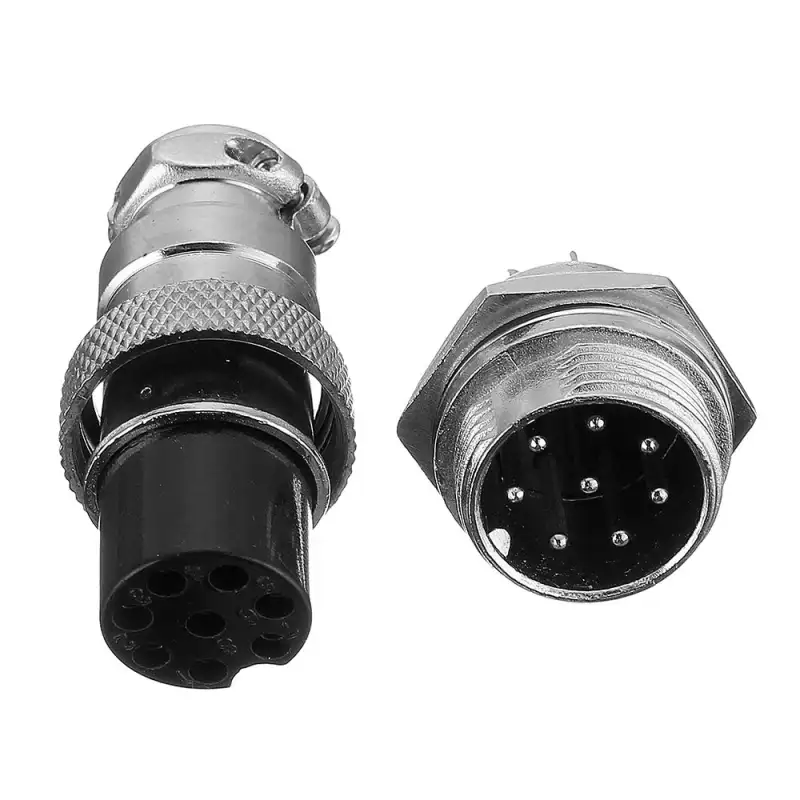

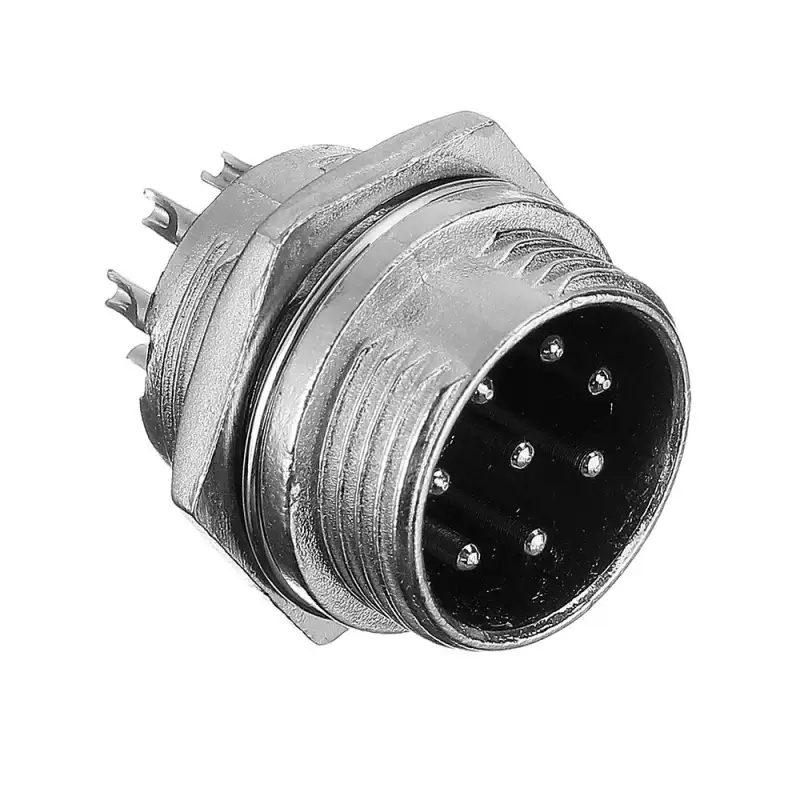

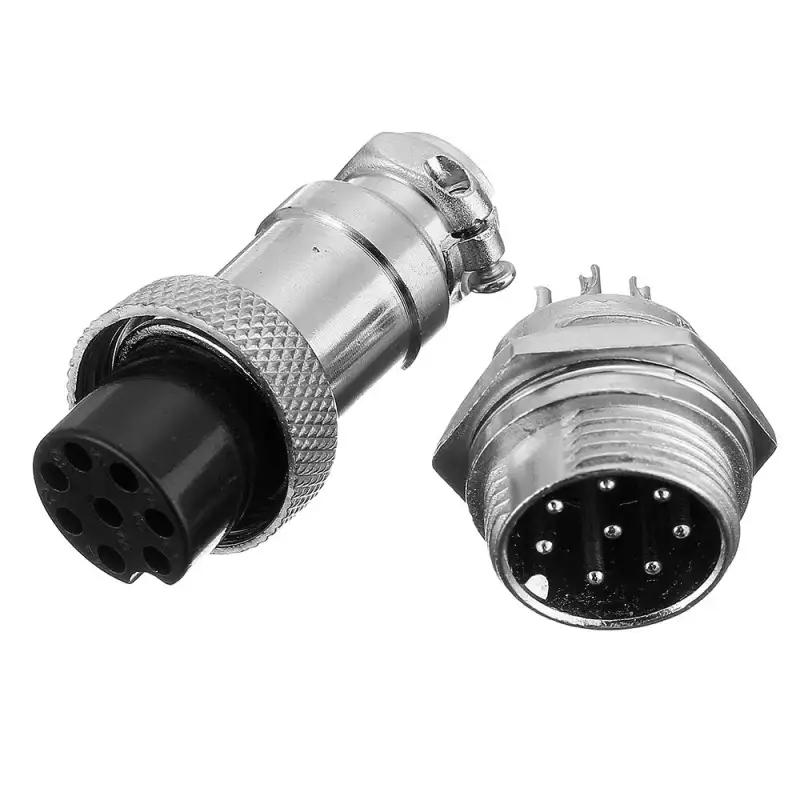

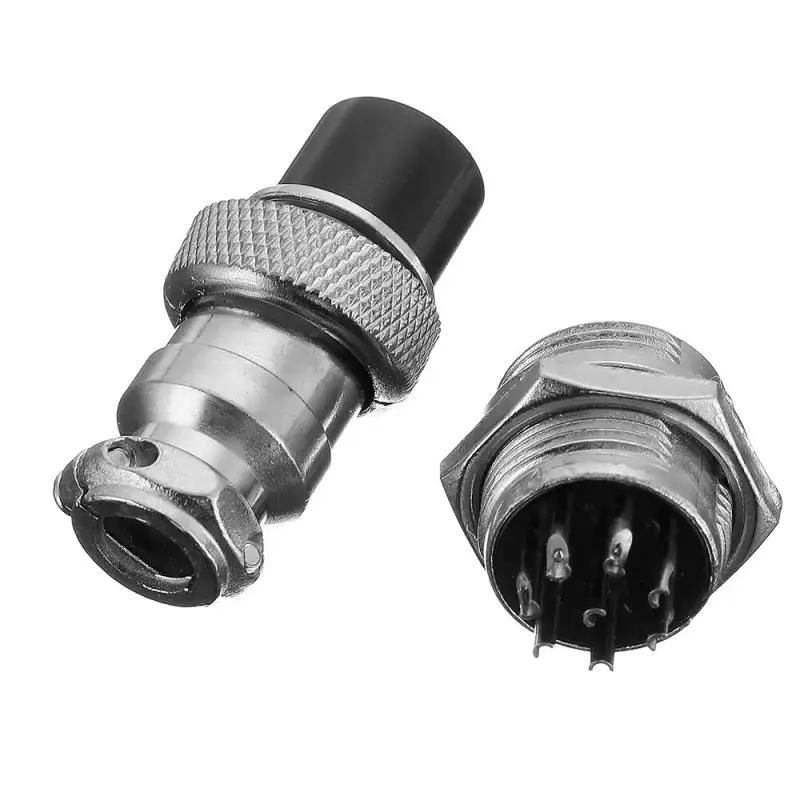

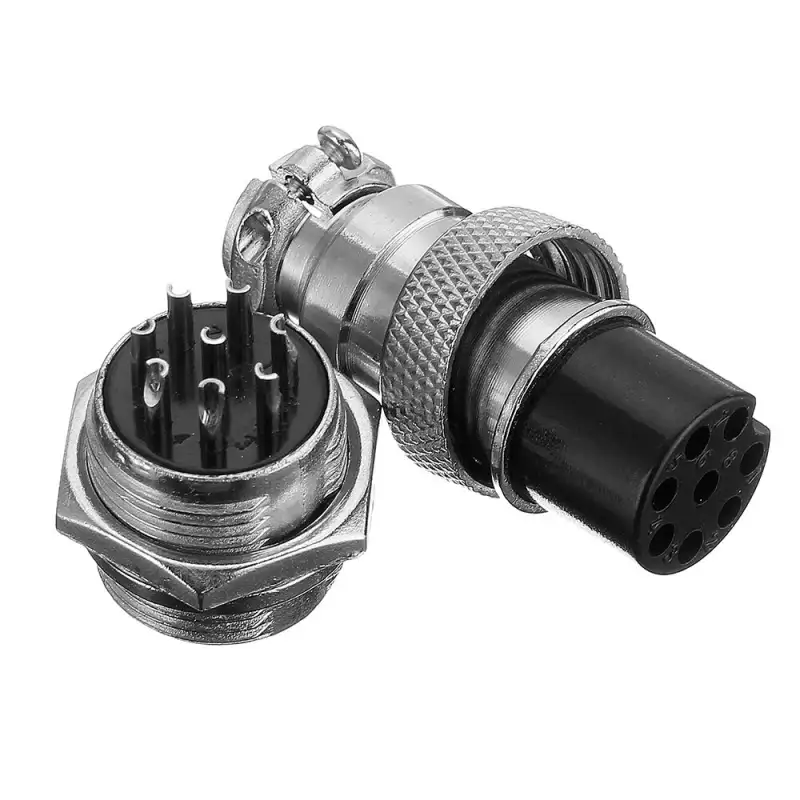

1Set GX16-8 Pin Male And Female Diameter 16mm Wire Panel Connector GX16 Circular Aviation Connector Socket Plug

Reference: BG0052-9402942

Condition: New product

100 Items

$4.34

More info

  • Color: Silver,Black
  • Current: 5A
  • Material: Alloy
Precise details>>

Precise details:

Description:

Diameter: 16mm
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2

Main technical characteristics:

Rated voltage: 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single
foot separation Force
Temperature Rise: at rated load, the contact of the temperature rise should not exceed  +50 C ambient temperature
Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged

Package included:

1 Set GX16-8 Pin Aviation Connector Socket Plug
Description:

Diameter: 16mm
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2

Main technical characteristics:

Rated voltage: 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005 Ω
Insulation resistance: In normal conditions, not less than 1000MΩ; after constant warm tests, not less than 20MΩ.
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single
foot separation Force
Temperature Rise: at rated load, the contact of the temperature rise should not exceed  +50 C ambient temperature
Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged

Package included:

1 Set GX16-8 Pin Aviation Connector Socket Plug
