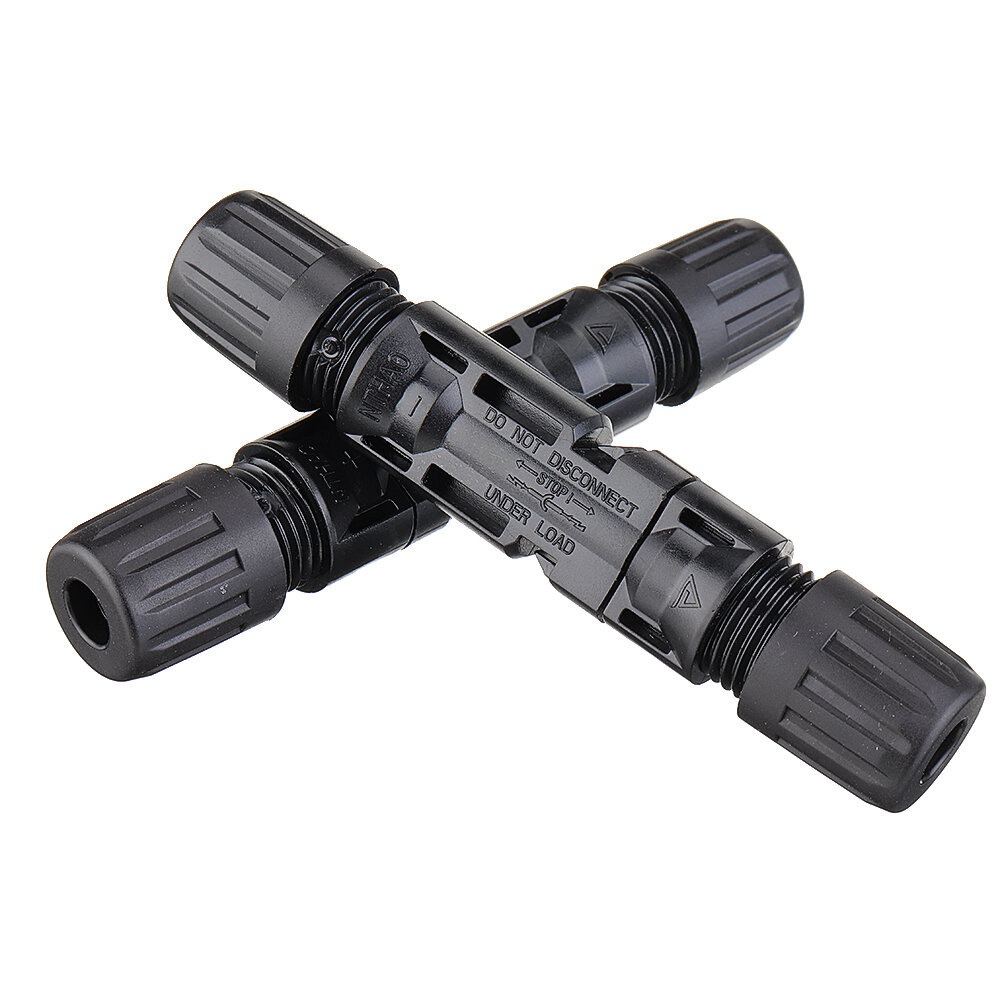

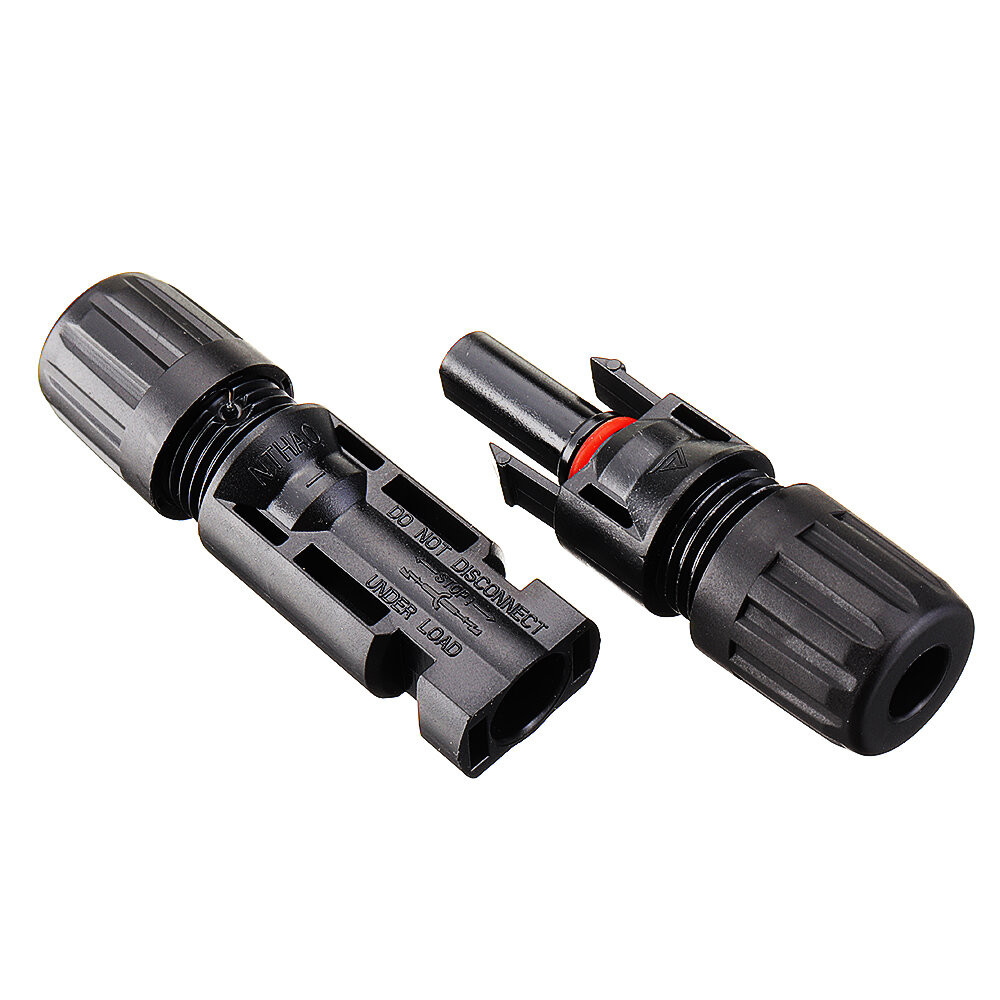

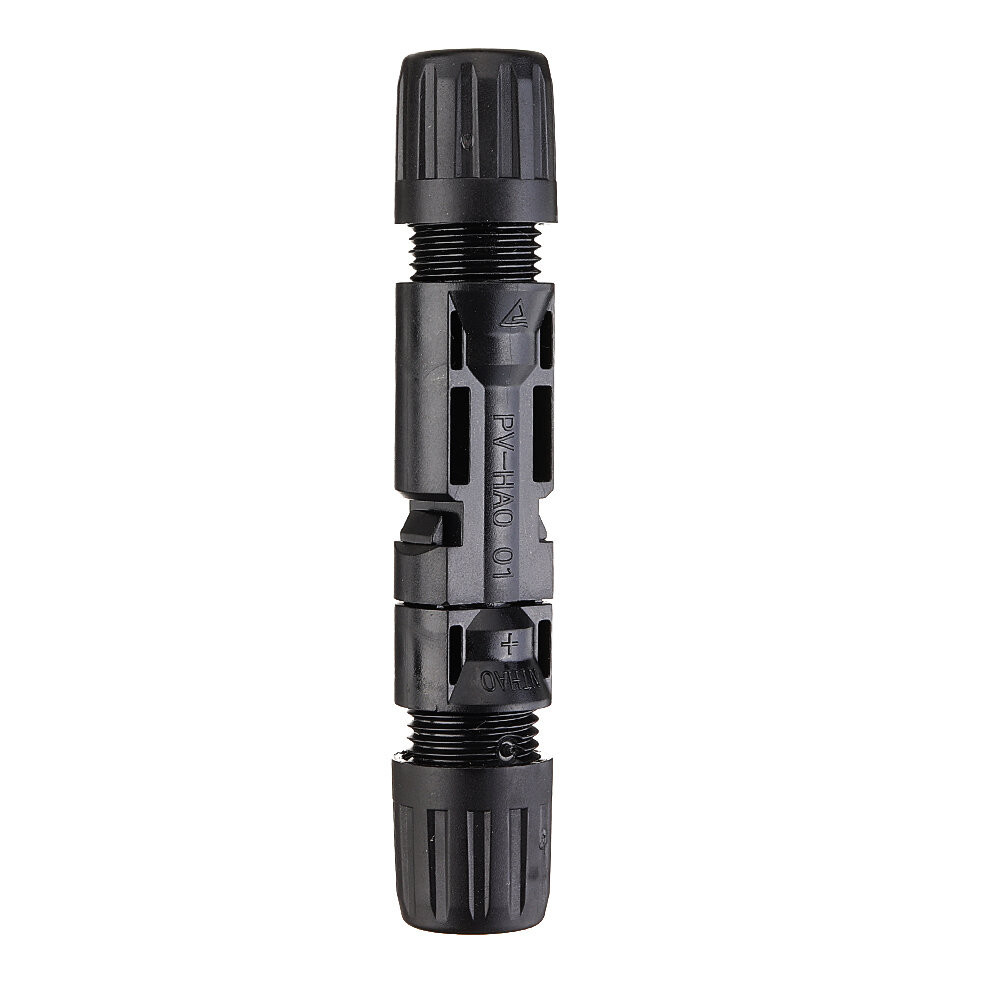

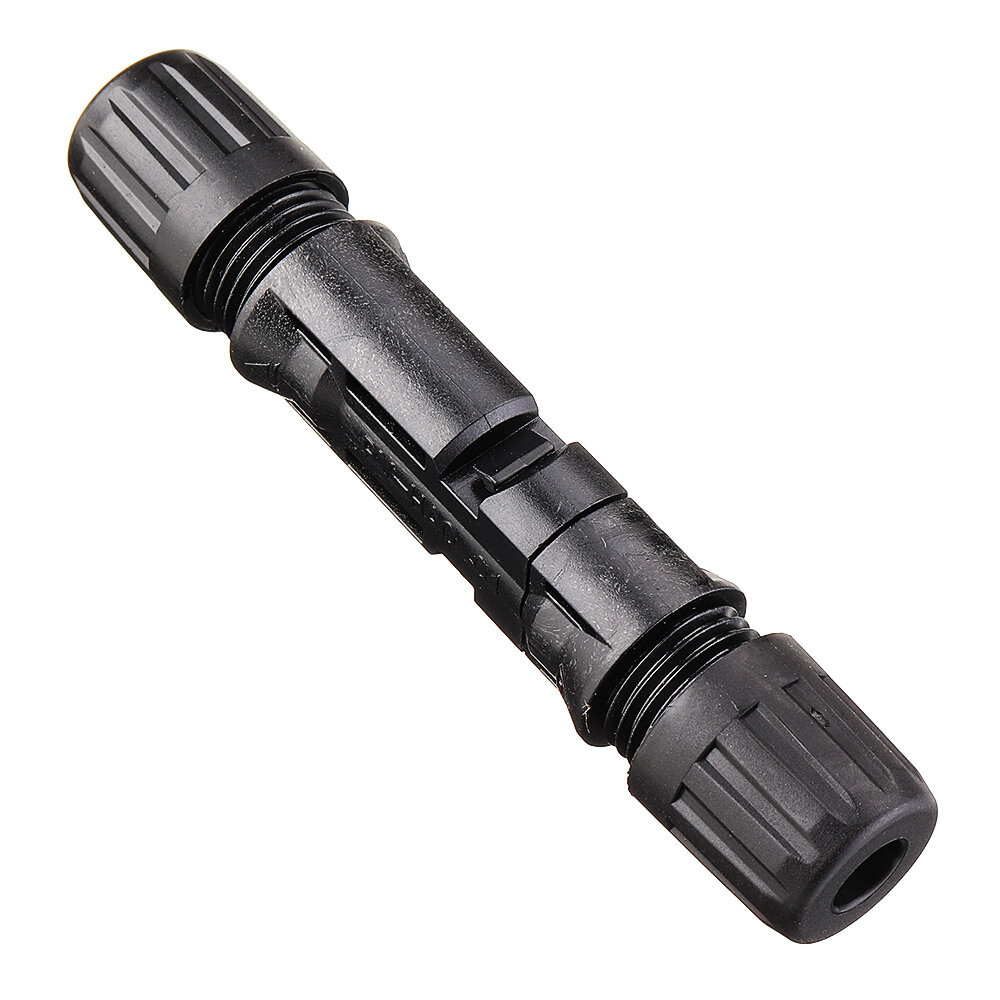

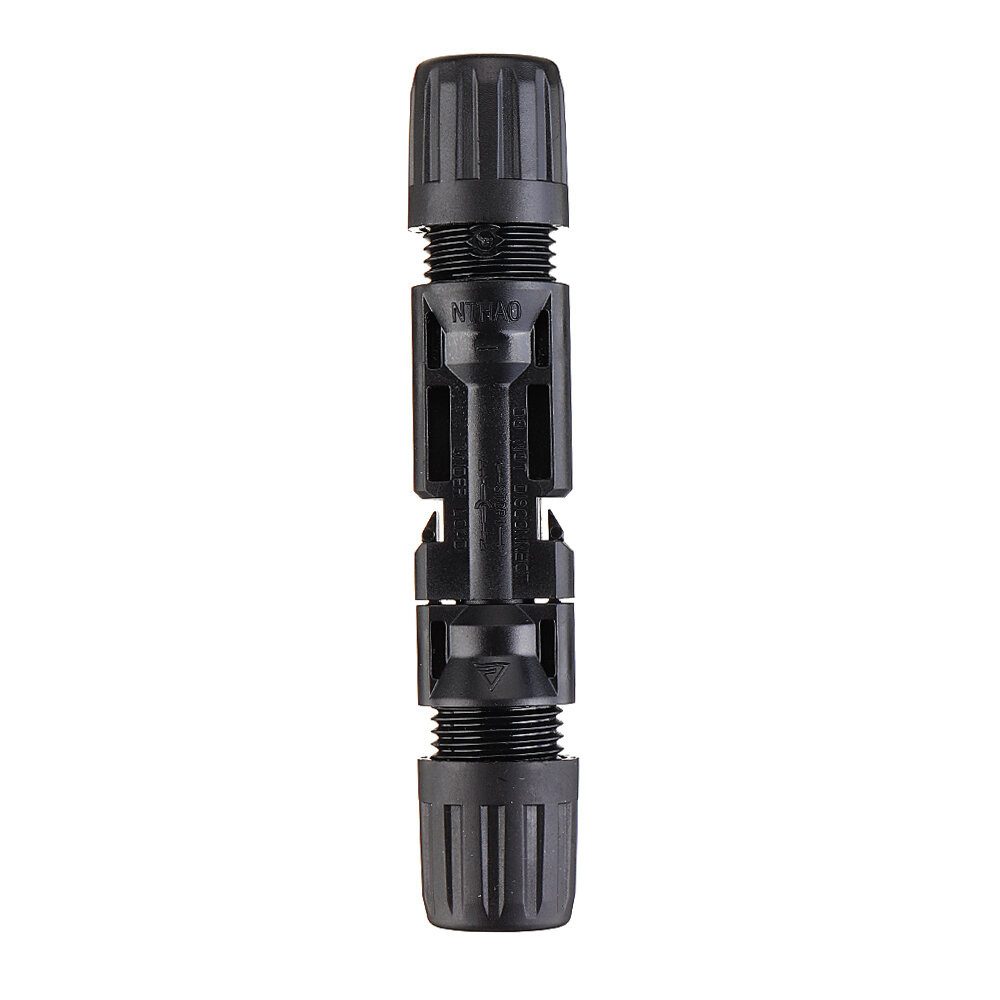

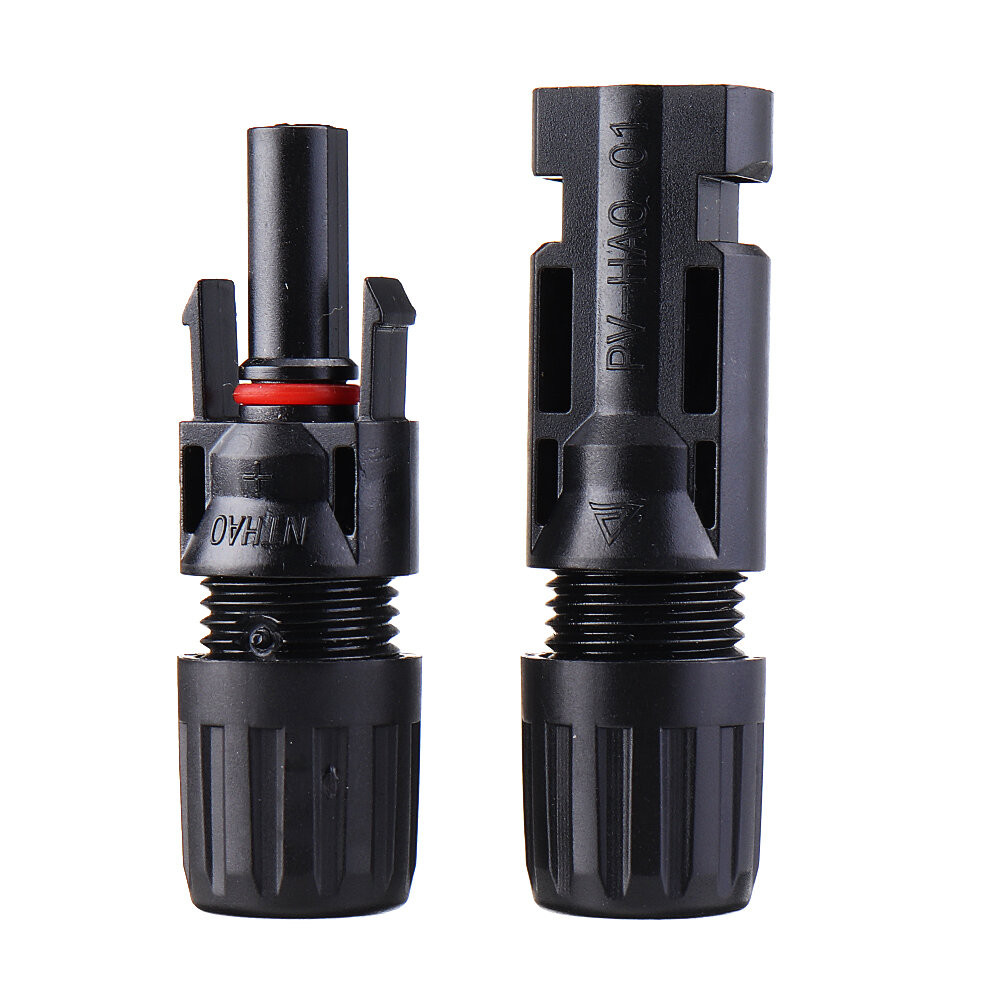

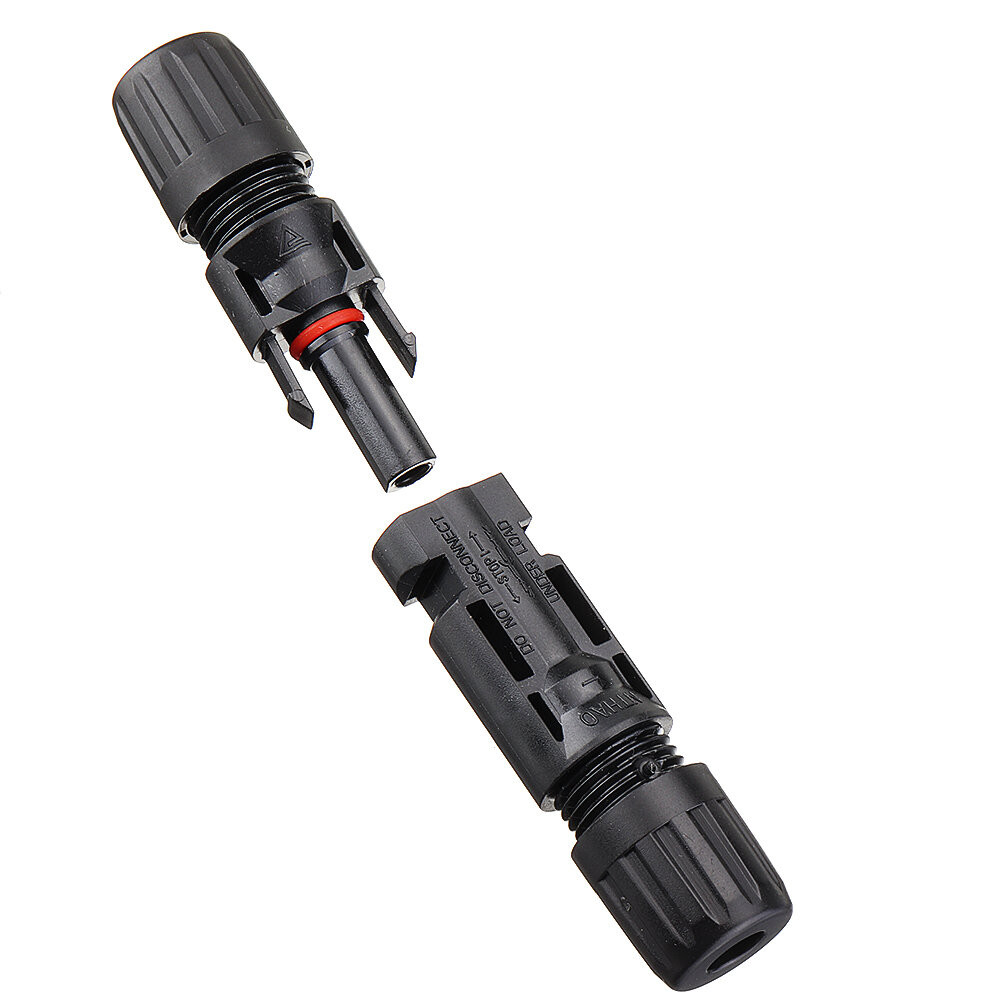

10pairs MC4 Connector+1pair Spanner Male Female 30A Cable Plug

10pairs MC4 Connector+1pair Spanner Male Female 30A Cable Plug MC4 Connector Solar Panel Branch Series Connect Solar System

Reference: BG0052-9691884

Condition: New product

100 Item Items Warning: Last items in stock!

$16.32

Quantity

More info

Description:

Item no: MC4
Rated voltage: 1000 V
Rated impulse voltage: 1000 V
Rated current: 24A - 14 AWG (2.5mm²;), 30A - 12 & 10 AWG (4mm²; & 6mm²;)
Test voltage: 6 kV (50 Hz)
Protection grade: IP67
Insulation material: PC/PA

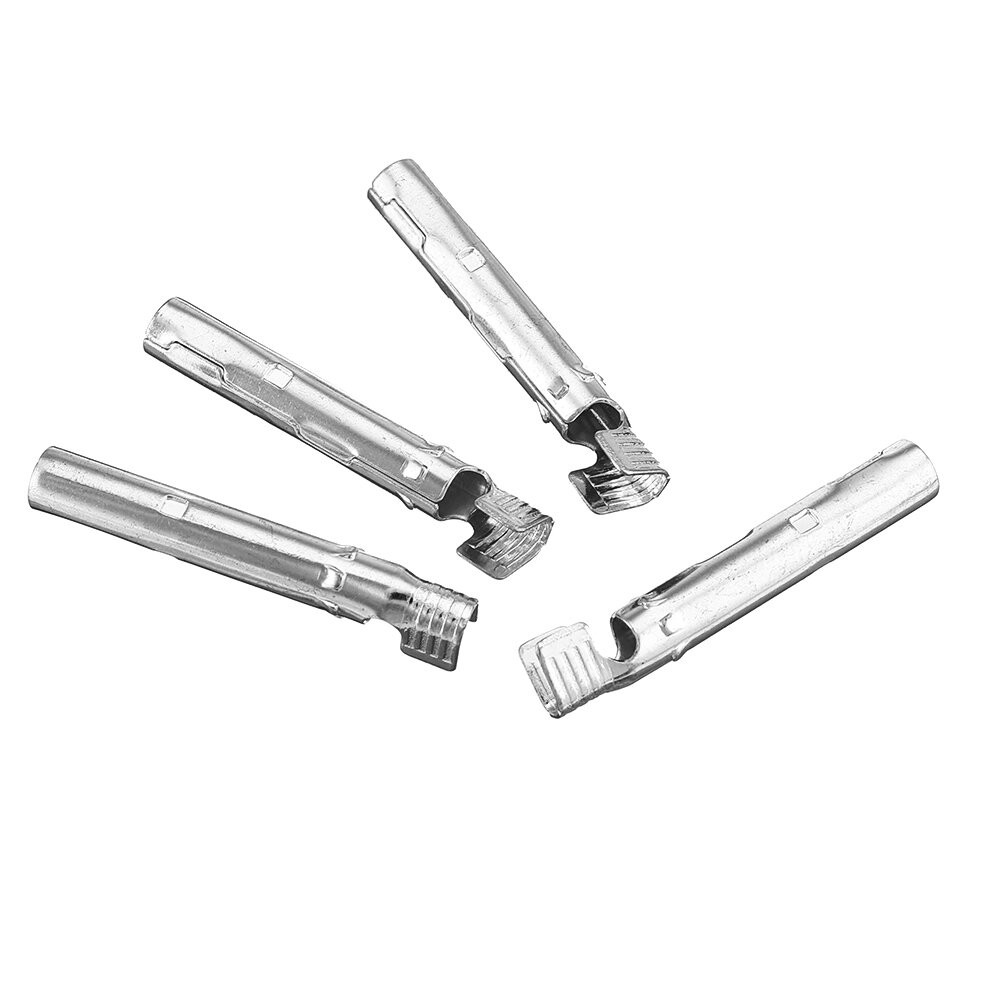

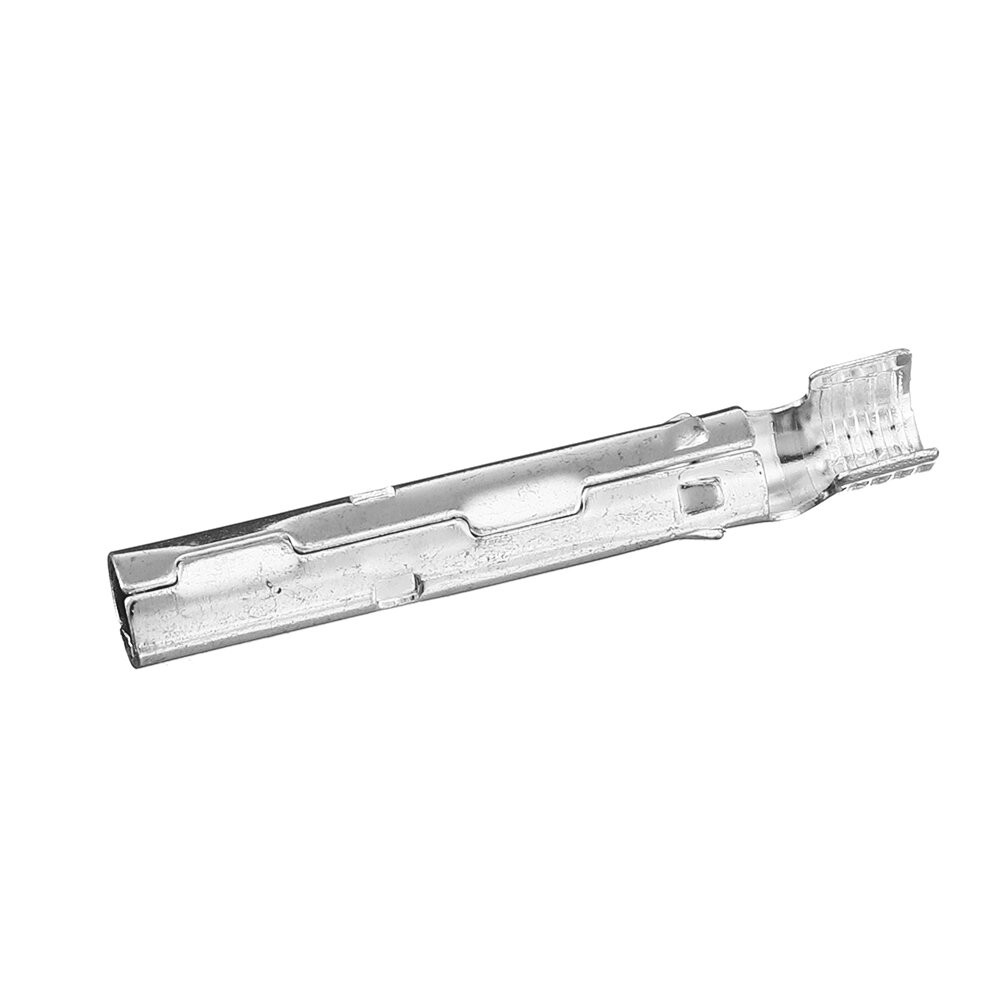

Contact material: Copper, silver-plated
Operating temperature: -40°C ~ +90°C
Safety class: II
Flame class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / Withdrawal force: ≤50N / ≥50N
Suitable for cables: 10, 12, 14 AWG (2.5mm²/4mm²/6mm²;)
Locking system: Snap-in

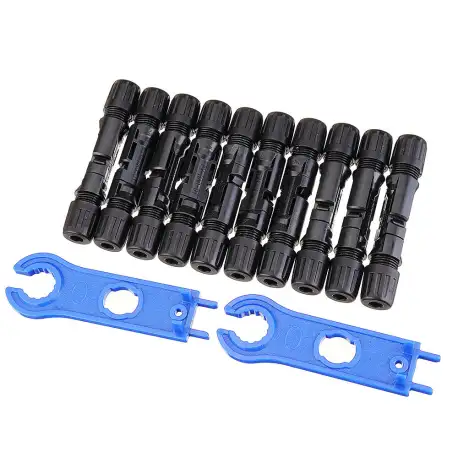

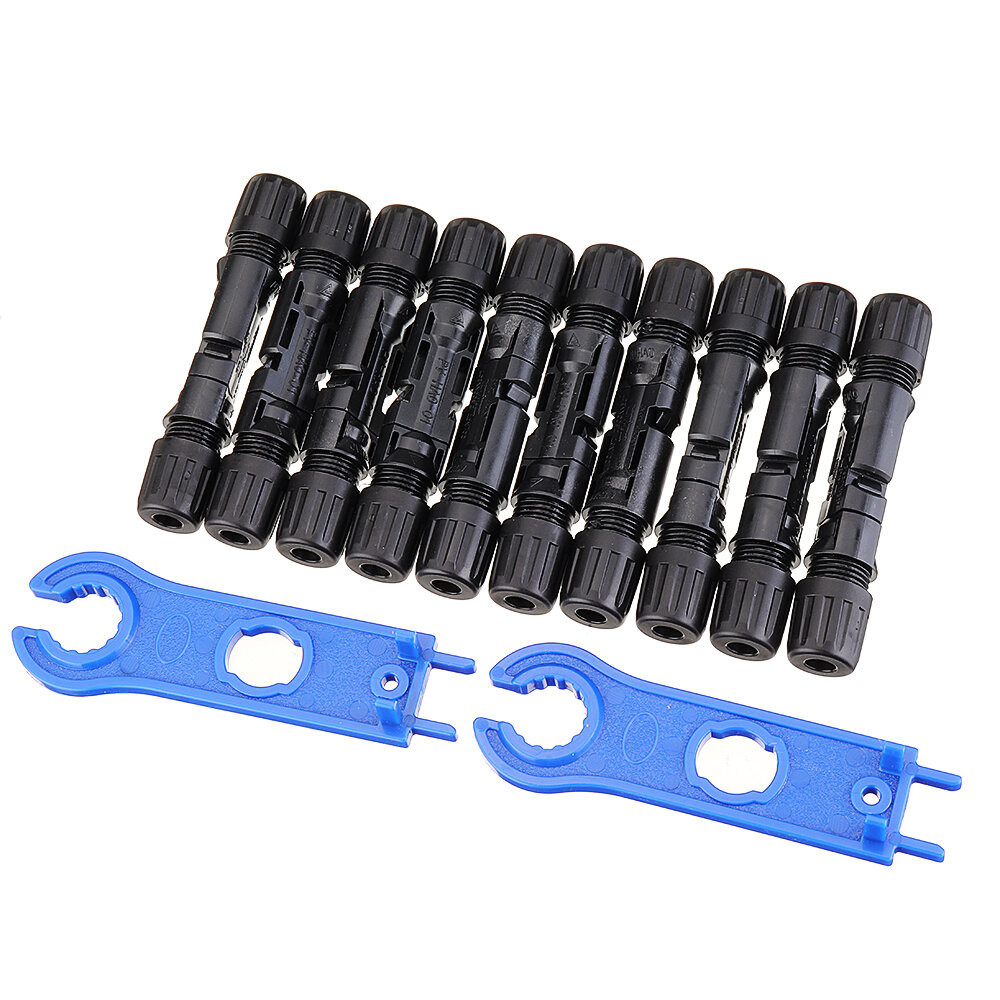

Package included:

10pairs x MC4 Connectors
1pair x MC4 Spanner
