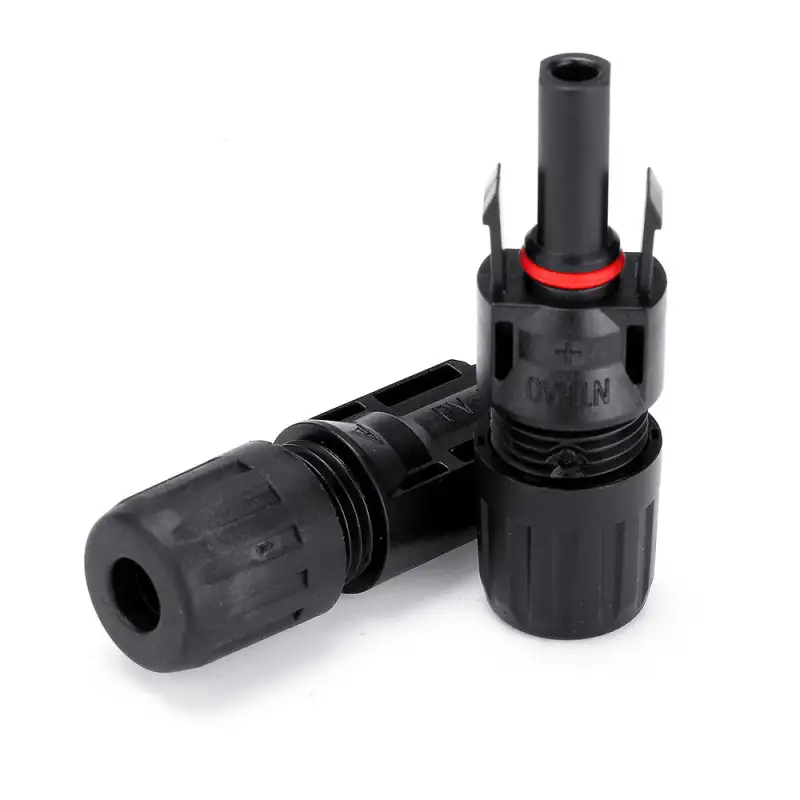

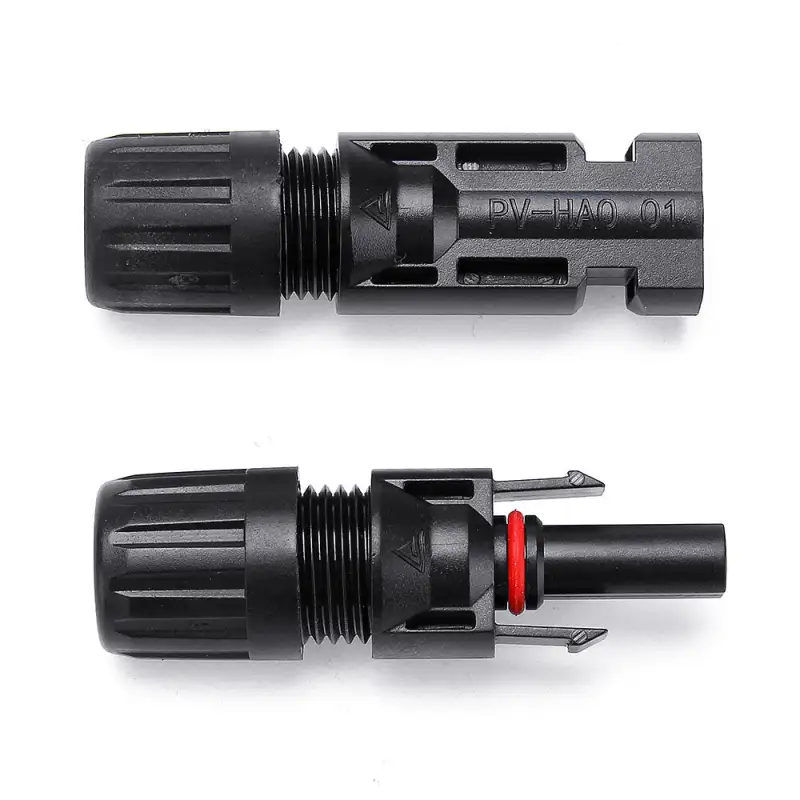

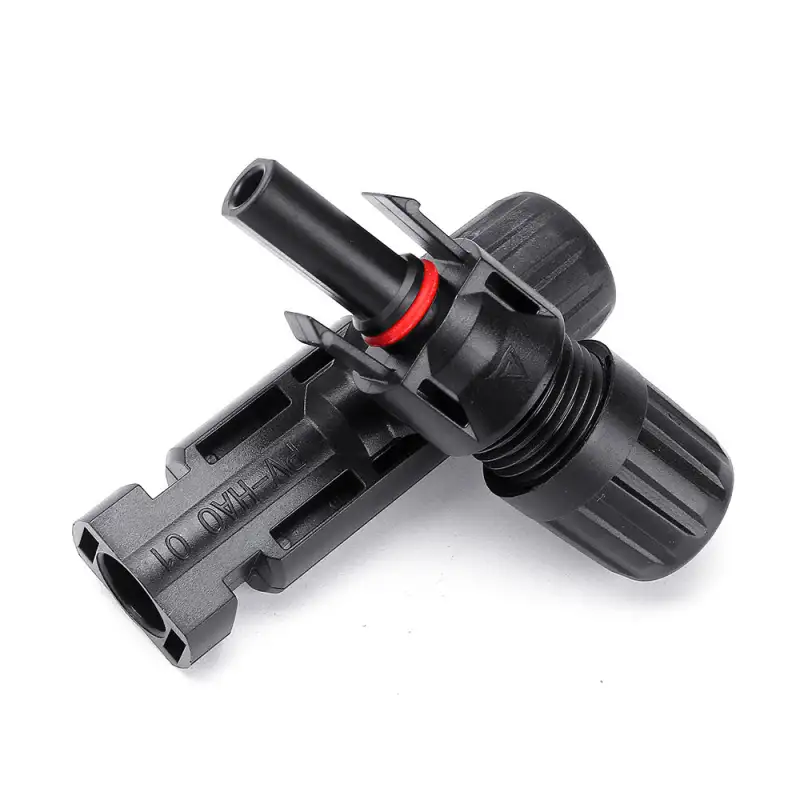

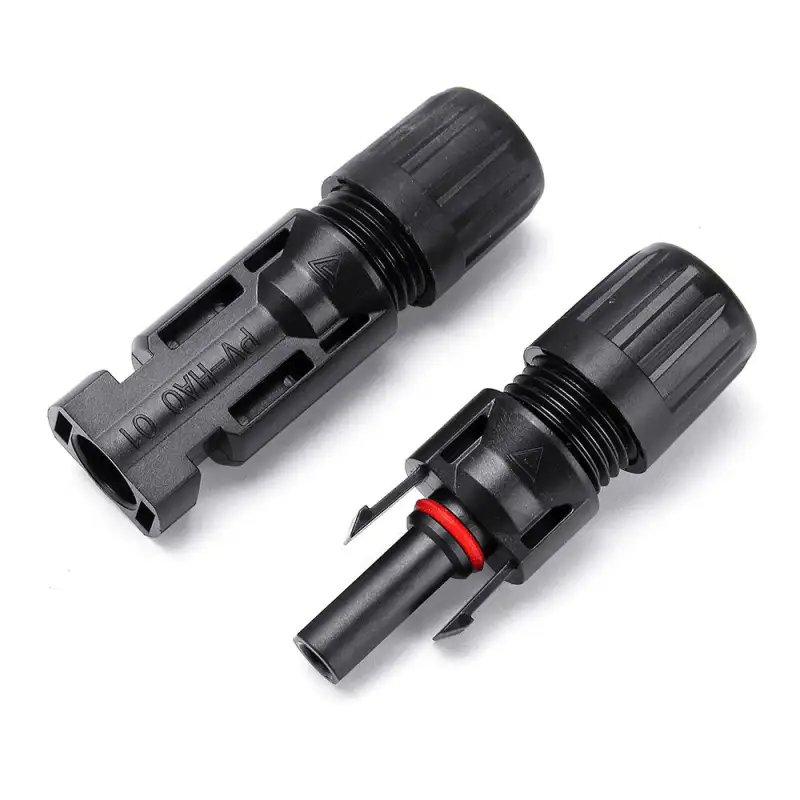

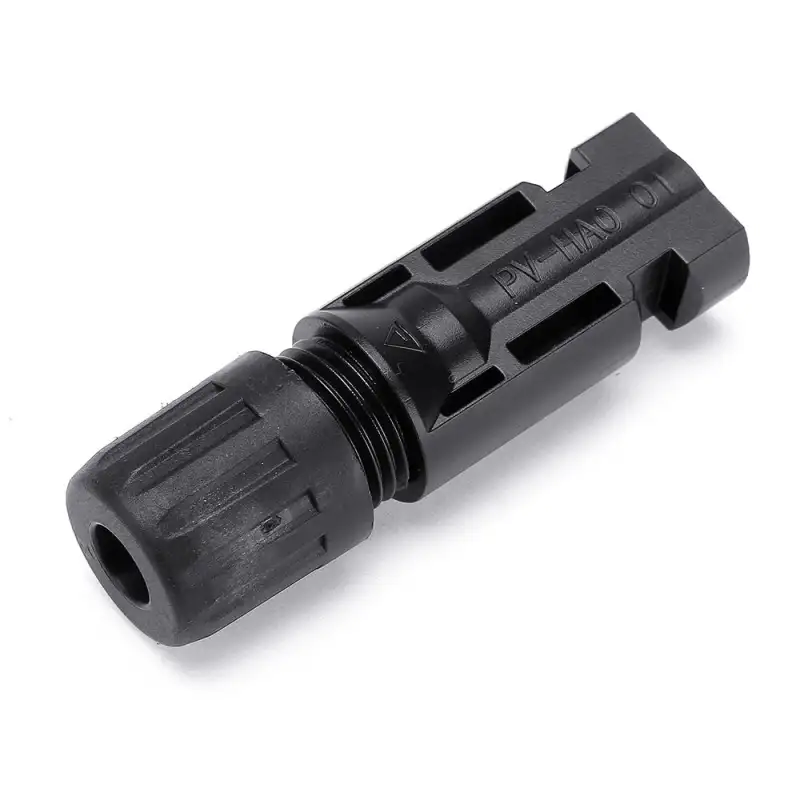

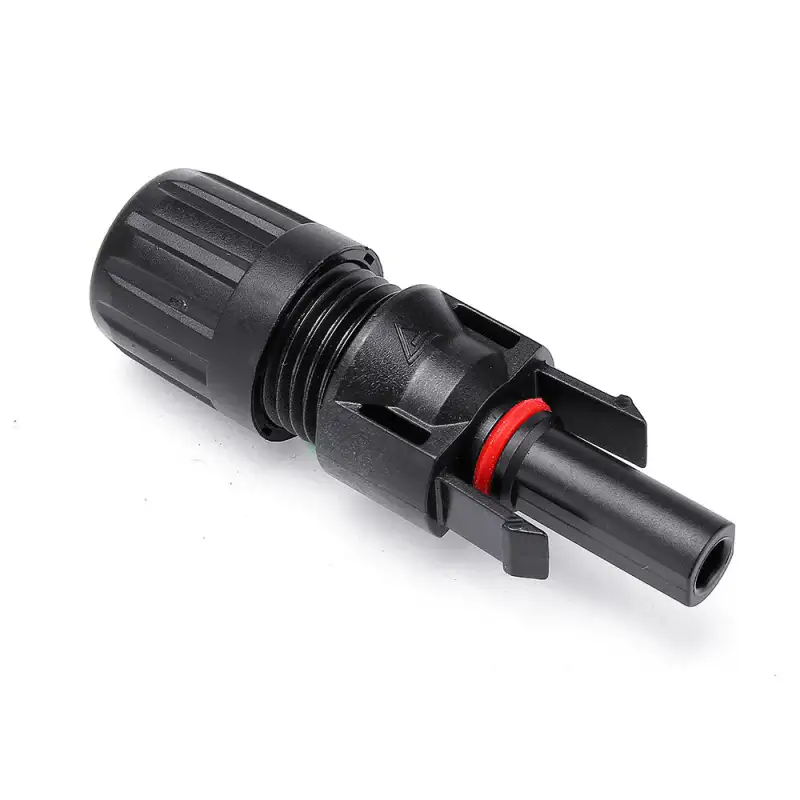

10Pairs MC4 Connector Male And Female MC4 Solar Panel Connector 30A 1000V For PV Cable 2.5/4/6mm Solar Panel Connect

Reference: BG0052-9095932

Condition: New product

100 Items

$13.05

More info

Specification:

Article number: MC4
Rated voltage 1000 V
Rated impulse voltage: 1000 V
Test voltage: 6 kV (50Hz)
Suitable for cables: 10, 12, 14 AWG (2.5mm2 / 4mm2 / 6mm 2;)
Rated current: 24 A-14 AWG (2.5mm 2;), 30A-12 and 10 AWG (4mm 2; and 6mm 2;)
Protection class: IP67

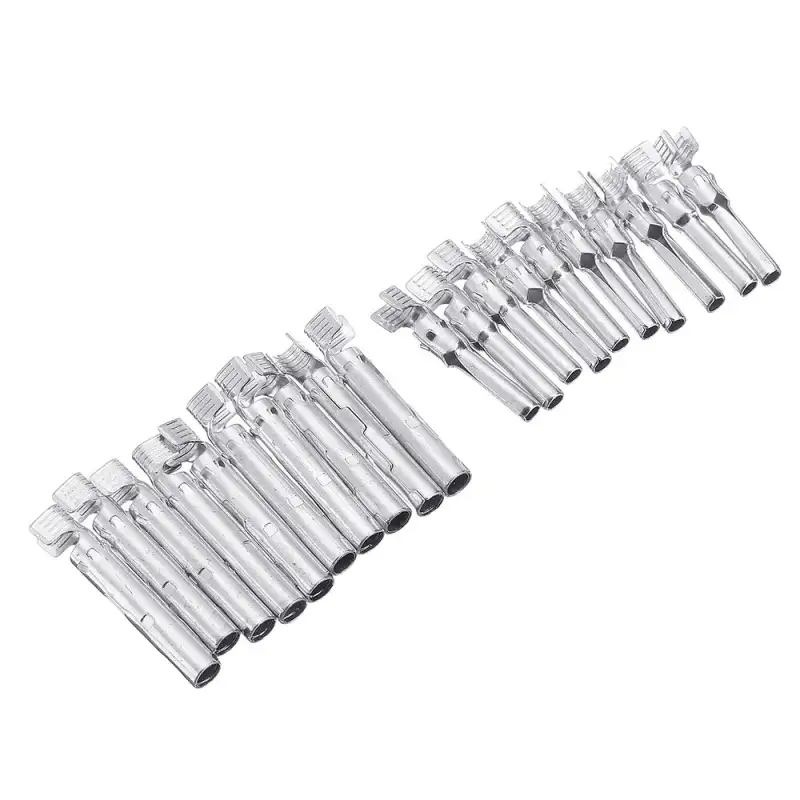

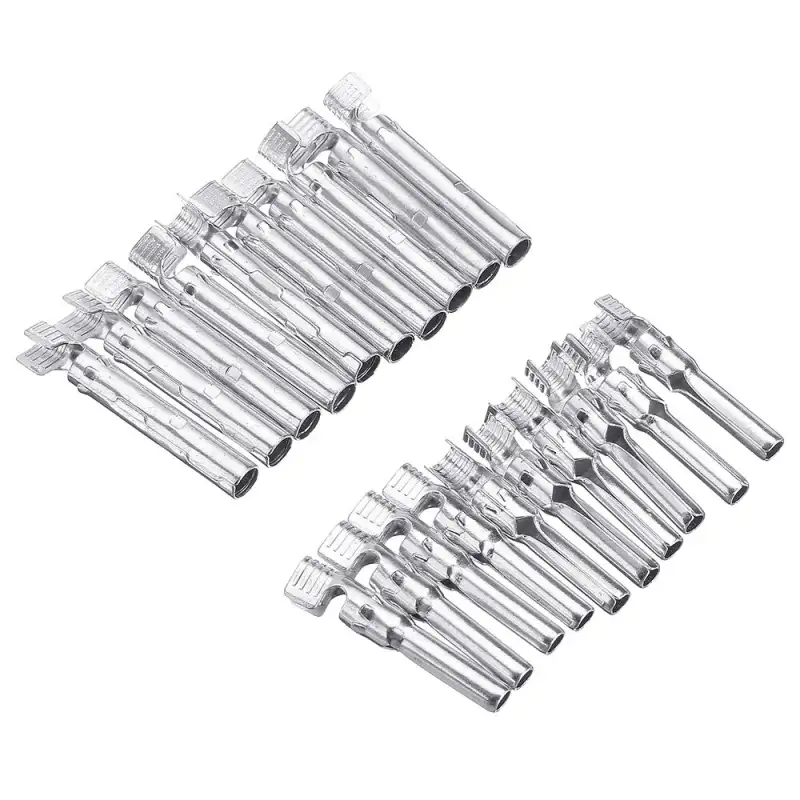

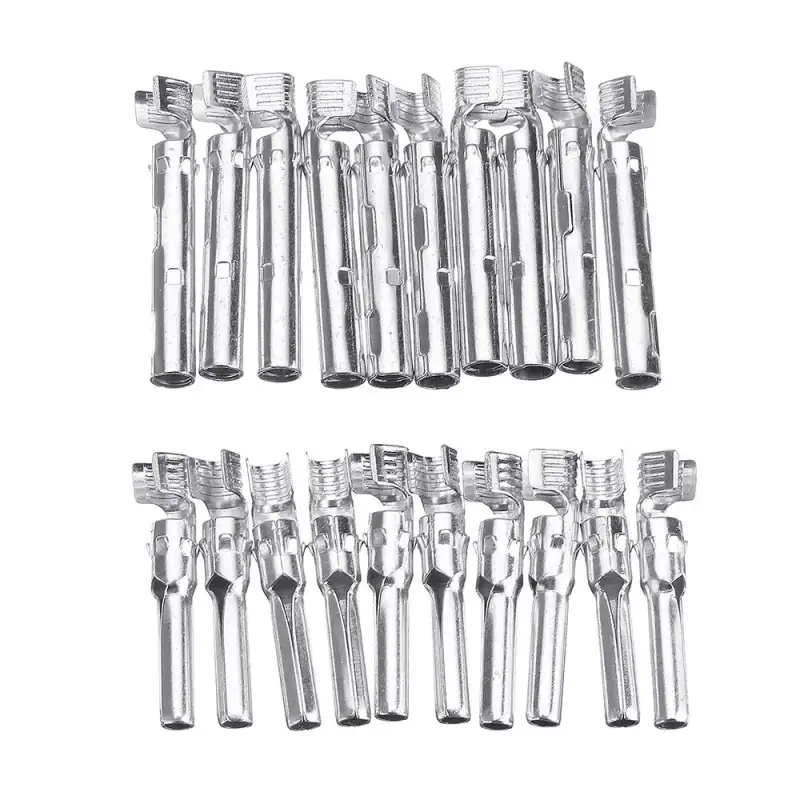

Contact material: copper, silver plated
Insulation material: PC / PA
Operating temperature: -40 ° C + 90 ° C
The security class: II
Flame Class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / withdrawal force: 50N / 50N
Locking system: snap fit

Package included:

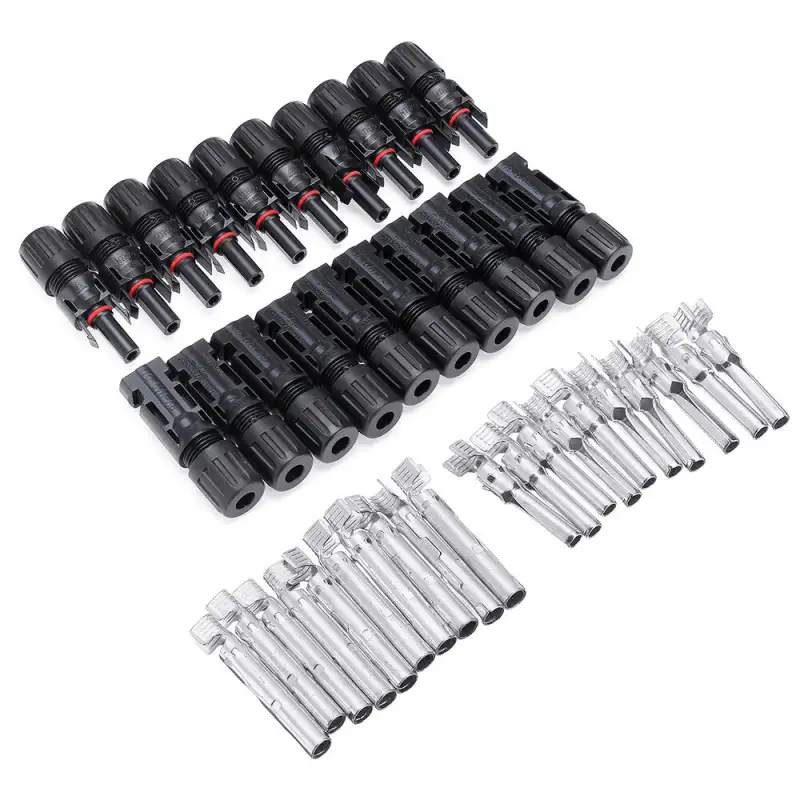

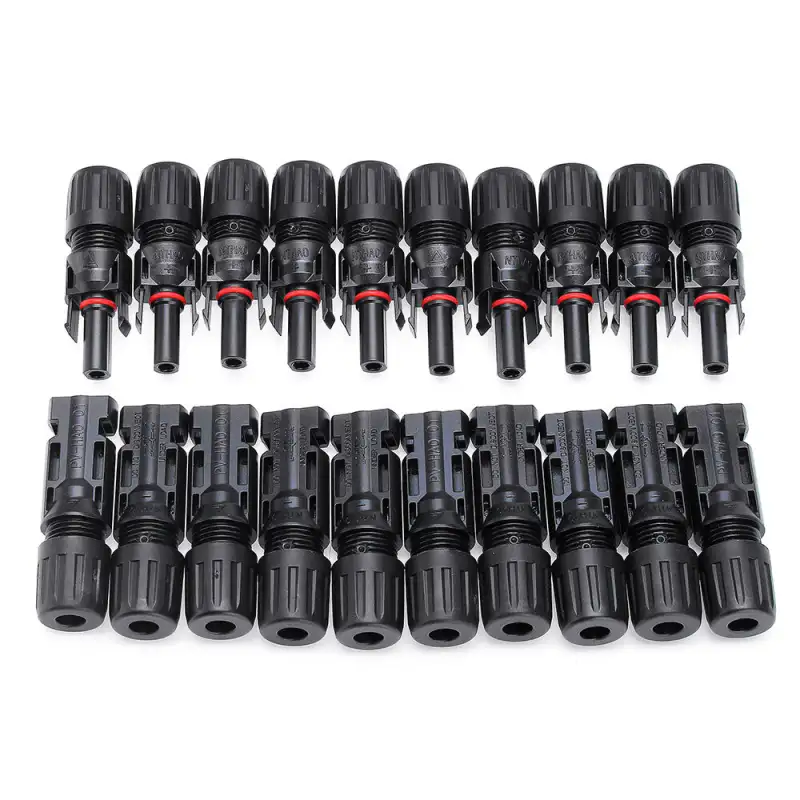

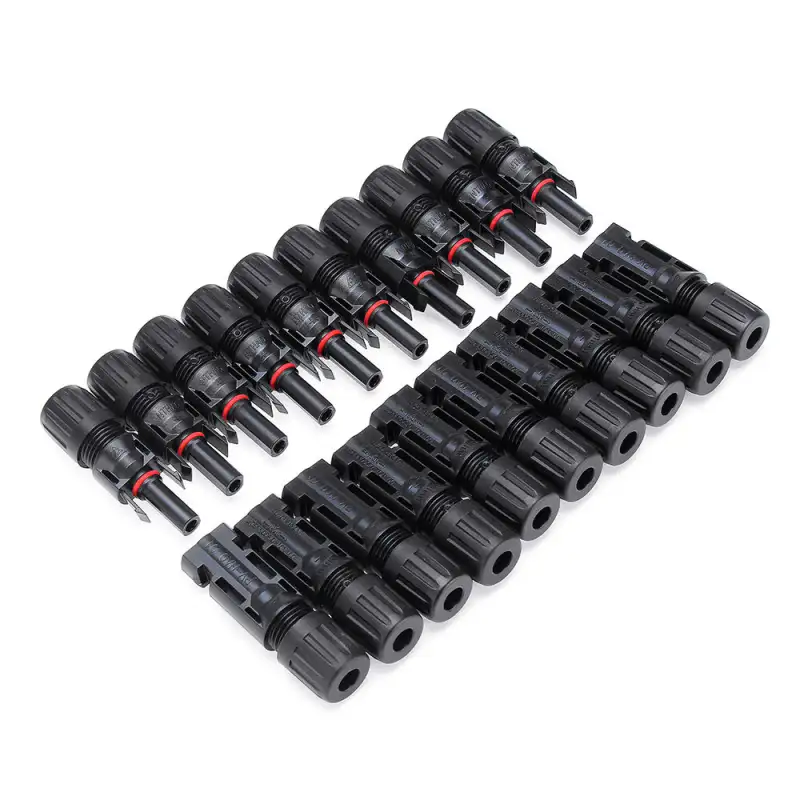

10 x Male And Female MC4 Solar Panel Connector
