Upgraded UNI-T UTD2102CEX+ High-precision 100MHz Desktop

Upgraded UNI-T UTD2102CEX+ High-precision 100MHz Desktop Digital Storage Oscilloscope Laboratory for Electronic Repairs

Reference: BG0052-9145671

Condition: New product

Features:

●100MHz bandwidth, 2 analog channels
●Sampling rate 1G S/s, storage depth 64kpts
●Waveform capture rate 5,000wfms/s
●Automatic measurement of 34 waveform parameters
●Wider display range 8div x 16div
●Standard square wave output with multiple frequencies: 10Hz, 100Hz, 1kHz, 10kHz
●Unique independent time base function
●Lissajous waveform phase measurement
●Support plug-and-play USB storage device, and can communicate with computer and remote control via USB


20 Items

$346.83

-12%

$394.13

More info

Specification:

Model  UNI-T UTD2102CEX+
Channels   2
Bandwidth 100MHz
Sample Rate 1Gs/s
Rise Time ≤3.5ns
Memory Depth 64kpts
Waveform Acquisition Rate ≥5000wfms/s
Vertical Sensitivity(V/div) 1mV/div~20V/div
Timebase Range(s/div) 2ns/div~50s/div
Storage Setup,Wave,Bitmap
Trigger Modes Edge, Pluse, Video,Slope,Alternate
Interface USB OTG, Pass/Fail
General Characteristic
Power 100-240VAC, 45-440Hz
Display 7 Inches 64K Color TFT LCD, 800×480
Product Color White and Gray
Product Net Weight 3.5 Kg
Product Size (W×H×D) 336mm ×164mm × 108mm
Standard Accessories Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 2 PCs
Standard Carton Measurement (L×W×H) 450mm× 420mm × 280mm

Package included:

1 x Digital storage oscilloscope
2 x Probes (1:1 and 10:1 can be switched)
1 x Power cable (160cm)(EU type)
1 x USB cable (140cm)
1 x English user manual
1 x Bag of parts
1 x CD


Note:

We will send you a plug adapter according to your country.

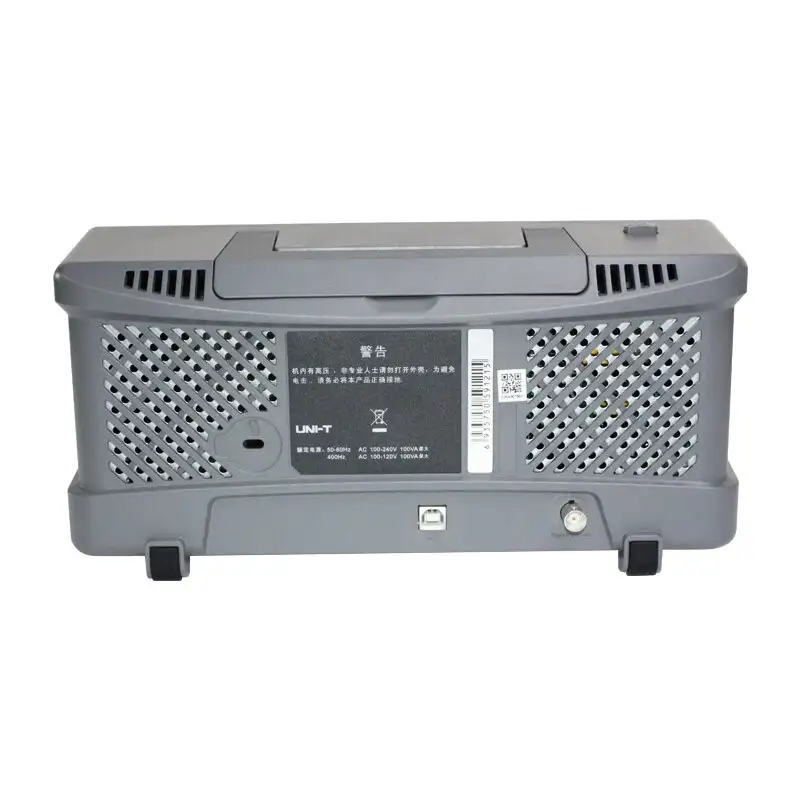

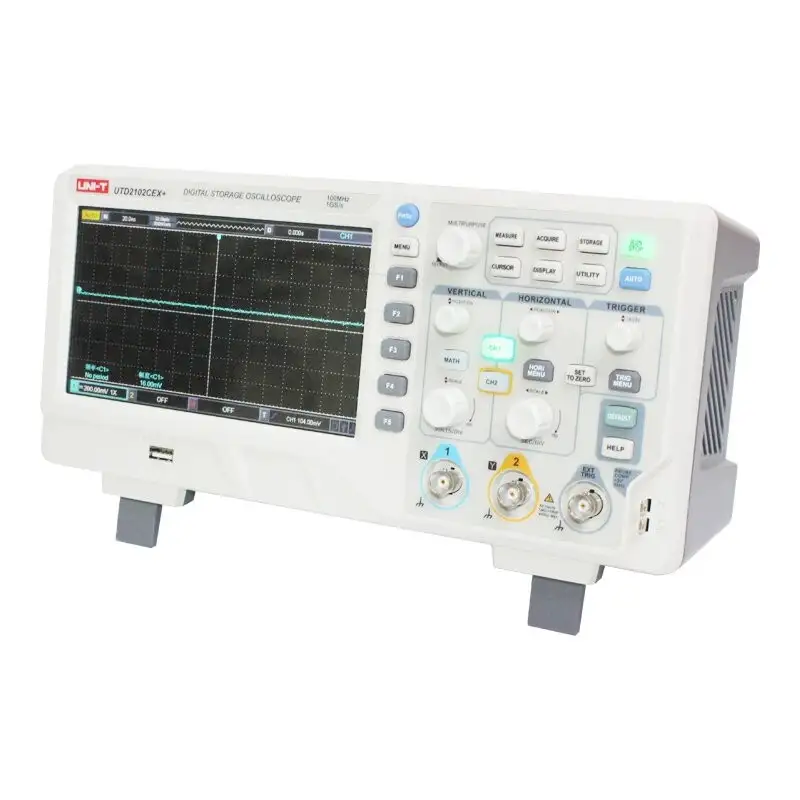

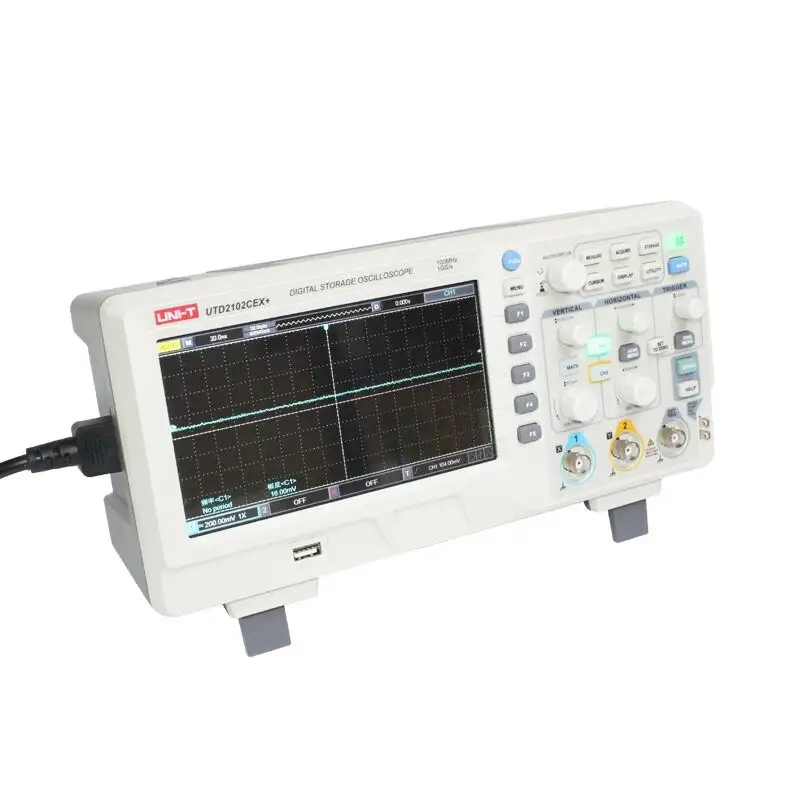

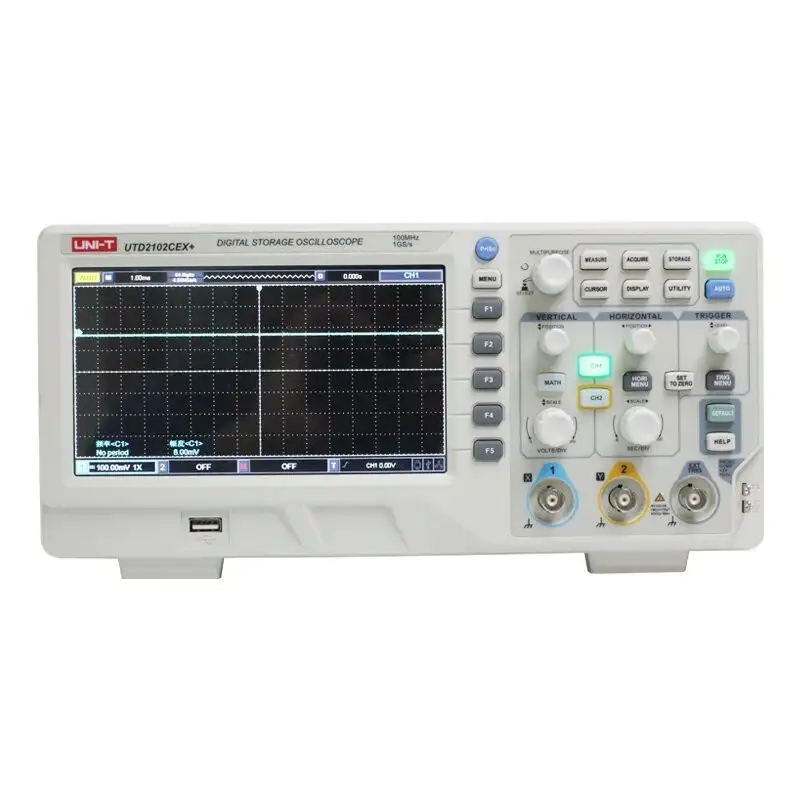

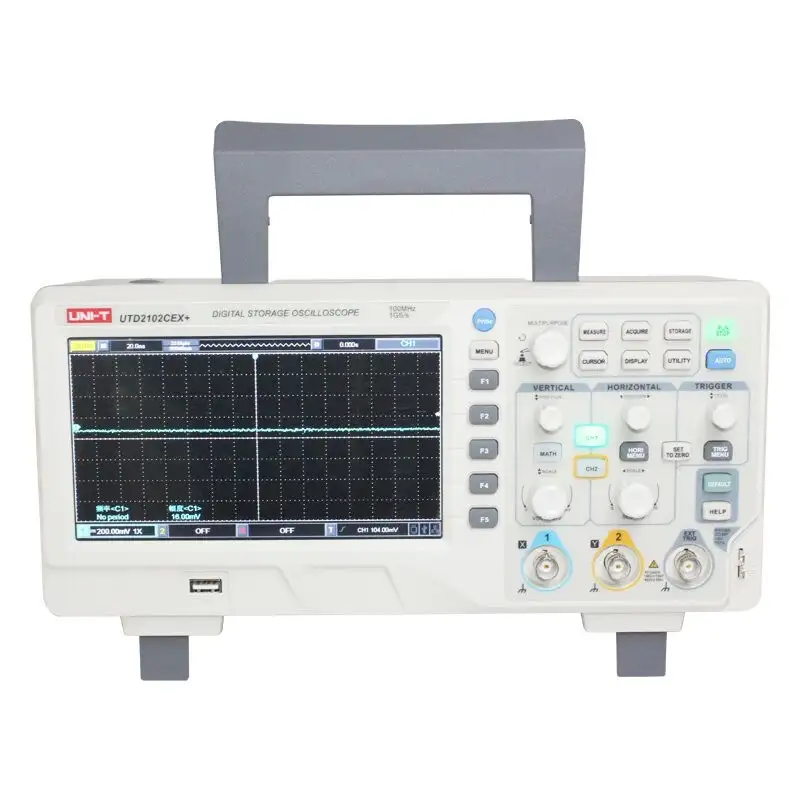

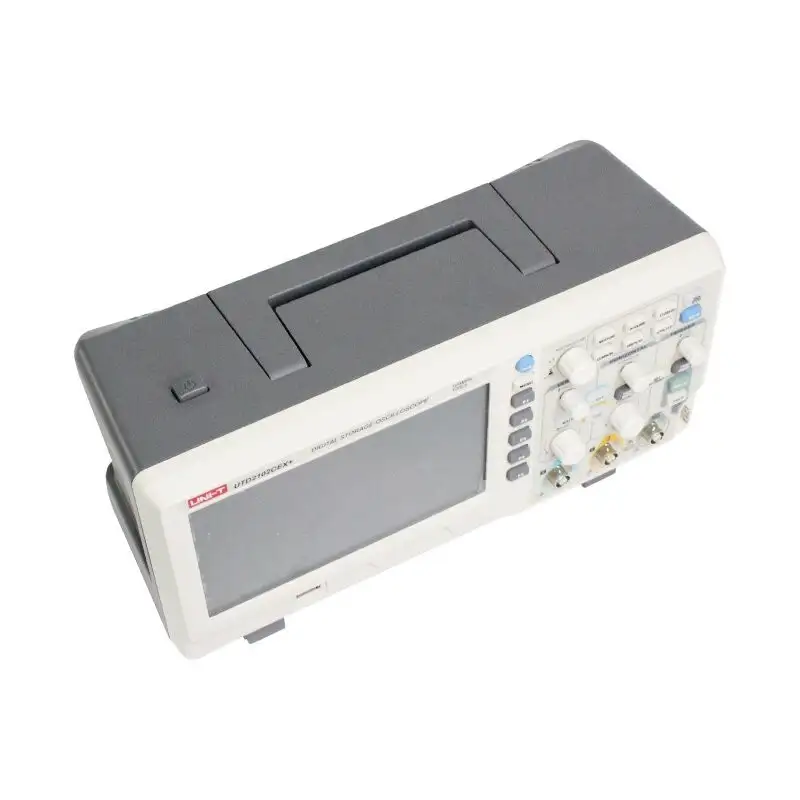

Details pictures:
