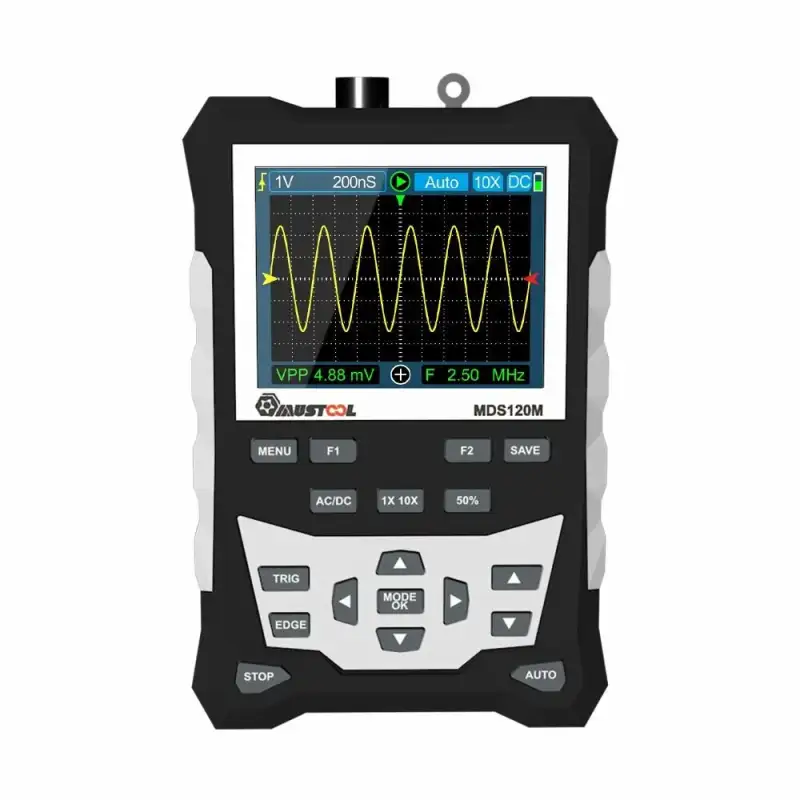

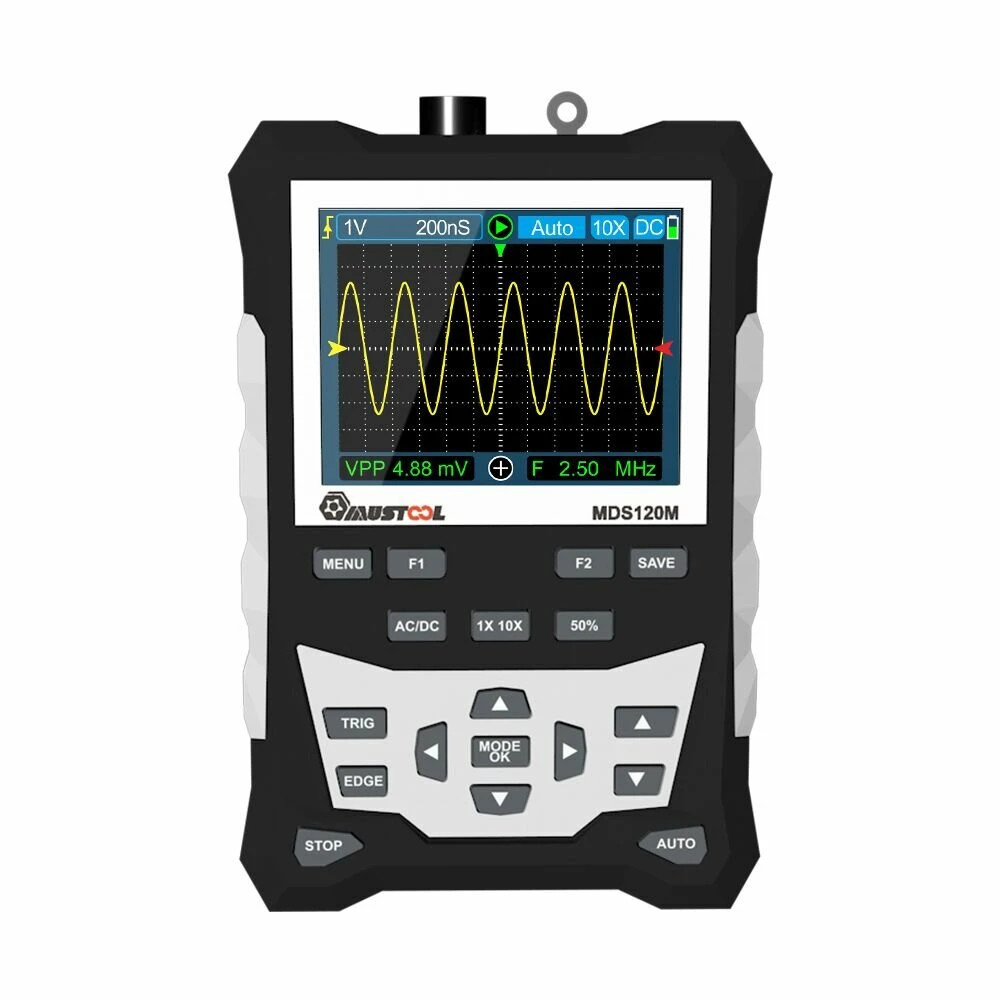

MUSTOOL MDS120M Professional Digital Oscilloscope 120MHz Analog Bandwidth 500MS/s Sampling Rate

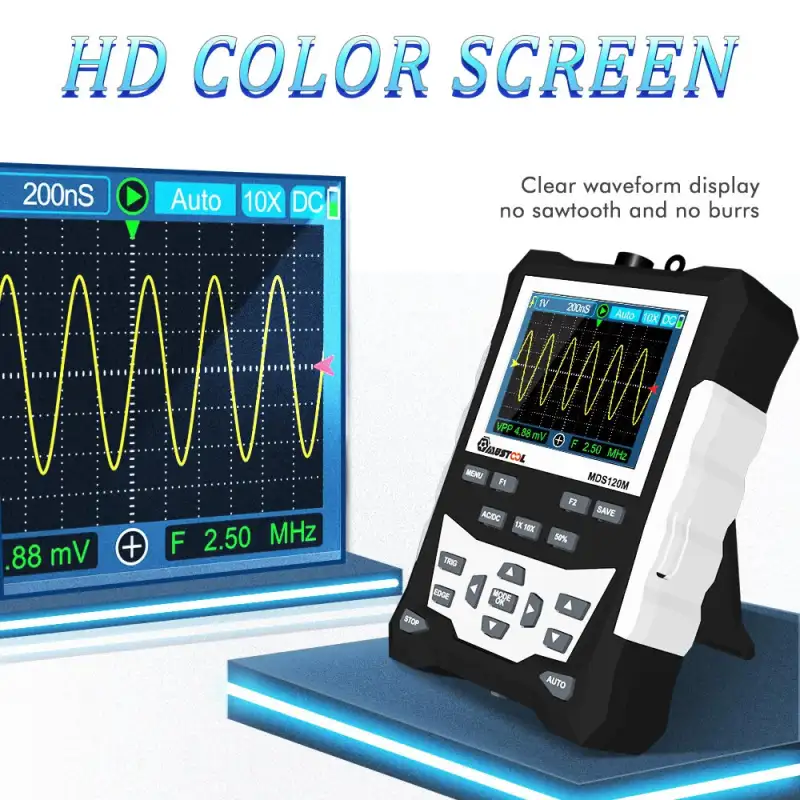

Display

320x240 LCD screen

Display area

50mm x 40mm

Backlight

White, brightness adjustable

Impedance

 x1: 1MΩ / x10: 10MΩ

Battery

 18650 lithium battery

Auto shutdown

No operation for 15 minutes

Storage

2500 DSO waveforms

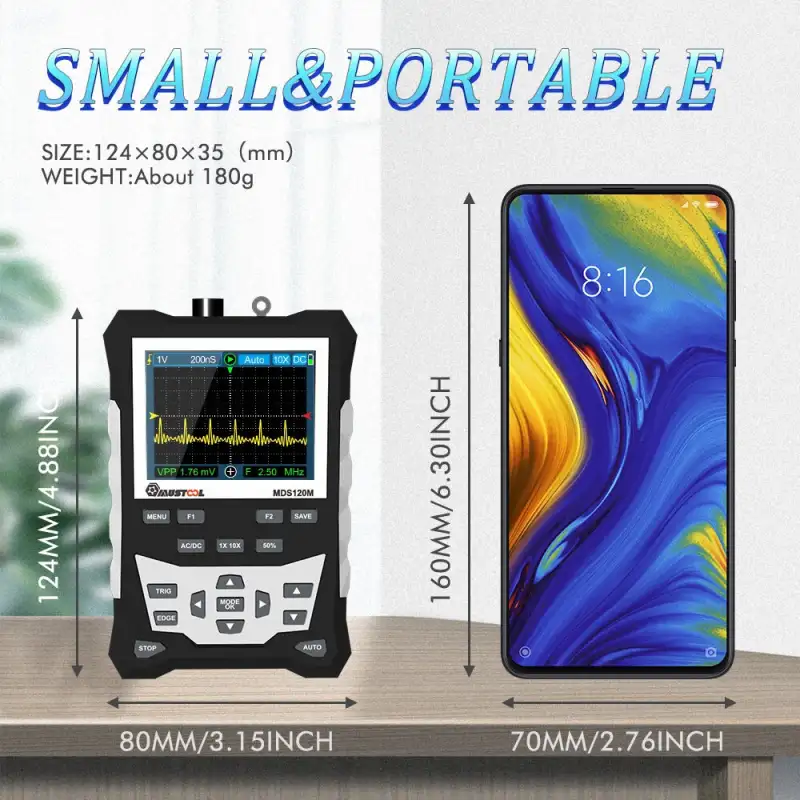

Size

 124 X 80 X 35mm

Use conditions

 0C~ +40℃; < 75%RH

Storoge conditions

 -10C~ +60℃; < 90%RH

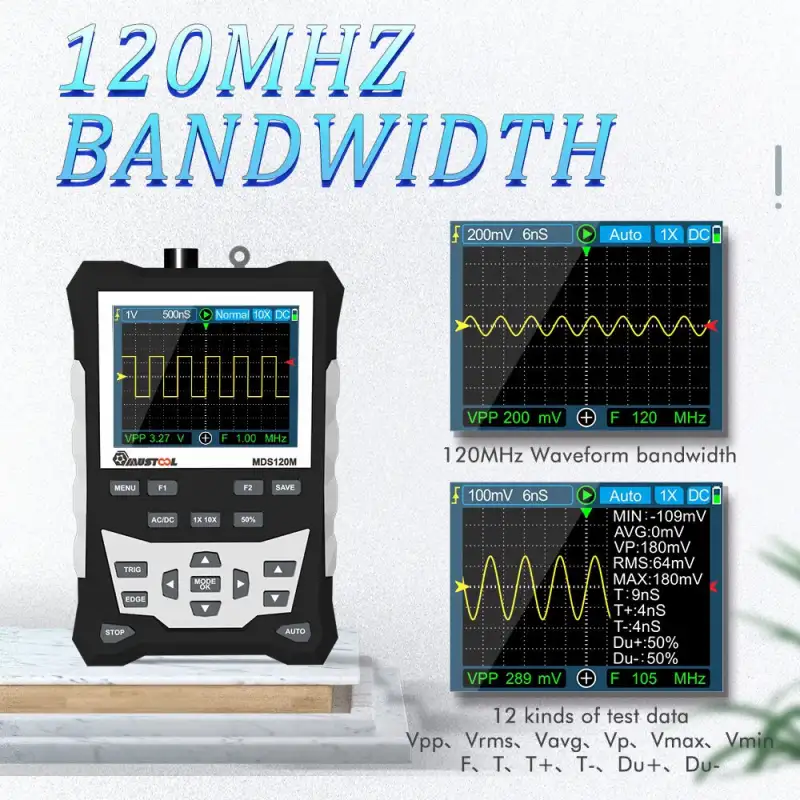

Analog bandwidth

120MHz

Vertical resolution

8 bits

Vertical accuracy

 ±(5%+ 0.2div)

Auto zero reference

During DC meosurement

Trigger level

 ±3.8div (0. 1div per step)

Trigger position

± 6div (0. 1div per step)

Cursor function

 △V, △t, 1 / △t

Measuremer couocyy

 ±(5%+ 0.2div)

Non. linearity

 ±1 bits

Coupling method

 DC/AC

Division

Verical: ±3.8 Horizontal:12

Time base range

 6ns/div ~ 50s/div

Time base accuracy

 ±(0.01%+0.1div)

Scan mode

Auto/Single/Normal

Trigger slope

 Rising / Falling

Record length

 12div

Maximum real-time sampling rate

 500MSps

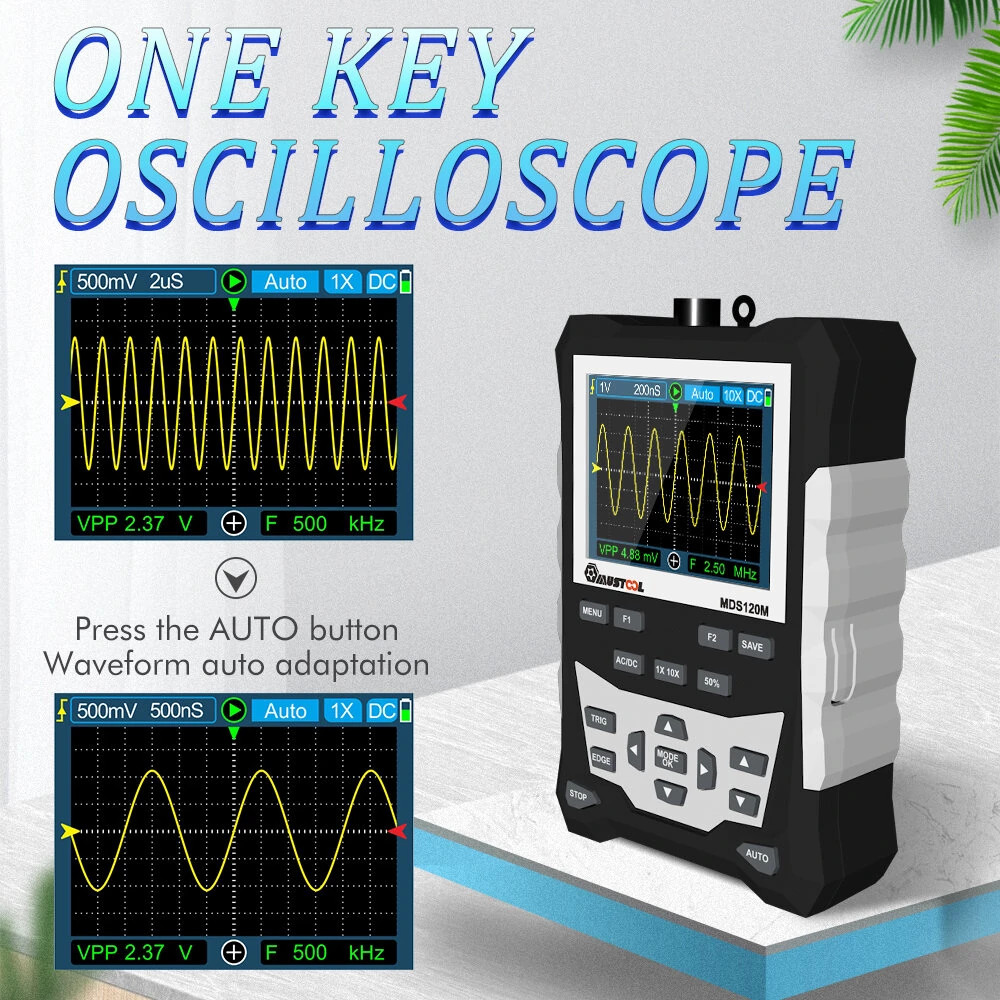

Auto configuration

 Automatically set time base and vertical amplitude

Aulomatic measurement function

Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-

Vertical sensifvity range

x1: 50mV/div ~ 10V/div ; x 10: 500mV/div ~ 100V/div
