Reference: BG0052-9563933
Condition: New product
● Select measurement function and range automatically.
● Max. voltage between measurement terminal and ground: 600V DC or 600V AC
● Max. display value: 6000 digit.
● Sampling time: About 3 times/second.,bargraph 10 times/second
● Automatic shutdown time: 15 minutes
● Temperature coefficient: Less than 0.1×accuracy/℃.
● Operating temperature: 18℃ ～ 28℃.
● Storage temperature: -10℃ ～ 50℃.
17 Item Items Warning: Last items in stock!
Availability date:
Features:
Manual + Atuo test6000 counts digital displayTrue RMSAC DC Voltage MeasurementAC DC Current MeasurementContinuity measurementResistance measurementDiode testCapacitance measurementTemperature measurementFrequency measurement
| Range | Resolution | Accuracy | |
| AC current | 6000mA | 1mA | ± (1.0% reading + 8 digits) |
| 10 A | 0.01 A | ||
| DC current | 6000mA | 1mA | ± (1.0% reading +5digits) |
| 10 A | 1mA | ||
| DC voltage | 6V | 0.001V | ± (0.5% reading + 3 digits) |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| AC voltage | 6V | 0.001V | ±(0.8% reading + 5 digits) |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| Line on-off test | 1Ω | If resistance of the line | |
| being measured is less than | |||
| 50Ω, buzzer in instrument | |||
| will make continuous | |||
| alarming sounds. | |||
| Resistance | 6000 | 0.1Ω | ± (0.8% reading + 3 digits) |
| 6kΩ | 0.001kΩ | ||
| 60kΩ | 0.01kΩ | ||
| 600kΩ | 0.1kΩ | ||
| 6MΩ | 0.001MΩ | ||
| 60MΩ | 0.01MΩ | ||
| Diode test | 1 V | 0.001V | Testing current ：about 1mA |
| Open circuit voltage :about 2.8V | |||
| The display shows an | |||
| approximation of the diode | |||
| forward pressure drop | |||
| Temperature | -40~1000 °C | 1°C | ± (1% reading +3°C) |
| -40-1832 °F | 1°F | ± (1% reading +3℉) | |
| Frequency | 100.0 Hz | 0.1Hz | 土（ 1.0%reading+ 5digits) |
| 1000Hz | 1Hz | ||
| Capacitor | 6nF | 0.001nF | 士( 10%reading + 40 digits) |
| 600nF | 0.1nF | ±( 2.5%reading+ 20 digits) | |
| 6uF | 0.001 uF | ||
| 60uF | 0.01 uF | ||
| 600uF | 0.1uF | ||
| 6mF | 1 uF | ||
| 60mF | 0.01mF |

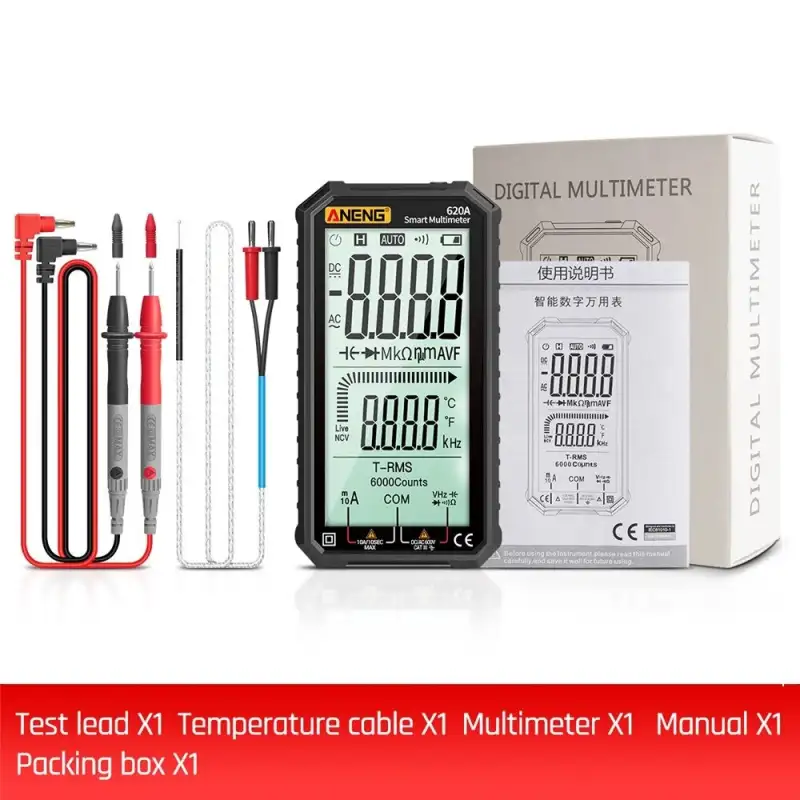

Package Include：
1 x Multimeter1 x Pair of Test Leads 1 x Temperature Cable1 x English User Manual1 x Packaging Box
