Reference: BG0052-9852798
Condition: New product
50 Item Items Warning: Last items in stock!
Availability date:

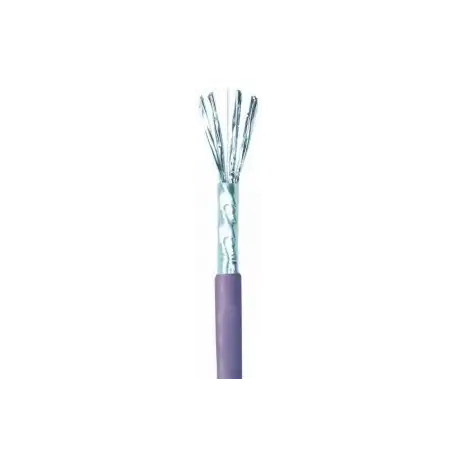

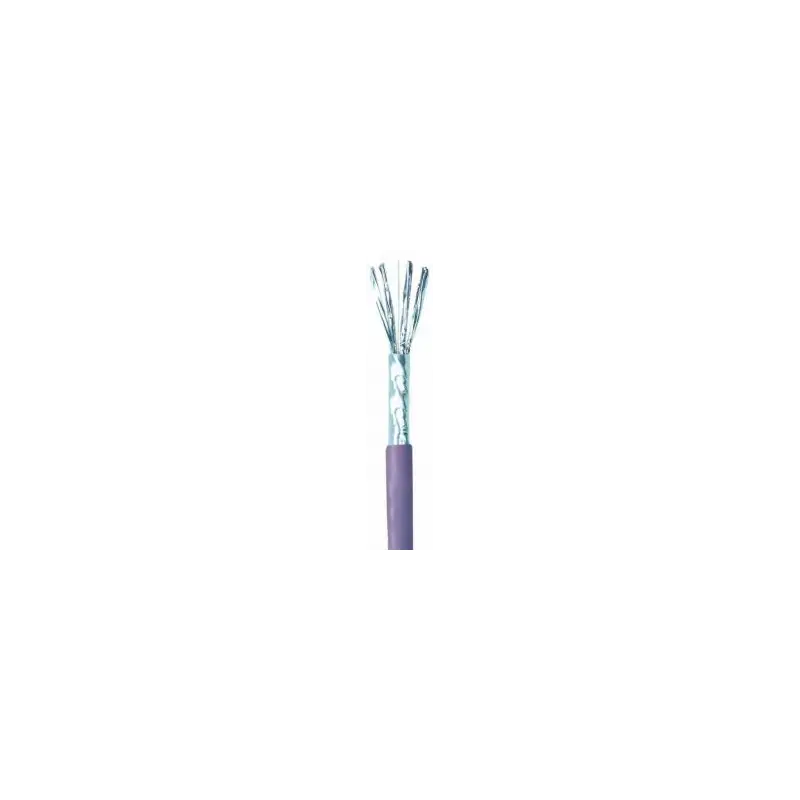

Molex PowerCat 6A F/FTP cable is specifically designed to support high-speed data network applications such as 10-Gigabit Ethernet (10G BASE-T). The cable is constructed of 4 screened pairs surrounded by an overall foil shield and a drain wire enclosed in a LS0H Dca-s2,d2,a1 sheath. This cable minimizes alien crosstalk and provides superior electromagnetic interference (EMI) protection.
Molex recommends that the full range of PowerCat 6A shielded products are used in an installation to maximize system performance.
MECHANICAL
Basic Conductor: Solid, 23AWG, 0.56 mm, bare annealed copper
Individual pair shield: Laminated aluminum foil (foil face outward) providing 100% coverage
Overall shield: Polyester-aluminum tape (foil face inward) providing 100% coverage
Drain Wire: Al/Mylar
Outer Jacket: LS0H
Velocity of Propagation: 78%
Pulling Force: 110N max.
Short Term Bend Radius: 8xOD mm
Long Term Bend Radius: 4xOD mm
Storage and operating temperature: -20° to +75°C
Outer diameter: 7.7 +/-0.05mm

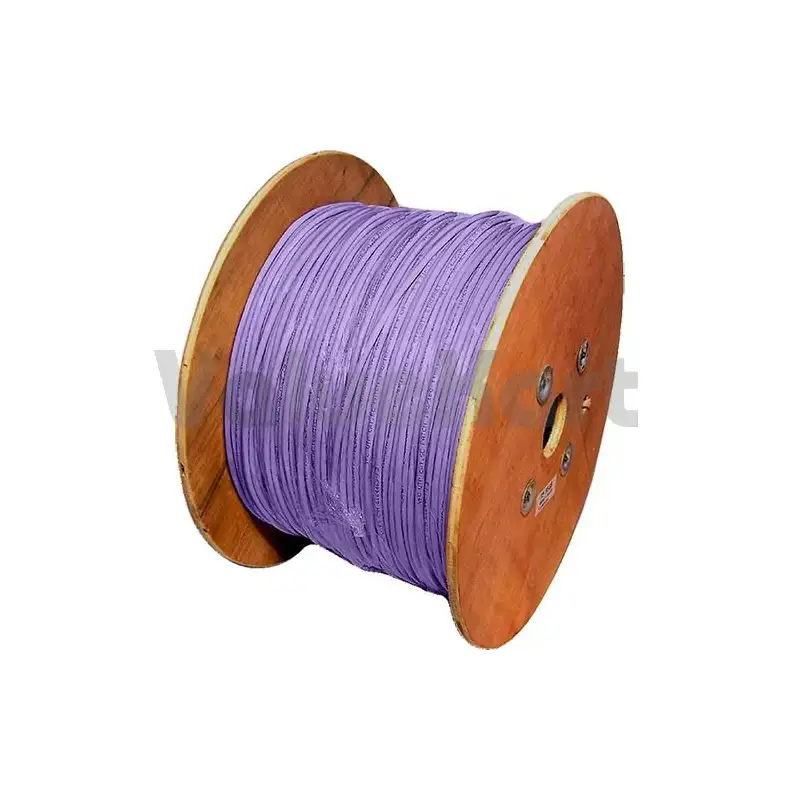

Weight: 25.5kg/500m reel
ELECTRICAL
Characteristic Impedance:
1.0-250.0MHz 100±15
250.0-500.0MHz 100±22
DC Resistance (Ω/100m) max: 9.38
Resistance unbalance: 5% max
Voltage rating: 72 Vdc max
Propagation Delay Skew:45 nS/100m max @ 1-500 MHz
COMMERCIAL STANDARDS
ANSI/TIA-568.2-D
ISO/IEC 11801 A1.1
REACH and RoHS compliant
FIRE PROPAGATION TESTS
EU Regulation 305/2011 (CPR)
EN 50575:2014+A:2016
EuroClass Dca-s2,d2,a1
DoP No: MLXCES-2018-C-032
APPLICATIONS
Category 6A U/FTP Cable is intended for high speed data applications up to 500MHz including:
IEEE 802.3 10GBASE-T 10Gb/s
IEEE 802.3 1000BASE-T 1Gb/s
TIA/EIA-854 1000BASE-TX 1Gb/s
ATM 155Mb/s 155Mb/s
