Molex PowerCat 6A UFTP C6A Outside Cable
Reference: BG0052-9545742
Condition: New product
Delivery on: Jun 10 2026
- Category 6A compliant
- PE (UV) and nylon sheathed for greater protection
- UV resistant Outer Sheath
- Suitable for outdoor/underground Installations
- Water Resistant Gel
50 Items
More info
Molex PowerCat 6A UFTP C6A Outside Cable

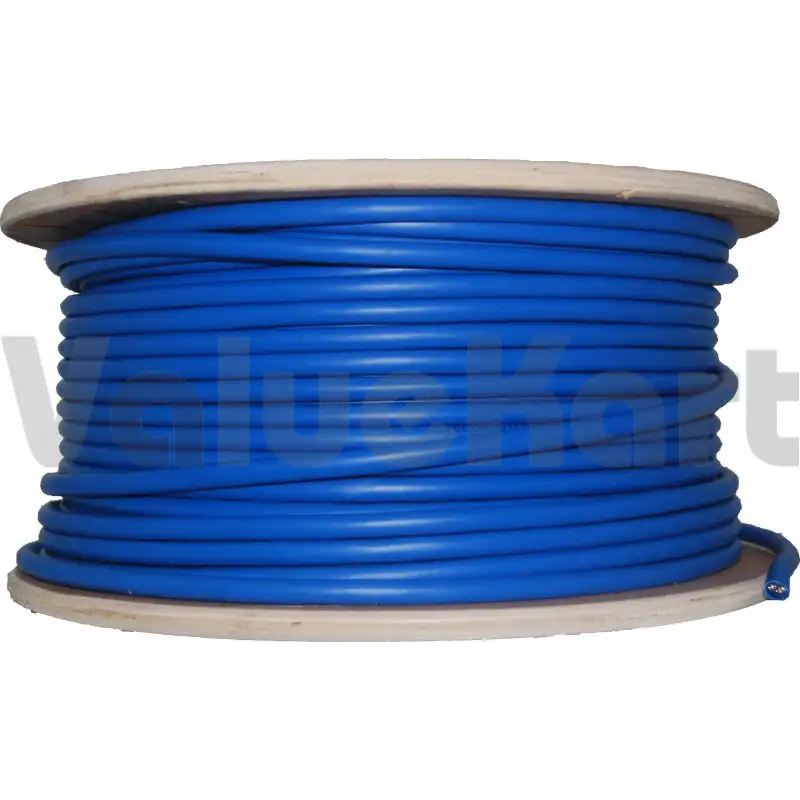

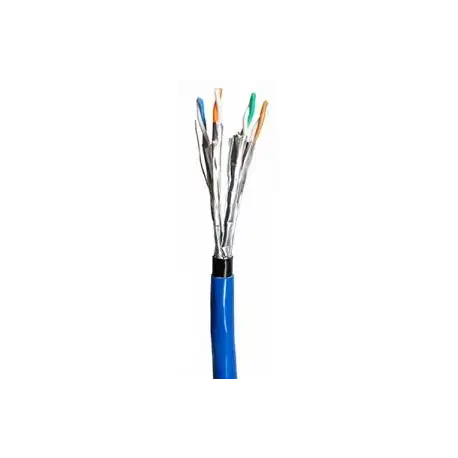

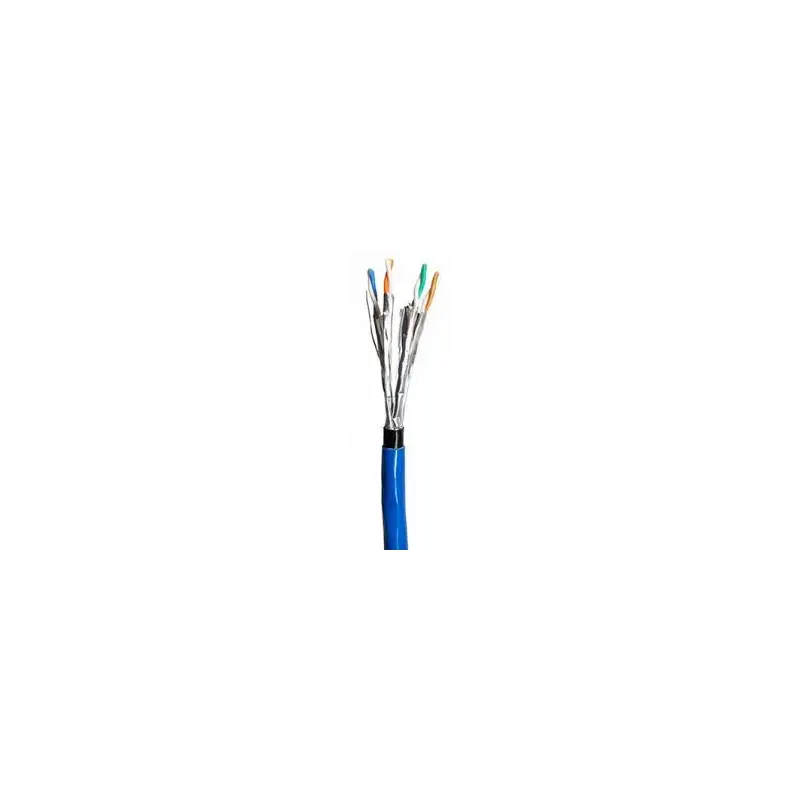

The Molex CAA-00418-BL is an outside plant Gel-Filled Category 6A 4 Pair U/FTP cable. A HDPE compound insulates the cores while a PE (UV) sheath provides protection against moisture and UV. An additional nylon outer jacket provides protection against abrasion and termites. The rugged construction of this cable makes it ideal for outdoor/underground installations. Molex uses a Gel Foam which is easier to clean than current water resistant gels.
Technical Info:
MECHANICAL
Conductor Size: Solid 0.560 solid bare copper
Primary Insulation: HDPE
Nominal O.D.: 1.330 ± 0.05mm
Sheath Type
Inner: HDPE
Outer: Nylon
Nominal O.D.
Overall: 8.3 ± 1.0mm
Inner: 0.55 ± 0.05mm
Outer: 0.35 ± 0.1mm
Operating Temperature: -20° to 75°C
NVP: Please refer Cable Sheath
Maximum Pulling force: 50N/square mm
COMMERCIAL STANDARDS
Cat 6A ANSI/TIA/EIA-568-C.2
ISO/IEC 11801
UL444
