Molex CAT7A SFTP Cable, 4 Pairs 1.2GHz LS0H, Violet – 500m reel

Features & Benefits

• Transmission performance C7A in a 1-1000MHz range as per IEC 61156-5 (specified in ISO/IEC 11801 2nd edition)
• Provide significant margins for NEXT, PowerSum NEXT, PowerSum ELFEXT
• Alien NEXT is significantly reduced so it can be used for 10G applications
• Small outside diameter, high flexibility

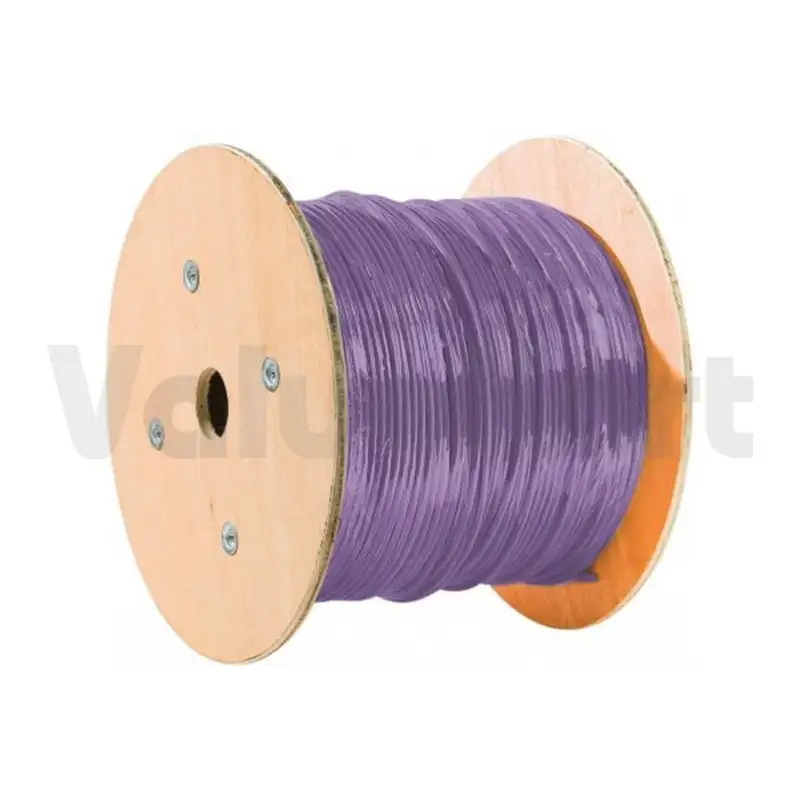

• Delivered in 500m lengths on wooden, fully recyclable reels

Technical Info:

Mechanical Characteristics

Conductor size [mm]: 23 AWG (0.5733mm)
Insulated conductor diameter [mm]: 1.0 nom OD
Color code: Blue x White, Orange x White,
Green x White, Brown x White
Pair number: 4
Outside cable diameter [mm]: 7.2 max

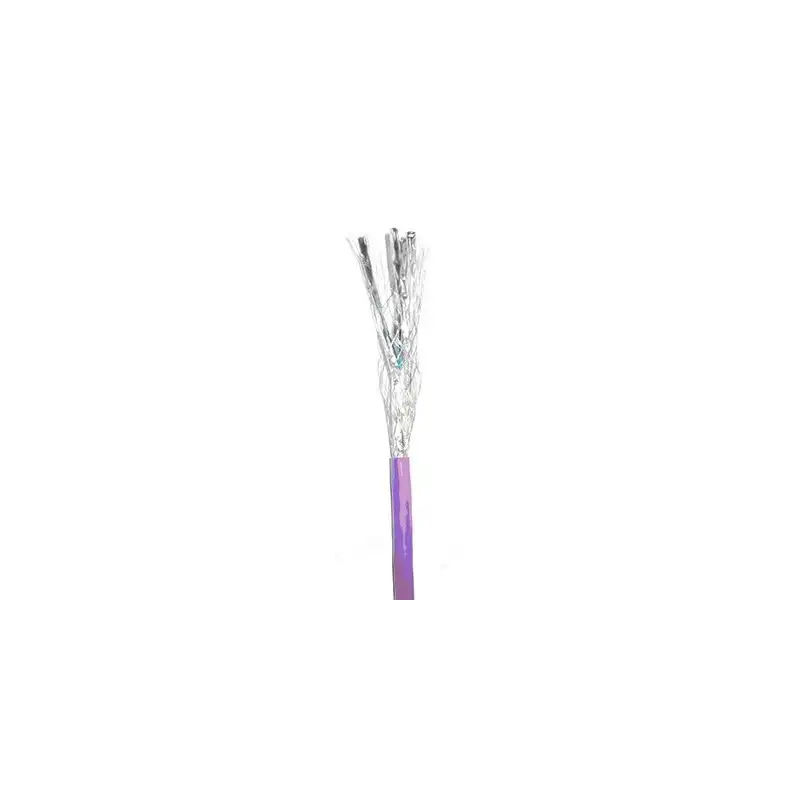

Individual pair shield: Aluminium foil,
providing 100% coverage, foil face out
Drain Wire: None

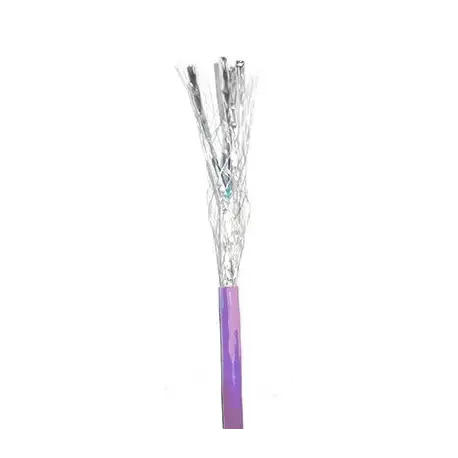

Overall shield: Tinned copper braid

Temperature range:
during installation: 0 to +50°C
during operation: -20 to +60°C
during storage: -20 to +75°C
Acceptable bend radius:
during installation: 8 x cable size
during operation: 4 x cable size
Pulling force: 150N max

Sheath: FR-PVC or LS0H
Sheath color LS0H: Violet RAL4005

Shipping weight [kg]: 26
Cable length tolerance: +/- 5%

Electrical/Optical Characteristics

Characteristic Impedance : 100+/-5 Ohm @ 1-1000Mhz
DC Resistance: 77 Ohm/km max.(2% max. resistance unbalance).
Capacitance [pF/m]: @ 1 KHz: 45 nominal
Cap. Unbalance (wire to ground) [ pF/Km] @ 1 KHz: 1.6 maximum
Voltage rating [Vdc]: 72 max.
NVP: 75-77% - printed on a jacket
Delay Skew [nS/100m]: 15nS/100m max @ 4-1000MHz
Insulation Resistance : 0.5G Ohm-Km min.
Coupling attenuation : IEC 61156-5 TYPE 1
Transfer Impedance : IEC 61156 Grade 1
@ 30-100MHz: 30mW/m maximum

Commercial Standards

IEC 61156-5 (specified in ISO/IEC 11801 2nd edition) for category 7A,
TIA/EIA 568B.2-1 for category 6,TIA-568-C.2 for category 6, 6A ,
ISO/IEC Ed2.2 1801:2011,
EN50173:2011, IEC 60332-1,
IEC 60754 (gas) and IEC 61034(smoke)
RoHs compliant

Fire Propagation Tests

EU Regulation 305/2011 (CPR)
EN 50575:2014+A:2016
Euroclass Dca-s1a,d1,a1
