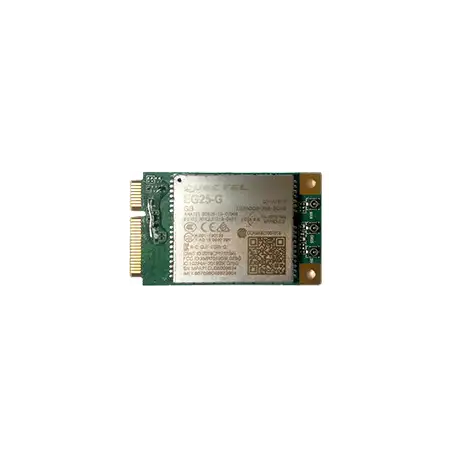

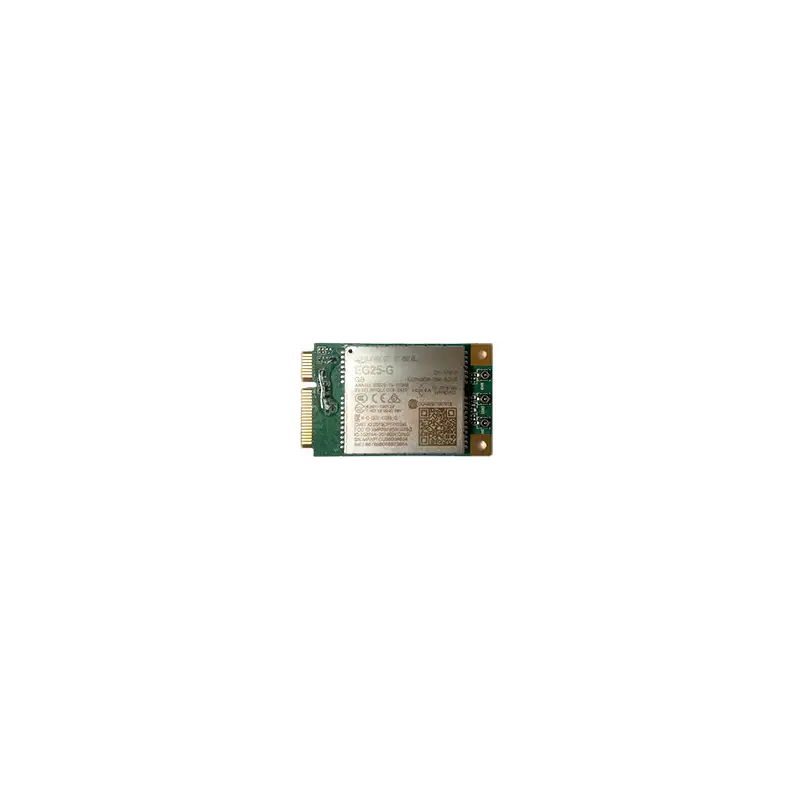

LTE Cat 4 Module

Frequency Bands
EG25-G Mini PCIe:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8

Data
LTE:
LTE-FDD: Max. 150 Mbps (DL)/Max. 50 Mbps (UL)
LTE-TDD: Max. 130 Mbps (DL)/Max. 30 Mbps (UL)
UMTS:
DC-HSDPA: Max. 42 Mbps (DL)
HSUPA: Max. 5.76 Mbps (UL)
WCDMA: Max. 384 kbps (DL)/Max. 384 kbps (UL)
GSM:
EDGE: Max. 296 kbps (DL)/Max. 236.8 kbps (UL)
GPRS: Max. 107 kbps (DL)/Max. 85.6 kbps (UL)

Voice
Speech Codec Modes:
HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic:
Echo Cancellation/Noise Suppression
Audio:
Digital Audio and VoLTE (Voice over LTE)
(Optional)

Interfaces
USB × 1: USB 2.0 with High Speed up to
480 Mbps
PCM x 1: Digital Audio through PCM (Optional)
I2C × 1
(U)SIM x 1: 1.8/3.0 V (U)SIM Interface
UART × 1: Main UART
LED_WWAN# for Network Status Indication
W_DISABLE# for Disabling RF Function
PERST# for Module Resetting

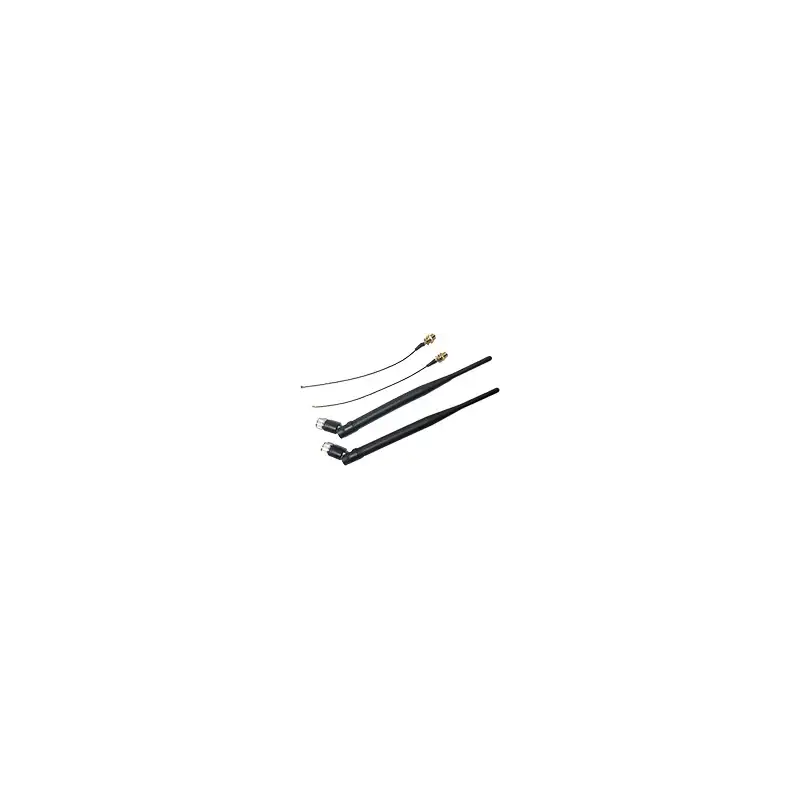

Main, Rx-diversity and GNSS Antenna Connectors

General Features
Operating Temperature Range: -35 to +75 °C
Extended Temperature Range: -40 to +80 °C
Dimensions: 51.0 mm x 30.0 mm x 4.9 mm
Weight: Approx. 9.8 g
Mini PCIe Package
Supply Voltage: 3.0–3.6 V, 3.3 V Typ.
3GPP E-UTRA Release 11
Bandwidth: 1.4/3/5/10/15/20 MHz
3GPP TS27.007 and Enhanced AT Commands
