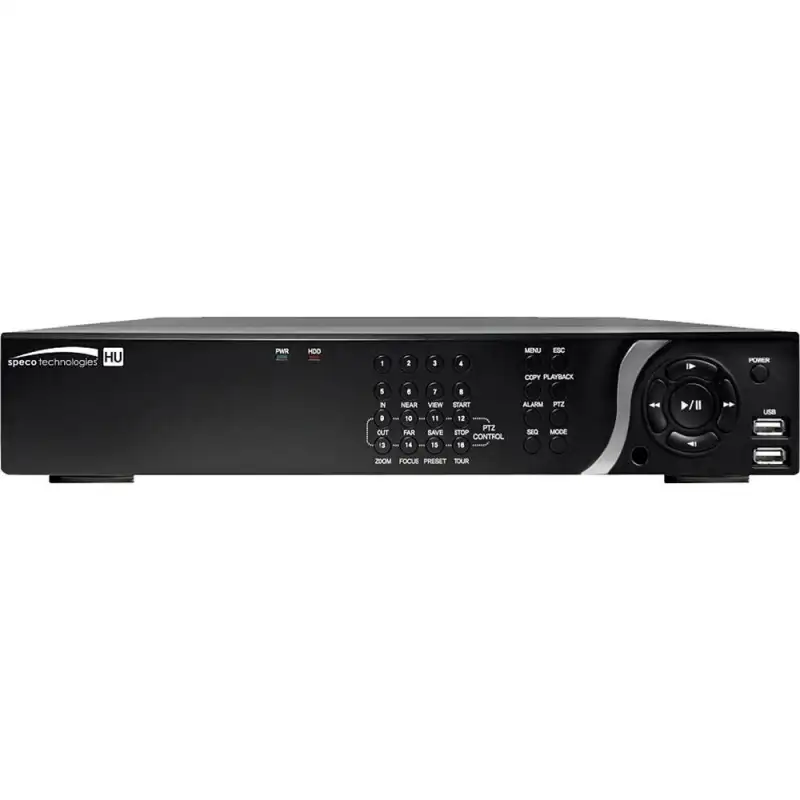

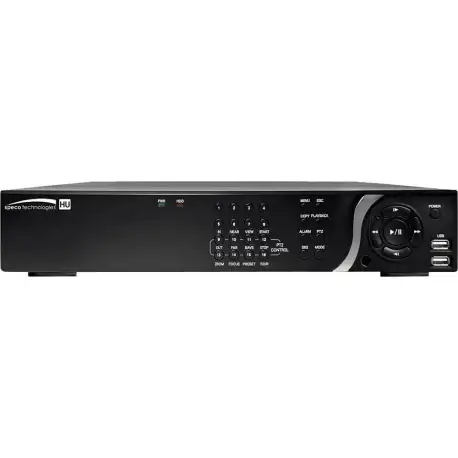

Speco Technologies D16HU 16-Channel 4K UHD HD-TVI Hybrid DVR with 40TB HDD
Reference: BG0052-9082235
Condition: New product
Delivery on: Jun 10 2026
Record from and Manage up to 16 Cameras
Up to 3840 x 2160 Recording Resolution
40TB HDD Preinstalled
Supports HD-TVI and IP Cameras H.264 Video Compression
eSATA Port for Additional Storage
Two-Way Audio
Up to 4K UHD Video Output HDMI, VGA, CVBS/Spot Video Outputs

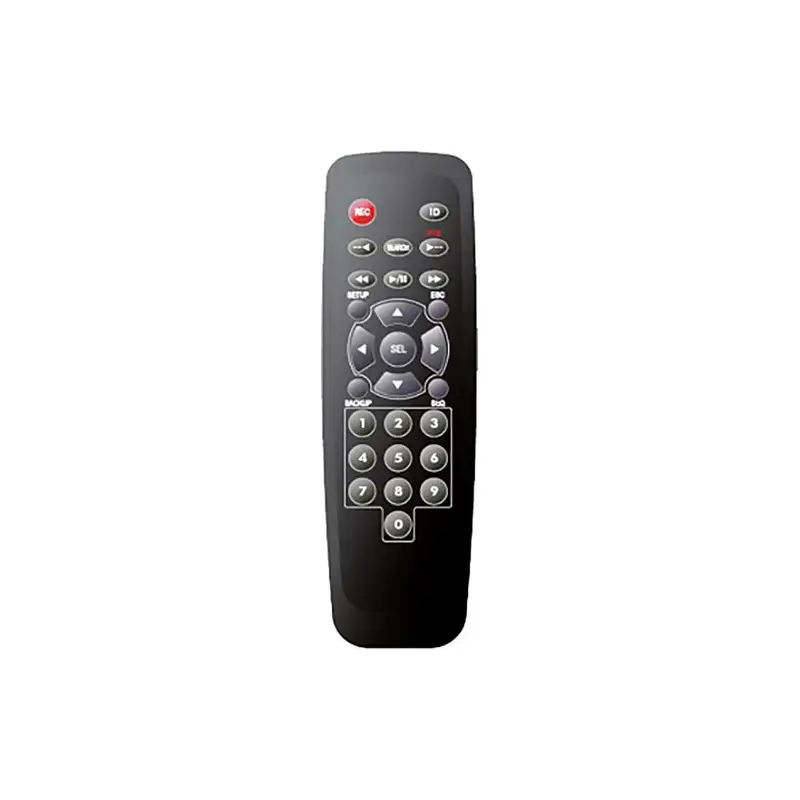

IR Remote Control and Mouse Included
10 Items
More info
Record from and manage up to sixteen cameras with the D16HU 16-Channel 4K UHD HD-TVI Hybrid DVR with 40TB HDD from Speco Technologies at resolutions up to 3840 x 2160. Preinstalled with 40TB of HDD storage, the recorder can be expanded to host a maximum HDD capacity of 40TB. An eSATA port is available for additional storage. H.264 video compression keeps file size manageable while maintaining the best quality possible. The recorder supports HD-TVI and IP cameras. Two-way audio is supported. An HDMI connection provides up to 4K UHD resolution video output. An IR remote control and mouse are included with the recorder.
General
| Signal | HD-TVI, IP |
| Number of Channels | 16 (Video) |
| Playback Resolution | HD-TVI: 3840 x 2160 HDMI: 3840 x 2160 IP: 3840 x 2160 Mobile: 640 x 360 at 30 fps 320 x 180 at 30 fps |
| Recording Resolution | 3840 x 2160 at 15 fps 2592 x 1944 at 20 fps 2688 x 1520 at 30 fps 2560 x 1440 at 30 fps 2304 x 1296 at 30 fps 1920 x 1080 at 30 fps |
| PTZ Support | Yes |
| Playback Speeds | 0.25x, 0.5x, 2x, 4x, 8x, 16x, 32x, 64x |
| Bit Rate | 5 Mb/s (Each Channel) |
| Dual Encoding | Yes |
Connectivity
| A/V Ports | CVBS: 1 x BNC Video Output 1 x HDMI Output 1 x RCA Audio Output 1 x VGA Output HD-TVI: 16 x BNC Video Output |
| Communication Ports | 1 x RS-485 2 x RJ45 Gigabit Ethernet 2 x USB Type-A (Front) 2 x USB Type-A (Rear) |
| Audio Connections | 16 Inputs 1 Output |
| Drive Interfaces | 1 x eSATA 4 x SATA |
| Network Protocols | DDNS |
Compatibility
| Supported Video Codecs | H.264 |
| Supported Audio Codecs | G.711 |
| Backup Formats | AVI, BMP, Proprietary |
| Backup Method | External HDD, Network, USB Drive |
| Software Upgrade | USB, Network |
System
| Installed Drive | 40 TB |
| Max Capacity Supported | 40 TB (Total) |
| RAID Modes | RAID 1, 10, 5 |
| Operating System Support | Android, iOS |
| Recording Intervals | 20 Minutes (Pre-Record) 60 Seconds (Post-Record) |
| Recording Modes | Continuous, Manual, Motion, Schedule, Sensor, Smart |
| Search Modes | Archive, Date/Time, Event, Log, Motion, Search |
| Multi-Screen Configuration | 1, 4, 9, 16 |
Notifications
| Alarm Connections | 16 Inputs 16 Inputs (IP) |
Electrical
| Power Consumption | 12 VDC at 6.67 A |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
Physical
| Dimensions (W x D x H) | 15.0 x 13.4 x 2.8" / 380.0 x 340.0 x 72.0 mm |
