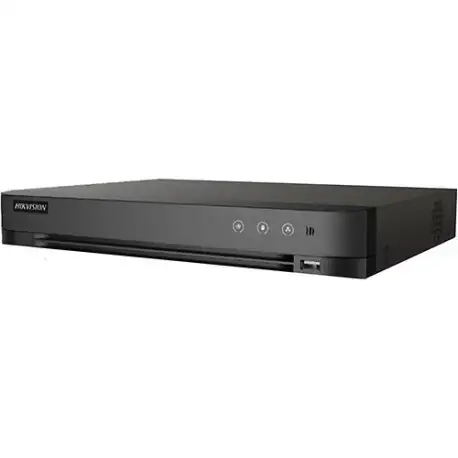

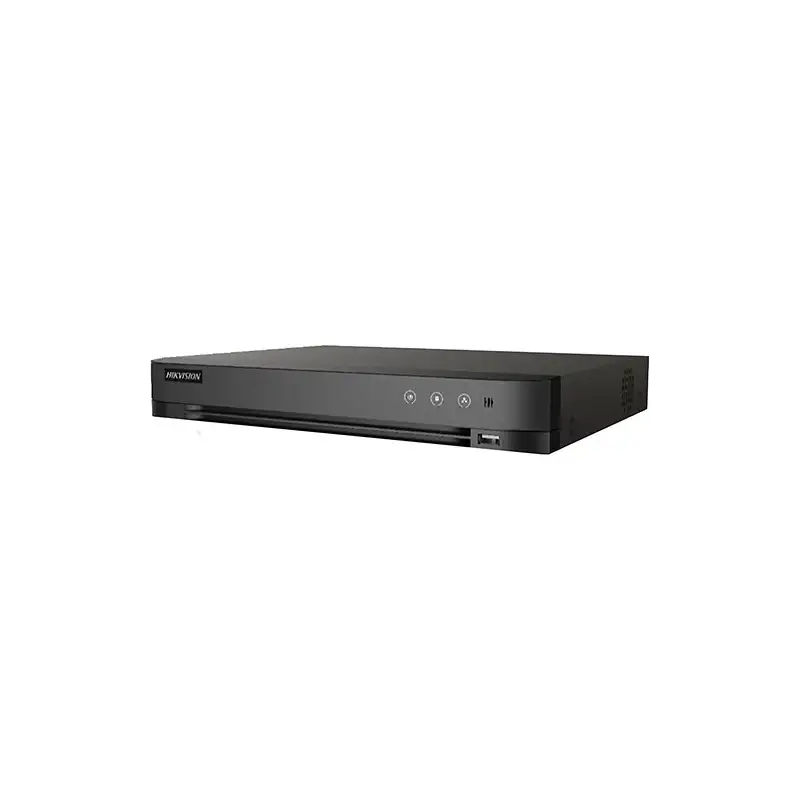

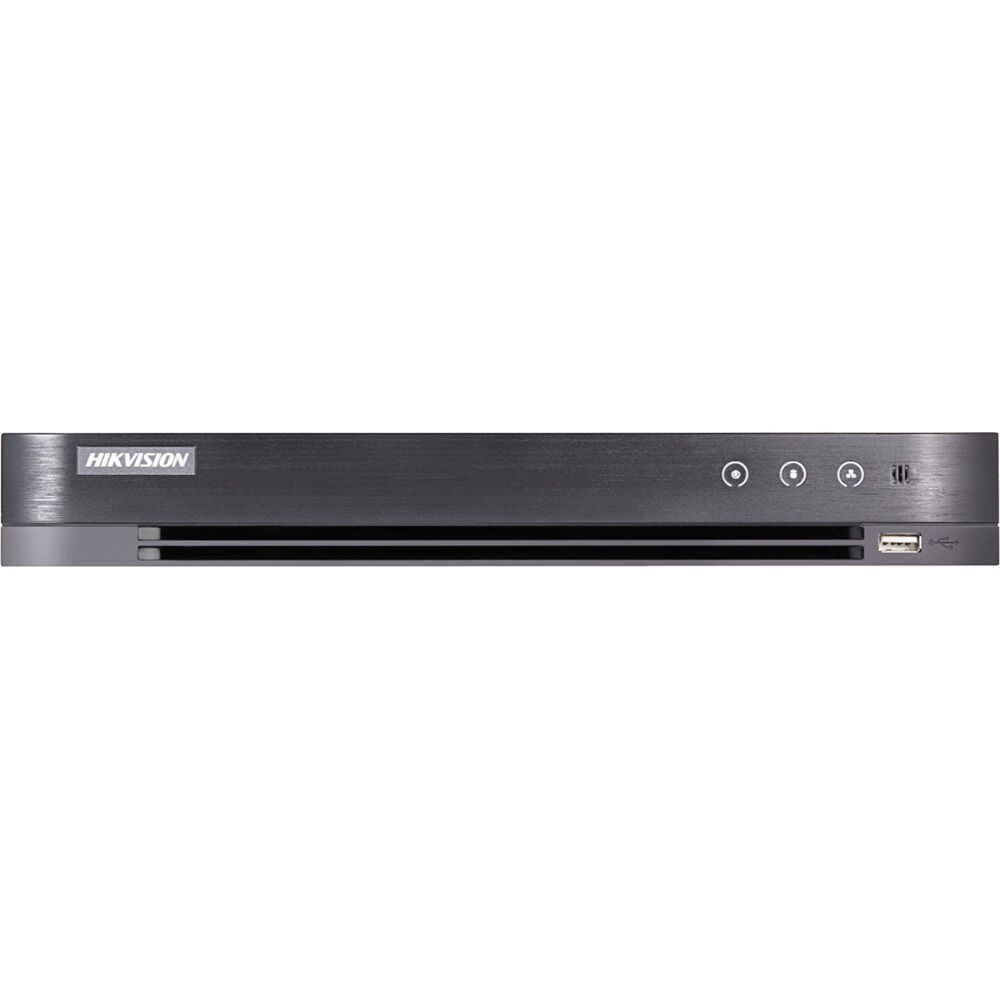

Hikvision DS-7204HQHI-K1 TurboHD 4-Channel DVR with 4TB HDD

Hikvision DS-7204HQHI-K1 TurboHD 4-Channel DVR with 4TB HDD

Reference: BG0052-9914960

Condition: New product

  • Record from and Manage up to 4 Cameras
  • Supports up to 6 IP Channels
  • Up to 2MP Recording Resolution
  • 4TB HDD Preinstalled
  • H.265+/H.264+/H.265/H.264 Video Codecs
  • Two-Way Audio
  • 32 Remote Connections
  • HDMI & VGA Video Outputs

45 Items

$152.97

More info

Record from and manage up to four local analog cameras at resolutions up to 2MP with the DS-7204HQHI-K1 TurboHD 4-Channel DVR with 4TB HDD from Hikvision. Additionally, this DVR supports up to 6 IP cameras if Enhanced IP Mode is enabled and no analog cameras are used. It is equipped with a SATA port that supports HDD storage up to 10TB (4TB preinstalled). H.265+, H.264+, H.265, and H.264 video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.

This DVR features 32 remote connections. It has VGA and HDMI video outputs to connect to external monitors.

Full channel recording at up to 2MP
Supports HD-TVI, HD-CVI, AHD, and CVBS signals
Supports six IP cameras at resolutions up to 6MP if Enhanced IP Mode is enabled and all analog channels disabled
HDMI and VGA outputs
H.265+, H.265, H.264+, and H.264 video codecs
Supports long-distance transmission over HD-TVI a maximum of 3940' at 720p and 2630' at 1080p
4-channel synchronous playback
Dual stream support
Supported analytics include line crossing, intrusion, and scene change detection
2 x USB 2.0 ports
Half-duplex RS-485 port
1 x 100M self-adaptive Ethernet port
FCC, CE, and cUL certified
General
Signal AHD, Analog, HD-CVI, HD-TVI, IP
Number of Channels 4
Playback Resolution HDMI, VGA:
1920 x 1080 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
Recording Resolution 2 MP
PTZ Support Yes
Bit Rate 32 kb/s to 10 Mb/s
IP Camera Support 6
Dual Streaming Yes
Encoding Resolution 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP
2-Way Audio Yes
Connectivity
A/V Ports AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI, Hikvision-C UTC: 4 x BNC (1 V p-p, 75 Ohm)
1 x HDMI
1 x VGA
1 x RCA Audio Input (2 V p-p, 1 Kilohm)
1 x RCA Audio Input (1 V p-p, 1 Kilohm, Linear)
Communication Ports 1 x RJ45 Fast Ethernet
1 x RS-485 (Half-Duplex)
2 x USB Type-A USB 2.0
Audio Connections 1 Input
1 Output
Drive Interfaces 1 x SATA
Wi-Fi None
Remote Connections 32
Network Protocols DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI
Transmission Distance 2630' / 801.6 m (1080p)
3940' / 1200.9 m (720p)
Max Frame Rate 15 fps (3 MP)
15 fps (1080p)
30 fps (720p)
Compatibility
Supported Video Codecs H.264, H.264+, H.265, H.265+
Supported Audio Codecs G.711U
System
Installed Drive 4 TB Hard Drive
Max Capacity Supported 10 TB
Electrical
Power Consumption Without HDD: 12 VDC (40 W)
Power over Coax No
Environmental
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 10 to 90%
Physical
Certifications CE, FCC, cUL, as per Manufacturer
Built-In Display None
Dimensions (W x D x H) 12.4 x 9.5 x 1.8" / 315.0 x 242.0 x 45.0 mm
Weight 2.56 lb / 1.16 kg (Without HDD)
