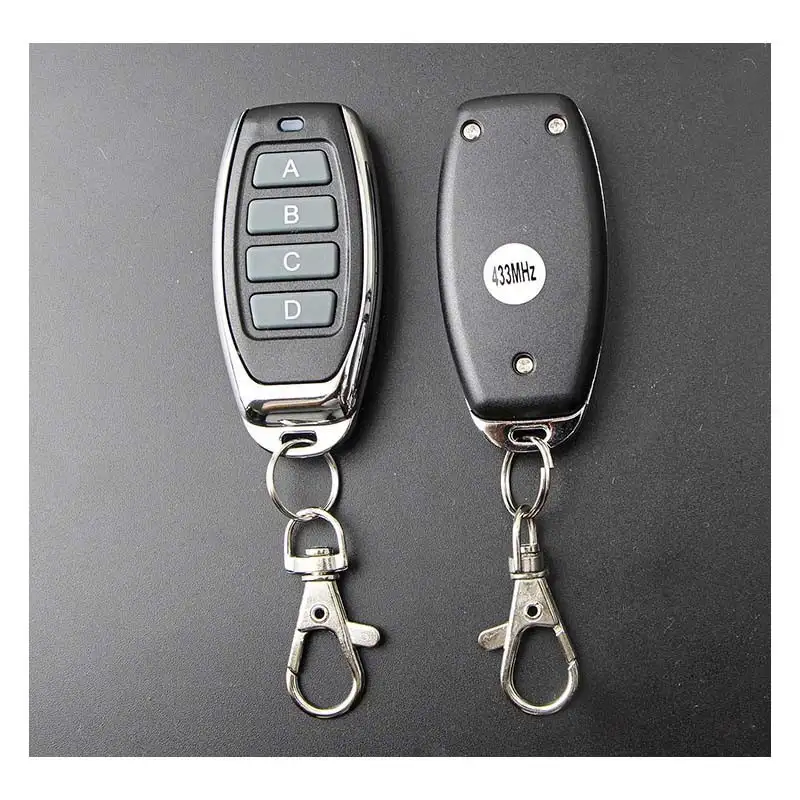

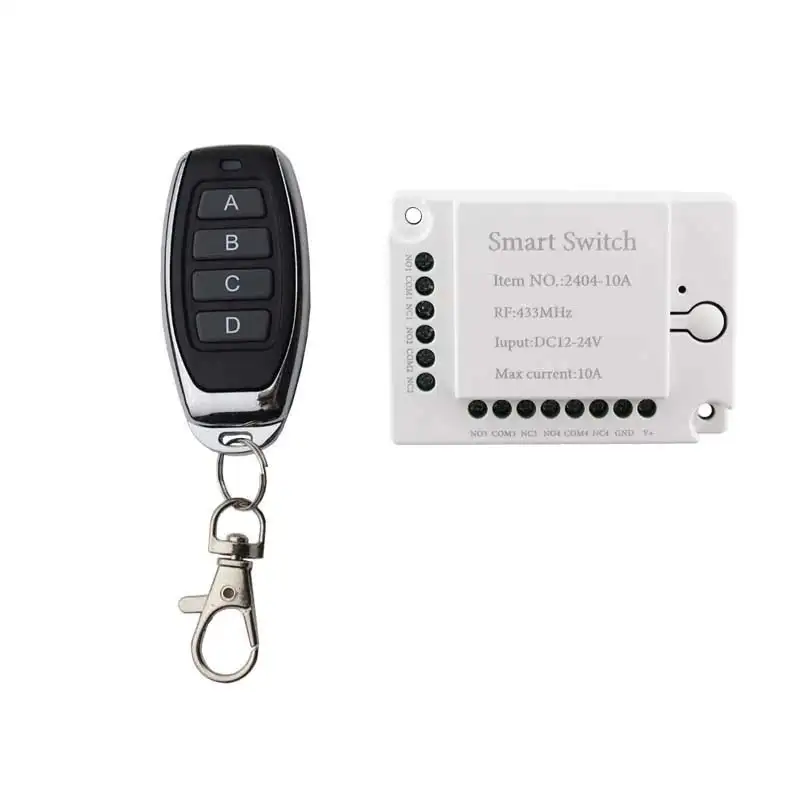

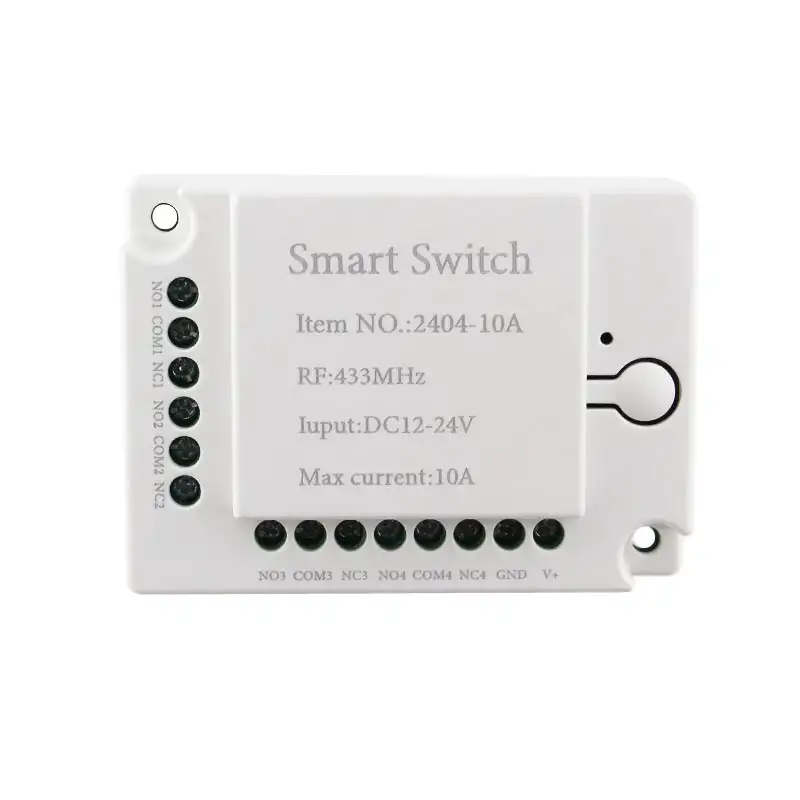

4 Channel 433Mhz Relay Remote Control Module with EV1527 Learning Type RF Remote 12V

About Working mode:

1. Momentary/Jog: Press and hold->on; Release->Off

Keep pressing one button , the corresponding channel is working /on;
Loosen your finger is stop/OFF .
(4 channel switch(receiver) need 4 buttons remote control (transmitter ))

2. Toggle/Self-Lock: Press->on; Press again->Off

Press one button for one time , the corresponding channel is working/on;
Press the same button again is stop/OFF .
(4 channel switch(receiver) need 4 buttons remote control (transmitter)).

3. Latched/Inter-Lock: Press->on; Press other button->Off

Press one button for one time, the corresponding channel is working/on;
Press another button is stop/OFF（At the same time, another corresponding channel works） .
( 4 channel switch( receiver) need 4 buttons remote control (transmitter).

The setting of working mode：

1. Momentary Mode:

pressing one time the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting momentary mode successfully .

2. Toggle Mode:

pressing two times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting toggle mode successfully .

3. Latched Mode:

pressing three times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press first remote button ,follow on second remote button , signaling three times by remote’s LED indicator informs about setting latching mode successfully ( first button stands for on , second button stands for off ).

4. 2CH momentary + 2CH Toggle:

pressing four times the learning key button on the receiver board(Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .

5. 2CH Momentary + 2CH Latched :

pressing five times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .

6. 2CH Toggle + 2CH Latched :

pressing six times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .

7. 2CH Latching + 2CH Latched :

pressing seven times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .

8. Deleting existing remote controls data:

pressing eight times the learning key button on the receiver board , the LED indicator on receiver board will flash for eight times , the existing remote controls are deleted successfully.

NOTES:

1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity.
2. Please promptly change battery when remote control voltage is insufficient,  (when the battery voltage is insufficient, generally get close transmitting )
3. Please pay attention to avoid metal mask,large equipment ,strong interference electromagnetic filed when using wireless RF products,and avoid too short distance between the remote control and receiver board .
4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe .

What's   More: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
