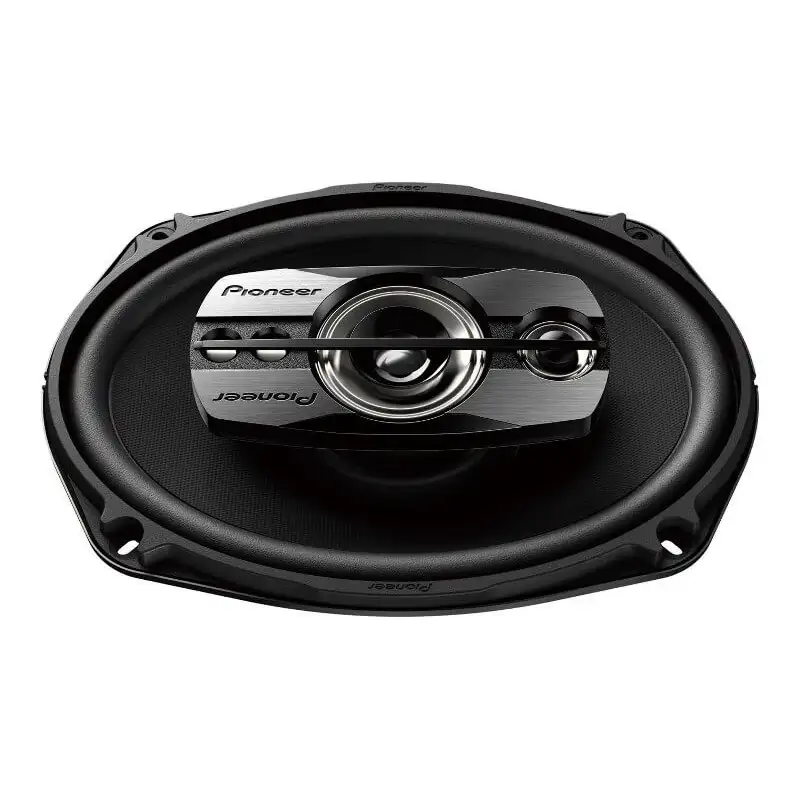

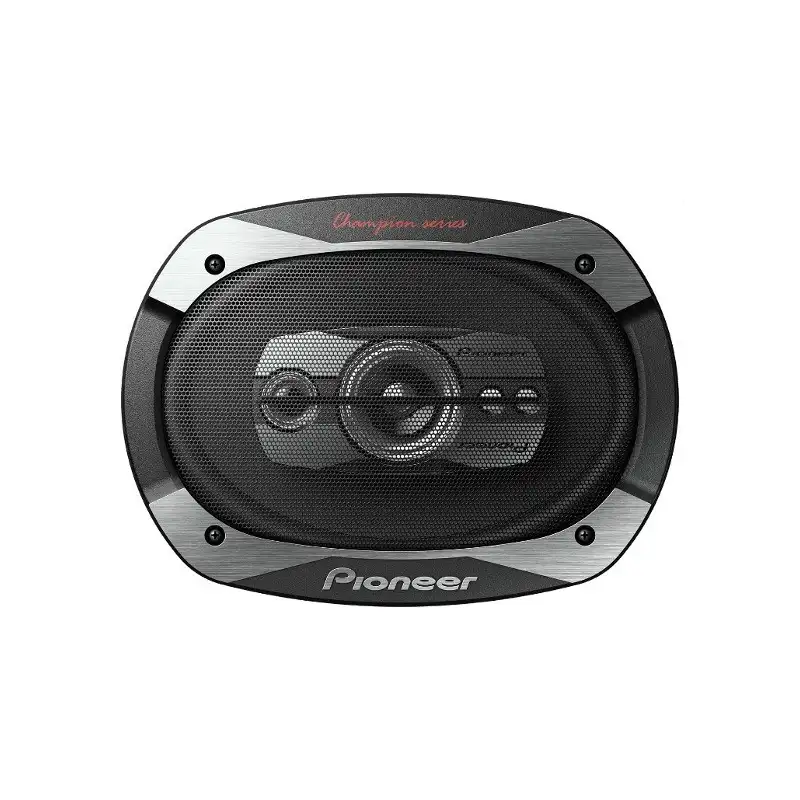

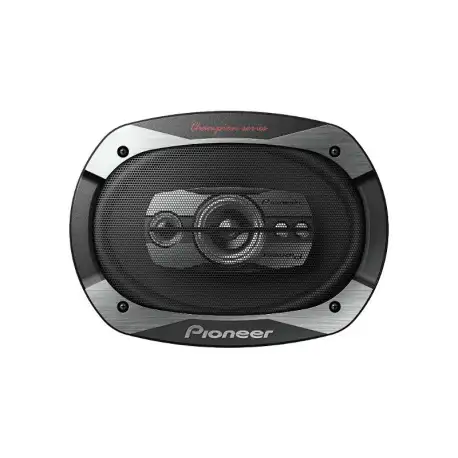

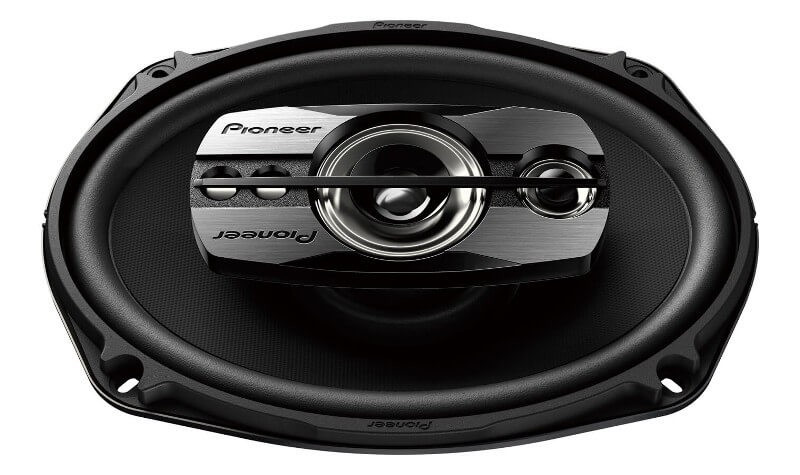

Pioneer TS-7150F 500 W Coaxial 5-way Speaker
Reference: BG0052-9778746
Condition: New product
Delivery on: Jun 10 2026
The TS-7150F introduces the new sized 7" x 10", 5-Way Champion Series Speaker, includes a 6"x9" bracket for easy installation. Pioneer Champion Series Speakers reproduce bass with clarity, stability and presence that other speakers typically cannot achieve. Speaker cones used for Champion Series speakers are tougher at handling more higher input Power.
20 Items
More info
Features of TS-7150F
Kenaf Reinforced Rigid Pulp Cone
The combination of kenaf mixed pulp material, press formation process, and CAE technology for maintaining rigid shape is essential for realizing forceful bass and minimal sound distortion.
Dual spider
Dual Spiders supporting the voice coil effectively dampen large cone vibration and enhance linearity of sound reproduction.
Large-sized Mid-Range using Heat-Tesistant PEI Cone
High-frequency sensitivity is increased with the use of a newly designed 66mm mid-range speaker.
Perfect Dust Prevention
Pioneer's Dust Protection design reliably prevents dust from interfering with uncompromising speaker performance and durability.
Installation flexibility
The TS-7150F introduces the new sized 7" x 10", 5-Way Champion Series Speaker, includes a 6"x9" bracket for easy installation.
General Information
Type: Coaxial 5-way
Maximum Music Power: 500 W
Nominal power: 80 W
Frequency Response: 27Hz to 25KHz
Impedence: 4Ω
Sensitivity: 89.8dB
Cone size: 7"x10"(180mmx252mm)
