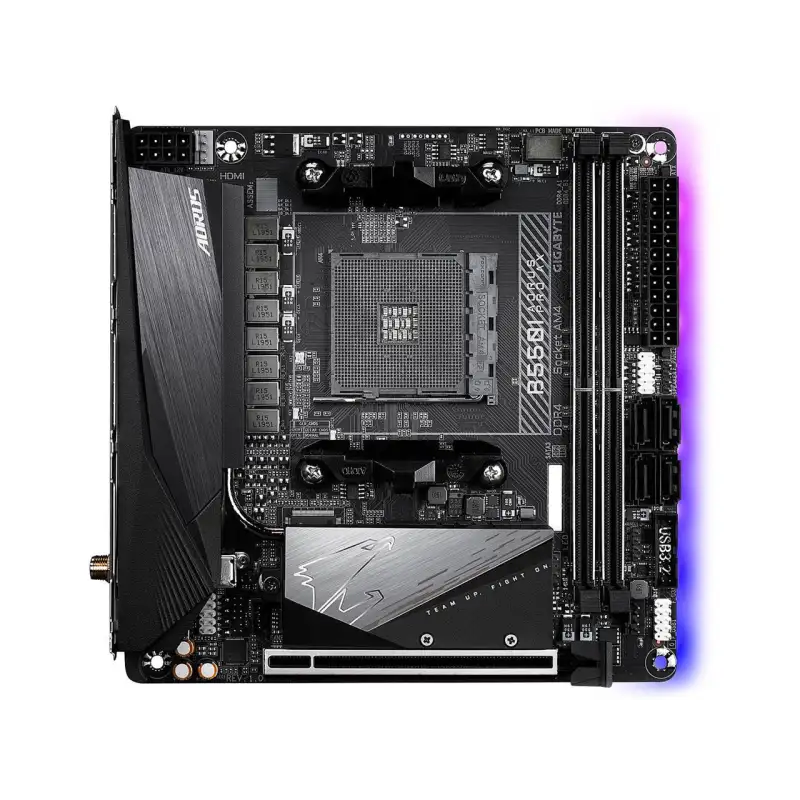

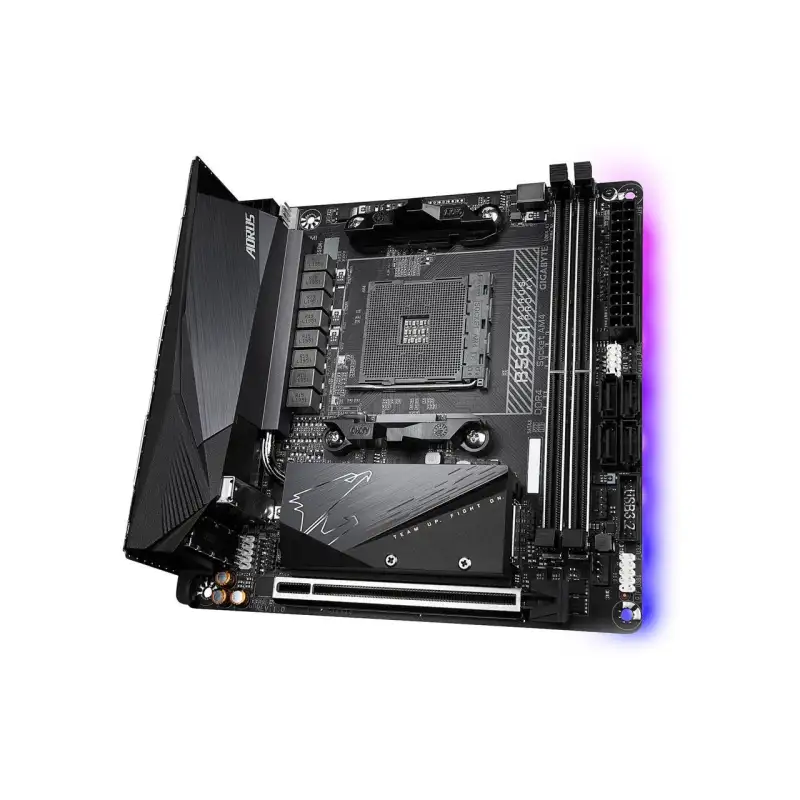

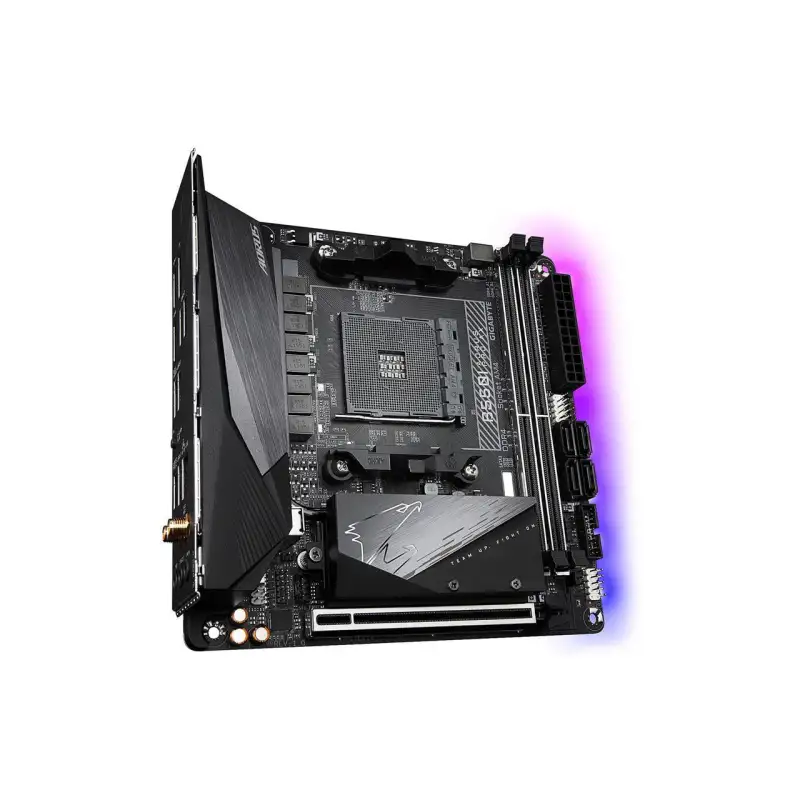

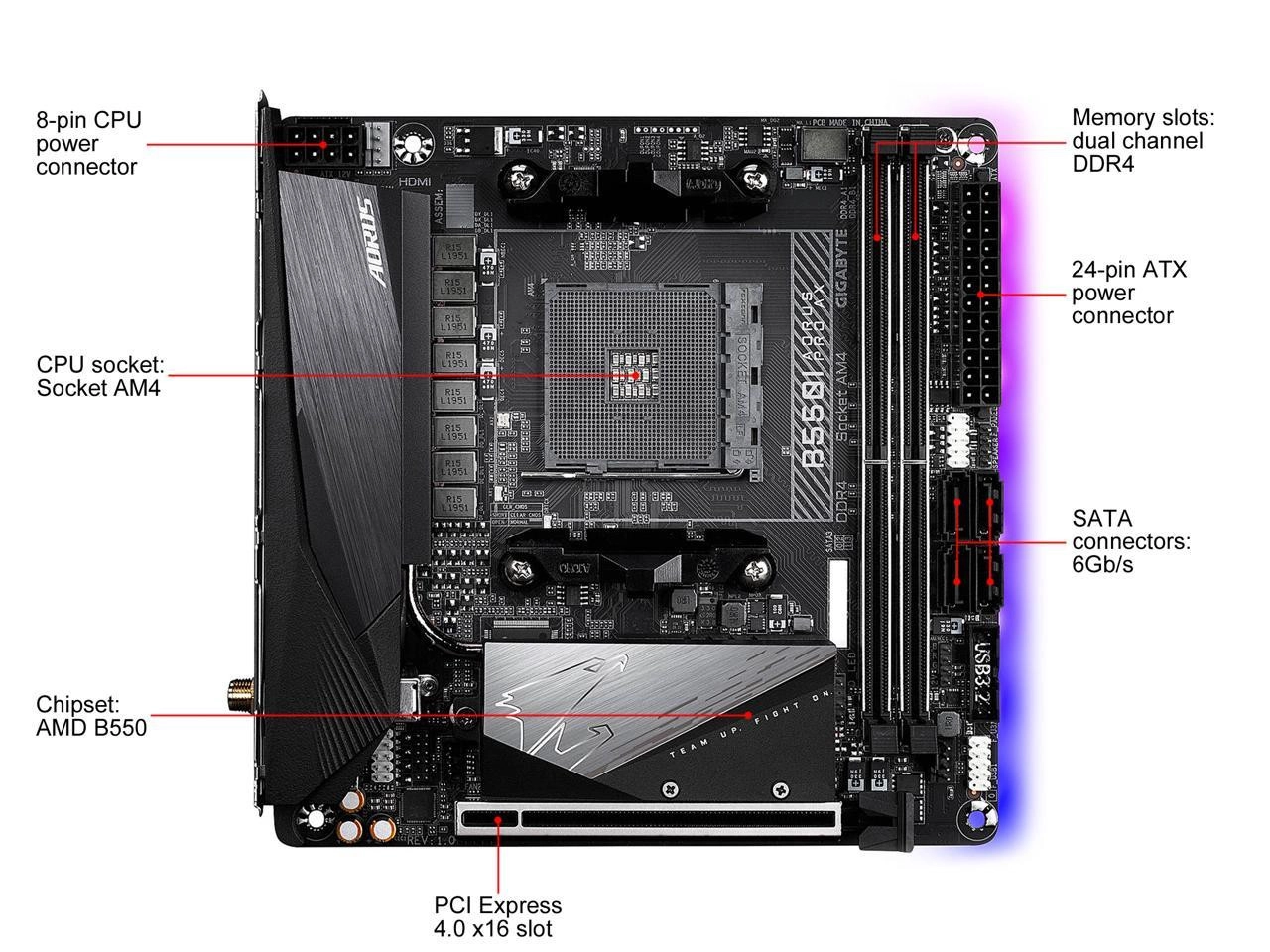

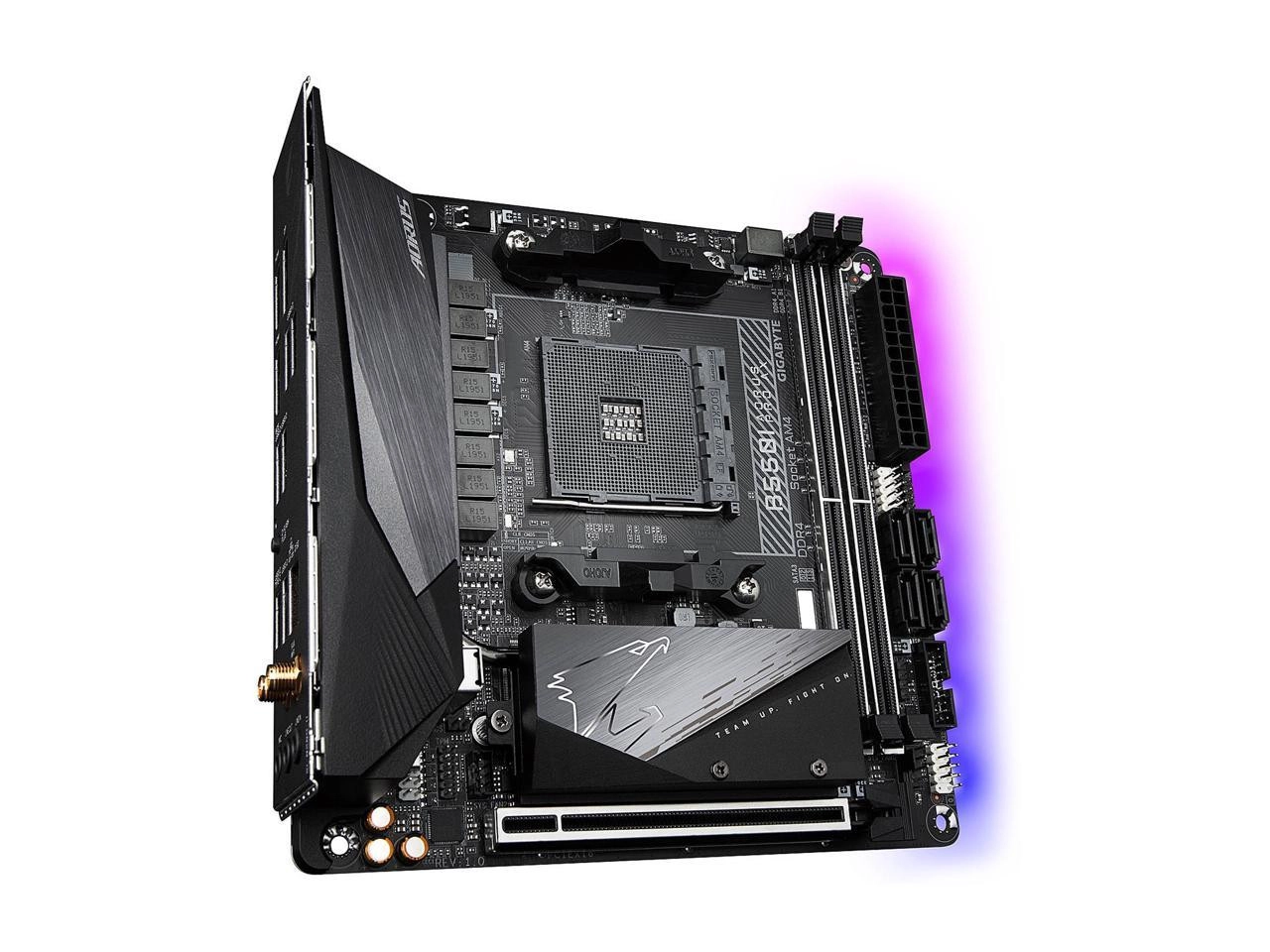

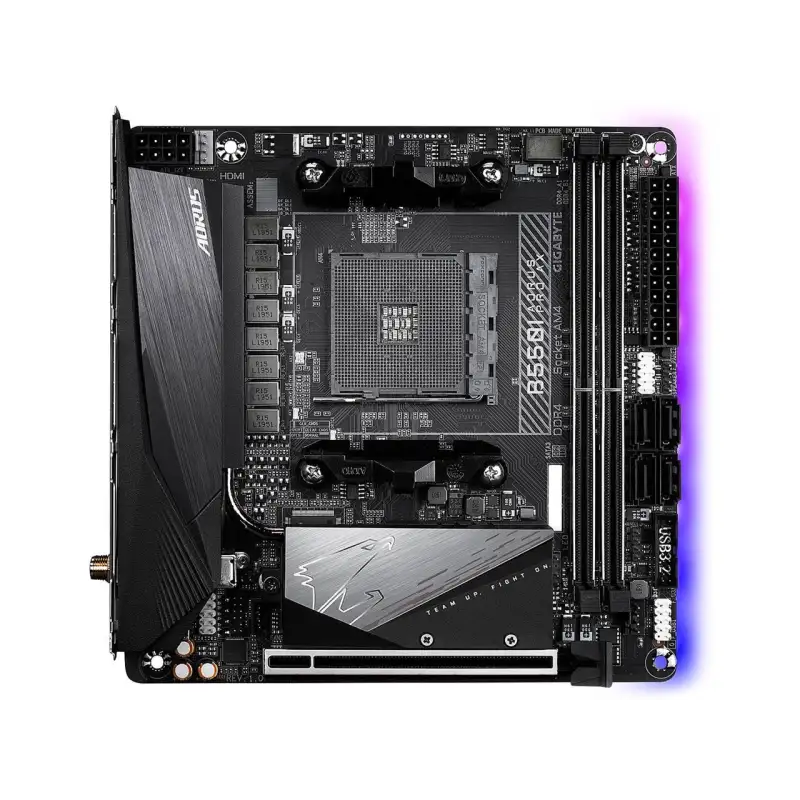

GIGABYTE B550I AORUS PRO AX AM4 AMD B550 Mini-ITX Motherboard

GIGABYTE B550I AORUS PRO AX AM4 AMD B550 Mini-ITX Motherboard

Reference: BG0052-G12128007

Condition: New product

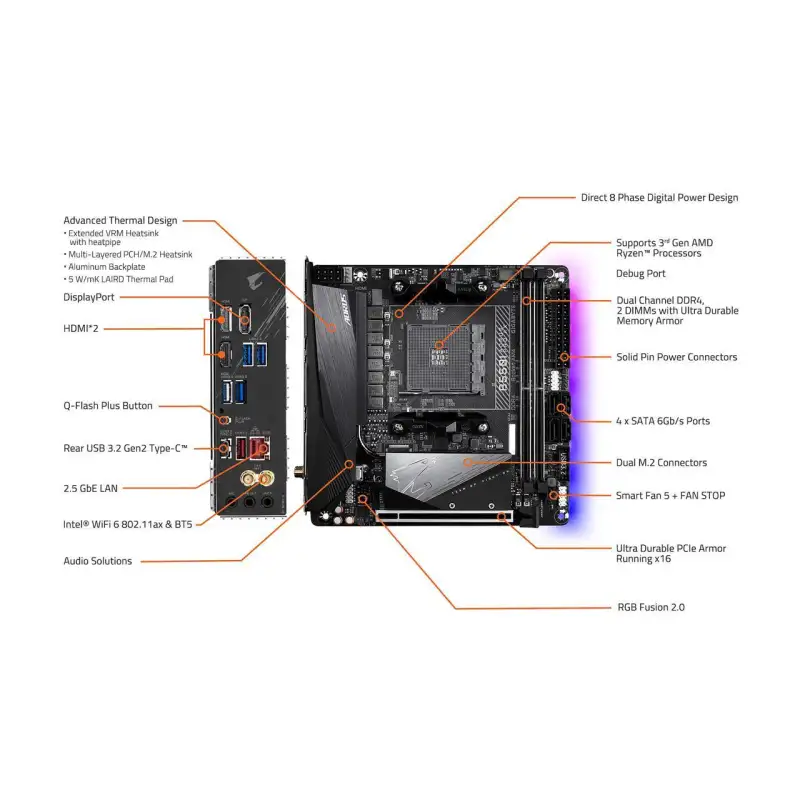

  • Support for Ryzen 5000 Series with BIOS UPDATE
  • Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
  • Dual Channel ECC/Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
  • Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors
  • Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU

5 Items

$115.10

More info

Model
Brand GIGABYTE
Model B550I AORUS PRO AX
Supported CPU

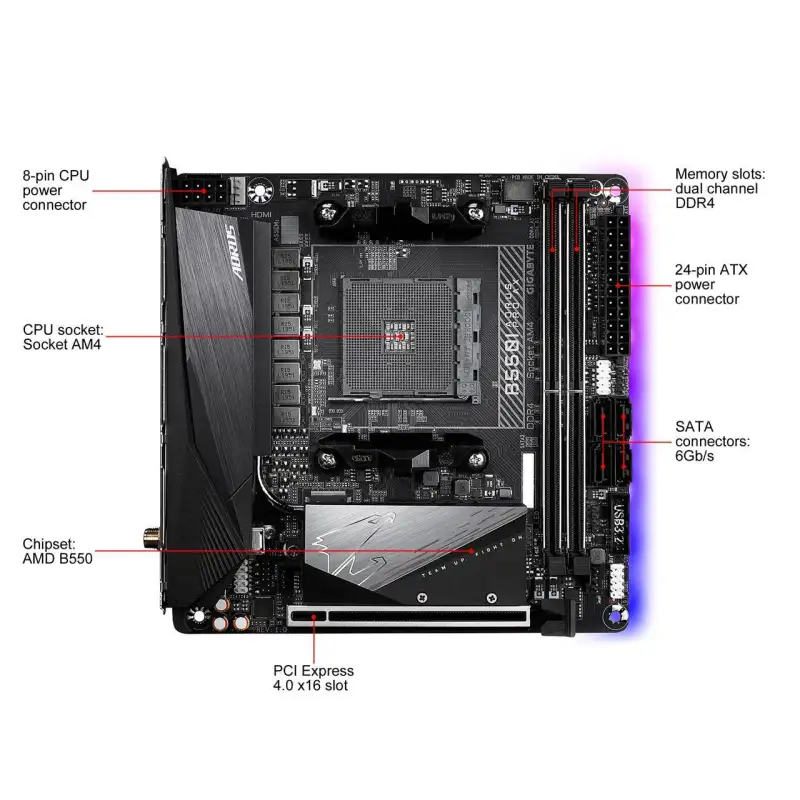

CPU Socket Type  AM4
CPU Type AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
Chipsets
Chipset  AMD B550
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard 3rd Gen AMD Ryzen Processors:
Support for DDR4 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported 64GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:

1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16GB
Onboard Audio
Audio Chipset  Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels  2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Onboard LAN
LAN Chipset Realtek 2.5GbE LAN chip
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11 ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Bluetooth BLUETOOTH 5

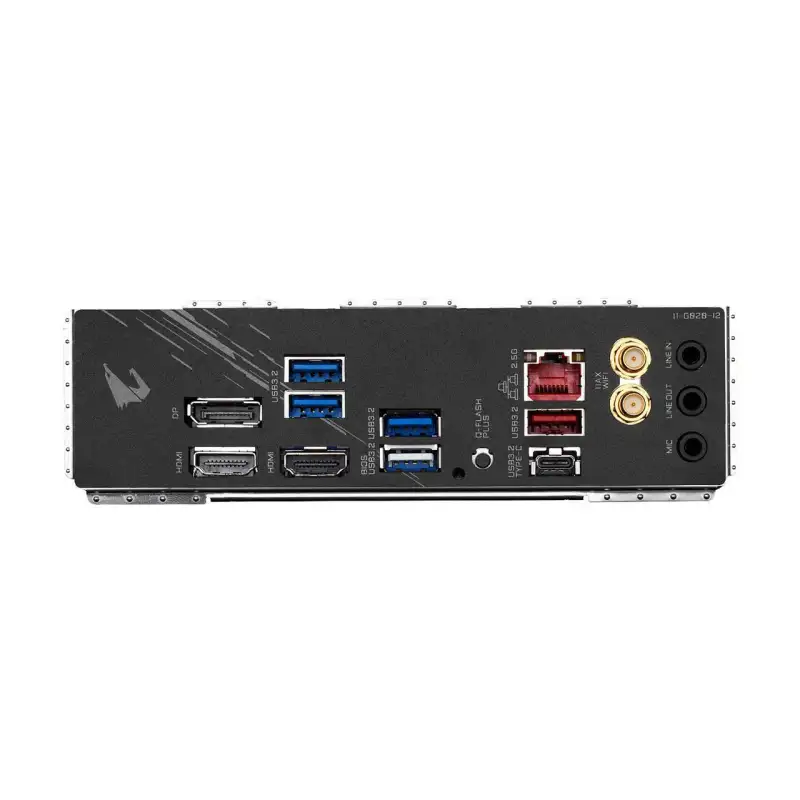

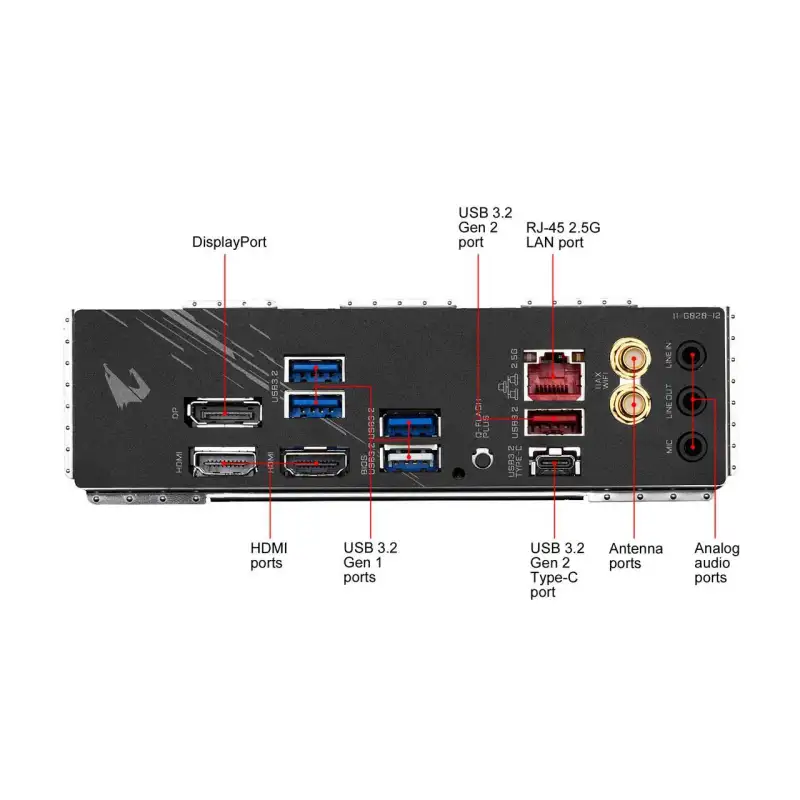

Rear Panel Ports
Back I/O Ports 1 x DisplayPort
2 x HDMI ports
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Physical Spec
Form Factor Mini ITX
LED Lighting RGB

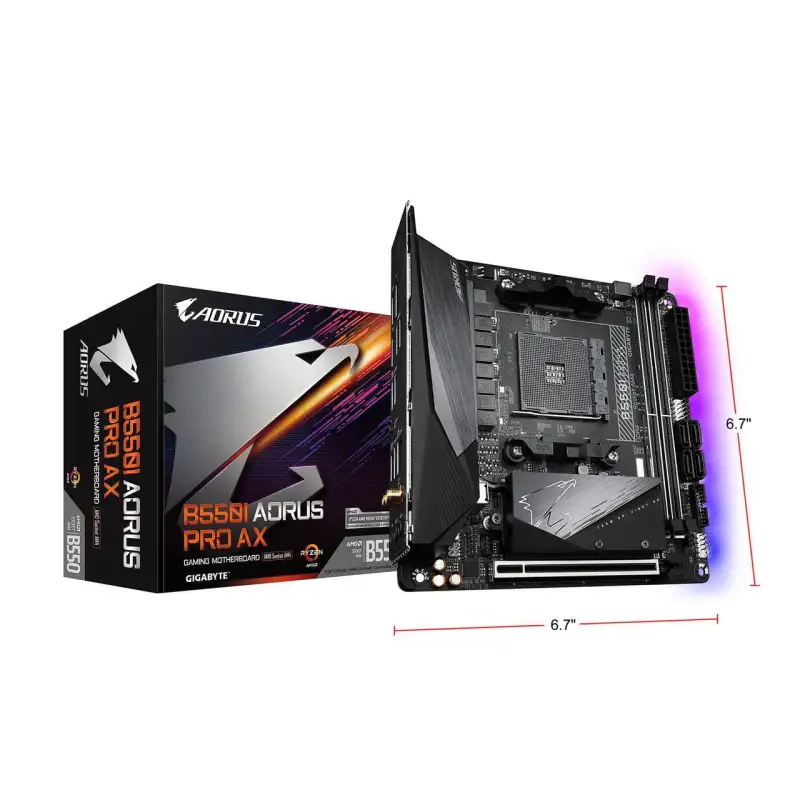

Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
Realtek 8125 Gaming LAN Bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
