Discounted!

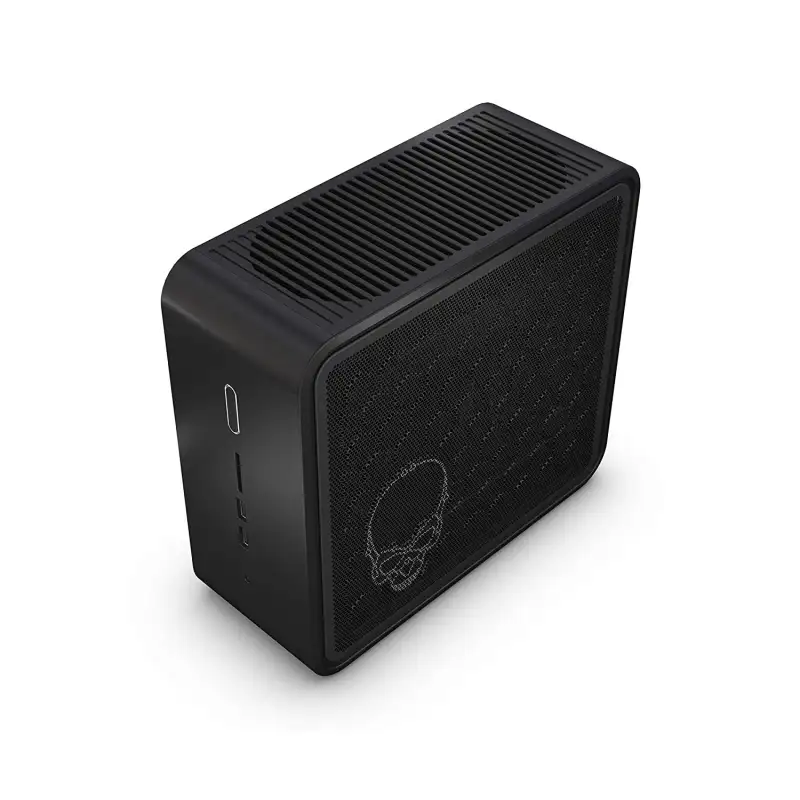

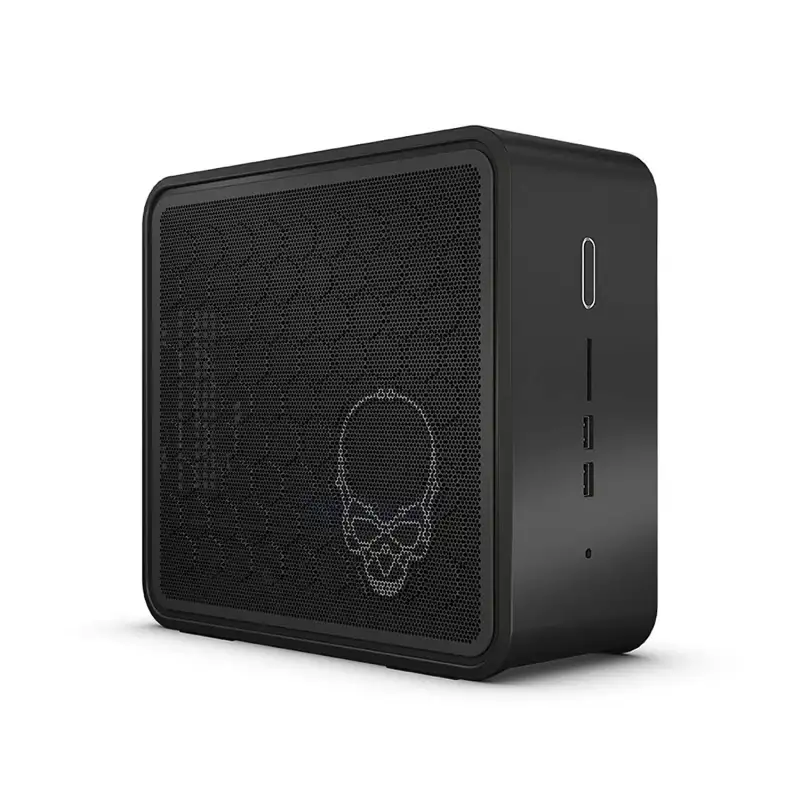

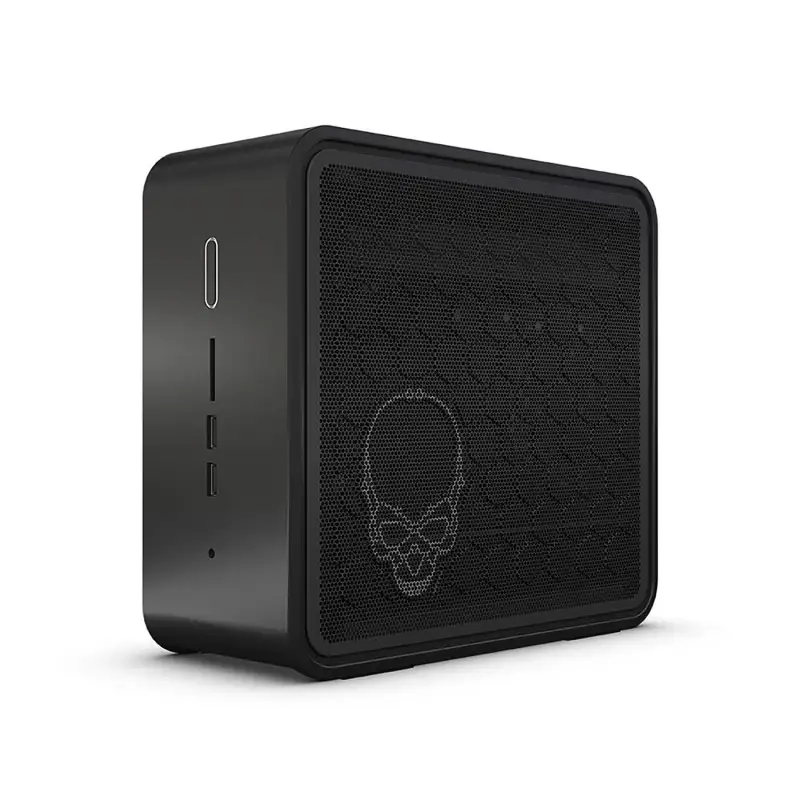

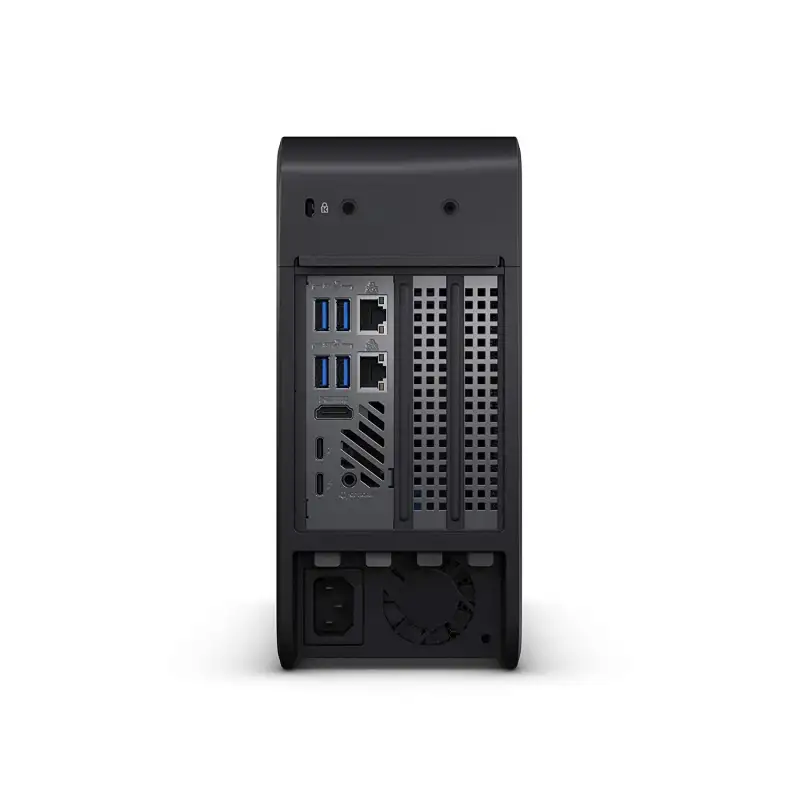

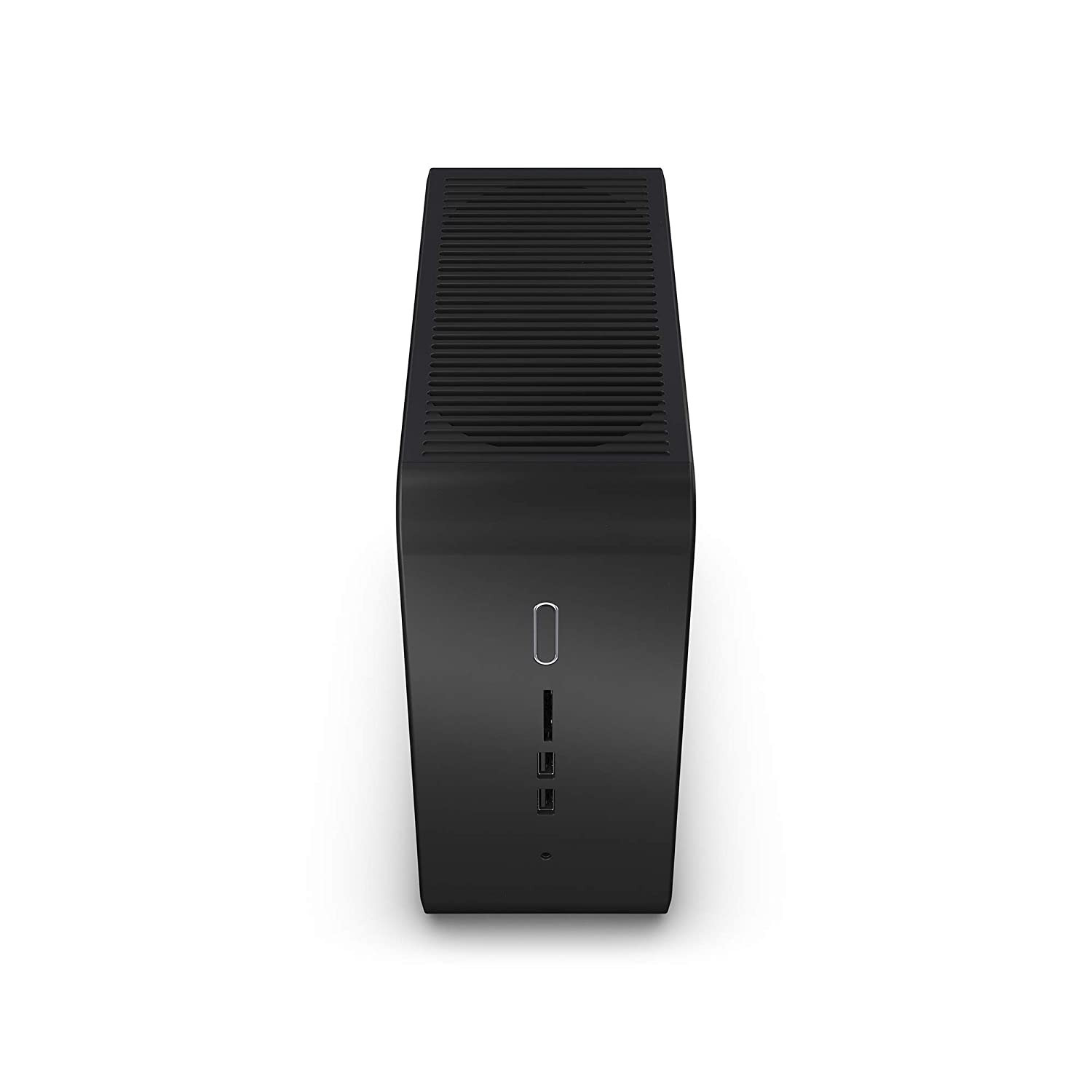

Intel® NUC 9 Extreme Kit - NUC9i9QNX

Reference: BG0052-9599066

Condition: New product

Target Usage: Virtual Reality, Gaming, Creator
9th Generation Intel Core i9-9980HK (NUC9i9QN) with Intel UHD Graphics, 350 MHz - 1. 25 GHz
Supports Microsoft Windows
Supports Intel Optane SSD and Intel Optane Memory M10 and H10 ready
Support up to 3x 4K displays; 2x Thunderbolt 3; HDMI 2. 0a
Connectivity technology: Bluetooth

4 Item Items Warning: Last items in stock!

$1,396.49

-15%

$1,642.92

Quantity

More info

Essentials

Product Collection: Intel® NUC Kit with 9th Generation Intel® Core™ Processors

Supported Operating Systems: Windows 10, 64-bit*

Board Number: NUC9i9QNB

Board Form Factor: PCIe

Internal Drive Form Factor: M.2 SSD

# of Internal Drives Supported: 3 Board Chipset Mobile Intel® CM246 Chipset

Processor Included: Intel® Core™ i9-9980HK Processor (16M Cache, up to 5.00 GHz)

# of Cores: 8

# of Threads: 16

Processor Base Frequency: 2.40 GHz

Max Turbo Frequency: 5.00 GHz

Warranty Period: 3 yrs

Memory & Storage

Max Memory Size: 64 GB

Memory Types: DDR4 2666 MHz 1.2V SO-DIMM

Max # of Memory Channels: 2

Max Memory Bandwidth: 42.6 GB/s

Max # of DIMMs: 2

Processor Graphics

Processor Graphics^:Intel® UHD Graphics 630

Integrated Graphics^:Yes

Graphics Output: 2x Thunderbolt 3, HDMI 2.0a

# of Displays Supported: 3

Discrete Graphics: Via PCIe add-in card(s)

Expansion Options

PCI Express Revision: Gen3

PCI Express Configurations: 2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU)
Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8" max card length

PCIe x4 Gen 3: 1

PCIe x16 Gen 3: 1

Removable Memory Card Slot: SDXC with UHS-II support

M.2 Card Slot (storage): 2x via PCH + 1x via CPU (NVMe)

I/O Specifications

# of USB Ports: 11

USB Configuration: 4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal: USB Revision

3.1 Gen2, 2.0:USB 2.0 Configuration (External + Internal) 3x int.

Total # of SATA Ports: 3

Max # of SATA 6.0 Gb/s Ports: 3

RAID Configuration: 2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)

Audio (back channel + front channel): 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)

Integrated LAN: Intel® Ethernet Connection i219-LM and i210-AT

Integrated Wireless: Intel® Wi-Fi 6 AX200

Integrated Bluetooth: Yes

S/PDIF Out Connector: TOSLINK

Additional Headers: CEC, 2x USB2.0, FRONT_PANEL

# of Thunderbolt™ Ports: 2x Thunderbolt™ 3

Package Specifications

Chassis Dimensions: 238 x 216 x 96mm

Advanced Technologies

Intel® Optane™ Memory Supported^:Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^:Yes

Intel vPro® Platform Eligibility^:No

TPM: Yes

Intel® Rapid Storage Technology: Yes

Intel® Virtualization Technology (VT-x) ^:Yes

Intel® Platform Trust Technology (Intel® PTT): Yes

Security & Reliability

Intel® AES New Instructions: Yes
