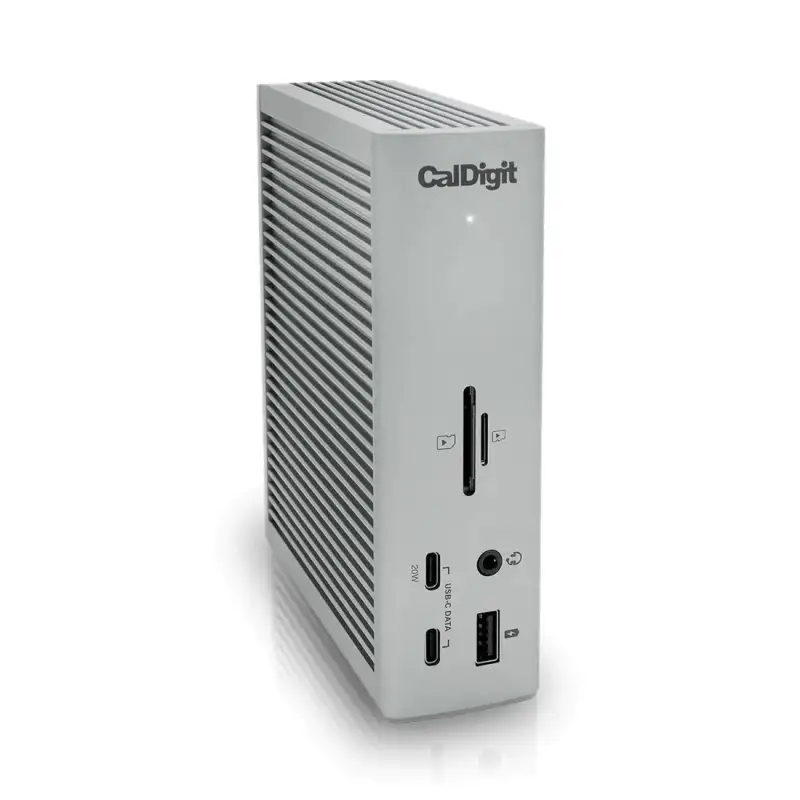

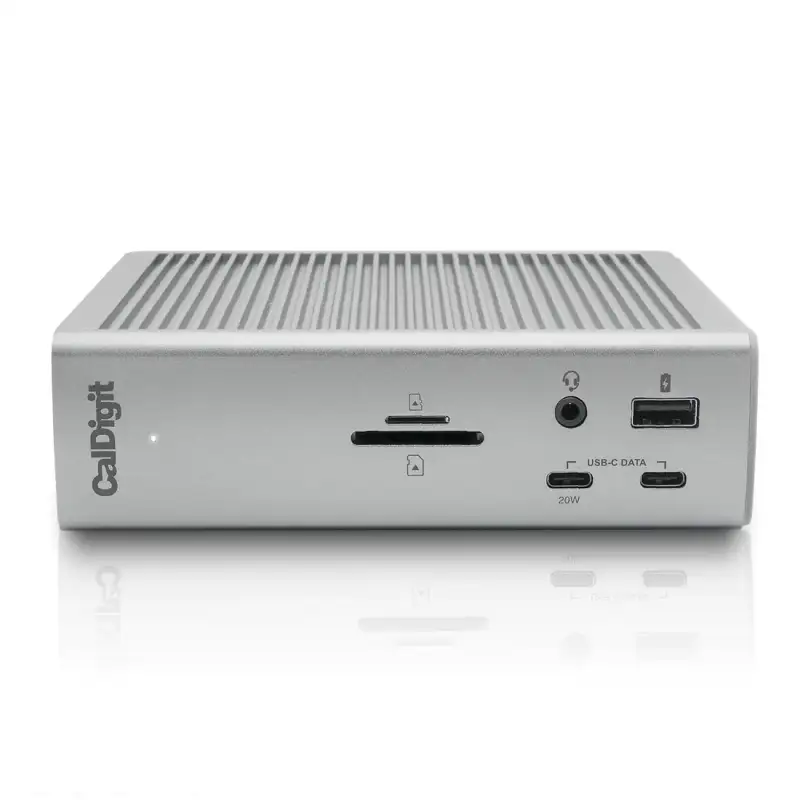

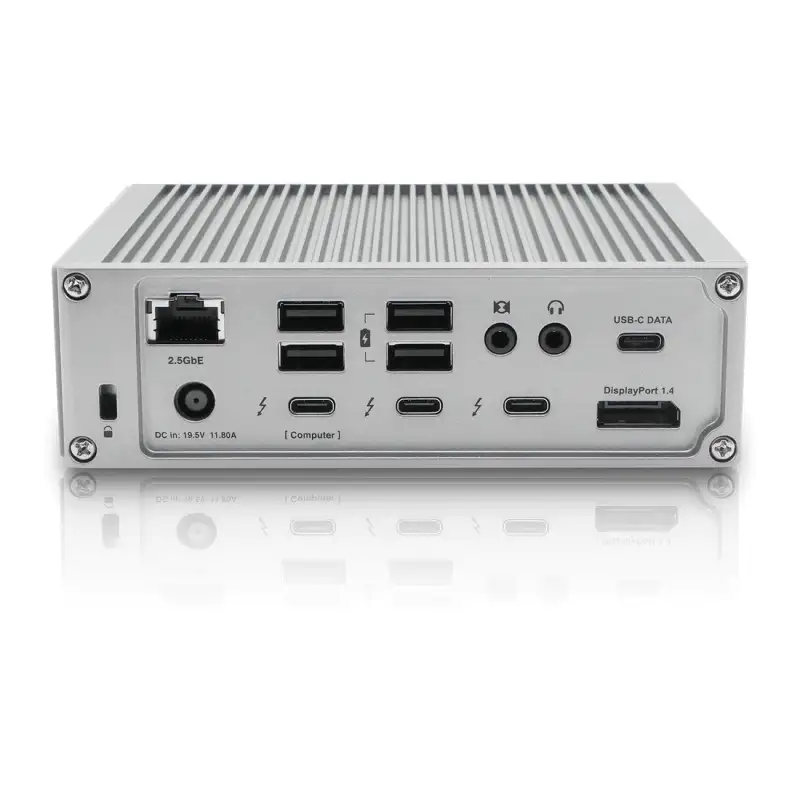

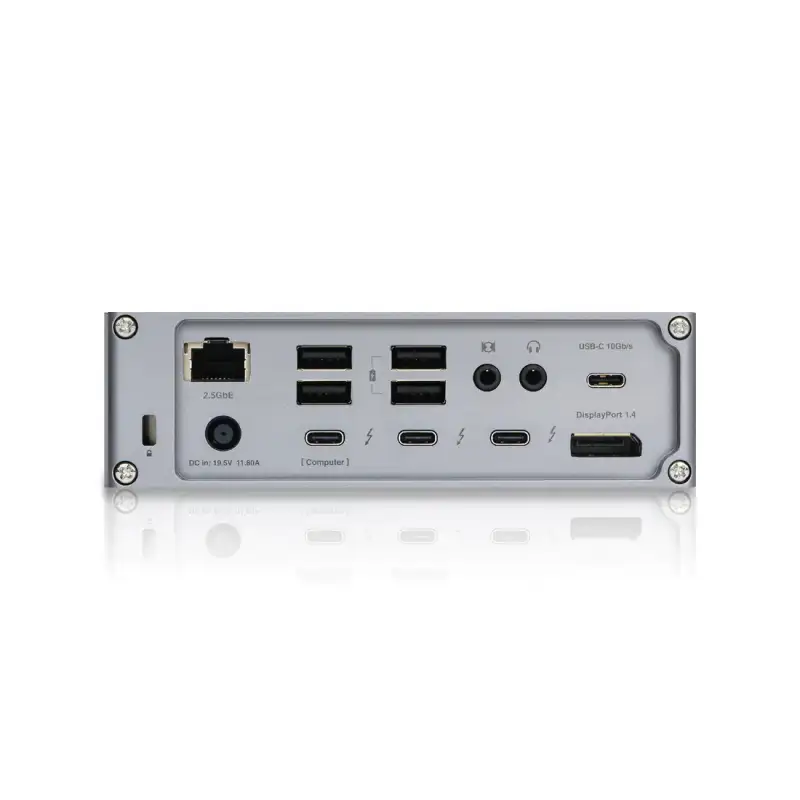

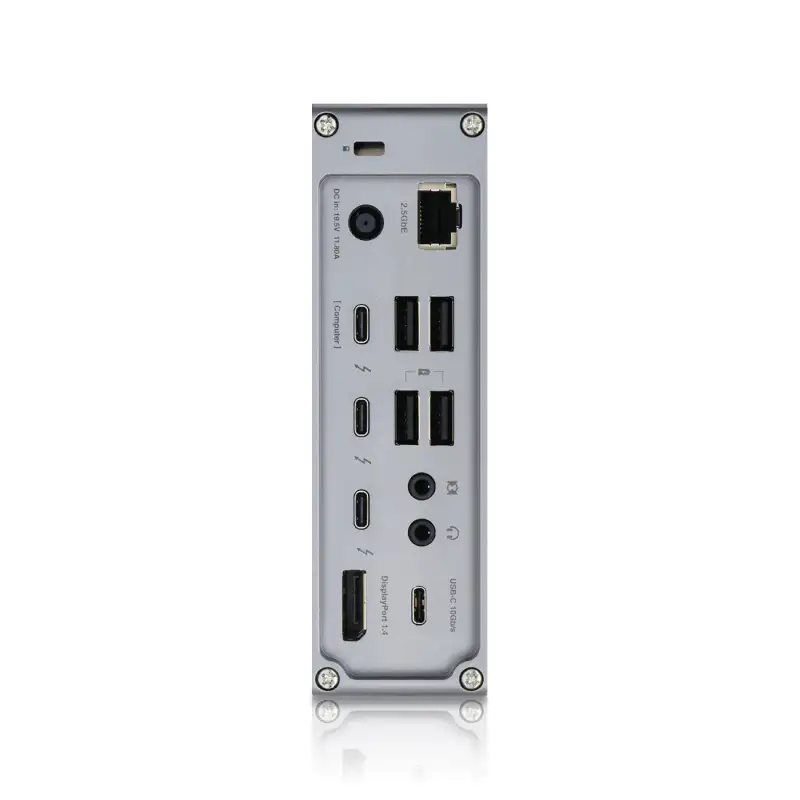

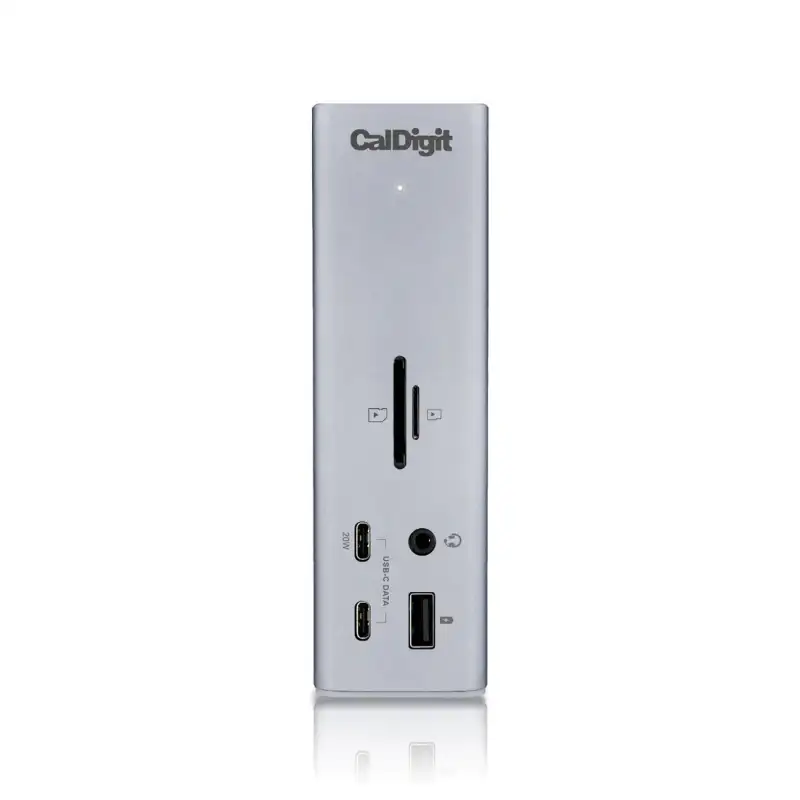

TS4 (0.8m) - Thunderbolt Station 4

Technical Specifications

3 x Thunderbolt 4 (40Gb/s)
3 x USB-C (10Gb/s)
5 x USB-A (10Gb/s)
1 x DisplayPort 1.4
1 x SD 4.0 (UHS-II)
1 x microSD 4.0 (UHS-II)
1 x 2.5 Gigabit Ethernet
1 x Front Combo Audio In/Out (3.5mm)
1 x Rear Audio Out (3.5mm)
1 x Rear Audio In (3.5mm)
1 x DC In (19.5V 11.80A)

Minimum System Requirements

• macOS 11.4 (Big Sur) or above⁴
• Windows 10 (20H2) or above
• Thunderbolt 4 Computer
• Thunderbolt 3 Computer
• USB-C (USB4) Computer
• USB-C Computer
• Chromebook (Thunderbolt or USB-C)
• iPad Pro/iPad Air/iPad mini (Thunderbolt or USB-C)
• iPhone 15 (USB-C)
• Windows Tablet (Thunderbolt or USB-C)

Power Delivery

• Thunderbolt 4/USB4 Host Port: Up to 98W
• Each Downstream Thunderbolt 4/USB4 Port: 15W
• Front 20W USB-C Port: 20W
• Remaining USB-C Ports: 7.5W
• USB-A Ports: 7.5W

Size & Weight

• Height: 5.55” (141.0mm)
• Width: 1.65” (42.0mm)
• Length: 4.46” (113.0mm)
• Weight: 1.41 lbs (0.64kg)

In the Box

• 1 x CalDigit TS4
• 1 x Thunderbolt 4 Cable (0.8m)
• 2 x Rubber Feet Strips
• 1 x Power Cord
• 1 x Power Supply (230W)

Warranty

• 2 Years

¹Up to 8K resolution is supported on compatible Windows computers. macOS computers such as the M1, M1 Pro & M1 Max, support up to 6K.
²Some Thunderbolt 3 Windows PC manufacturers have decided to limit the functionality of their Thunderbolt ports. Check to see if your PC supports dual displays.
³Original Apple M1 based computers can only support 1x external monitor through the Thunderbolt port.
⁴The TS4 requires macOS 11.4 (Big Sur) or above. Thunderbolt 4 devices are not compatible on lower OS versions.
⁵The 2.5Gb Ethernet on TS4 is not compatible with USB-C iPhone.

Additional Information
- Full TS4 functionality depends on the host computer’s capabilities. Users on USB-C based computers or tablets will see reduced functionality. 2.5 Gigabit Ethernet is only supported on Thunderbolt based hosts.
