Alfa AWUS036ACH USB C Type WiFi Adapter
Reference: BG0052-G7202492618
Condition: New product
Delivery on: Jun 10 2026

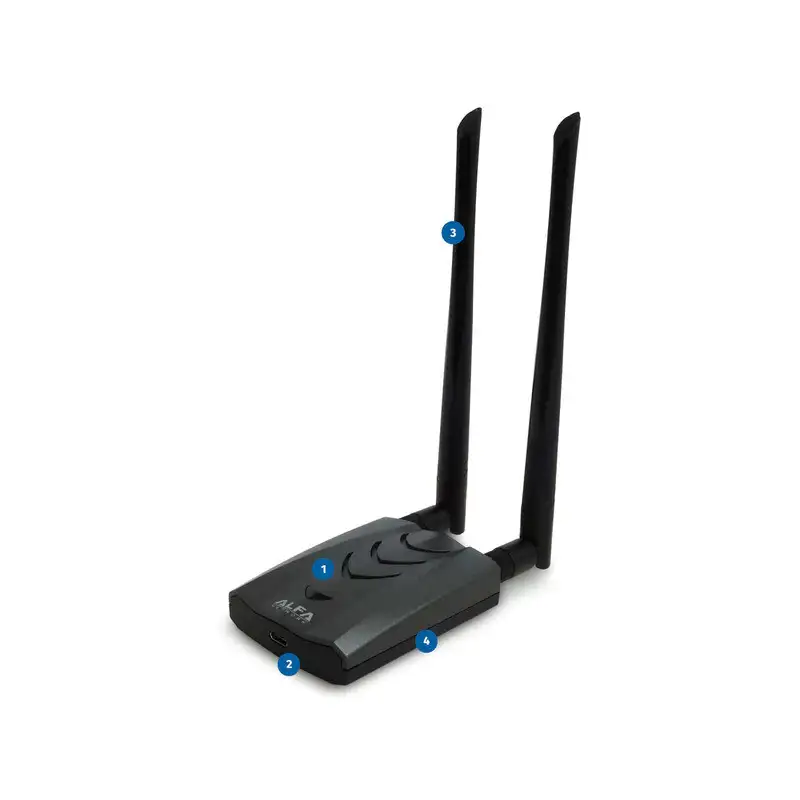

World's first WiFi 5 adapter with USB Type-C, screen clip mount and detachable antennas
- (1) Realtek™ RTL8812AU WiFi 5 (802.11ac) chipset

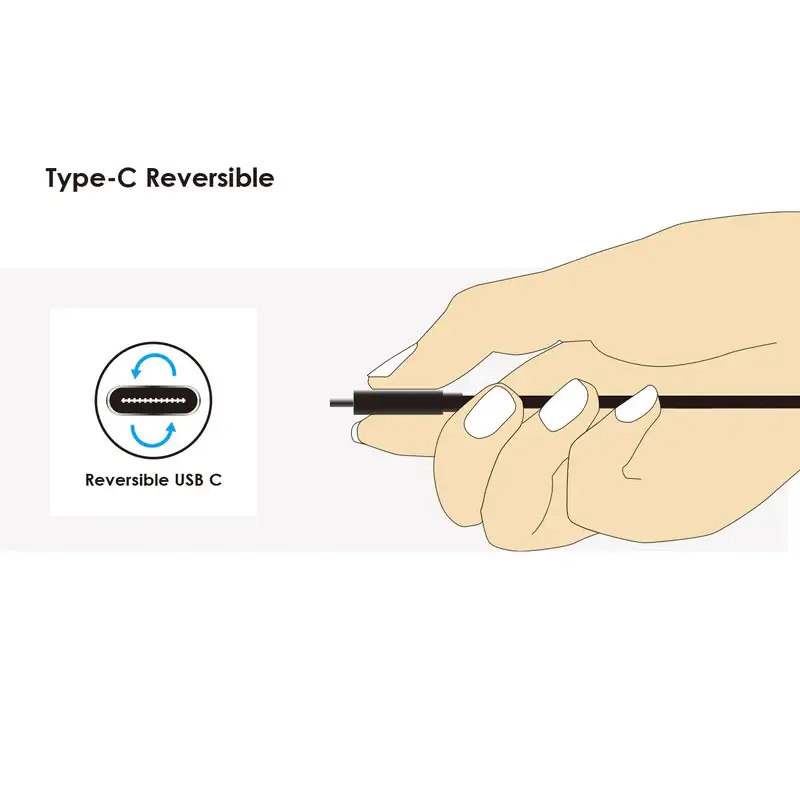

- (2) Type-C SuperSpeed USB 5 Gbps (with USB 2.0 backward compatibility)

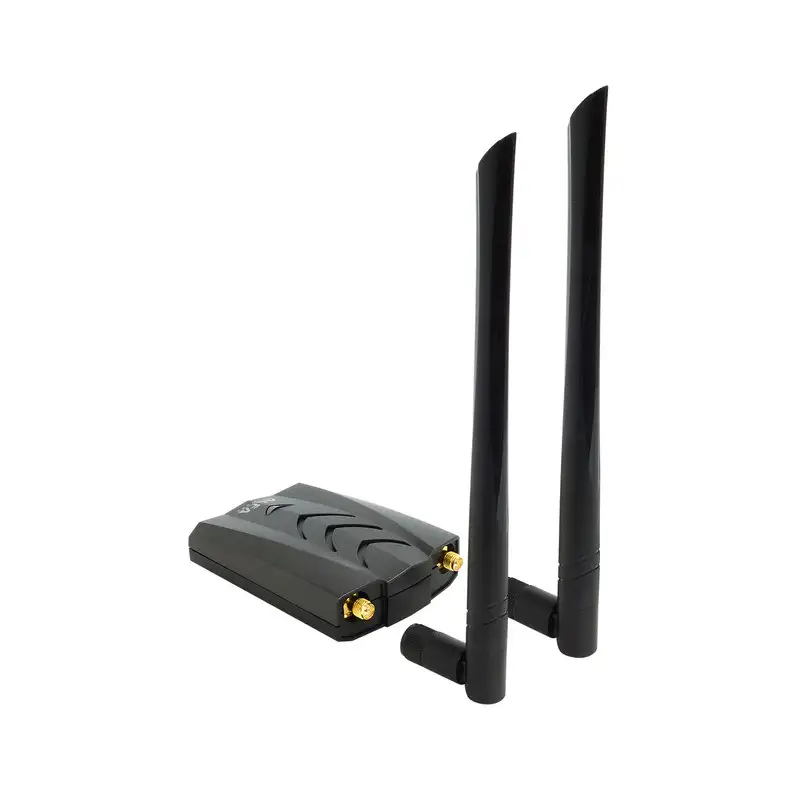

- (3) Two detachable, high-gain antennas (dipole omni, 5 dBi gain)

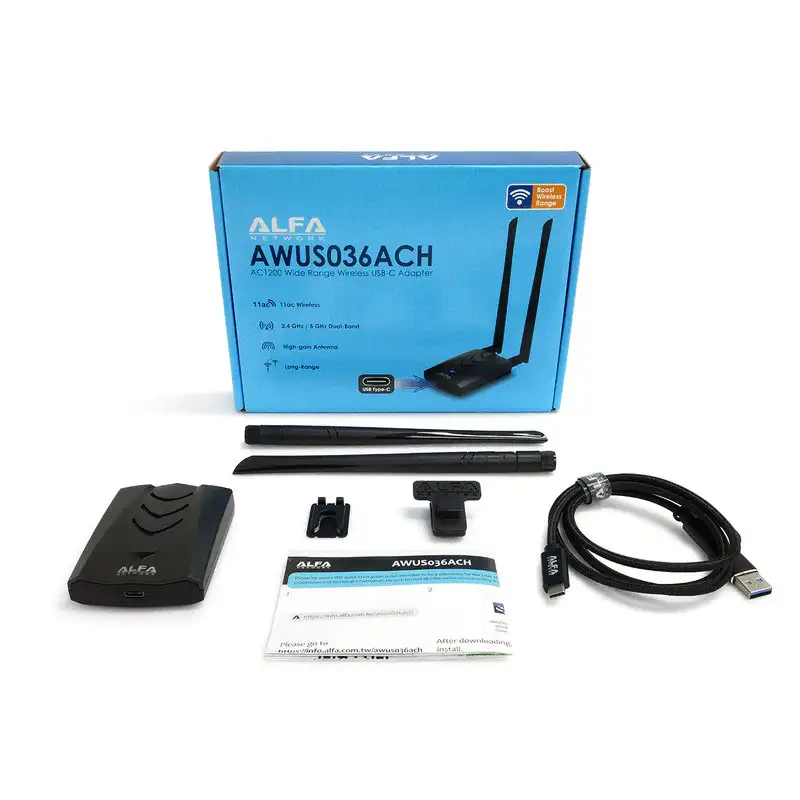

- (4) Screen clip mount included in bundle
10 Items
More info

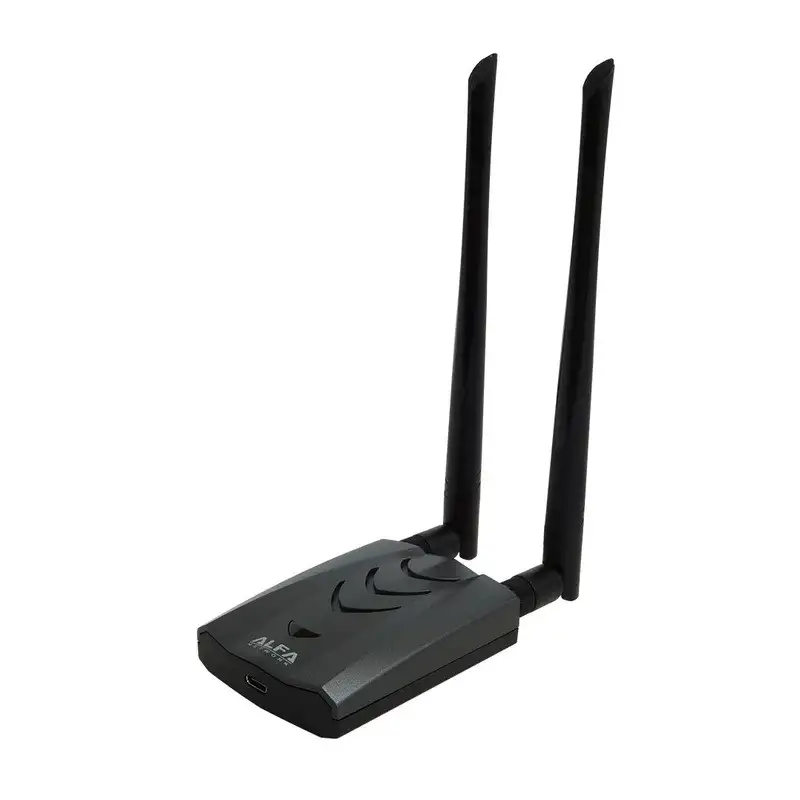

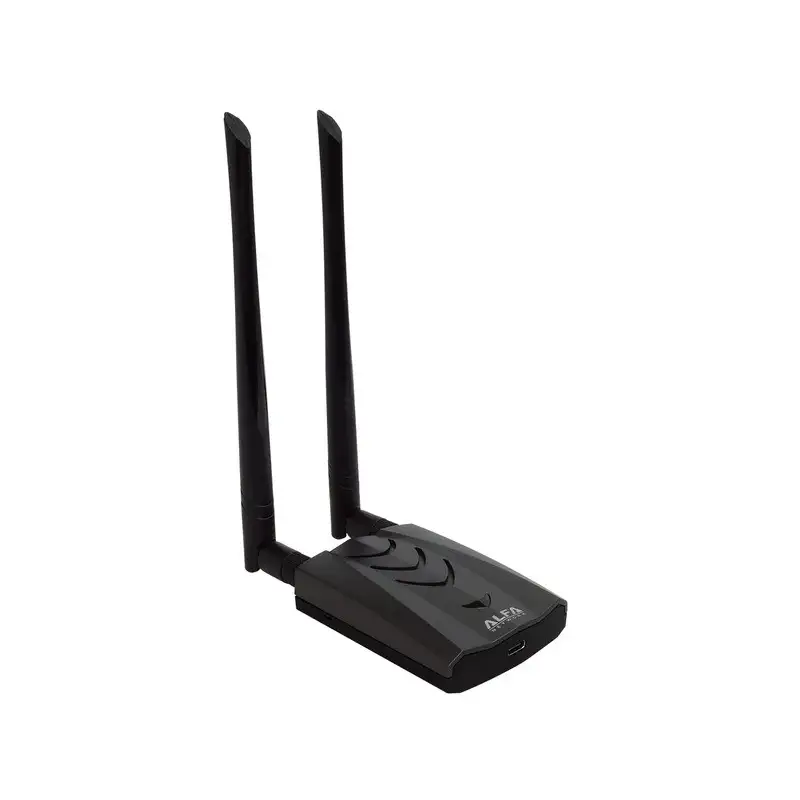

AWUS036ACH is a USB Type-C dual-band AC1200 WiFi adapter
The AWUS036ACH USB adapter incorporates highly integrated Realtek™ RTL8812AU WLAN chipset, with support for 802.11ac standard.

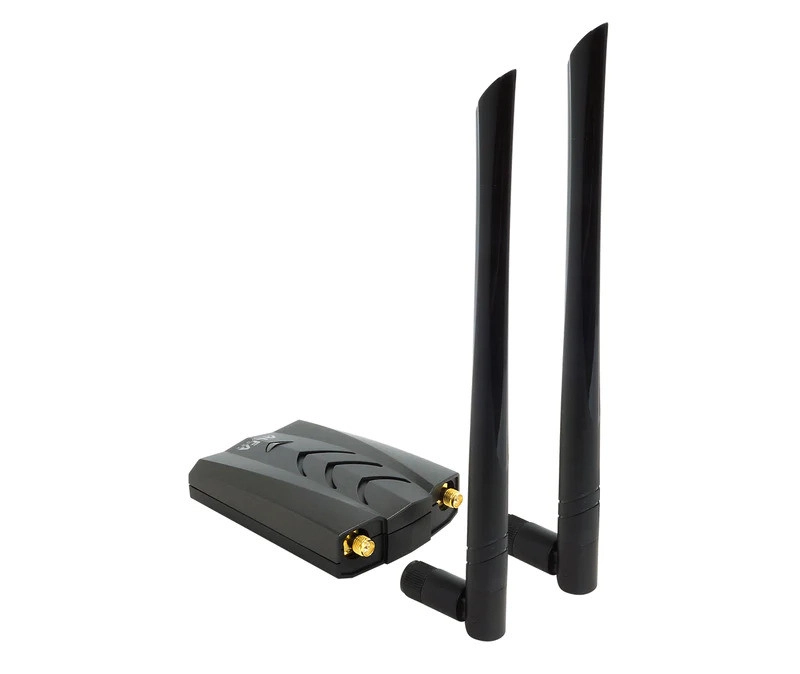

This device supports dual-band operation (2.4 or 5 GHz band), is backward compatible (802.11a/b/g/n) and includes two RP-SMA (female) connectors equipped with dipole omni antennas (5 dBi gain).
| Parameter | Value |
|---|---|
| Chipset | Realtek™ RTL8812AU |
| IEEE 802.11 standards | a/b/g/n/ac |
| Frequency | 2.4 GHz 5 GHz |
| Data rate | 802.11b: 11 Mbps 802.11a/g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 867 Mbps |
| Antenna connectors | 2× RP-SMA (female) |
| Antenna | 2× dipole omni (5 dBi gain) |
| Interface | Type-C SuperSpeed USB 5 Gbps (with USB 2.0 backward compatibility) |
| Operating systems | Microsoft Windows XP, Vista, 7, 8, 10, 11 Mac OS 10.5 - 10.15 Linux |
| Power consumption (max.) | 0.7 A on 5 V |
| Dimensions | 85 × 63 × 20 mm |
