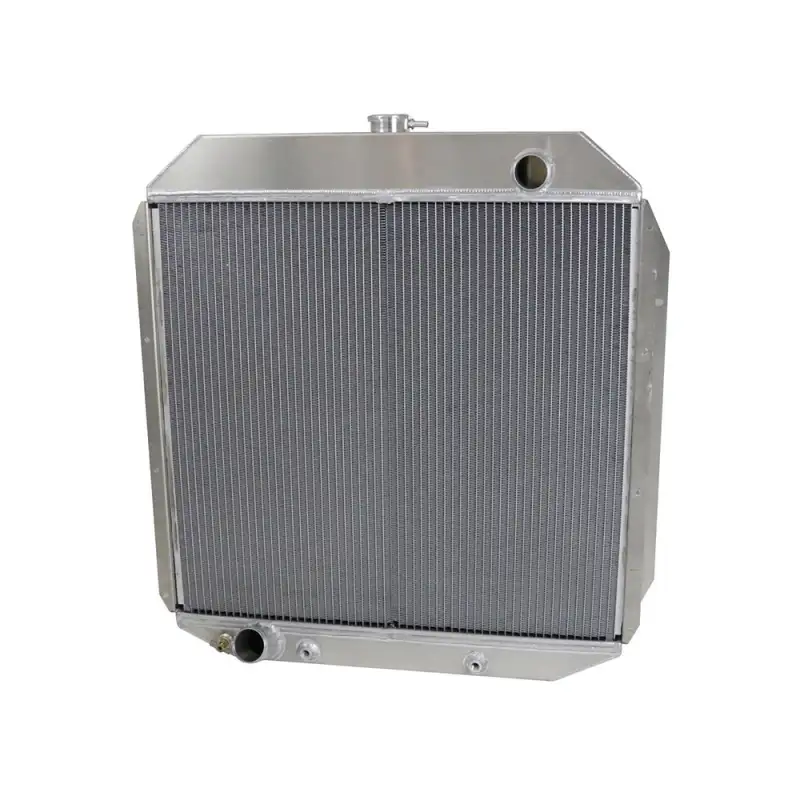

1967 FORD F-100 PICKUP - 5.8 liter V8 352CID RADIATOR 1.25 INCH WIDE TUBE, 24 X 26 CORE, BRACKET GRILL

VERY IMPORTANT BEFORE YOU BUY

1.) Measure Core height of your old radiator
2.) Check Bracketing layout

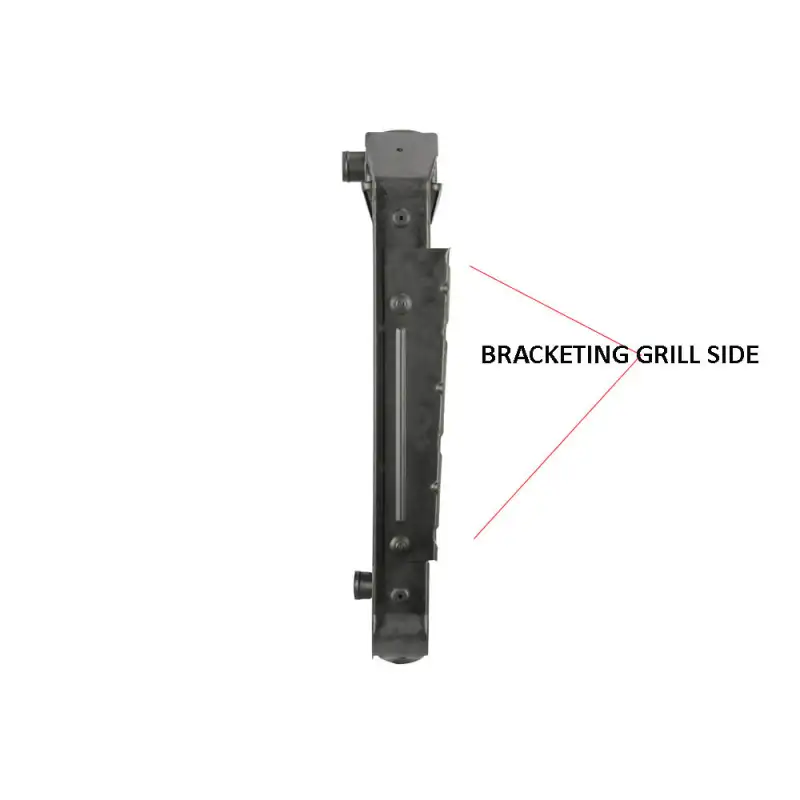

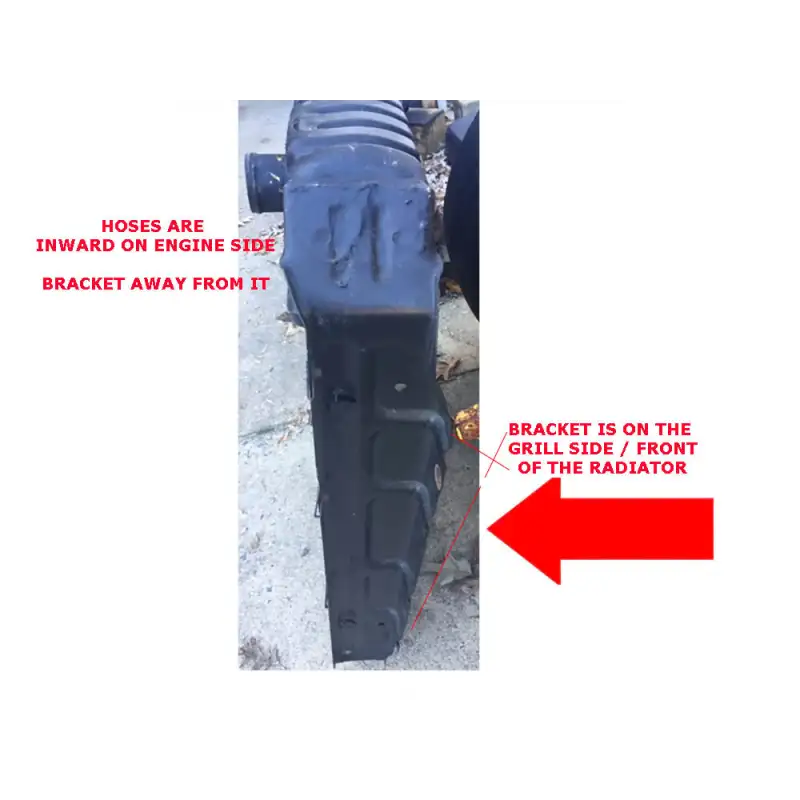

This item has 24" tall fin and tube area and brackets are on the grill/bumper side of the radiator opposite the hoses


Core Size: 24 1/4" x 25 7/8"
overall Dimensions: 31 1/8"x 29 7/8"
Core Thickness: 2 1/2
Rows: 2 row of 1 inch tubing
Inlet Header: 4-1/4 x 26-1/4,
Outlet Header: 3 x 26-3/4
Inlet Connection: 1-3/4 right, Outlet Connection: 2 left
Transmission Cooler: 1/8-27 NPT
Mount Type: Double Flange, 29" Bolt hole to Bolt Hole across
Oil Cooler: 12 in., Engine Cooler: none

Direct fit, bolt in replacement for the 1966-1979 FORD F Series Trucks & Bronco

For application where the original radiator was 24.25" Between the tanks. Mounting flange on grill side.

Direct fit radiator
16 Fins per inch
Filler neck is machined from a solid aluminum billet
No epoxy, fully furnace brazed
Fully TIG welded
100% MADE IN THE USA

The core for this custom built performance radiator features 2 rows of 1.25" tubes for extreme desert cooling. The tubes are space 3/8" apart, on center. With 3/8" centers we are able to put more rows of tubes, fins, and coolant volume in the core as well as create more surface area for air to travel over' allowing for greater heat dissipation.
